Home Toolbuy Products Nc Duplex Rotary Cut-off with Helical Knife Double Layer

Nc Duplex Rotary Cut-off with Helical Knife Double Layer

Nc Duplex Rotary Cut-off with Helical Knife Double Layer
Price: US $ 30000-1000000/Set
Min Order: 1/Set
Pay Type: T/T,Western Union

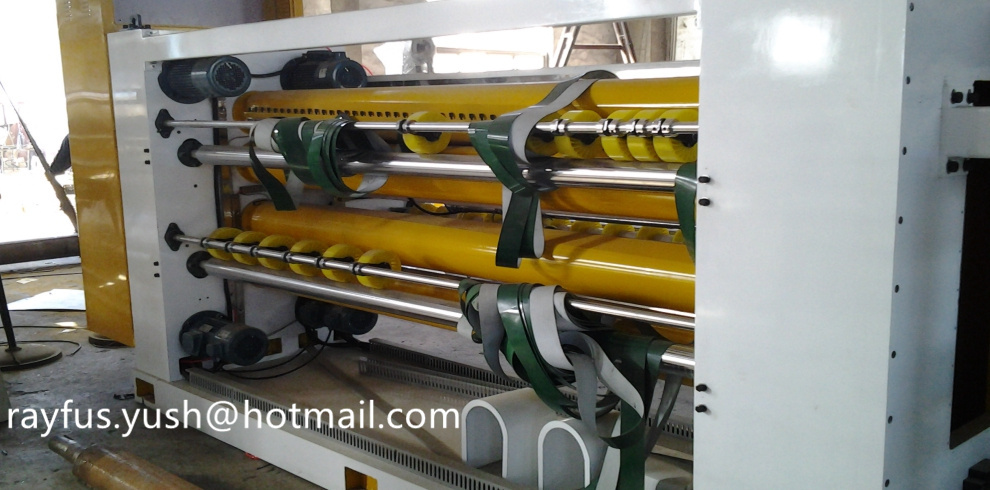

NC Duplex Helical Knife Rotary Cut-off Machine

1) NC Duplex Rotary Cut-off Using straight knife or spiral knife cutting mode, dual-roll rotary cut. Dual roller blade up and down in series configuration, which can produce two different length specifications of cardboard.

2) Man-machine interface separation, color screen display product information, which can check, modify, append, cancel.

3) Precision adjustable without clearance gear used to ensure accurate cutting gear, running smooth, high precision, low noise.

3/5/7-layer Corrugated Cardboard Production Line

1) WJ-I/II/III 3/5/7-layer Corrugated Cardboard Production Line consists of the following machines, Electrical Shaftless Mill Roll Stand, Single Preheater, Fingerless type Single Facer, Overhead Conveyor Bridge, Duplex Preheater, Duplex Gluer, Double Facer, Lift-down Thin Blade Slitter Scorer, NC Cut-off, Right-angle Conveyor & Stacker, etc.

2) Kraft Paper Reel to be corrugated and glue by Corn Starch Gum, continuously produce, slit, crease & cut to 3/5-layer Corrugated Cardboard Sheet, and then conveyor, stack and output.

3) The production line has rational structure design, advanced producing flow, high efficiency, strong batch adjustability, easy operation, etc. good work conditions.

4) It is the ideal and perfect equipment for corrugated carton box factories.

Max Effective Width

1100~2200mm

Max Paper Roll Diameter

1500mm

Max Paper Roll Weight

3000kg

Corrugating Roller

Φ280~405mm, 48CrMo alloy steel, hardness HRC58°-60°

Min Slitting Width

150mm

Cutting Length

500~9999mm

Design Speed

100~200m/min

Heating Method

Steam Heating

Economic Working Speed

80~160m/min



Prod Model: NC-D
Operatin Side: Left or Right Make to Customer Rerquest
Electricity Voltage: Made to Customer Request
Yush Machine Group Co., Ltd. is a professional enterprise specializing in the R&D, production, sales and service of complete manufacturing equipments of carton and paper box. We are proud to say that we own about 100 sets of modernized processing equipments and more than 30 core technical personnel, ensuring that we are capable to offer customers packing equipments with reasonable design and top-notch quality as well as improving our competitiveness among counterparts.

Recently we pay more attention to the high-tech R&D as well as the manufacturing to cater to the modern development of international packing industry and meet the demands of national and overseas markets. The company has invested heavily in the building of R&D center and after-sale service team. The company has been expanding the workshop and increasing the product types, which has achieved zero inventory of products and no complaint from customer.

On the premise of keeping the quality and service of products, we lay great stress on credibility and always stick to the principle of "credibility first and customer-oriented". In the interest of our customers, we shall offer top-quality products and services to all of them. At present we have won the trust of carton manufacturing enterprises with the prompt delivery and stable quality.

Sincerely welcome you to join our customer list and we shall repay you with the top-notch products and perfect services.
