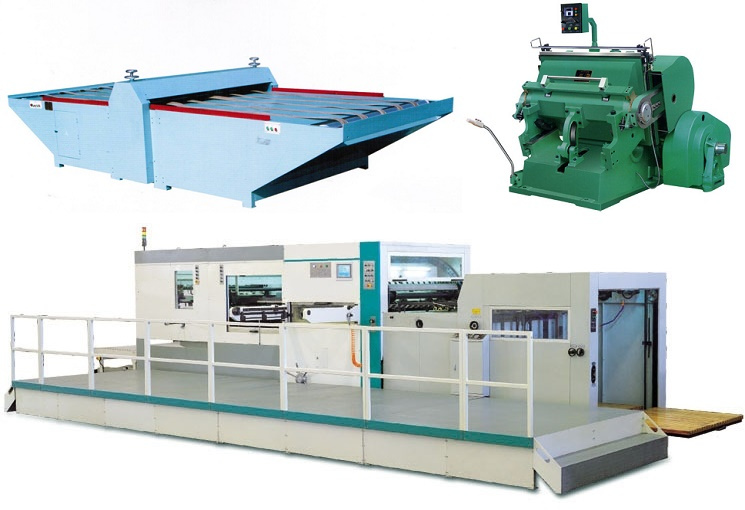

Flatbed Die-Cutter Machine for Corrugated Carbboard or Paper

Flatbed Die-Cutter Machine for Corrugated Carbboard or Paper
Price: US $ 4000-250000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: T/T,Western Union

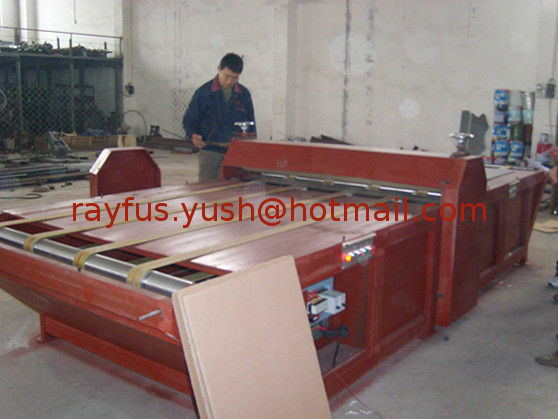

Platform Die-cutter

1) MCJ Platform Die-cutter is the improved equipment, to make the special upscale unusual carton, which can slice the side, slice the corner, hurtle the hole, open the slot, press the trace, and other processes.

2) It can make all the above-mentioned processes, into one integral whole process, and merge once mould cutting into the type.

3) The quality of slicing the mould is stable, the size is accurate, the side is hairless.

4) It is clean and tidy, and operated safely and conveniently.

Max Sheet Size1300*1500mm~2000*3000mm
Design Speed30~15pcs/min

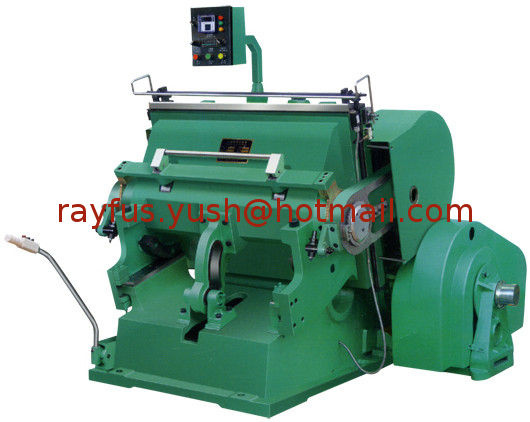

Platen Die-cutting and Creasing Machine


1) ML Platen Creasing & Die-cutting Machine is hand-feeding-style semi-automatic creasing and cutting machine, for which the engineers absorbed advanced structures to improve the design. Major parts: Stand, pressure frame, electro-magnetic clutch transmission, electrical controller, automatic reset device, automatic counting parts, and according to different application requirements, designed to derive a series of products with different functions.

2) This series product is multi-functional, large pressure cutting edge, easy operation, safety features. It applies pressure cutting a variety of forming cardboard, plastic and leather, etc. Products. Various high-level fine print can be found in the machine on the convex-concave indentation, and thus the print even more exquisite, beautiful, richer three-dimensional sense.

Max Effective Area750*520mm~2500*1500mm
Max Rule Length15~80mm
Working Speed30~15pcs/min

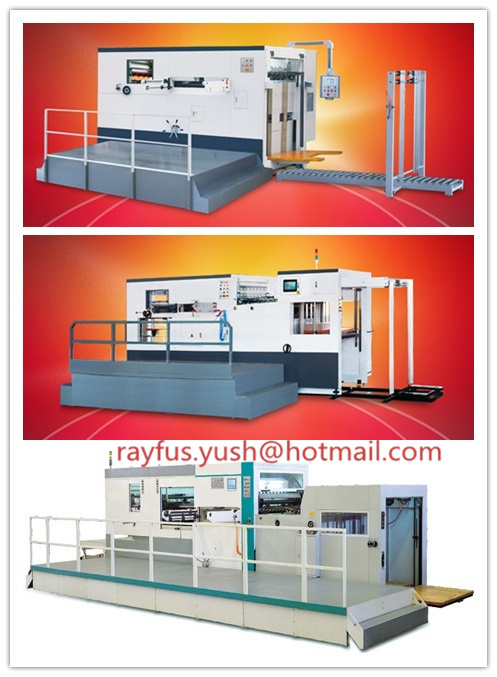

Flatbed Die-cutter & Creaser


1) MY-A Automatic Die-cutting & Creasing Machine adopts automatic top suction head feeding system, more suitable for paperboard or thin E-flute corrugated cardboard.
2) Front, back and side position mechanism ensures perfect die-cutting precision.
3) Adopt intermittent mechanism with high precision, air clutch, pneumatic locking mechanism, programmable controller and man-machine interface.
4) The interface can display various digital information of machine, working speed, amount of sheet processed, total running time, etc.
5) It is easy to eliminate troubles according to the display of trouble shooting.
6) Adopt transducer to control the main motor to achieve stepless speed variation.
7) Equipped with sensors and safe-ensuring devices to guarantee safe operation.
8) Front and back pressure can be adjusted separately.
9) Convenient to stop machine by hand, could also die-cutting without gripper edge.
10) Equipped with auto stripping system and auto stacking unit.

ModelMY-SMY-A/Q
Max Sheet Size1050*750~1500*1100mm1050*750~1500*1100mm
Min Sheet Size350*400~450*550mm350*400~450*550mm
Max Die-cutting Size1050*750mm~1470*1080mm1040*720mm~1470*1080mm
Max Pressure300N/cm 2300N/cm 2
Die-cutting Precision±0.1mm±0.1mm
Paperboard Sheet200~2000gsm200~2000gsm
Corrugated Sheet1~8mm1~8mm
Max Stacking Height1200mm1200mm
Design Speed4500sheets/h4500~7500sheets/h


Prod Model: MCJ
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Electricity Voltage: Made to Customer Request
Imprinting Type: Rotary Platen
Placing Form Of Template: Horizontal
Die Cutting Tool: Steel Blade
Automatic Grade: Semi-Automatic
Application: Earthquake Products
Yush Machine Group Co., Ltd. is a professional enterprise specializing in the R&D, production, sales and service of complete manufacturing equipments of carton and paper box. We are proud to say that we own about 100 sets of modernized processing equipments and more than 30 core technical personnel, ensuring that we are capable to offer customers packing equipments with reasonable design and top-notch quality as well as improving our competitiveness among counterparts.

Recently we pay more attention to the high-tech R&D as well as the manufacturing to cater to the modern development of international packing industry and meet the demands of national and overseas markets. The company has invested heavily in the building of R&D center and after-sale service team. The company has been expanding the workshop and increasing the product types, which has achieved zero inventory of products and no complaint from customer.

On the premise of keeping the quality and service of products, we lay great stress on credibility and always stick to the principle of "credibility first and customer-oriented". In the interest of our customers, we shall offer top-quality products and services to all of them. At present we have won the trust of carton manufacturing enterprises with the prompt delivery and stable quality.

Sincerely welcome you to join our customer list and we shall repay you with the top-notch products and perfect services.
