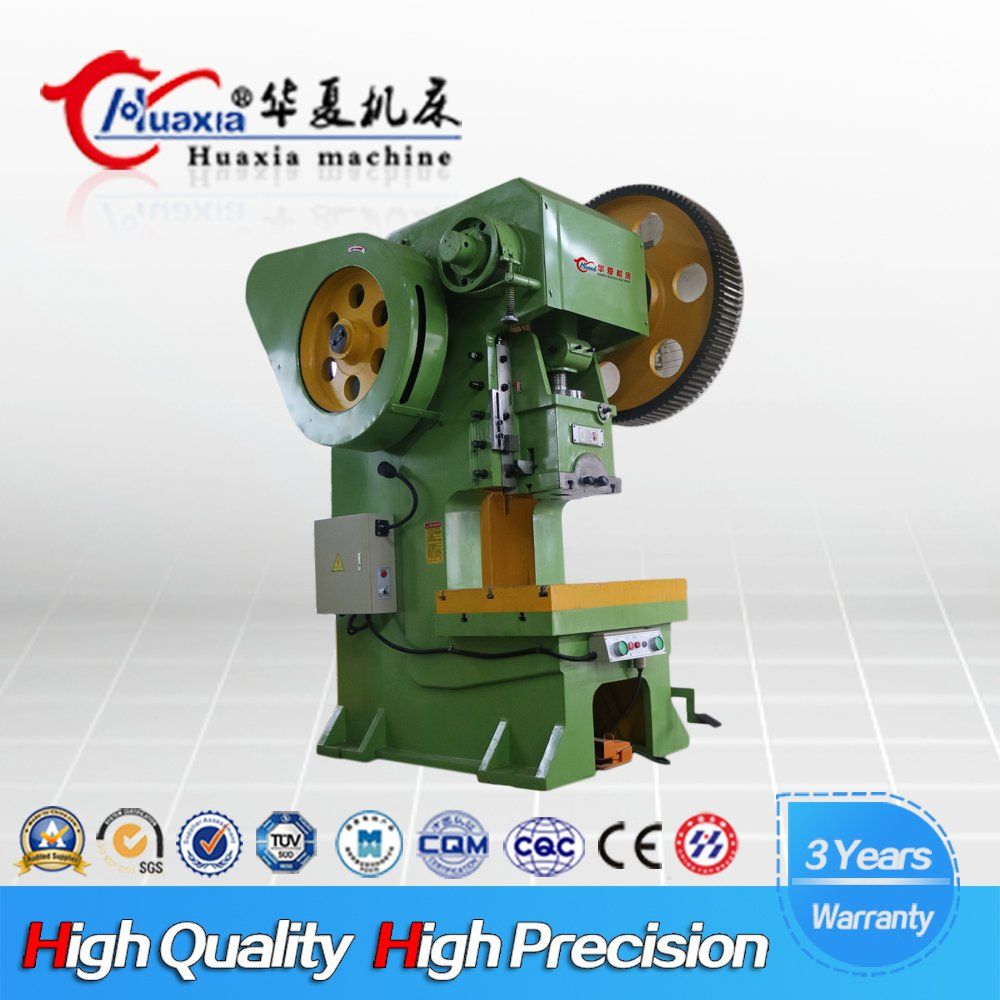

J21s Series Deep-Throat Mechanical Power Press Compression Punching Machine
1. Product DescriptionThe tablet press machine is suitable for various cold punching and pressing processing such as blanking, holes punching, forming, bending, shallow drawing etc. It is widely used in the industries such as electric apparatus, instruments, vehicles, machinery and hardware etc.
2. Features of J21 deep-throat power press.2.1. Welded steel structure with higher strength and rigidity;
2.2. C-frame machine fuselage, convenient for mould installation and processing large work pieces;
2.3. Horizontal crankshaft, easy for maintenance;
2.4. Collapsed-type safety device to protect the whole machine from being damaged due to overloading;
2.5. Belt-type brake, easy for adjustment;
2.6. Rigid clutch, simple structure
2.7. The machine fuselage with higher strength and rigidity, economic and durable;
2.8. Simple structure, good versatility, easy operation and maintenance.
3. Packaging & DeliveryPacking Detail: Standard exporting package or according to your demand
1, inner machine, it is packaged in moistureproof film.
2, pallet or wood box.
3, ground fixed bolt to confirm steady and avoid destory.
4, tightly exporting standard belf to fasten machine in container.
Shipping Detail: Within 25 days after receive deposit
4. ServiceOur machine is simple, generally, you can understand how to operate easily, and welcome to our factory to learn how to operate our machine, we will give good training. If necessary, our engineer can go to your factory, and adjust machine, give good training
If any, pls contact us freely.
5. Company InformationAnhui HuaXia Machine Manufacturing Co., Ltd. Specialize in manufacturing Press Brakes, Shearing Machines, Rolling Machines, Irorworkers Power Press, and so on. Our enterprise philosophy is innovation and customer oriented. We sincerely hope to establish cooperative relationships with friends from all over the world to achieve greater development.
6.Anhui Huaxia machine| apellation unit | J21S-10T | J21S-16T | J21S-25T | J21S-40T | J21S-63T | J21S-80T | J21S-100T | J21S-125T |
| nominal pressure | kN | 100 | 160 | 250 | 400 | 630 | 800 | 1000 | 1250 |
| nominal pressure stroke | mm | 4 | 5 | 5 | 6 | 6 | 8 | 9 | 10 |
| slipper stroke | mm | 50 | 60 | 70 | 100 | 100 | 120 | 130 | 140 |
| slipper stroke times | t/min | 130 | 110 | 70 | 55 | 60 | 50 | 45 | 45 |
| max. closing height | mm | 180 | 220 | 260 | 320 | 330 | 380 | 380 | 400 |
| closing height adjuster | mm | 35 | 50 | 60 | 80 | 80 | 100 | 100 | 100 |
| distance between slipper centre to machine | mm | 420 | 500 | 500 | 500 | 500 | 500 | 500 | 500 |
| work bench dimension | front and back | mm | 240 | 300 | 320 | 400 | 450 | 480 | 590 | 660 |
| left and right | mm | 360 | 450 | 530 | 650 | 710 | 750 | 890 | 980 |
| diameter of blank-holding hole | front and back | mm | 100 | 130 | 140 | 170 | 180 | 210 | 240 | 260 |
| left and right | mm | 180 | 200 | 220 | 240 | 260 | 340 | 360 | 400 |
| diameter | mm | 95 | 120 | 130 | 160 | 170 | 190 | 200 | 210 |
| slipper underside bore | front and back | mm | 100 | 130 | 170 | 220 | 230 | 310 | 280 | 360 |
| left and right | mm | 170 | 220 | 250 | 300 | 340 | 240 | 410 | 480 |
| size of die handle bore | diameter | mm | 30 | 40 | 40 | 50 | 50 | 60 | 60 | 70 |
| depth | mm | 50 | 60 | 60 | 70 | 70 | 80 | 80 | 90 |
| pole distance | mm | 160 | 170 | 210 | 260 | 280 | 300 | 340 | 370 |
| distance between bench to guideway | mm | 200 | 250 | 290 | 340 | 350 | 380 | 400 | 430 |
| Pad thickNess | mm | 35 | 45 | 50 | 80 | 80 | 90 | 100 | 110 |
| motor | power | kW | 1.1 | 1.5 | 2.2 | 4 | 5.5 | 7.5 | 7.5 | 11 |
| Rotational Speed | r/min | 1410 | 1410 | 1440 | 1440 | 1440 | 1440 | 1440 | 1460 |
| dimension | front and back | mm | 1200 | 1400 | 1600 | 1800 | 1900 | 1790 | 2100 | 2200 |
| left and right | mm | 650 | 780 | 900 | 1100 | 1150 | 1320 | 1400 | 1500 |
| height | mm | 1560 | 1800 | 2000 | 2400 | 2450 | 2600 | 2680 | 2800 |
| weight | kg | 780 | 1100 | 1800 | 3100 | 3600 | 4800 | 5800 | 7800 |
