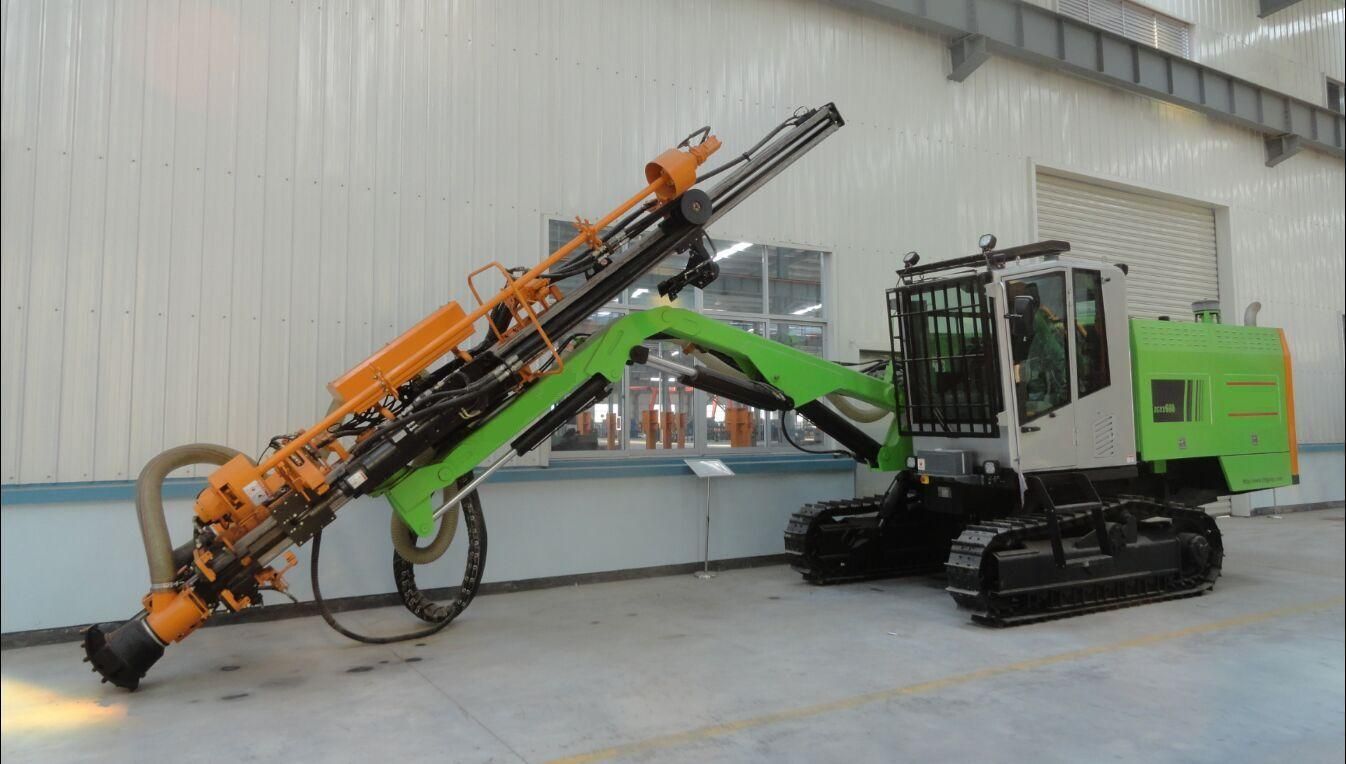

Hydraulic Top Hammer Drill

Hydraulic Top Hammer Drill
Price: US $ 80000-200000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
Specifications and Technical Data
ZGYX-630  HYDRAULIC TOP HAMMER DRILL

Drifter
ModelZY-103Max. impact frequency40-60HZ
OriginChinaDrilling rodT38×3.66m
(T38/R32)
Drilling diameter42-89mmDrilling depth10m
Rotary speed0-192r/minImpact power103kw
Rotary torque860N.MHydraulic system pressure200 bar
Rotary systemIndependent

Engine
Manufacturer CumminsRotary speed 2200 rpm
Model48TA3.9-C125Tank volume210L
Rated power93kw

Drilling boom and feeder
Max. feeding force16KNFeeding compensation1200mm
Feeding stroke4180Feeder total length7000mm
BoomFolding boomRod changer&holding q'tyStandard2+1
Screw air compressor
OriginChinaHead manufacturerGHH
Displacement3.0m3/minMax. air pressure7 bar
Weight
Total machine weight10500kg


Prod Model: ZGYX-630
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name: Hydraulic Top Hammer Drill
Model: Zgyx-630
Drifter Model: Zy-103
Drifter Impact Frequency: 40-60Hz
Drilling Rod: T38*3.66m (T38/R32)
Drilling Diameter: 42-89mm
Drilling Depth: 10m
Rotary Speed: 0-192r/Min
Impact Power: 103kw
Rotation Speed: 0-192r/Min
Structure: Vertical Drilling Machine
Layout: Vertical
Controlling Mode: CNC
Automatic Grade: Automatic
Precision: High Precision
Qingdao Grandplan Technology Co., Ltd. is a global based equipment and machinery supplier and project contractor in mining field.
The main business is to supply mining equipment and machinery, including Open pit mining machinery and underground mining machinery and equipment, construction machinery and equipment, drilling equipments, mineral processing plant machinery, sand making machinery, cement plant machinery, consumables and chemicals for mining operation, ore import and export business, investment in mining projects, experienced EPC supplier for mining projects.
The company is located in the sailing capital of China Qingdao, Shandong Province with convenient commercial conditions including transportation and financial conditions. Our principle is to supply quality products with excellent price and excellent service.
Our slogan is "We build the road to increase your value! "
