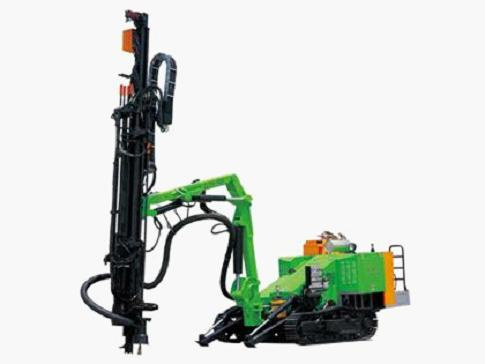

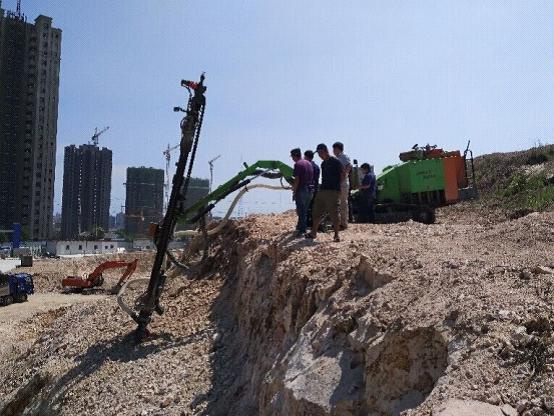

Hydraulic Top Hammer Drill

Hydraulic Top Hammer Drill
Price: US $ 100000-160000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
Specifications and Technical Data

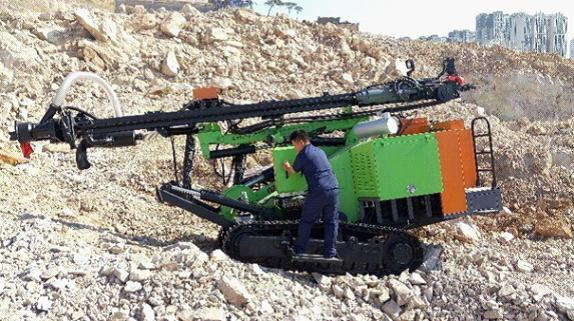

ZGYX-520  HYDRAULIC TOP HAMMER DRILL


Product Recommendation:
Advanced design concept---cost efficient
1. High efficiency and energy saving: within the drilling diameter range, while the drilling speed is 1m/min, the oil consumption is 0.5L/m.
2. Off-road and flexibility: the design of reverse folding boom reduced the transportation
dimension, on the basis of boom's normal working range, it got more stable gravity center, so its max. Moving speed is 4km/h. Enlarged leveling angle not only improved its off-road performance, but also enable it drill normally on the slope of  25°.
3. Cost and maintenance: except some components, most cparts including the hydraulic drifter are from china with high physical performance. So compared with similar imported hammer drill, it can save much more costs during the process of ordering new machine, operation, fixing and maintenance.

ZY-101/103 hydraulic drifter
Hydraulic drifter's elongated piston could decrease the energy consumption to the minimum while deliver the max. Impact energy to the drilling tool. The stroke is divided into long, medium, short, can be adjusted based on different rock hardness, drilling diameter, rotary speed to achieve the best efficiency.

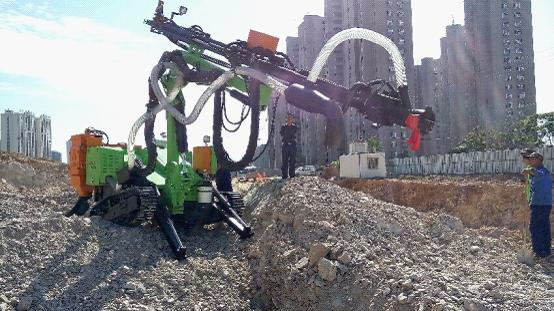

Product features
1. Dust catcher: mobile dust catching cover and coarse strainer constitute the dust first-stage
   ilter system.
2. Drilling boom, cylinder: high-strength boom and enlarged oil cylinder make the drilling
   process more stable.
3. Electronic system: each pressure, flow rate, adjustment and operation are very convenient,
   the adopted PLC has the function of self-protection and maintenance-reminder.
4. Automatic lubrication and injection system: lubrication oil injection is automatic, the drill
   tools service life are greatly extended and more convenient.
5. Rod changing mechanism: all controlled by cylinders, easy adjustment and low failure rate.
6. Feeding system: the feeding system made of hydraulic motor and chain could achieve fast
   Lifting.
7. Hose reel: effectively lengthen the hose's service life.
8. Drifter: hydraulic and anti-jamming system make the drilling more smooth.
9. Dust collector: secondary dry collector make the working environment clean.
10. Moving dual control system: provide convenient condition for drilling and long distance
Moving.
11. Moving mechanism: heavy-duty excavator's chassis and leveling cylinder enable its
outstanding off-road performance.

Drifter
ModelZY-103Max. impact frequency40-60HZ
OriginChinaDrilling rodT38×3.66m
Drilling diameter76-89mmDrilling depth15m
Rotary speed0-300r/minMax. impact power15kw
Rotary torque800N.M

Engine
Manufacturer CumminsRotary speed 2100 rpm
Model48TA3.9-C125Tank volume210L
Rated power93kw

Drilling boom and feeder
Angle of drilling boom-72°-+54°Feeding force14.4KN
Boom swing angleleft 22°right 37°Feeding compensation1200mm
Pitchping angle-8°-+88°Feeder total length7236mm
Swing angleleft 15°right 97°Drilling rod length3660mm
Drifter stroke4180mmRod changer&holding q'tyStandard4+1
Screw air compressor
OriginChinaHead manufacturerGHH
Displacement4.5m3/minMax. air pressure7 bar
Chassis
Gradeability25°Max. moving speed4km/h
Ground clearance360mmMax. tractive force65KN
Crawler framework
swing angle
+/-14°

Weight and dimension
Total machine weight9300kgLength×width×height7236×2337×
3000mm


Prod Model: ZGYX-520
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name: Hydraulic Top Hammer Drill
Model: Zgyx-520
Drilling Diameter: 76-89mm
Drilling Depth: 15m
Drilling Rod: T38*3.66m
Engine: Cummins
Rated Power: 93kw
Max. Impact Power: 15kw
Rotary Torque: 800n.M
Usage: Ore
Power Type: Diesel
Type: Rotary Drilling Rig
Condition: New
