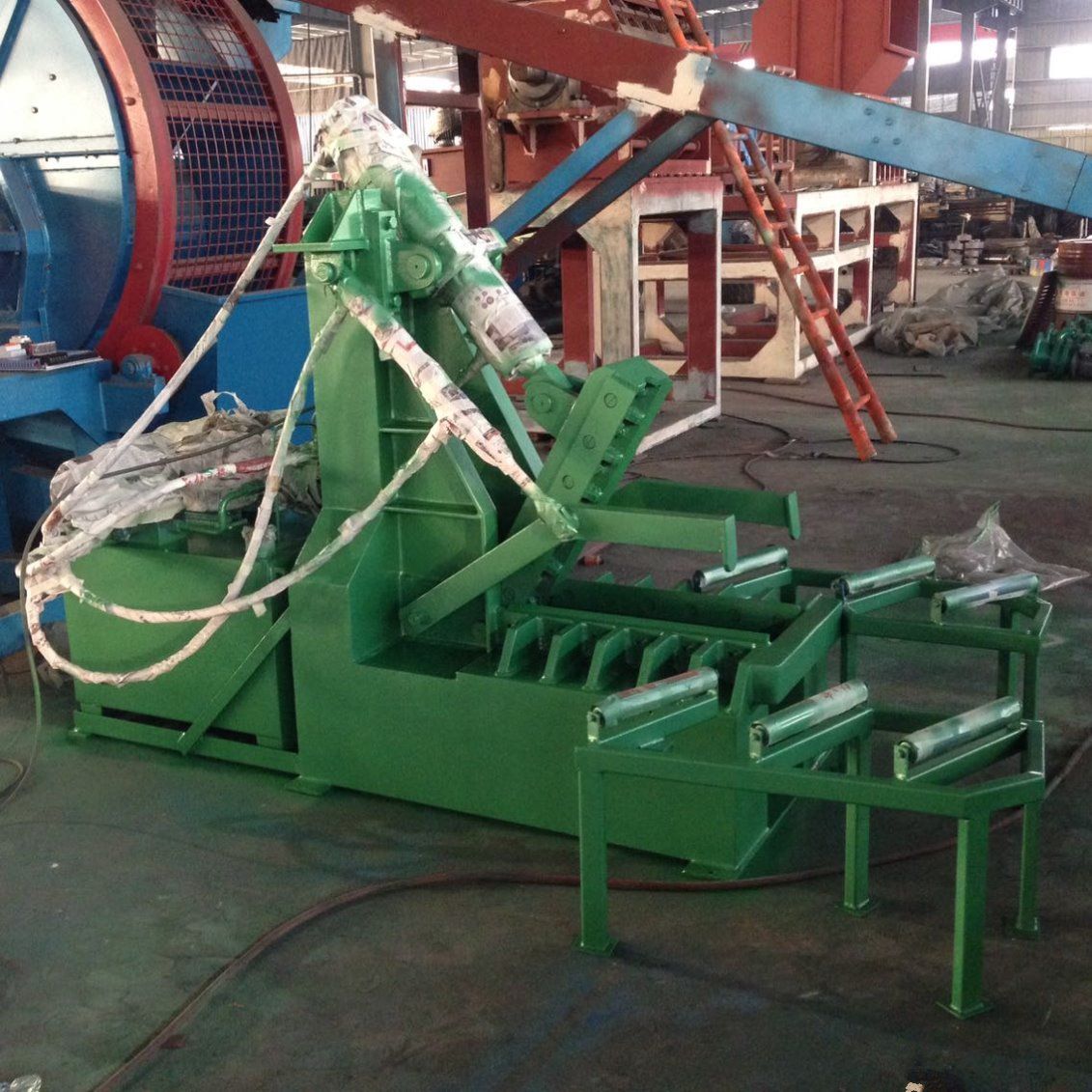

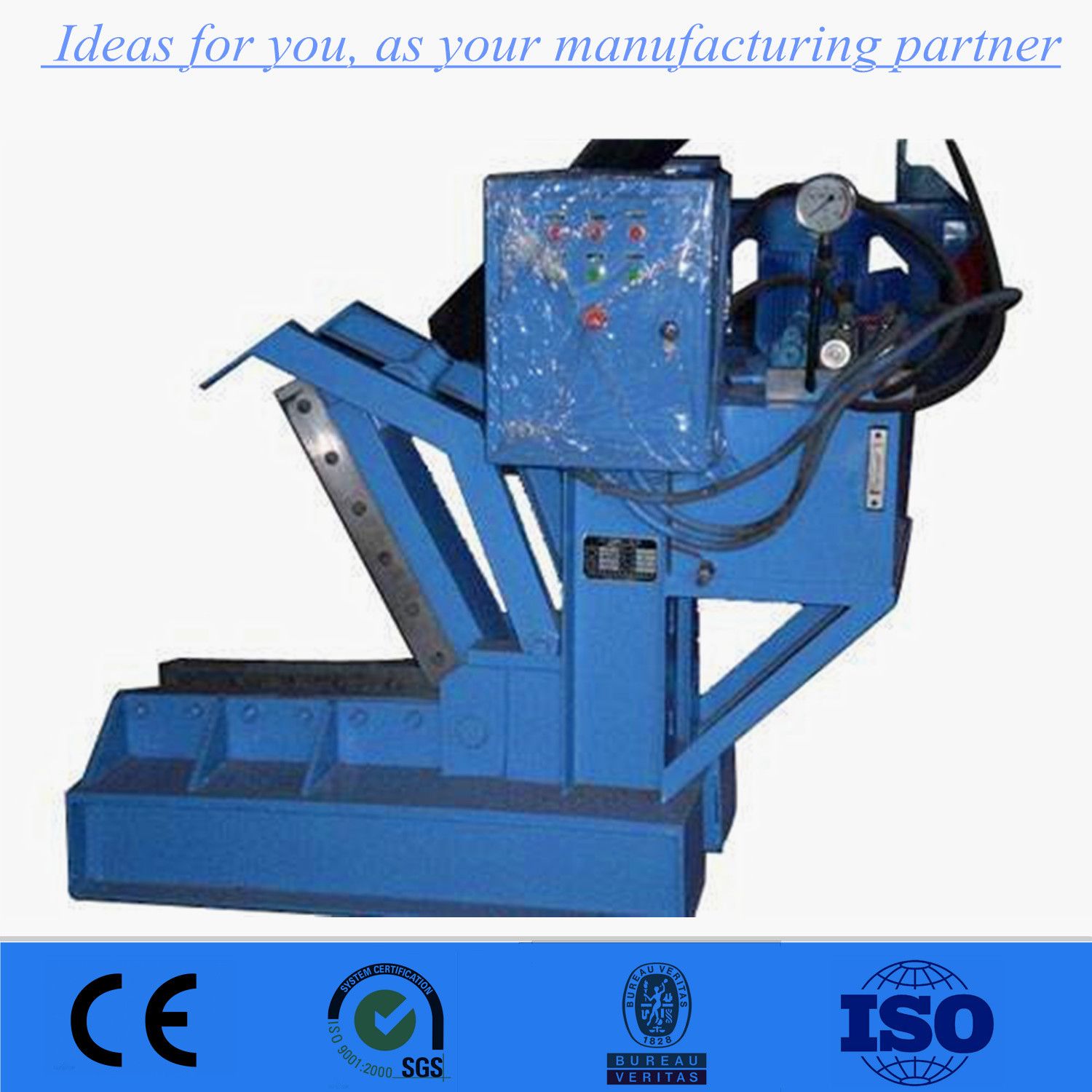

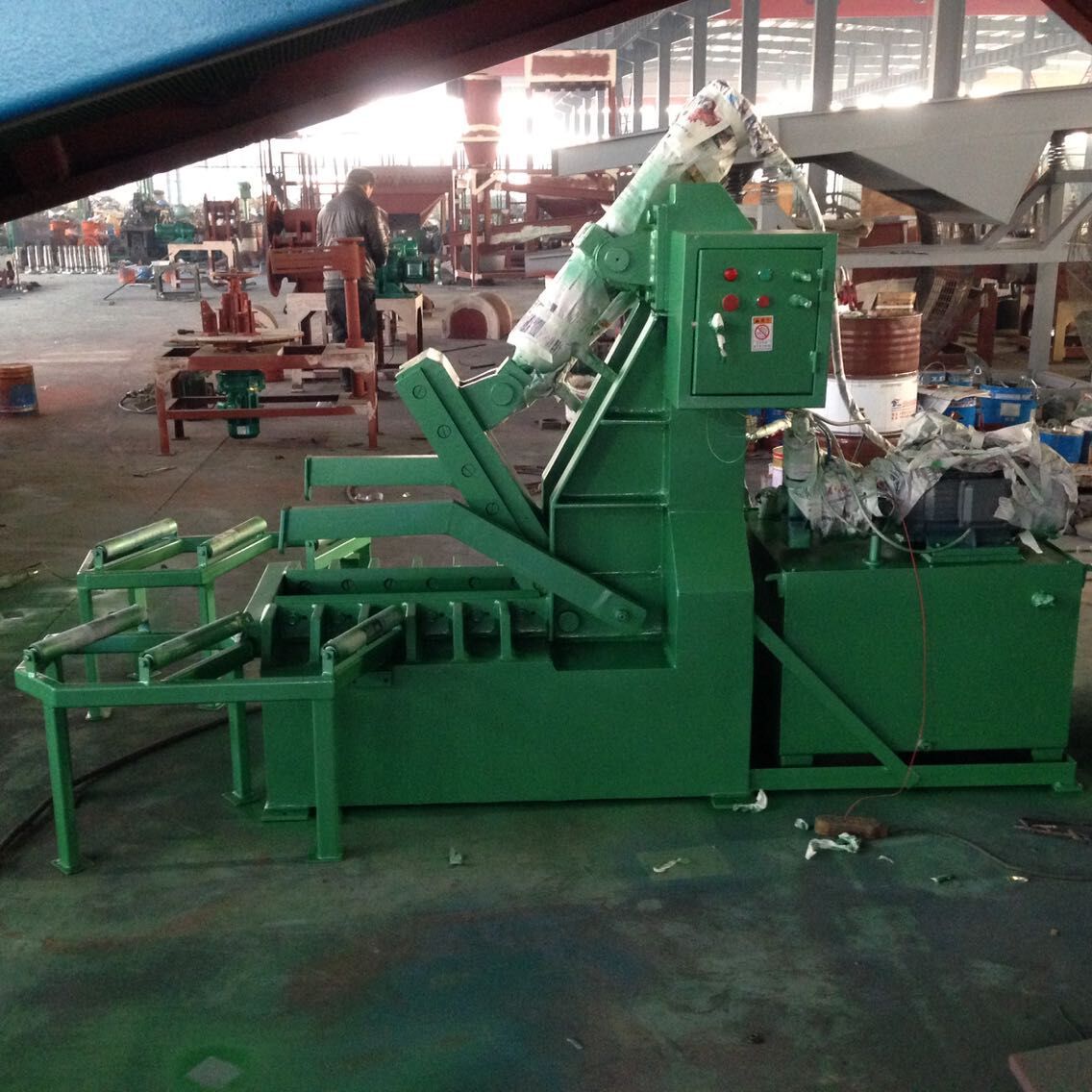

Hydraulic tire cutter / tire cutting machine / tire slice cutter
Application
It could be applied to cut all kinds of rubber blocks and strips .It is good for cutting rubber tyre,rail tyre,rubber strips etc.
Structure
It consists of motor ,hydraulic system ,oil cylinder ,a pair of knives,machine shelf and rotation rotors.
Work theory
The motor drives hydaulic system and oil cylinder ;put the tyre between two knives ,it will be fixed by a locking arms,then the knives will be driven by the movement of cylinder ,which makes the two knives form into a scissors,and cut the tire further.
Main technical parameters
Model | QDJ-300 | QDJ-500 |
Tire specification | 800~1200mm | 1200~2000mm |
Motor power | 4kw | 5.5kw |
Capacity | 4-5T/h | 7-8T/h |
Weight | 1200kg | 2000kg |
Overall dimensions(L*W*H) | 1980*860*2000mm | 2080*1000*2130mm |

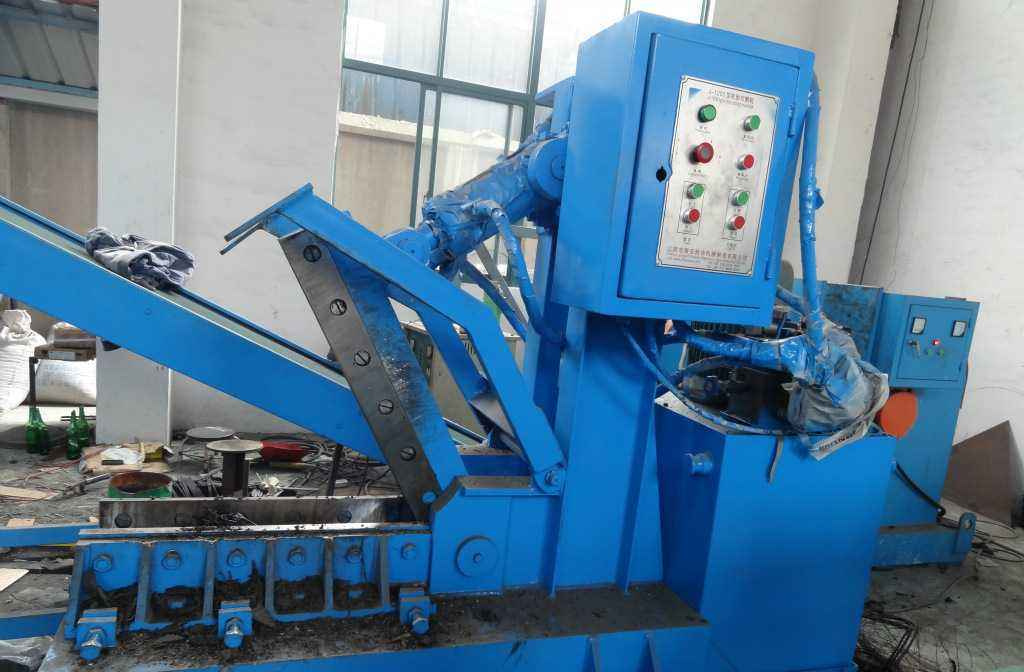

Automatic tire cutter in the workshop
Our packing way: Exported standard package or according to your requirement.
Our Services :
1. We will design,manufacture,install and test the machines according to customers' requirement .Relevant personnel training for customers,ensure that customers fully grasp the use and maintenance of technology.
2. Our service department listen to customers' feedback at any time and provide spare parts timely.

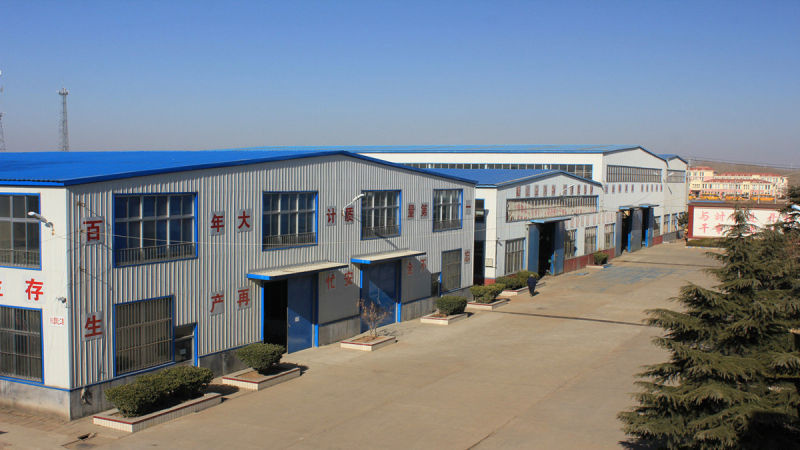

Welcome to visit our factory and we can show you the machine in working condition:
If our products win your interest, please send us inquires and we will provide detailed information to you.We can also make non-standard machines according to your request.
| Prod Model: | QDJ-500 |
|---|---|
| Power(Kw): | 5.5kw |
| Dimension(L*W*H): | 2080*1000*2130mm |
| Weight: | 2ton |
| Certification: | ISO/Ce/SGS |
| After-Sales Service Provided: | Engineers Available to Service Machinery Overseas |
| Capacity: | Larger |
| Operation: | Easy and Safe |
