Specifications
1. Abrasiveis very shape, hard, suitable for hard alloy, optics glass, ceramics, alloy etc.
2. Has good conduction heat
PRODUCT DETAIL:

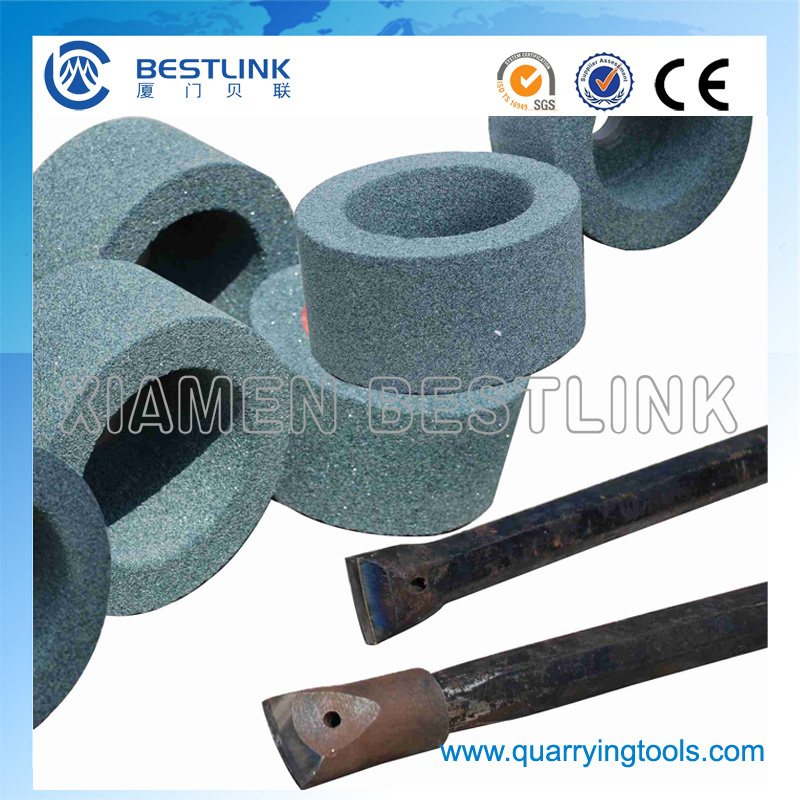

The green silicon carbide is very shape, hard. Suitable for hard alloy, optics glass, ceramics, alloy etc. It also has good conduction heat, especially for grinding those products shape is easy changed when heated.
This kind of cup-shaped grinding wheel suitable for sharpening milling cutter, reamer, scraping out cutter, scudding knife, etc. And also suitable for flat grinding, internal grinding.
BESTLINK INTEGRAL ROD AND CHISEL BIT GRINDER--------CG100P
This pneumatic machine is designed for grinding the chisel bits and integral drill rods. Your worn bit or rod can be reused after being grinded by our grinding machine, to prolong their service life and save your
Money. It's hand-held using, very convenient. And we have CE certificate for this machine.
CG100P Air grinding machine (for Integral rod, chisel bits, button bits sharpening)(integral drill rod chisel type) milling machine surface grinder. Its Capable for re-grinding of Blunted Drill Steel Rods at an angle of 110° .
Since the BCG is subjected for arduous working conditions in the Mines, Quarries. The Grinder is now developed with specialized design and mounted on Drill Steel Rods, possessing high design and mounted on Drill Steel Rods, possessing high strength balance and easy to transport and simple to setup.
| Tehcnical characteristics | CG100P | BL150Z66A |
| Class A | Class B | Hand held straight grinder |
| Idling speed(max.) | 4900r.p.m. | 5300r.p.m. | 6600r.p.m. |
| Motor Power | 2HP | 1HP | 1.6HP |
| Sharpening angle | 110° | 110° | any |
| Sharpening radius | 125mm | 125mm | any |
| Working air pressure | 5-7 bar (72-100 psi) |
| Air consumption at 6 bar | 1.9m 3 /min | 1.35m 3 /min | 1.6m 3 /min |
| Abrasive grinding wheel | 125*63*32mm | 125*63*32mm | 150*32*32mm |
| Grinder hole (diameter) | 32mm | 32mm | 32mm |
| Grinder height | 70cm | 70cm | TL=475mm |
| Grinder thichness | 22cm | 22cm |
|
| Air hose diameter | 19mm | 16mm |
| Portable version weight | 27kg | 27kg | 7kg |
| GRINDING WHEEL/CUP SizeS |
|
| Grinding cup,125*63*32mm |
|
| Grinding wheel,200*25*31.75mm |
|
| Grinding wheel,150*32*32mm |
|
