IADC115/437/537 Rubber and Metal Sealed TCI Tricone Bits

IADC115/437/537 Rubber and Metal Sealed TCI Tricone Bits
Price: US $ 1800-20000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Money Gram
Tricone drill bit:

Specification
TypeTricone Bit (3 7/8"~26", steel/milling tooth or TCI)

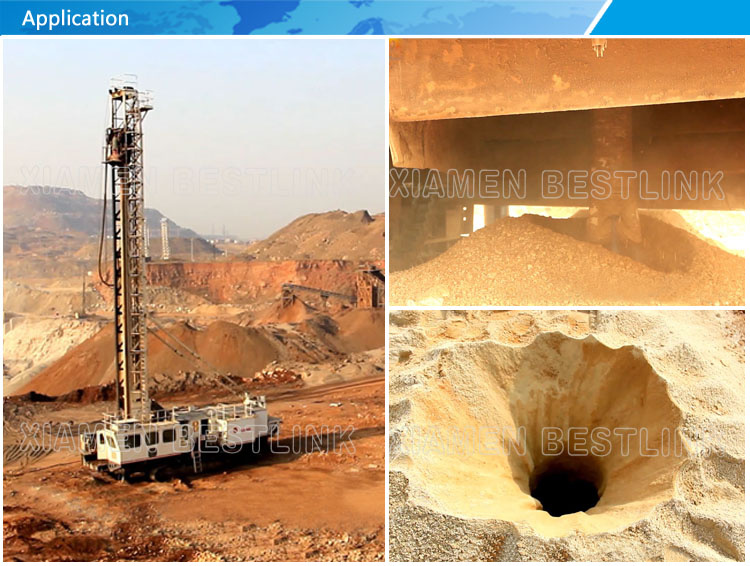

Applicationoil field, water well, geothermal, underground foundation, quarry
Formationsticky, soft, medium hard, hard formations
Bearingopen/sealed bearing, rubber/metel seal bearing
packingwooden/steel box
payment termT/T, LC
MOQone piece
Deliverywithin 25days for standard model, within 35days for customized

Description

(1) Cutting Structure of this series tricone rock bit :
The durability of premium tungsten carbide inserts is improved with new formulas and new techniques for insert bit.The wear-resistance of teeth is enhanced with premium tungsten carbide hardfacing on the tooth surfaces for steel tooth bit.

(2) Gauge Structure of this series tricone rock bit :
Multiple gauge protection with gauge trimmers on heel and gauge inserts on the gauge surface of the cone, tungsten carbide inserts and hardfacing on the shirttail increases gauge holding capability and bearing life.

(3)Bearing Structure of this series tricone rock bit :
High precision bearing with two thrust faces. Balls lock the cone.Hardface heard bearing surface. Cone bearing inlaid with friction-reducing alloy and then silver-plated. Abrasion resistance and seizure resistance of the bearing are improved and suitable for high rotary speed.

(4)Seal and Lubrication of this series tricone rock bit :
The advanced metal seal package consists of two metal seats and two elastic energizers. Compressed energizers ensure good contact being kept on two sealing surfaces of metal rings by elastic force, and achieve the bearing seal. In the drilling, metal seal are relatively dynamic, and the energizers are static. This will improve the reliability and durability of bearing seal. The pressure compensator system and advanced grease can greatly increase the lubricating reliability.


main product:
(1) IADC code: 116 117 126 127 136 137 216 217 226 226 316 317 326 327 336 337 115 125 135 215 225 235 315 325 335 114 124 214 314 111 121 131 346 347 417 427 437 517 527 537 617 627 637 737 837 832 415 425 435 445 525 625 635 416 427 436 446 447 516 526  537 547 516 536  535


(2) Sizes:  From 2 7/8 to 26"larger sizes for hole opener bit ,reamer bit

(3)bearing type: sealed bearing and non-sealed bearing ;HJ(metal sealed journal bearing)   ;HA (rubber sealed journal bearing ;aircooled bearing type

(4)formation or layer: soft ,medium soft ,hard,medium hard,very hard formation

Technical datas


IADC  WOBRPMApplication
(KN/mm)(r/min)
111/114/1150.3-0.75200-80very soft formations with low compressive strength and high drill ability, like clay, mudstone, chalk
116/1170.35-0.8150-80very soft formations with low compressive strength and high drill ability, like clay, mudstone, chalk
1210.3-0.85200-80soft formations with low compressive strength and high drill ability, like mudstone, gypsum, salt, soft limestone
124/125180-60
1310.3-0.95180-80soft to medium formations with low compressive strength, like medium, soft shake, medium soft limestone, medium soft sandstone, medium formation with harder and abrasive interbeds
136/1370.35-1.0120-60
211/2410.3-0.95180-80medium formations with high compressive strength, like medium, soft shake, hard gypsum, medium soft limestone, medium soft sandstone, soft formation with harder interbeds.
216/2170.4-1.0100-60
246/2470.4-1.080-50medium hard formation with high compressive strength, like hard shale, limestone, sandstone, dolomite
3210.4-1.0150-70medium abrasive formations, like abrasive shale, limestone, sandstone, dolomite, hard gypsum, marble
3240.4-1.0120-50
437/447/4350.35-0.9240-70very soft formations with low compressive strength and high drill ability, like clay, mudstone, chalk, gypsum, salt, soft limestone
517/527/5150.35-1.0220-60soft formations with low compressive strength and high drill ability, like mudstone, gypsum, salt, soft limestone
537/547/5350.45-1.0220-50soft to medium formations with low compressive strength, like medium, soft shake, medium soft limestone, medium soft sandstone, medium formation with harder and abrasive interbeds
617/6150.45-1.1200-50medium hard formation with high compressive strength, like hard shale, limestone, sandstone, dolomite
637/6350.5-1.1180-40hard formation with high compressive strength, like limestone, sandstone, dolomite, hard gypsum, marble
Note: Above limitts of WOB and RRPM should not be used simultaneously

PIN SIZE
Bit DiameterAPI PIN
(inch)(mm)
3 7/8"~5 1/4"98~1342 3/8", 2 7/8"
5 5/8"~6 3/4"143~1713 1/2"
7 1/2"~9 1/2"190.5~2414 1/2"
9 5/8"~13 3/4"245~3506 5/8"
14 5/8"~26"371~660.47 5/8"

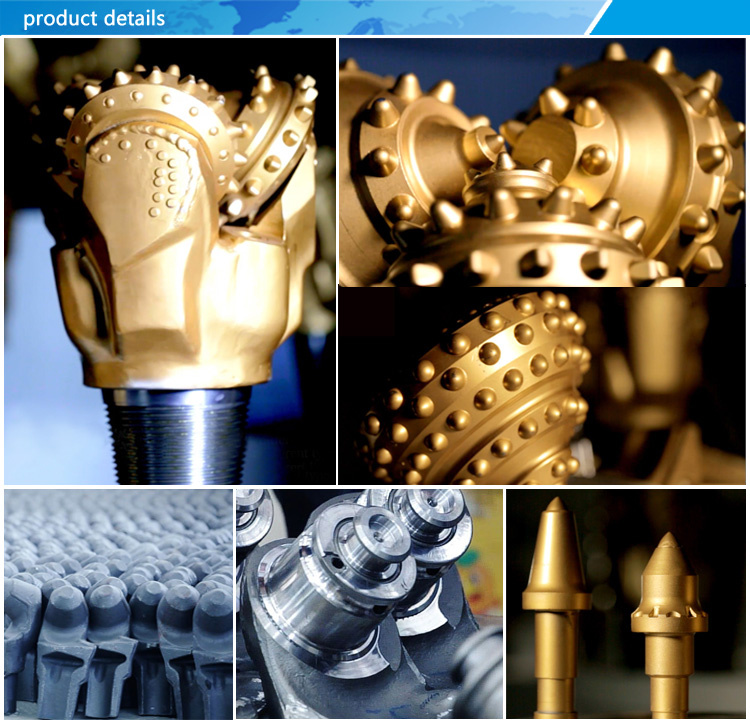

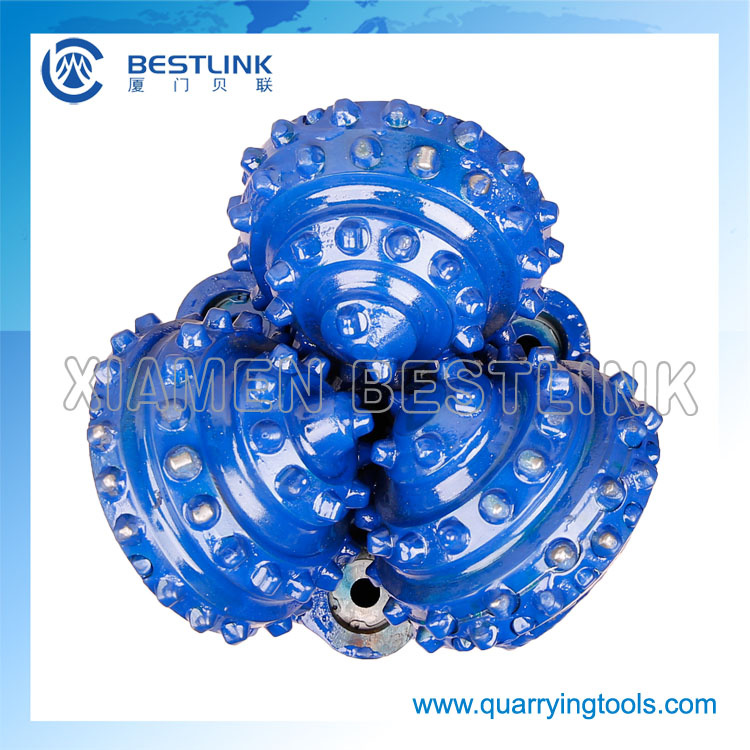

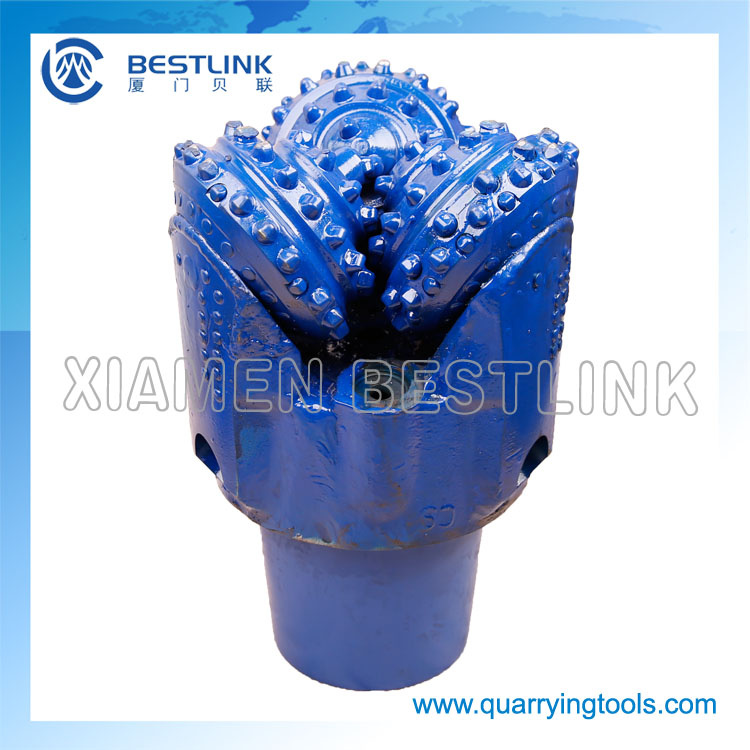

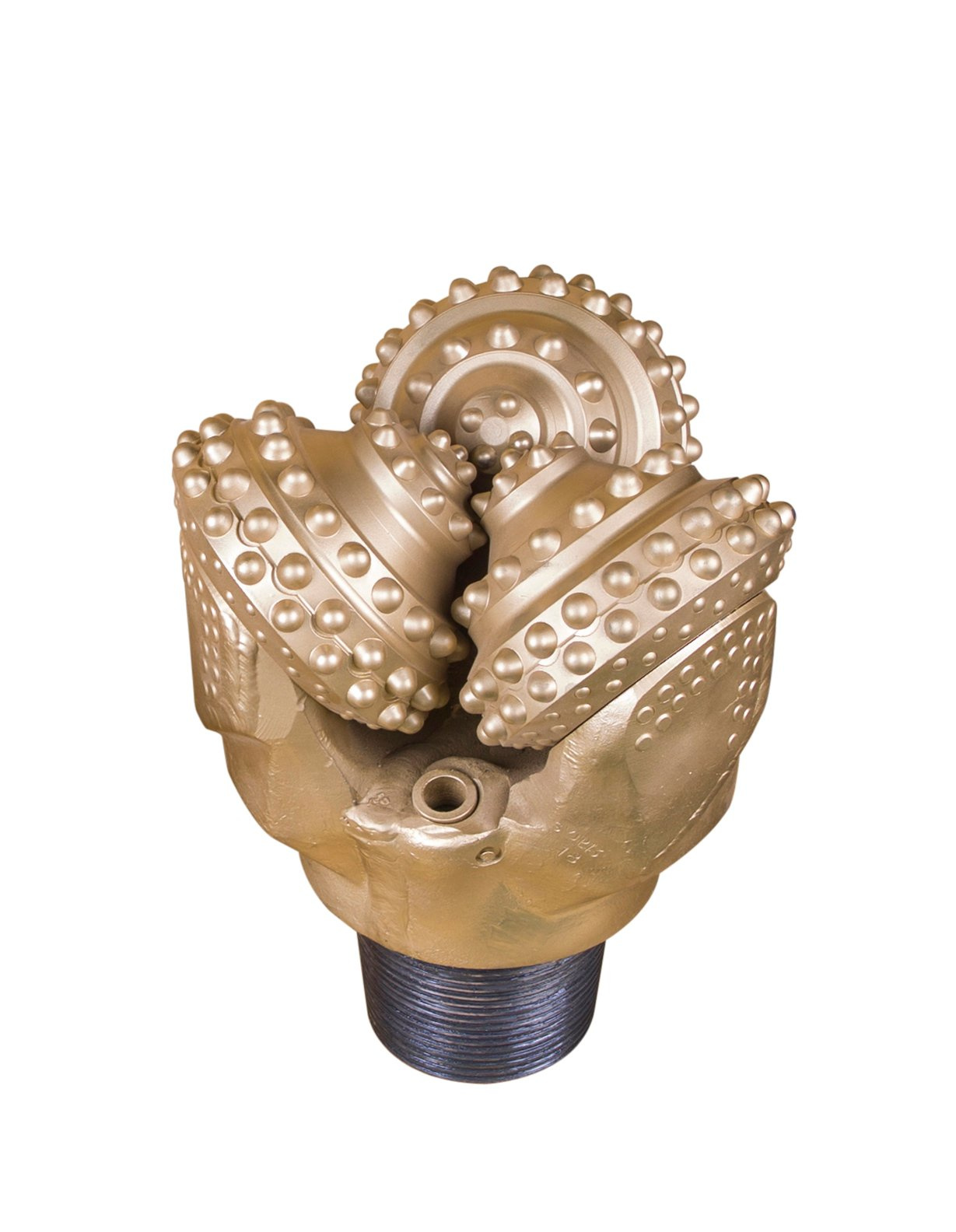

Product pictures



Prod Model: IADC622/115/537/437 3-26inch
Suitable Formatiom: Soft, Medium Soft, Hard, Mediu
Size Diameter: 3-26inch
Bearing Type: Metal Sealed Bearing
Market: Brazil,Columbia,USA...
Use: Well Drilling , Offshore Oil,Gas Field,Dolomite
Xiamen Bestlink Factory Co., Ltd.Is committed to providing the best drilling and cutting machines, tools and accessories products in marble and granite stone quarrying, as well as in civil engineering application, especial demolition project.Our company is now a leading manufacturer of cutting and drilling equipment for the extraction of marble, granite and ornamental stones in China.

Since 1985, we have produced and supplied high quality Split AG Non-Explosive Demolition Agent to our worldwide customers in the quarrying and demolition industries.

From early 2000, we have made a start in the study and developed the Hydraulic Rocks and Concrete Splitters by patent inventions, and reached a great success in the domestic and overseas market.Now, we are only a producer and exporter just now from China.

In 2004, we developed and produced the patented products:Hydraulic Rock Drill, Stone holes Groover, Stone Crack Expander and Hydraulic Rock Breaker.We offer a vast range of hydraulic and pneumatic drills and machines for diamond wire cutting as well as all kinds of accessories for quarrying activities.

Now, quality products are being exported to more than 45 countries and regions all over the world including the USA and Europe with high reputation.

We are continually looking for ways to develop drilling and cutting technology for quarrying and demolition, and hoping to be the world No.1 company about quality and prices of hydraulic Splitters and Expansive Cement within 5 years.Thank you very much for your support and wish to get your deep interest and be your best partner.
