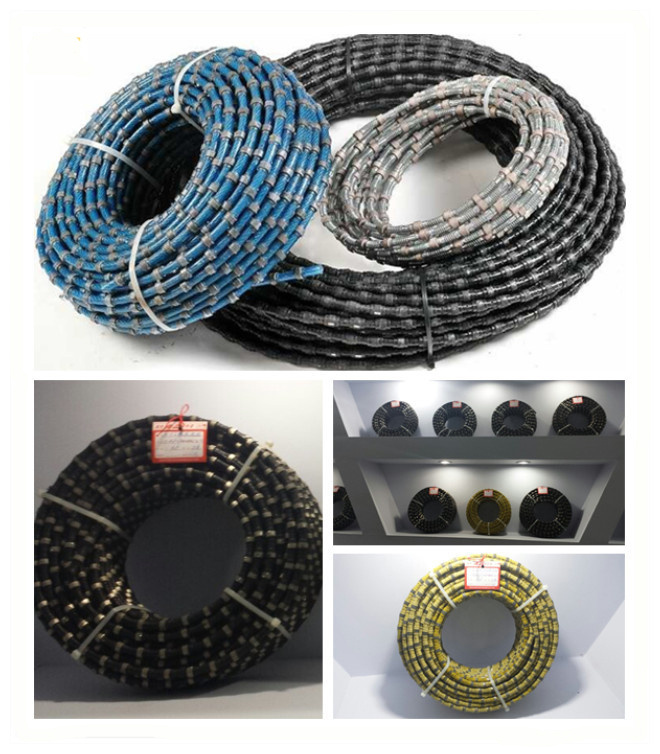

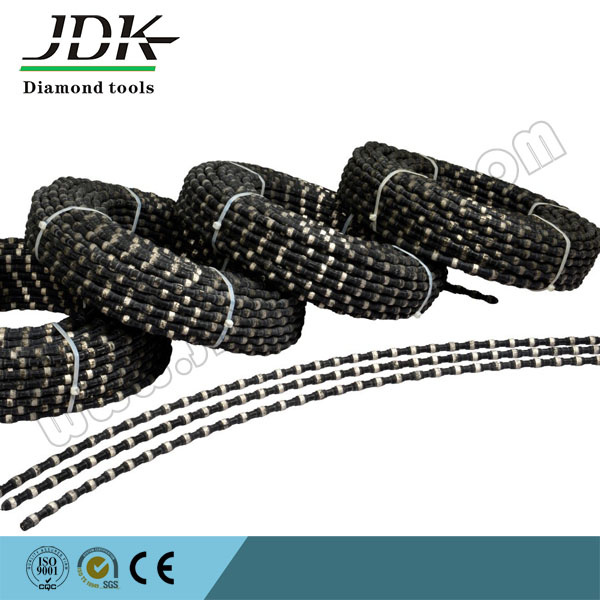

About Diamond wire saw:
There is no doubt that the appearance of diamond wires quarrying technique is a revolution for stone mining.This technique has
following advantages in mining:improve the quarrying efficiency,work safety and protect environment well.
Wire saw cutting makes lower noise and the water demand is low,and it can be recycled it.It makes small amount of stone powder,and easy to be cleaned and recycled.The machines do not take much space either.
Feature:
1. To get the even and smooth slab
2. To produce slabs in very short time
3. To have low- noise and friendly surroundings
4. Easy manipulation and with low cost
5. Always low power consume and lesser raw material waste
6. Flexibility,unlimited by the size of work piece,can be used for dressing and forming for abnormal profiles.
Below are the specification and parameters of Diamond Wire Saw For Granite Quarrying for your reference:
Specifications
Item NO | Bead Diameter (mm) | Bead/meter | Application | Coating |
| JDK-LWS | 11.5 | 40 | Granite quarry
Granite raw block | Rubber |
| 37 |
| 11.0 | 40 |
| 37 |
Parameters
Application | Wire Speed (m/s) | Cutting Speed (m2/h) | Life (m2/m) |
| Soft granite | 30-35 | 15-30 | 20-35 |
| Medium hard granite | 25-30 | 10-25 | 20-30 |
| Hard granite | 20-25 | 3-10 | 7-15
|
Our Feature:
Factory == Own Exporting License == Quality Control == Competitive Price == Own Technology == OEM
Our advantage:
1. Manufacturer with more than 15 years experience
2. A great quantity of formula special for all kinds of different stone
3. Approved quality with factory competitive price
4. Long lifespan, good sharpness, stable performance and high cutting efficiency
5. Sandwich, groove type segment with shape straight, trapezia, boatshape, K, V, etc
6. Custom-design can be meet upon request, small trial order available any time, sample for testing can be delivery in very short time.
Payment:
T/T, Western Union, L/C, Cash
Delivery time:
For samples, shipped within 3 days after receiving the deposit,
For regular order, around 3-7 days, depends on the quantity of your order.
Packaging:
The inner packaging is carton box .The outer packaging is carton box Or woodencase.(If by air ,carton box will reduce the weight, if by sea, we suggest woodenbox for waterproof.
Shipment:
<45kg, express service is recommonded
>45kg, air or sea is a better choice 45kgs
Quanzhou JDK Diamond Tools Co., Ltd. is one professional manufacturer of diamond tools in China, specially for the stone working industry. The main products are stone cutting Diamond Saw Blades, Kinds of Diamond Segments, Diamond Abrasives, etc...For over 12 years development with the support of JDK's Customers, suppliers and Staffs, now JDK is supplying big range stone cutting, Grinding & Polishing tools to the world.
JDK was established in 1995, initially JDK was producing and selling diamond tools products to China domestic market. Since 2000 year JDK is aiming at the world market and started to design and produce superior performance diamond tools to meet kinds of requirements of customers from all over the world. with these years export experiences now JDK is exporting his diamond tools products to over 30 countries which is in Europe, Middle East, Asia, America, etc...
JDK's experienced Engineer and R&D team are providing customers quality stone tools for cutting, grinding, polishing, milling, drilling, such as diamond saw blade, diamond segments, Diamond Wire Saw, Diamond abrasives, Flexible Polishing Pads, Grinding Cup Wheels, Core Drill Bits, ...
Always, JDK's target: Offer you most satisfied products and service, developing together.
