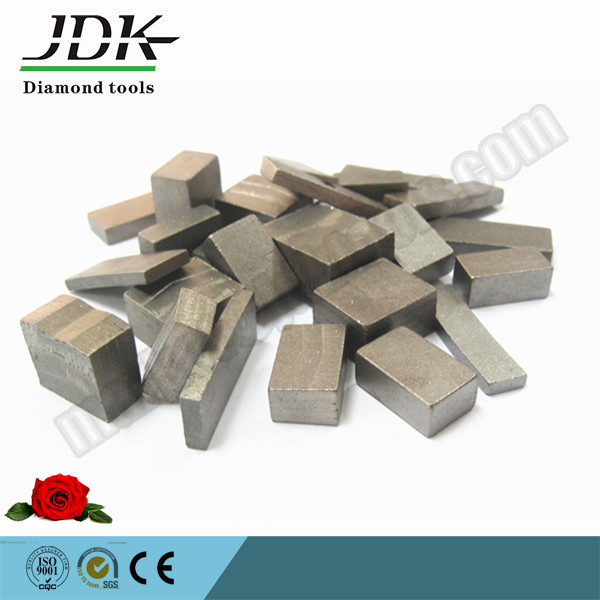

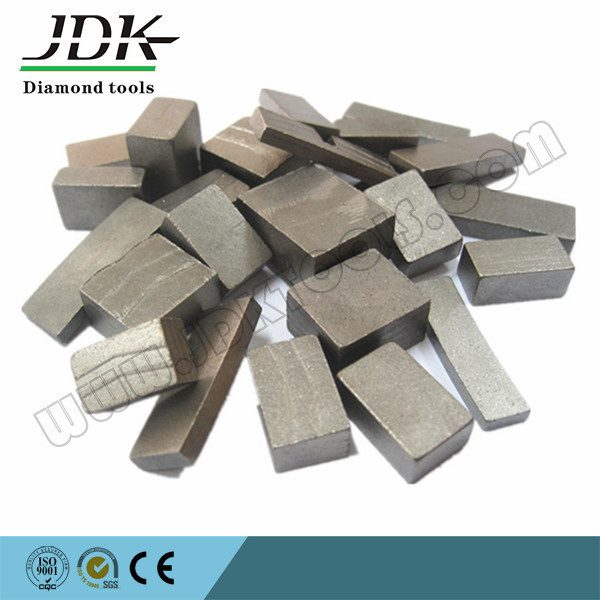

250-3500mm High Quality Diamond Cutting Segments for Granite

250-3500mm JDK High Quality Diamond Cutting Segments for Granite

"<<" "K" "M" Shape Segment (Product Code : JDK- << / JDK-K / JDK-M )
Features:
1.The unique "<<" "K" "M" design of segment  makes fast diamond exposed and high cutting efficiency
2.The design of segment allows ideal debris removal and bettering cooling.
3.It works in low nosie,small cutter slot which ensure maxium use of stone and uniform thickness
Product Name	Specification	Core Thickness	Segment Dimension	Segment Number	Application
JDK Block Cutting Segment	Φ900	5.0	24x7.0/6.2x 15(20)	64	Granite
	Φ1000	5.0	24x7.0/6.2x 15(20)	70
	Φ1200	5.5	24x7.4/6.6x 15(20)	80
	Φ1400	6.0	24x8.0/7.2x 15(20)	92
	Φ1400	6.5	24x8.4/7.6x 15(20)	92
	Φ1600	7.2	24x9.2/8.4x 15(20)	104/108
	Φ1800	7.5	24x10.0/9.2x 15(20)	120
	Φ2000	8.0	24x10.6/9.8x 15(20)	128/132
	Φ2200	9.0	24x11.0/10.2x15(20)	132/136
	Φ2500	9.0	24x11.5/10.5x15(20)	140
	Φ2700	9.0	24x12.5/11.5x15(20)	140
	Φ3000	9.3	24x13/12x 20(25)mm	160
	Φ3500	9.5	24x13.5/13.0/12.2x30mm	180
Other specification are available upon request.



iameter (mm)	Bore	Segment length	Segment thickness	Segment height	Segment No.
250	50/60	40	2.8/3.0	10/12/15/20	17
300	50/60	40	3.0/3.2	10/12/15/20	21
350	50/60	40/20	3.0/3.2	10/12/15/20	24
400	50/60	40/20	3.4/3.6	10/12/15/20	28
450	50/60	40/20	3.8/4.0	10/12/15/20	32
500	50/60	40/20	3.8/4.0	10/12/15/20	30/36
550	50/60	40/20	4.0/4.6	10/12/15/20	32/40
600	50/60	40/20	4.6/4.8	10/12/15/20	36/42
650	50/60	40/20	5.0/5.2	10/12/15/20	40/46
700	50/60	40/20	5.0/5.2	10/12/15/20	42/50
800	50/60	40/20	5.5	10/12/15/20	46/57

:


Factory == Own Exporting License == Quality Control == Competitive Price == Own Technology == OEM

Manufacturing process
The diamond segment production process for segments primarily include material proportioning, mixing, cold pressing, mold assembling, hot pressing, mold disassembling, testing and packing.


Quality control
Our professional inspectors test the hardness, weight, size, and other parameters for our products.

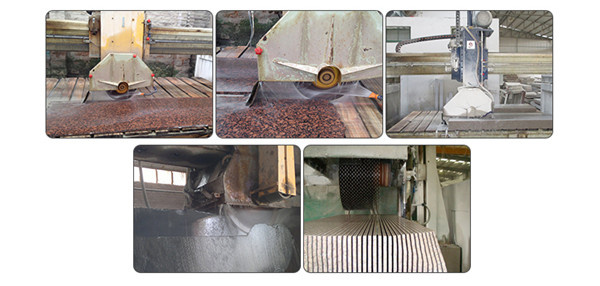

Application.
JDK Diamond segment for granite cutting sell very well in United States, Ukraine,Russia,Spain,Portugal,Czech Republic Sweden,Greece, India,Malaysia, Philippines and other 70 countries countries.


How To Buy Our Diamond Segment
1)Tell us which natural stone you are cutting or send us the photo of the natural stone if possible.
2)Tell us the size of the segment you are looking for.
3)Make the payment after the negotiation.

Payment
TT, Western Union,
As for bulk order, L/C is also available
100% payment before delivery

JDK Team and Exhibition
JDK has exhibited the stone cutting tools at stone fair and exhibition in many countries,such as Italy,Poland, Spain,Russia,India,Pakistan,Iran,Egypt,Brazil United States,and Mexico,
Our advantage:


1. Manufacturer with more than 20 years experience
2. A great quantity of formula special for all kinds of different stone
3. Approved quality with factory competitive price
4. Long lifespan, good sharpness, stable performance and high cutting efficiency
5. Sandwich, groove type segment with shape straight, trapezia, boatshape, K, V, etc
6. Custom-design can be meet upon request, small trial order available any time, sample for testing can be delivery in very short time.
