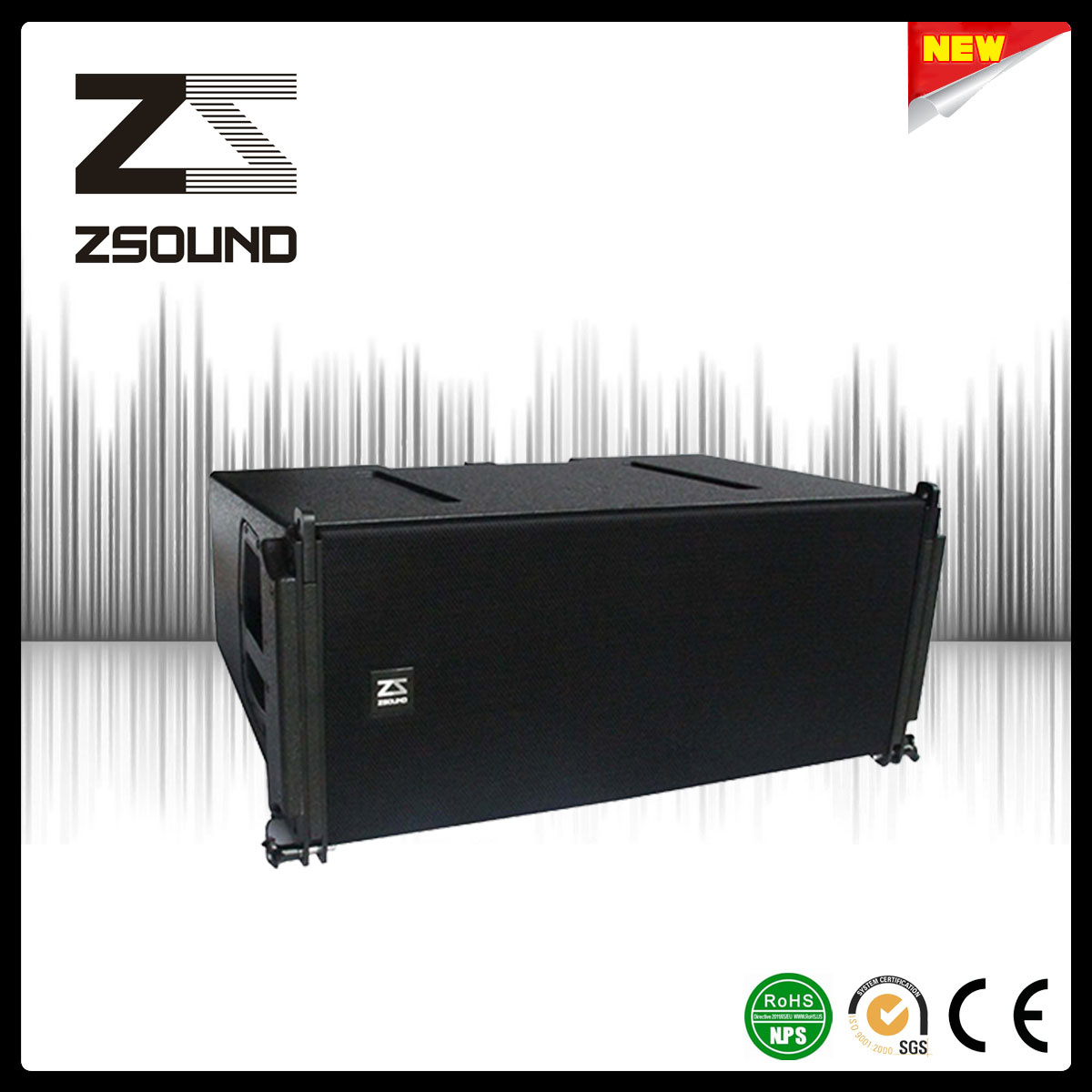

Dual 10inch Powerful Line Array Speaker For Middle And Large Touring Performance or StadiumApplications
Middle and large touring performance
Stadium
Feature
MF and HF coaxial structure
HIFI class, low frequency elasticty, soft and slim high frequency
Presettable angles
VCM system advantage
1) More shock resistance and abrasion resistance than other line array speaker, becase we use use polyurea paint
2) our VCM waveguide and horm is integrated design, then it will better for the high and mid 'curve consistency
3) Neodymium high-sensitivity driver which is deal with and tested by 200 degree high temperature treatment. Three way system, 16ohm nominal impedance, save amplifier
4) the plywood was import from Russia, Just go ahead use outdoor
5) Our hander cup is the same as LA, D&B. All of our spare parts are used penn elco

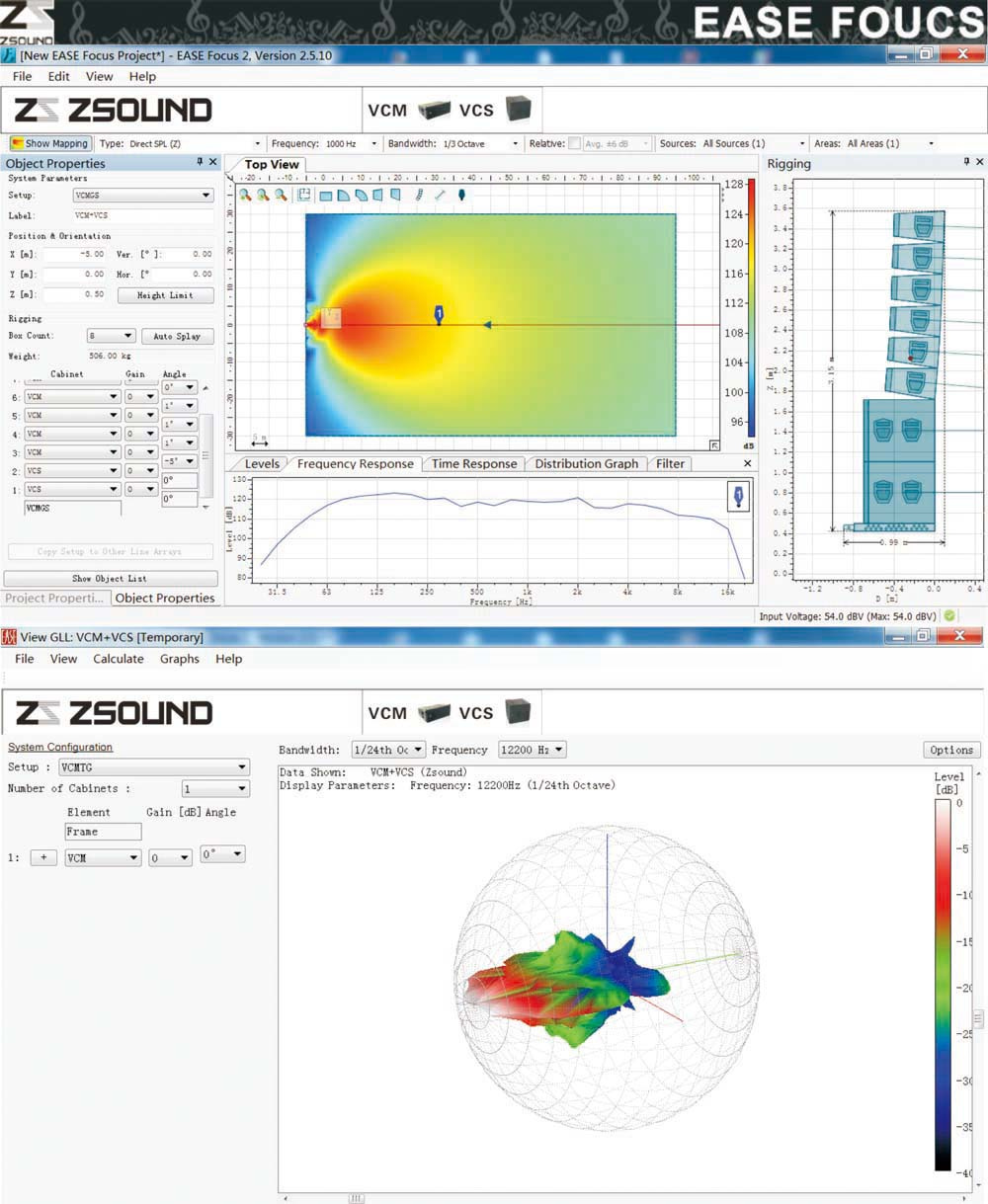

6) Three points design for hanging, Save manpower and time 7)We use SMAART7, 3D directionality test, and CLIO electroacoustic measuring system, audio precision test,And all the data is open. We also have our own EASEFOCUS data and GLL picture for our LA110 system.
| TECHNICAL SPECIFICATION |
| Frequency Response: | 50Hz-16KHz(±3dB) 40Hz-18KHz(-10dB) |
| Nominal Coverage: | 90°(H) 10°(V) adjustable |
| Sensitivity (@1w/1m): | HF:112dB; MF:106dB; LF:96dB |
| Power Rating (AES): | HF/MF/LF:120W/130W/800W |
| Nominal Impedance: | HF/MF/LF:16/16/16Ohm |
| Maximum SPL: | HF:132/138dB;MF:127/133dB; LF:125/131dB |
| Drivers: | LF 2*10" neodymium woofer (75mm voice coil) MF:1*8" neodymium bass(38mm voice coil) HF 2*1.75" neodymium compression driver (44mm voice coil) |
| |
| PHYSICAL DATA |
| Dimension (H*W*D): | 303*700*496mm |
| Weights: | 35kg |
| Connectors: | 2*NL8 or WP7 connectors |
| Speaker Cables: | 1-2+LF,3-4+MF; 5-6+...HF |
| Materials: | 15mm 18mm birch multi-plywood |
| Finish: | Black polyurea coatings |
| Grille: | Black epoxy mesh grille with acoustically reticulated cloth |
| Rigging: | 0,1 ,2,3,4,5,7.5 ,10degree adjustable |
Our Advantages:
1) Global leading professional Manufacturer of professional speaker and amplifier.
2) Product quality: Superior speaker and amplifier, top technology and quality.
3) Certificate: CE,RoHS,GS,SGS,ISO9001
4) Monthly Production Capacity: 2000pcs
5) Fast delivery: Get your order when you need it.
6) 4000 square meters workshop, with about 200 workers and 20 professional engineers
7) Convenient Transportation: 1 hour to Baiyun Airport
8) 24 hours on line service.
FAQ:Q1: How long is the warranty for the speakers?
A1: 1year warranty.
Q2: How about the delivery time?
A2: 3-7days for stock.
10-20 days for new order depend on order quantity since receipt of 30% T/T deposit payment.
Q3: What kind of payments does ZSOUND support?
A3: T/T, Western Union, Cash are accpeted.
Q4: What's the MOQ?
A4: MOQ is 1pcs
Q5: Can you produce according to customers' design?
A5: Yes we can, we are professional manufacturer,OEM & ODM are welcome .
Q6:Can you tell me your main customers?
A6: That's our customers privacy, we should protect their information.
At the same time, please rest assured that your information is also safe here.
Sunny Yan
Tel:0086 15818739656
Have a nice day!
Guangzhou Zsound Proaudio Technology Co., Ltd. Specilizes in developing and manufacturing a wide range of superior, advanced technology loudspeakers for the professional touring and installation market. With more than ten-years R & D experience, we've successively achieved numerous patents for Zsound speakers.
Designed and constructed to exacting specifications, every component of Zsound loudspeaker is critically extracted. This meticulous craftsmanship and attention to detail shows how seriously we believe in our ideas. Our pursuit for sonic excellence LED to an outstanding reputation in this industry.
During the long-term persistent efforts, Zsound loudspeakers are extensively used in rental and installation markets for events, multimedia, musicals, concert halls, theatres, broadcast and many other applications from the smallest conference room to the largest stadium.
What's most important, ZSOUND won the specified audio title of the Milan World Expo (China Pavilion) theatrical performances, and provides sound equipment and technical support service for China Pavilion theatrical performance
In March 2013, ZSOUND set up performance alliance, the purpose is "achieve resource sharing under the premise of the law of the market, promote the growth of alliance members". And now there're more than 17 members from ZSOUND performance alliance, users of line array system are up to 1000 throughout the country.
After two-years development, alliance members have successfully made a cooperation with some performance project, such as Kenny'G Tour, Lang Lang Concert, Zero Band Tour and Inner Mongolia Sport etc.
Meanwhile, ZSOUND's desire is to provide the best professional audio system and technology service for user, as well as audio company which becomes worthy of audio industry's respect, the goal is to be the leading international professional audio brand.
