Digital Low Speed Diamond Saw with 6" Diamond Blade Cut off Syj-160

Digital Low Speed Diamond Saw with 6
Price: US $ 99-3999/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal

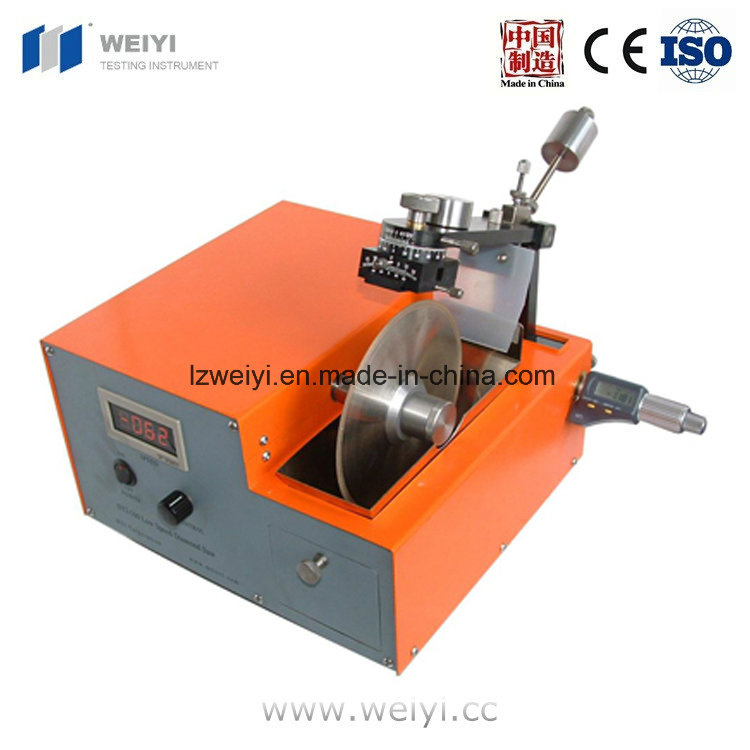

Syj-160 Low Speed Diamond Saw Sample Cutting Machine
Model:SYJ-160 Low Speed Diamond Saw
Brief Introduction:SYJ-160 Low Speed Diamond Saw  is specialized  designed to material researchers, the products sells to research institutes, universities and  research department of famous companies, small and medium-sized companies for the relevant material analysis. Many artificial crystal precision cutting also can use this machine.
Used for precision cutting the material sample, high torque, running steady, can cut all kinds of materials and the thickness are 0.1mm. Suitable for samples' follow-up thinning, polishing and various operation.
The different between SYJ-160 and SYJ-150 is the former can use various blades of 150mm(outside diameter). It's good for cutting bigger samples.  Original equips with digital micrometer.
1. Speed range:20-600RPM stepless speed adjust
2. Voltage:AC 110V/220V
3. Position accuracy:0.01mm( Mechanical and digital display )
4. Two dimension, angle adjustment: 360(H),(+/-)15(V)
5. Max. travel distance:50mm(Fine adjustment travel distance 25mm)
6. Max dia. wafer blade:150mm(6 inches)
7. Automatic shut off:allowed unattended
8. Digital display axis RPM
Specification:Size:400 x300 x30mm  Weight:14.5kg
Standard Accessories:
1Adjustment sample holder    1 set
2Mini-vise    1 pc
3O-ring of Driving Motor2 pcs
4Full Sintered Diamond Blade  (Φ150×12.7×0.55mm)1 pc
5Electroplating diamond blade(Φ150×12.7×0.4mm)2 pcs
6Sic blade(Φ150mm×12.7mm×0.4mm)5 pcs
7Al2O3 blade(Φ150mm×12.7mm×0.4mm)5pcs
8Resin ceramic block(50mm×50mm×12mm)  2pcs
9Aluminum Plate(25mm×50mm×7mm)2 pcs
10Wax for gluing sample2 pcs
11Blade clamps(Φ35mm, Φ46mm,Φ62mm)3 set
Optional Accessories :1. Edge sintered Diamond Blade:Φ150x12.7x0.55
2. Full sintered Diamond Blade:Φ150x12.7x0.50
3. Sic blade:Φ150x12.7x0.55
4. Al2O3 blade:Φ150x12.7x0.55
5. Electroplating diamond blade:Φ150x12.7x0.40
6. (Optional)All kinds of blades:Φ100x12.7x0.4

More information
company informationLaizhou Weiyi experimental machine manufacturing Co.,Ltd. was established in 2001,covering 55 acres,which is one leading enterprise in the field of a professional R&D,manufacturing metallographic sample preparation erquipment. Was identified as Technology high-tech enterprises by Shandong Provincial Science , Shandong Academy of Sciences Research Building .
In 2004 the company passed the ISO9001 quality management system certification,in 2012 the company obtained CE certification, laid the foundation for a comprehensive international markets.

Prod Model: SYJ-160
E: F
Laizhou Weiyi Experimental Instrument Manufacturing Co. Ltd. Is engaged in domestic metallographic sample preparation equipment, sample preparation supplies R & D, production and sales of leading enterprises. The company was founded in 2001, covering an area of 55 acres. We have 110 staff at present, among which there are 32 engineering and technical staff, 17 staff working for products and technology development. We are a high-tech enterprises authorized by Shandong science and technology department, as well as the base on scientific research in Shandong province.

In 2004, the company passed the ISO9001 quality system certification.

In 2005 we achieved the independent right of import and export.

In 2011 we first achieved CE certification in the domestic industry, laying the foundation for the comprehensive development of international market.

We have established 3 sales companied in China, more than 200 dealers. Meanwhile we have more than 20 foreign agents in the world.

We have been focusing on the investment in technology development. In recent years we have developed a number of international advanced level of metallographic sample preparation equipment. We have won 4 national invention patents, dozens of patents of utility model patents as well as the appearance patents. Several products can replace the imported products, which makes the "WEIYI"brand the leading brand in the domestic industry.
