Digital Low Speed Diamond Saw for Metallographic Sample

Digital Low Speed Diamond Saw for Metallographic Sample
Price: US $ 99-7999/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal

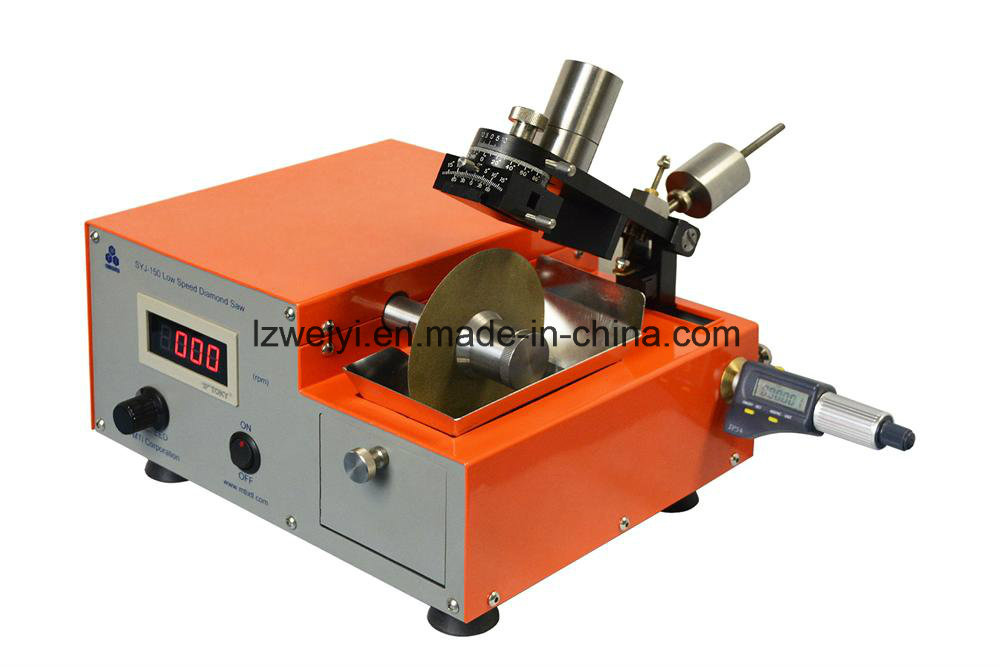

Model:SYJ-150 Low Speed Diamond Saw
Brief Introduction:SYJ-150 Low Speed Diamond Saw is CE certified, used to precision cut the material samples for researching.Such as crystal, ceramic, glass, rock, mineral, refractory materials, PCB board, metal, building materials, plastic samples etc.
Main
Feature:
Used for precision cutting the material samples, high torque, running steady, can cut the thickness of various materials(0.1mm).Suitable for samples' follow-up thinning, polishing and various operation.
Technical
Parameter:
1.Speed range:20-600RPM stepless speed adjust
2.Voltage:AC 110V/220V
3.Position accuracy:0.01mm(Mechanical and digital display, digital display should be purchased in selection)
4.Two dimension, angle adjustable:Spinning 360°
5.Travel distance:50mm(Fine adjustment travel distance 25mm)
6.Max dia.Wafer blade:100mm(4 inch)
7.Automatic shut off:Allowed unattended
8.Digital display axis RPM
Specification:Size:360×260×260mm  Weight:17.5kg
company informationLaizhou Weiyi experimental machine manufacturing Co.,Ltd. was established in 2001,covering 55 acres,which is one leading enterprise in the field of a professional R&D,manufacturing metallographic sample preparation erquipment. Was identified as Technology high-tech enterprises by Shandong Provincial Science , Shandong Academy of Sciences Research Building .
In 2004 the company passed the ISO9001 quality management system certification,in 2012 the company obtained CE certification, laid the foundation for a comprehensive international markets.



Prod Model: SYJ-150
Steel: Yes
Laizhou Weiyi Experimental Instrument Manufacturing Co. Ltd. Is engaged in domestic metallographic sample preparation equipment, sample preparation supplies R & D, production and sales of leading enterprises. The company was founded in 2001, covering an area of 55 acres. We have 110 staff at present, among which there are 32 engineering and technical staff, 17 staff working for products and technology development. We are a high-tech enterprises authorized by Shandong science and technology department, as well as the base on scientific research in Shandong province.

In 2004, the company passed the ISO9001 quality system certification.

In 2005 we achieved the independent right of import and export.

In 2011 we first achieved CE certification in the domestic industry, laying the foundation for the comprehensive development of international market.

We have established 3 sales companied in China, more than 200 dealers. Meanwhile we have more than 20 foreign agents in the world.

We have been focusing on the investment in technology development. In recent years we have developed a number of international advanced level of metallographic sample preparation equipment. We have won 4 national invention patents, dozens of patents of utility model patents as well as the appearance patents. Several products can replace the imported products, which makes the "WEIYI"brand the leading brand in the domestic industry.
