JDK Diamond wire saw for granite profiling is uesd widely for shaping oprations. Tombstones as well as columns and elements for the building industry can be produced in a much more econmic way.The diamond wire is welcomed by our customers who are from Spain,Portugal,England,France,Greece,Sweden,Russia,Germany,Ukraine\etc,
Diamond Wire for Granite Block Profiling
1.Diameter:7.2~11.5mm
2.Fixing method:High quality plastic.
3.Very less breakage ratio when using therefore increase the working lifetime.
4.Automatic production ensures stable quality performance.
5.Safe, high efficiency and environment protecting.

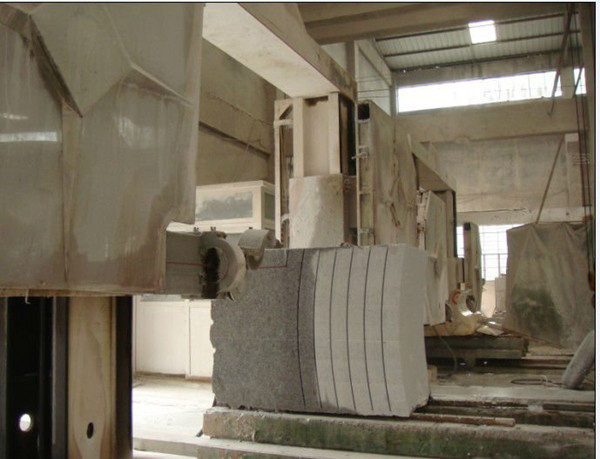

The diamond wire in our customers' factory

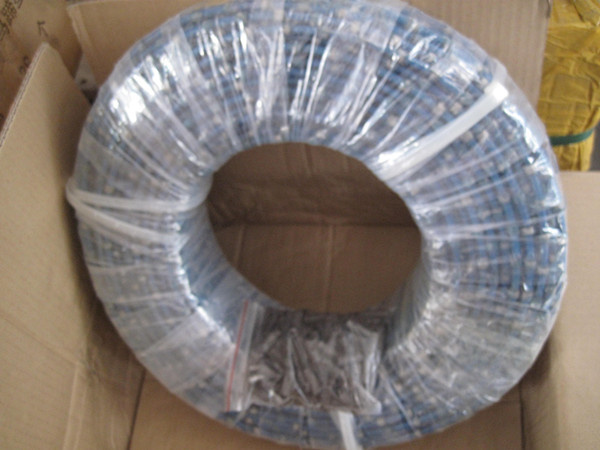

Our packing.
Detail specification as below: | Item NO | Bead Diameter (mm) | Bead/meter | Application | Coating |
| W16 | 8.0 | 37 | Granite profiling | High Strength Plastic |
| W1 | 8.5 | 37 |
| W11 | 9.0 | 37 |
| Application | Wire Linear Speed (m/s) | Cutting Speed (m 2 /h) | Life (m 2 /m) |
| Soft granite | 25-28 | 1.0-2.0 | 15-20 |
| Medium hard granite | 22-25 | 0.8-1.5 | 10-15 |
| Hard granite | 20-23 | 0.5-1.0 | 8-12 |
Bead Specification| Bead Diameter (mm) | Working Layer Height (mm) | Support length (mm) | Bead Type |
| 8.0 | H6.0 | 9.5 | Sintered |
| 8.5 | H6.0 | 9.5 | Sintered |
| 9.0 | H6.0 | 9.5 | Sintered |
Our Feature:
Factory == Own Exporting License == Quality Control == Competitive Price == Own Technology == OEM
Our advantage:
1. Manufactory with more than 15 years experience
2. A great quantity of formula special for all kinds of different stone
3. Approved quality with factory competitive price
4. Long lifespan, good sharpness, stable performance and high cutting efficiency
5. Sandwich, groove type segment with shape straight, trapezia, boatshape, K, V, etc
6. Custom-design can be meet upon request, small trial order available any time, sample for testing can be delivery in very short time.
Payment:
T/T, Western Union, L/C, Cash
Delivery day:
For samples, we can ship them within 3 days after receiving the deposit, for regular order, we need 3-7 days, depends on the quantity of your order.
Packaging:
Inner package is carton box, outside package are choose according to the transport way. By air used carton packing to reduce the weight and by sea, use wooden cases for waterproof.
Shipment:
For Less than 45kgs, we would suggest ship them by couriers by DHL, FedEx, UPS, EMS and so on. For 45-200kgs, if you need the cargo urgent, we would suggest ship them by air. And for very heavy and bulky cargo, by sea is our best choice.
