Diamond Core Bit for Hard Rock Formation (HQ3)

Diamond Core Bit for Hard Rock Formation (HQ3)
Price: US $ 50-110/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
We are a leading manufacturer of rock drilling tools, like DTH hammers and bits, DTH drill pipes, RC hammers and bits, tophammer button bits, coupling, cross bits, drill rods located in Germany, China(joint-venture).

We have rich experience in this field of DTH hammers and bits for 60 years.

Owing to high quality, professional serivce and competitive price, we have gotten good reputation from our customers from all over the world, such as US, Canada, France, Spain, Italy, South Africa, Iran, Malaysia, Australia, etc.

Product Description

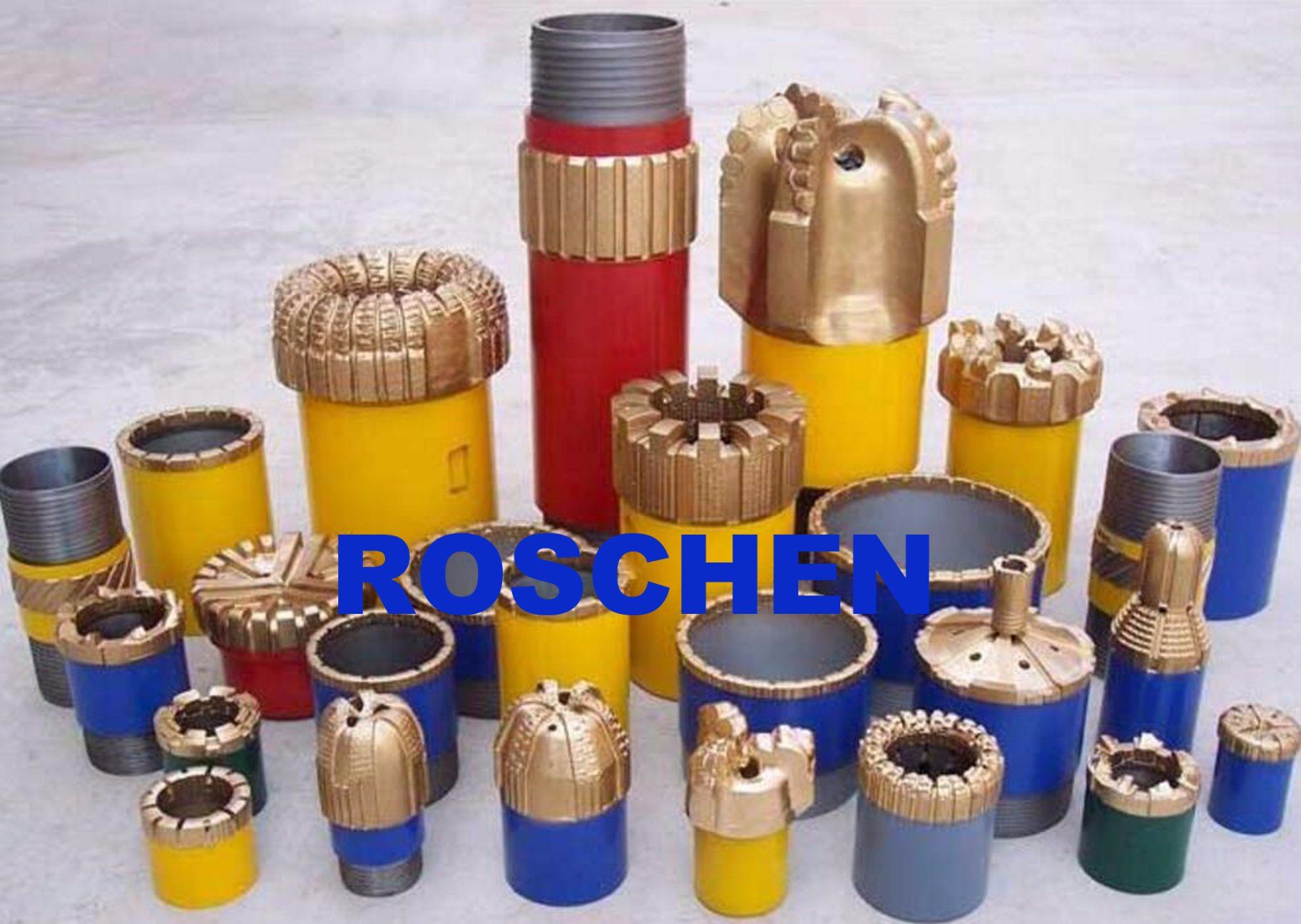

Impregnated Diamond Core Bit
Impregnated Diamond Core Bit is made with high quality synthetic diamonds, mixed evenly through a metal alloy matrix. It can drill various formations from the softest to hardest rocks.
Sizes Available:
Diamond core drill bits and diamond non-core drill bits
A-Gauge Core Bits: A, A-RSG, AWG(AX), AWM, AWT, LTK48
B-Gauge Core Bits: B, B-RSG, B-2.400, B3, BWG(BX), BWM, BWT, LTK60, TBW
N-Gauge Core Bits: N, NMLC, NWG(NX), NWM, NWT, TNW
H-Gauge Core Bits: N, HMLC, HWF-Long, HWF-Short, HWG(HX), HWT
P- Gauge Core Bits: P, P3, PWF-Long, PWF-Short
S- Gauge Core Bits: SWF-Long, SWF-Short
U- Gauge Core Bits: UWF-Long, UWF-Short
Z- Gauge Core Bits: ZWF-Long, ZWF-Short
T, TT, T2 &TB Series Metric Core Bits: T36, TT46, T2-46, TB56, TT56, T2-56, T2-66, T2-76,T2-76 coreline, T2-86, T2-86 coreline, T2-101, T2-101 coreline
T6 Series Metric Core Bits: T6-76, T6-86, T6-101, T6-116, T6-131, T6-146
T6S Series Metric Core Bits: T6S-76, T6S-86, T6S-101, T6S-116, T6S-131, T6S-146
 and all other standard CDDA, DCAMA, Crealius, and ISO sizes .
Significantly outperforms the successful Series range in drilling speed and bit life.
Protects the diamond from oxidation and surface degradation.
 Inhibits the premature "pull-out" of the diamond.
 Available in multiple standard configurations and selected on the basis of relative  rock hardness and ground conditions.

Wireline diamond core bits specifications
AQTK35.5 mm (1-3/8 in)48 mm (1-7/8 in)
BQ36.4 mm (1-7/16 in)60 mm (2-3/8 in)
BQTK40.7 mm (1-5/8 in)60 mm (2-3/8 in)
NQ47.6 mm (1-7/8 in)75.7 mm (3 in)
NQTK (NQ2")50.6 mm (2 in)75.7 mm (3 in)
NQ345 mm (1-3/8 in)75.7 mm (3 in)
HQ63.5 mm (2-1/2 in)96 mm (3-3/8 in)
HQ361.1 mm (2-3/8 in)96 mm (3-3/8 in)
PQ385 mm (3-3/8 in)122.6 mm (4-7/8 in)
PQ383 mm (3-1/4 in)122.6 mm (4-7/8 in)

Wireline diamond core bits, metricl diamond impregnated drill bits specifications
"Q" series:AQ, BQ, NQ, HQ, PQ/AQTK, BQTK, BQ3, NQ2, NQ3, NQTT, HQ3, HQTT, PQ3, PQTT
A-Gauge Core Bits:AQ, AQ-RSG, AWG(AX), AWM, AWT, LTK48
B-Gauge Core Bits:BQ, BQ-RSG, BQ-2.400, BQ3, BWG(BX), BWM, BWT, LTK60, TBW
N-Gauge Core Bits:NQ, NQ-RSG, NQ-3.032, NQ2, NQ2-RSG, NQ3/NQTT, NQ3-RSG, NQ3-3.032, NMLC, NWG(NX), NWM, NWT, TNW,
H-Gauge Core Bits:HQ, HQ-RSG, HQ-3.830, HQ-3.895, HQ3/HQTT, HQ3-RSG, HQ3-3.895, HMLC, HWF-Long, HWF-Short, HWG(HX), HWT
P-Gauge Core Bits:PQ, PQ3, PWF-Long, PWF-Short
S-Gauge Core Bits:SWF-Long, SWF-Short
U-Gauge Core Bits:UWF-Long, UWF-Short
Z-Gauge Core Bits:ZWF-Long, ZWF-Short
T Series:T36, T46, T56, T66, T76, T86, T101
TT Series:TT46, TT56, TT66, TT76, TT86, TT101
T2 Series:T2 46, T2 56, T2 66, T2 76, T2 86, T2 101
TB Series Metric Core Bits:TB36, TB46, TB56, TB66, TB76, TB86, TB101
T6 Series Metric Core Bits:T6-76, T6-86, T6-101, T6-116, T6-131, T6-146
T6S Series Metric Core Bits:T6S-76, T6S-86, T6S-101, T6S-116, T6S-131, T6S-146
B Series(IS03552-1)Metric Core Bits:B36, B46, B56, B66, B76, B86, B101, B116, B131, B146
All other standard:CDDA, DCDMA, Crealius, and ISO sizes.


Q: Are you a manufacturer or trading company?
A: We are a specialized manufacturer.

Q: What are your main products, and used for?
A: Our products include core bit, PDC bit, reaming shell, core barrel, casing, drill rod, SPT equipment, Shelby sampler, drill rig and other drilling parts.
They are used for mineral exploration, geological drilling, geotechnical engineering and soil sampling.

Q: How about the delivery terms?
1. Payment: T/T, L/C, Western Union, Paypal, 30% deposit in advance and rest before delivery.
2. Min. order quantity: 1 piece.
3. Transportation: By DHL/TNT/Fedex express, air, sea, train.

Q: How about discount?
A: Price is based on products and order quantity.

Q: Do you accept sample order?
A: Yes sure, please contact us for details.

Q: How about your after-sales service?
A: As a manufacturer, we offer promt technology support for all problems and questions. Besides, we accept goods return or replace for quality problem.

Q: How does your company control the quality?
A: Quality first. In order to guarantee high quality for our products, Roschen always makes a serious inspection for all products and raw materials in strict procedure. We have obtained certificate of ISO9001:2000 in 2004.

For more information please contact:




Prod Model: HQ3
Type No: Nq Wireline Impregnated Diamond Core Drill Bits
Drills: Core Bore Drills
Bits: Milwaukee Diamond Core Drill Bits
Diamond: Dremel Diamond Bits
Drill Bit: Diamond Tip Drill Bit
Name: Bq Nq Hq Pq Impregnated Diamond Core Bits
Series: Wireline Diamond Core Bits
Model: Impregnated Diamond Core Bits
Drilling: Exploration Core Drilling
Core Drilling: Wireline Core Drilling
ROSCHEN Geotechnical drilling, geothermal drilling, Oil and gas drilling, Exploration Core drilling, Rock Drilling products

ROSCHEN Geotechnical drilling, geothermal drilling, Oil and gas drilling, Exploration Core drilling, Rock Drilling, can offer the equipment needed for all rock drilling, underground and surface exploration applications in Mining Industry, Water Well Industry, Oil Field Industry and geothermal industry, etc. This includes rigs and all full range of high technology and high quality products, ITH equipment such as button bit, DTH bit, DTH Hammer, wireline series products, metric series products, drill rod and conventional core barrel, overshot, as well as casing and diamond core bit - all designed to maximize our customer profitability.

Rock drilling and Exploration drilling is tough, results-driven work. And if you want it done right, you need the right tools. ROSCHEN Exploration Products has the products you've depended on for many years.

All our products are designed to help the user minimize down-time and maximize productivity. ROSCHEN products used in many industries: Waterwell, Environmental, Oil Exploration, Mining, Geothermal and Construction.

We build drill bits to the highest standards - using raw materials selected for quality and durability, and assembling them with the latest metallurgical technology.

Our innovative and unique alloy formulations assure you of maximum penetration under all conditions, and ROSCHEN can customize drill bits to your specifications for any especially difficult drilling situations.

You'll find our experienced production team delivers exactly what you need - any time, anywhere. ROSCHEN has one clear focus - to provide the best diamond-drilling tools, equipment and accessories for the world's leading mineral drilling exploration companies.

ROSCHEN'S mission is:

· To strive to create and supply quality products for the industry that last longer than the average products.

· To provide excellent service for our clients. We work on a 24 hour-7 days a week schedule to get our clients what they need - FAST.
