Reverse Circulation Bit RC Drill Bits

Name: Reverse Circulation Bit RC Drill Bits
Brand: tool-buy.com
SKU: 825355075
Availability: InStock
Rating: 4.3 (31 reviews)

Price:	US $ 300-10000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

HEFEI ROSCHEN TOOL CO., LTD.

Showroom Product Company Profile

We are a leading manufacturer of rock drilling tools, like DTH hammers and bits, DTH drill pipes, RC hammers and bits, tophammer button bits, coupling, cross bits, drill rods located in Germany, China(joint-venture).

We have rich experience in this field of DTH hammers and bits for 60 years.

Owing to high quality, professional serivce and competitive price, we have gotten good reputation from our customers from all over the world, such as US, Canada, France, Spain, Italy, South Africa, Iran, Malaysia, Australia, etc.

Features
Using higher grade carbides for longer life;
Minimizes hole erosion in fragile formations
Drills faster through soft formations with less blockages
Drills straighter through consolidated and unconsolidated formations

RC bits specifications:
RC bits Model RC3-E531 for shank RE531

Diameter		No. x Button diameter mm		Button angle	Flushing holes	Shroud Dia mm	Weight (kg)	Part No.


mm	inch	Gauge Button	Front Button
86	3 3/8	6 x 12mm	5 x 12mm	35	2	84	6	RC3-E531-86
89	3 1/2	8 x 12mm	5 x 12mm	35	2	87	6.1	RC3-E531-89
95	3 3/4	8 x 12mm	6 x 12mm	35	2	93	6.3	RC3-E531-95
102	4	8 x 12mm	6 x 12mm	35	2	100	6.5	RC3-E531-102

RC bits Model RC3.5-Y for shank RC3.5Y

Diameter		No. x Button diameter mm		Button angle	Flushing holes	Shroud Dia mm	Weight (kg)	Part No.


mm	inch	Gauge Button	Front Button
92	3 5/8	6 x 14mm	6 x 12mm	35	2	90	6.1	RC3.5Y-92
95	3 3/4	6 x 14mm	6 x 12mm	35	2	93	6.3	RC3.5Y-95

RC bits Model RC4-E004 for shank RE004

Diameter		No x Button diameter mm		Button angle	Flushing holes	Shroud Dia mm	Weight (kg)	Part No.


mm	inch	Gauge Button	Front Button
114	4 1/2	8 x 14mm	8 x 13mm	35	2	112	11.8	RC4-E004-114
118	4 5/8	8 x 14mm	8 x 13mm	35	2	116	12	RC4-E004-118
121	4 3/4	8 x 14mm	8 x 13mm	35	2	119	12.4	RC4-E004-121
127	5	8 x 14mm	8 x 13mm	35	2	125	12.8	RC4-E004-127

RC bits Model RC4.5-E542 for shank RE542

Diameter		No x Button diameter mm		Button angle	Flushing holes	Shroud Dia mm	Weight (kg)	Part No.


mm	inch	Gauge Button	Front Button
121	4 3/4	8 x 14mm	8 x 13mm	35	2	119	10.7	RC4.5-E542-121
124	4 7/8	8 x 14mm	8 x 13mm	35	2	122	10.9	RC4.5-E542-124
127	5	8 x 14mm	8 x 14mm	35	2	125	11.2	RC4.5-E542-127
130	5 1/8	8 x 16mm	8 x 14mm	35	2	128	11.5	RC4.5-E542-130

RC bits Model RC4.5-E543 for shank RE543

Diameter		No x Button diameter mm		Button angle	Flushing holes	Shroud Dia mm	Weight (kg)	Part No.


mm	inch	Gauge Button	Front Button
124	4 7/8	8 x 14mm	8 x 13mm	35	2	122	11	RC4.5-E543-124
127	5	8 x 14mm	8 x 14mm	35	2	125	11.2	RC4.5-E543-127
130	5 1/8	8 x 16mm	8 x 14mm	35	2	128	11.4	RC4.5-E543-130
133	5 1/4	8 x 16mm	9 x 14mm	35	2	131	11.7	RC4.5-E543-133

RC bits Model RC5-E545 for shank RE545

Diameter		No x Button diameter mm		Button angle	Flushing holes	Shroud Dia mm	Weight (kg)	Part No.


mm	inch	Gauge Button	Front Button
124	4 7/8	8 x 14mm	8 x 13mm	35	2	122	11	RC5-E545-124
127	5	8 x 14mm	8 x 14mm	35	2	125	11.2	RC5-E545-127
133	5 1/4	8 x 16mm	9 x 14mm	35	2	131	11.7	RC5-E545-133
136	5 3/8	8 x 16mm	6x16+3x14	35	2	134	12	RC5-E545-136

RC bits Model RC5-P40 for shank PR40

Diameter		No x Button diameter mm		Button angle	Flushing holes	Shroud Dia mm	Weight (kg)	Part No


mm	inch	Gauge Button	Front Button
124	4 7/8	8 x 14mm	8 x 13mm	35	2	122	14.5	RC5-P40-124
127	5	8 x 14mm	8 x 14mm	35	2	125	14.7	RC5-P40-127
130	5 1/8	8 x 16mm	8 x 14mm	35	2	128	14.9	RC5-P40-130
133	5 1/4	8 x 16mm	6x14+3x14	35	2	131	15	RC5-P40-133
138	5 7/16	8 x 16mm	6x16+3x14	35	2	136	15.8	RC5-P40-138
140	5 1/2	8 x 16mm	6x16+3x14	35	2	138	16	RC5-P40-140

RC bits Model RC5.5-P52/P52R for shank PR52/PR52R

Diameter		No x Button diameter mm		Button angle	Flushing holes	Shroud Dia mm	Weight (kg)	Part No.


mm	inch	Gauge Button	Front Button
133	5 1/4	8 x 16mm	6x14+3x14	35	2	131	16.9	RC5.5-P52-133
136	5 3/8	8 x 16mm	6x16+3x14	35	2	134	17.1	RC5.5-P52-136
140	5 1/2	8 x 16mm	6x16+3x14	35	2	138	17.2	RC5.5-P52-140
143	5 5/8	8 x 16mm	6x16+3x14	35	2	141	17.3	RC5.5-P52-143

RC bits Model RC5.5-E547 for shank RE547

Diameter		No x Button diameter mm		Button angle	Flushing holes	Shroud Dia mm	Weight (kg)	Part No


mm	inch	Gauge Button	Front Button
136	5 3/8	8 x 16mm	6x16+3x14	35	2	134	14.2	RC5.5-E547-136
140	5 1/2	8 x 16mm	6x16+3x14	35	2	138	14.5	RC5.5-E547-140
143	5 5/8	8 x 16mm	6x16+3x14	35	2	141	14.7	RC5.5-E547-143
146	5 3/4	8 x 16mm	6x16+3x14	35	2	144	15	RC5.5-E547-146

RC bits Model RC5.5-P54/P54R for shank PR54/PR54R

Diameter		No x Button diameter mm		Button angle	Flushing holes	Shroud Dia mm	Weight (kg)	Part No


mm	inch	Gauge Buttons	Front Buttons
136	5 3/8	8 x 16mm	6x16+3x14	35	2	134	19	RC5.5-P54-136
140	5 1/2	8 x 16mm	6x16+3x14	35	2	138	19.3	RC5.5-P54-140
143	5 5/8	8 x 16mm	6x16+3x14	35	2	141	19.5	RC5.5-P54-143
146	5 3/4	8 x 16mm	6x16+3x14	35	2	144	19.6	RC5.5-P54-146

ROSCHEN RC hammer Bit technical data:

ROSCHEN Reverse Circulation Bits Specifications
RE531 RC bits
ROSCHEN Code: ROS RC 30
Diameter		No x Button diameter mm		Button angle	Flusing holes	Shroud Dia mm	Weight (kgs)	Part No
mm	inch	Gauge Buttons	Front Buttons	Button angle	Flusing holes	Shroud Dia mm	Weight (kgs)	Part No
86	3 3/8	6x12	4x12	35	2	84	4.2	RE531-86
89	3 1/2	8x12	8x12	35	2	87	4.3	RE531-89
95	3 3/4	8x12	8x12	35	2	93	4.6	RE531-95
102	4	8x12	8x12	35	2	100	4.9	RE531-102
RE004 RC bits
ROSCHEN Code: ROS RC 40
Diameter		No x Button diameter mm		Button angle	Flusing holes	Shroud Dia mm	Weight (kgs)	Part No
mm	inch	Gauge Buttons	Front Buttons	Button angle	Flusing holes	Shroud Dia mm	Weight (kgs)	Part No
114	4 1/2	8x14	6x14	35	2	112	11.5	RE004-114
118	4 5/8	8x14	6x14	35	2	116	11.7	RE004-118
121	4 3/4	8x14	6x14	35	2	119	12	RE004-121
127	5	8x14	8x14	35	2	125	12.4	RE004-127
RE542
ROSCHEN Code: ROS RC 50
Diameter		No x Button diameter mm		Button angle	Flusing holes	Shroud Dia mm	Weight (kgs)	Part No
mm	inch	Gauge Buttons	Front Buttons
121	4 3/4	8x14	6x14	35	2	119	10.6	RE542-121
124	4 7/8	8x14	8x13	35	2	122	10.8	RE542-124
127	5	8x14	8x14	35	2	125	11	RE542-127
130	5 1/8	8x14	10x14	35	2	128	11.3	RE542-130
RE543
ROSCHEN Code: ROS RC 50
Diameter		No x Button diameter mm		Button angle	Flusing holes	Shroud Dia mm	Weight (kgs)	Part No
mm	inch	Gauge Buttons	Front Buttons	Button angle	Flusing holes	Shroud Dia mm	Weight (kgs)	Part No
124	4 7/8	8x14	8X13	35	2	122	10.8	RE543-124
127	5	8x14	8X14	35	2	125	11	RE543-127
130	5 1/8	8x14	10X14	35	2	128	11.3	RE543-130
133	5 1/4	8x16	10X14	35	2	131	11.8	RE543-133
RE545
ROSCHEN Code: ROS RC 50
Diameter		No x Button diameter mm		Button angle	Flusing holes	Shroud Dia mm	Weight (kgs)	Part No
mm	inch	Gauge Buttons	Front Buttons	Button angle	Flusing holes	Shroud Dia mm	Weight (kgs)	Part No
124	4 7/8	8x14	8X13	35	2	122	13.3	RE545-124
127	5	8x14	8X14	35	2	125	13.5	RE545-127
133	5 1/4	8x16	10X14	35	2	131	13.8	RE545-133
136	5 3/8	8x16	6x16+3x14	35	2	134	14.2	RE545-136
PR40 RC bit
ROSCHEN Code: ROS RC 50
Diameter		No x Button diameter mm		Button angle	Flusing holes	Shroud Dia mm	Weight (kgs)	Part No
mm	inch	Gauge Buttons	Front Buttons	Button angle	Flusing holes	Shroud Dia mm	Weight (kgs)	Part No
124	4 7/8	8x14	8X13	35	2	122	14.3	PR40-124
127	5	8x14	8X14	35	2	125	14.7	PR40-127
133	5 1/4	8x16	10X14	35	2	131	15.2	PR40-133
138	5 4/9	8x16	6x16+3x14	35	2	136	15.8	PR40-138
PR52 RC bit
ROSCHEN Code: ROS RC 55
Diameter		No x Button diameter mm		Button angle	Flusing holes	Shroud Dia mm	Weight (kgs)	Part No
mm	inch	Gauge Buttons	Front Buttons	Button angle	Flusing holes	Shroud Dia mm	Weight (kgs)	Part No
133	5 1/4	8x16	10x14	35	2	131	11.2	PR52-133
136	5 3/8	8x16	6x16+3x14	35	2	134	11.5	PR52-136
140	5 1/2	8x16	6x16+3x14	35	2	138	11.9	PR52-140
143	5 5/8	8x16	6x16+3x14	35	2	141	12.3	PR52-143
RE547 RC bit
ROSCHEN Code: ROS RC 55
Diameter		No x Button diameter mm		Button angle	Flusing holes	Shroud Dia mm	Weight (kgs)	Part No
mm	inch	Gauge Buttons	Front Buttons	Button angle	Flusing holes	Shroud Dia mm	Weight (kgs)	Part No
136	5 3/8	8x16	6x16+3x14	35	2	134	15.1	RE547-136
140	5 1/2	8x16	6x16+3x14	35	2	138	15.5	RE547-140
143	5 5/8	8x16	6x16+3x14	35	2	141	15.8	RE547-143
146	5 3/4	8x16	6x16+3x14	35	2	144	16.3	RE547-146
PR54
ROSCHEN Code: ROS RC 55
Diameter		No x Button diameter mm		Button angle	Flusing holes	Shroud Dia mm	Weight (kgs)	Part No
mm	inch	Gauge Buttons	Front Buttons	Button angle	Flusing holes	Shroud Dia mm	Weight (kgs)	Part No
136	5 3/8	8x16	6x16+3x14	35	2	134	18.2	PR54-136
140	5 1/2	8x16	6x16+3x14	35	2	138	18.5	PR54-140
143	5 5/8	8x16	6x16+3x14	35	2	141	18.8	PR54-143
146	5 3/4	8x16	6x16+3x14	35	2	144	19.2	PR54-146
Notes:
Metzke, Remet thread is available!
Any special size of Reverse Circulation bits will be available by requests.

RC bits with below shank can be available:

1) 3" RC Bits: Dia. 86mm-102mm shank RE531
2) 4'' RC Bits: Dia. 114mm-127mm Shank type: RE004
3) 4.5" RC Bits: Dia. 121mm-133mm Shank type: RE542, RE543
4) 5'' RC Bits: Dia. 124mm-138mm Shank type: RE545, PR40
5) 5.5" RC Bits: Dia. 133mm-159mm Shank type: PR52, RE547, PR54, M5456
6) 6" RC Bits: Dia. 152mm-165mm
Other size can be upon to customer's requirements
Extra size button and PCD butons are available.

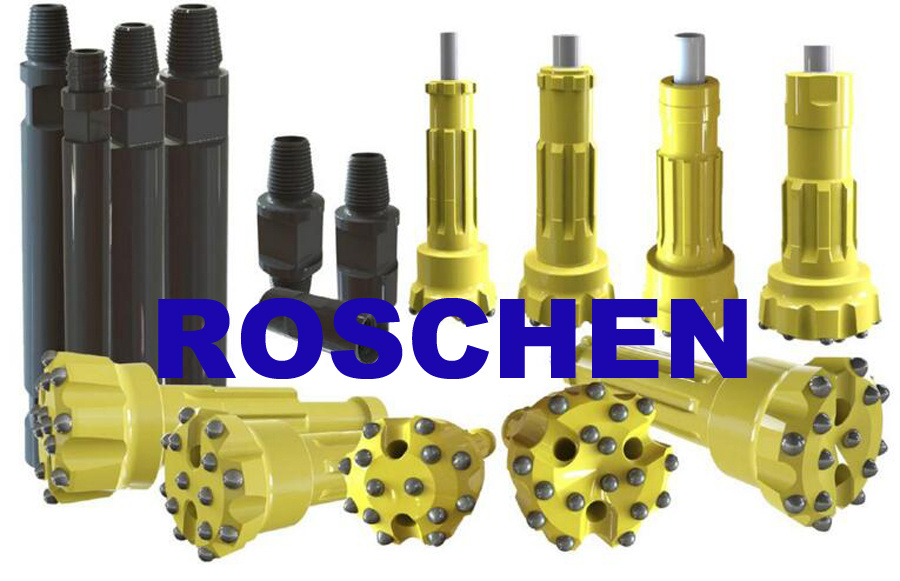

We can also provide related products DTH hammers, ODEX system, symmetrix systems, slide block drilling systems, etc and DTH drilling pipes for various thread API REG, API IF, BECO, etc

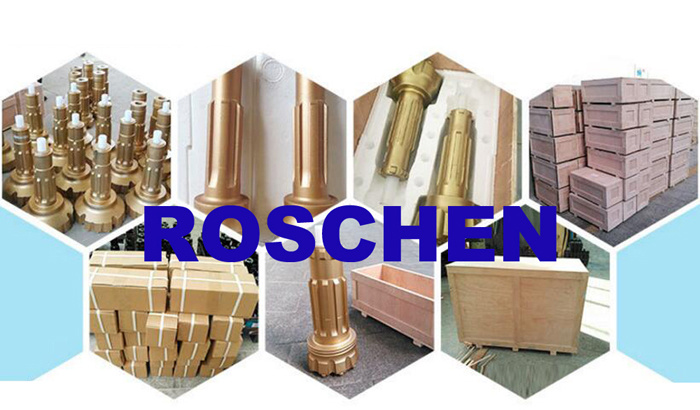

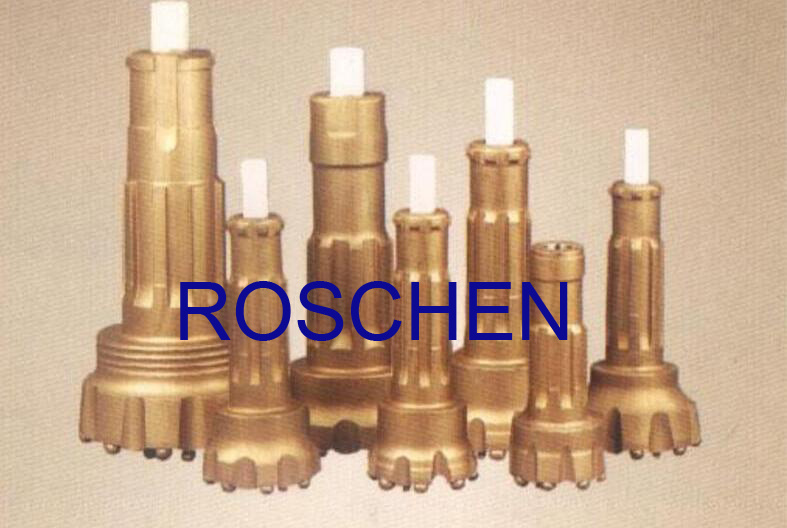

Product photos

Quality warranty:
Our products are made of high quality steel and all spares parts are inspected strictly before shipping. We have quickly responses for your complaint and suggestion.

Package:
Using ply-wooden cases and pallet for package to protect the products and avoid the damagement during transportation. Also we can customize package according to your special requests.

Production time:

Generally need 15-25 days

Transportation:
By air, By Express or By sea according to your requests.

FAQ

Q: Are you a manufacturer or trading company?
A: We are a specialized manufacturer.

Q: What are your main products, and used for?
A: Our products include core bit, PDC bit, reaming shell, core barrel, casing, drill rod, SPT equipment, Shelby sampler, drill rig and other drilling parts.
They are used for mineral exploration, geological drilling, geotechnical engineering and soil sampling.

Q: How about the delivery terms?
1. Payment: T/T, L/C, Western Union, Paypal, 30% deposit in advance and rest before delivery.
2. Min. order quantity: 1 piece.
3. Transportation: By DHL/TNT/Fedex express, air, sea, train.

Q: How about discount?
A: Price is based on products and order quantity.

Q: Do you accept sample order?
A: Yes sure, please contact us for details.

Q: How about your after-sales service?
A: As a manufacturer, we offer promt technology support for all problems and questions. Besides, we accept goods return or replace for quality problem.

Q: How does your company control the quality?
A: Quality first. In order to guarantee high quality for our products, Roschen always makes a serious inspection for all products and raw materials in strict procedure. We have obtained certificate of ISO9001:2000 in 2004.


For more information please contact:



ROSCHEN INC.
ROSCHEN GROUP LIMITED
ROSCHEN HOLDINGS LIMITED

: +86-137 6419 5009 ; +86-135 8585 5390

Website: http://www.roschen.net

; http://www.roschen.cn

http://www.roschen.com

; http://www.roschengroup.com

Prod Model:	ROS30~ROS55
Button Bits:	RC45 Reverse Circulation Button Bits
Brand:	Atlas Copco RC45 Reverse Circulation Button Bits
Button:	Brother Sewing Machine Reverse Button
Name:	Forward and Reverse Button
Sales:	Honda Fourtrax Reverse Button for Sale
Reverse Button:	John Deere Reverse Button
Bits:	Reverse Bits Java
Drill Bit:	Atlas Copco RC45 RC50 Button Drill Bit
RC Hammers:	RC45 RC Hammers Bit
Use:	Use Together with RC Bits

ROSCHEN Geotechnical drilling, geothermal drilling, Oil and gas drilling, Exploration Core drilling, Rock Drilling products

ROSCHEN Geotechnical drilling, geothermal drilling, Oil and gas drilling, Exploration Core drilling, Rock Drilling, can offer the equipment needed for all rock drilling, underground and surface exploration applications in Mining Industry, Water Well Industry, Oil Field Industry and geothermal industry, etc. This includes rigs and all full range of high technology and high quality products, ITH equipment such as button bit, DTH bit, DTH Hammer, wireline series products, metric series products, drill rod and conventional core barrel, overshot, as well as casing and diamond core bit - all designed to maximize our customer profitability.

Rock drilling and Exploration drilling is tough, results-driven work. And if you want it done right, you need the right tools. ROSCHEN Exploration Products has the products you've depended on for many years.

All our products are designed to help the user minimize down-time and maximize productivity. ROSCHEN products used in many industries: Waterwell, Environmental, Oil Exploration, Mining, Geothermal and Construction.

We build drill bits to the highest standards - using raw materials selected for quality and durability, and assembling them with the latest metallurgical technology.

Our innovative and unique alloy formulations assure you of maximum penetration under all conditions, and ROSCHEN can customize drill bits to your specifications for any especially difficult drilling situations.

You'll find our experienced production team delivers exactly what you need - any time, anywhere. ROSCHEN has one clear focus - to provide the best diamond-drilling tools, equipment and accessories for the world's leading mineral drilling exploration companies.

ROSCHEN'S mission is:

· To strive to create and supply quality products for the industry that last longer than the average products.

· To provide excellent service for our clients. We work on a 24 hour-7 days a week schedule to get our clients what they need - FAST.

ROSCHEN INC.

ROSCHEN GROUP LIMITED

ROSCHEN HOLDINGS LIMITED

Direct Line: +86-1376419 5009

About Us Toolbuy Products Toolbuy Manufacturers Hot Toolbuy Toolbuy News Toolbuy Trade Shows Site Partners Contact Us Sitemap

Categories

Reverse Circulation Bit RC Drill Bits

Send your message to this manufacturer

Categories

Reverse Circulation Bit RC Drill Bits

Send your message to this manufacturer

Other Toolbuy Products with This Manufacturers
