Custom Design Wgc Gear Coupling for Heavy-Duty Machinery

Name: Custom Design Wgc Gear Coupling for Heavy-Duty Machinery
Brand: tool-buy.com
SKU: 814687135
Availability: InStock
Rating: 4.7 (85 reviews)

Price:	US $ 308-320/Set
Min Order:	1/Set
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Cangzhou Tanso Coupling Co., Ltd.

Showroom Product Company Profile

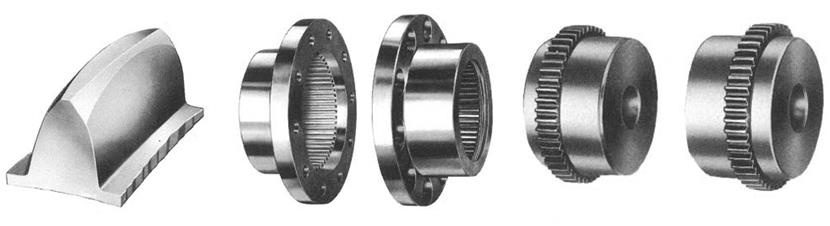

A gear coupling is a mechanical device for transmitting torque between two shafts that are not collinear. It consists of a flexible joint fixed to each shaft. The two joints are connected by a third shaft, called the spindle.

Each joint consists of a 1:1 gear ratio internal/external gear pair. The tooth flanks and outer diameter of the external gear are crowned to allow for angular displacement between the two gears. Mechanically, the gears are equivalent to rotating splines with modified profiles. They are called gears because of the relatively large size of the teeth.

Gear couplings and universal joints are used in similar applications. Gear couplings have higher torque densities than universal joints designed to fit a given space while universal joints induce lower vibrations. The limit on torque density in universal joints is due to the limited cross sections of the cross and yoke. The gear teeth in a gear coupling have high backlash to allow for angular misalignment. The excess backlash can contribute to vibration.

Gear couplings are generally limited to angular misalignments, i.e., the angle of the spindle relative to the axes of the connected shafts, of 4-5°. Universal joints are capable of higher misalignments.
Advantages of Tanso gear coupling
1. Lowest price based on large scale production.
2. High and stable quality level.
3. Widely used in various mechanical and hydraulic fields.
4. Compensation for axial, radial and angular misalignment.
5. Convenient axial plugging assembly.
6. No brittlement at low temperature.
7. Good slippery and frictional properties.
8. Resistance to chemical corrosion.
9. Rich experience working with big companies in this field.

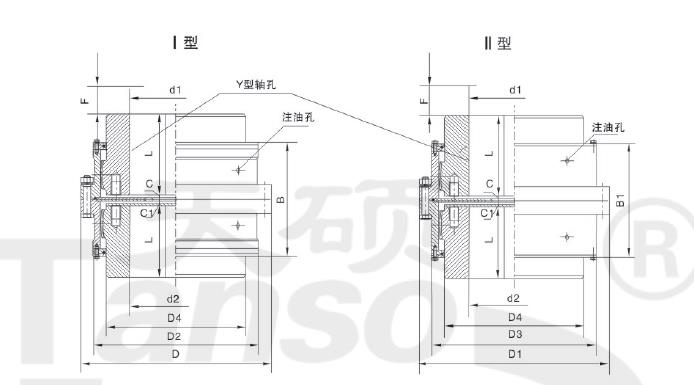

Type	Nominal torque	Max speed [n]	Bore diameter	Bore length L	D	D₁	D₂	D₃	D₄	B	B₁	F	C		C₁	Mass
	Tn	/r·min^-1	d₁,d₂													/kg
	/N·m			Y									I	II		I	II
WGC1	710	7500	12,14	32	122	115	98	88	60	116	100	30	30	-	30	5.8	5.1
			16,18,19	42									20	14	20
			20,22,24	52									10	6	14
			25,28	62									6	6
			30,32,35,38	82
			40,42	112
WGC2	1250	6700	22,24	52	150	145	118	108	77	136	104	30	20	7	20	10	7.9
			25,28	62									10		16
			30,32,35,38	82									7
			40,42,45,48,50,55,56	112
WGC3	2500	6300	22,24	52	170	165	140	125	90	160	108	30	33	7	33	17	17.8
			25,28	62									23		23
			30,32,35,38	82									7		20
			40,42,45,48,50,55,56	112
			60,63	142
WGC4	4500	5600	30,32,35,38	82	200	195	160	145	112	180	116	30	13	7	20	26.2	20.5
			40,42,45,48,50,55,56	112									7
			60,63,65,70,71,75	142
			80	172
WGC5	7100	5300	30,32,35,38	82	225	215	180	168	128	200	126	30	23	8	28	36.1	27.7
			40,42,45,48,50,55,56	112									8
			60,63,65,70,71,75	142
			80,85,90	172
WGC6	10000	5000	32,35,38	82	245	230	200	185	145	224	134	30	35	10	35	53.2	39.8
			40,42,45,48,50,55,56	112									10		28
			60,63,65,70,71,75	142
			80,85,90,95	172
			100	212
WGC7	14000	4500	32,35,38	82	272	265	230	210	160	244	148	30	45	10	45	71.1	47.5
			40,42,45,48,50,55,56	112									15		28
			60,63,65,70,71,75	142									10
			80,85,90,95	172
			100,110	212
WGC8	20000	4250	55,56	112	290	272	245	225	176	272	162	30	29	10	30	83	59.6
			60,63,65,70,71,75	142									10
			80,85,90,95	172
			100,110,120,125	212

Prod Model:	WGC6
Certification:	ISO9001:2008
Surface Treatment:	Blankening
Procwaa:	Forging+Machining+Heating Treatment+Milling+Drilli

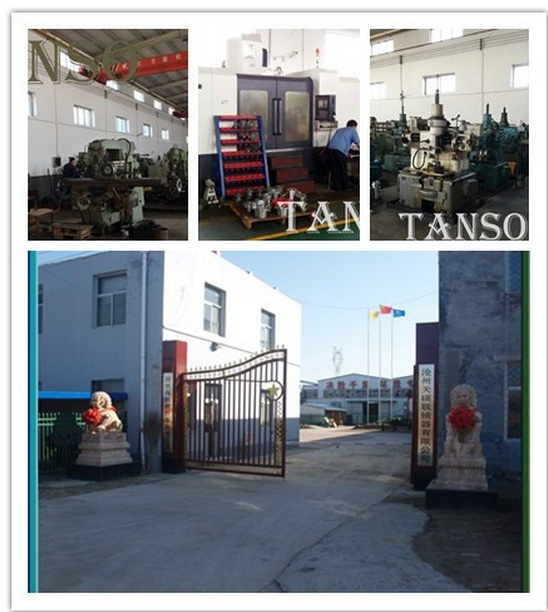

Cangzhou Tanso Couplings Co., Ltd. (the former Botou Tianshuo Couplings Factory) specializes in the research and production of expansion coupling sleeve, mechanical drives and mechanical seals. Thanks to our years of experience in research and development of couplings, and favorable conditions and dominant advantages in research and development of high-precision products and mass production, the company can meet customers' demands. The company has passed the certification of ISO9001-2000 Quality Management System, and realized CAD computer aided design and information management, integrating research, development and manufacturing. The company boasts its rich manufacturing experience, strong technical force, complete testing meanings, complete range of specifications and stable and reliable quality. Since its establishment, the company has sold its products throughout China, winning wide appreciation from customers. Based on credit principle, the company has established long-term cooperative relationships with a number of customers. At present, the company, by further strengthening staff training, improving technology level and injecting high-tech contents into products, strives to offer products of top quality and preferential prices.

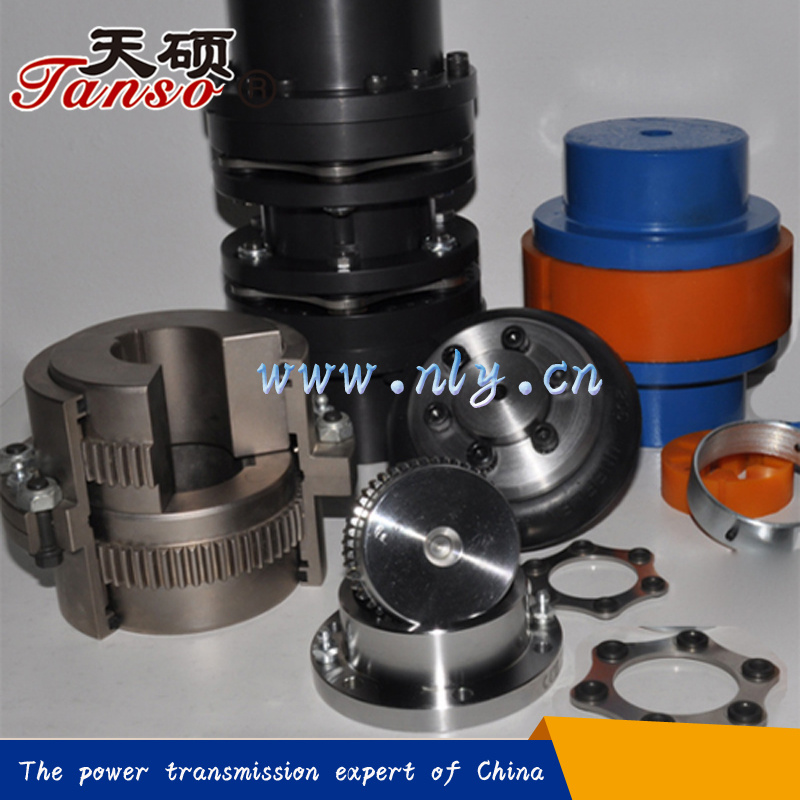

Our main products include rubber tire couplings, roller chain couplings, safety couplings, diaphragm couplings, drum gear couplings, star-shaped flexible coupling, rubber-cushioned sleeve pin coupling, oldham coupling, plum-shaped flexible coupling, roller chain couplings, flexible pin coupling, flexible pin gear coupling, and so on. In order to meet customers' demands, we, with rich experience, also undertake the plotting and manufacturing of other types of couplings. Under the tenet of "Develop by Technology, Survive by Quality, Benefit by Customers", the company makes all efforts to provide customers with quality products and satisfactory service through advanced production management and strict quality requirements".

Welcome to contact us!
