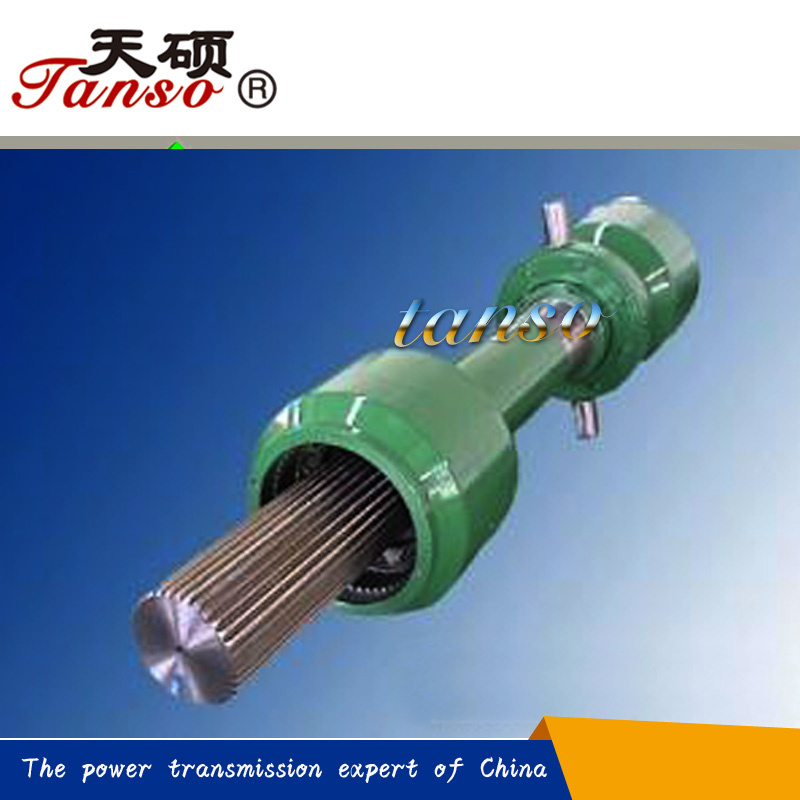

Stretch Gsl-F Type Gear Coupling for Mining Machinery

Name: Stretch Gsl-F Type Gear Coupling for Mining Machinery
Brand: tool-buy.com
SKU: 818836085
Availability: InStock
Rating: 4.4 (111 reviews)

Price:	US $ 27.8-30/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Cangzhou Tanso Coupling Co., Ltd.

Showroom Product Company Profile

A gear coupling is a mechanical device for transmitting torque between two shafts that are not collinear. It consists of a flexible joint fixed to each shaft. The two joints are connected by a third shaft, called the spindle.

Each joint consists of a 1:1 gear ratio internal/external gear pair. The tooth flanks and outer diameter of the external gear are crowned to allow for angular displacement between the two gears. Mechanically, the gears are equivalent to rotating splines with modified profiles. They are called gears because of the relatively large size of the teeth.

Gear couplings and universal joints are used in similar applications. Gear couplings have higher torque densities than universal joints designed to fit a given space while universal joints induce lower vibrations. The limit on torque density in universal joints is due to the limited cross sections of the cross and yoke. The gear teeth in a gear coupling have high backlash to allow for angular misalignment. The excess backlash can contribute to vibration.

Gear couplings are generally limited to angular misalignments, i.e., the angle of the spindle relative to the axes of the connected shafts, of 4-5°. Universal joints are capable of higher misalignments.

Advantages of Tanso gear coupling

1. Lowest price based on large scale production.

2. High and stable quality level.

3. Widely used in various mechanical and hydraulic fields.

4. Compensation for axial, radial and angular misalignment.

5. Convenient axial plugging assembly.

6. No brittlement at low temperature.

7. Good slippery and frictional properties.

8. Resistance to chemical corrosion.

9. Rich experience working with big companies in this field.

II type:the seal is the whole body, the tooth spacing is smaller, the relative axial displacement is smaller,the structure is compact, the moment of inertia is small, and can be connected with the Y and J1 axis.

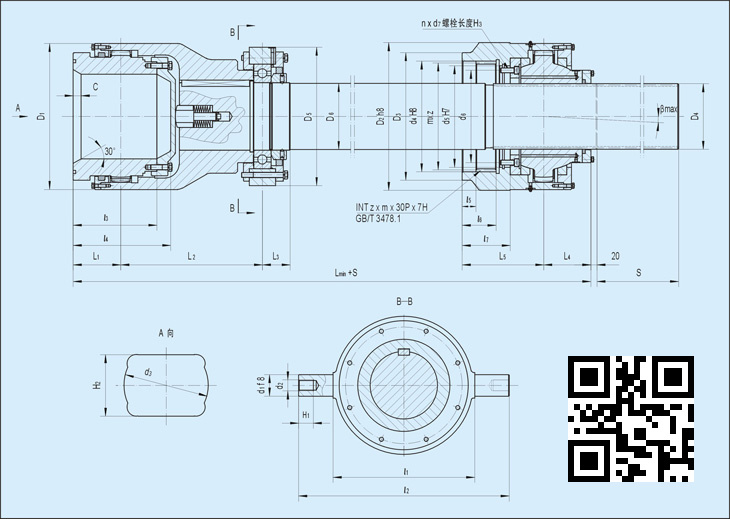

Type	Nominal torque T_n	Angle		Dimensions mm
	KN*m	β	L₁	L₂	L₃	L₄	L₅	L_min	D₁	D₂	D₃	D₄	D₅
			L₁	L₂	L₃	L₄	L₅	L_min	D₁	(h₈)	D₃	D₄	D₅
GSL-F200	31.5	≤1.5^o	90	250	50	80	190	960	200	200	170	88	200
GSL-F250	50		105	280	60	90	195	1050	250	258	220	105	250
GSL-F285	80		115	315	60	105	205	1140	285	270	245	120	270
GSL-F300	100		115	315	62	108	205	1165	300	280	250	124	280
GSL-F335	140		130	360	65	135	235	1315	335	330	280	150	300
GSL-F355	180		130	360	75	145	245	1360	355	350	310	174	330
GSL-F390	224		140	390	80	155	255	1450	390	380	335	180	360
GSL-F405	250		140	390	80	155	255	1450	405	400	340	194	390
GSL-F440	315		150	430	85	165	260	1540	440	440	375	208	410
GSL-F475	400		155	460	85	165	265	1600	475	480	415	220	450
GSL-F510	500		160	490	90	180	310	1750	510	520	430	245	480
GSL-F550	630		160	510	95	180	310	1770	550	550	470	252	510
GSL-F580	750		165	515	98	185	320	1790	580	560	485	258	525
GSL-F610	840		225	580	105	210	360	2060	610	610	520	280	580
GSL-F660	1050		245	640	115	230	390	2230	660	660	540	295	630
GSL-F710	1300		265	680	125	250	410	2380	710	710	580	315	680
GSL-F760	1600		290	730	135	260	430	2540	760	760	620	340	740

Prod Model:	GSL-F

Cangzhou Tanso Couplings Co., Ltd. (the former Botou Tianshuo Couplings Factory) specializes in the research and production of expansion coupling sleeve, mechanical drives and mechanical seals. Thanks to our years of experience in research and development of couplings, and favorable conditions and dominant advantages in research and development of high-precision products and mass production, the company can meet customers' demands. The company has passed the certification of ISO9001-2000 Quality Management System, and realized CAD computer aided design and information management, integrating research, development and manufacturing. The company boasts its rich manufacturing experience, strong technical force, complete testing meanings, complete range of specifications and stable and reliable quality. Since its establishment, the company has sold its products throughout China, winning wide appreciation from customers. Based on credit principle, the company has established long-term cooperative relationships with a number of customers. At present, the company, by further strengthening staff training, improving technology level and injecting high-tech contents into products, strives to offer products of top quality and preferential prices.

Our main products include rubber tire couplings, roller chain couplings, safety couplings, diaphragm couplings, drum gear couplings, star-shaped flexible coupling, rubber-cushioned sleeve pin coupling, oldham coupling, plum-shaped flexible coupling, roller chain couplings, flexible pin coupling, flexible pin gear coupling, and so on. In order to meet customers' demands, we, with rich experience, also undertake the plotting and manufacturing of other types of couplings. Under the tenet of "Develop by Technology, Survive by Quality, Benefit by Customers", the company makes all efforts to provide customers with quality products and satisfactory service through advanced production management and strict quality requirements".

Welcome to contact us!
