| Price: | US $ 1700/Piece |
|---|---|
| Trade Terms: | FOB,CIF,DAP |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |
China Factory Price Square Drive Hydraulic
Torque Wrench
Jiangsu Canete Machinery Manufacturing Co.,Ltd
Features:
Square drive stainless steel hydraulic torque wrench
360 º x 180 º rotating tubing connector, without the use of space limitations, easy to operate
Drive shaft Zhu button release, fast switching tighten and removal of the state
Cylinders and power head shape is small, light weight, compact structure, small operating radius
Single operation nut corner too fast cylinder mesh process. High working efficiency
The reaction force in a straight line, reducing the internal torque loss
The cartridges torque wrench entire work process provides high accuracy
Easy to maintain, requiring no special tools
Surface of the torque wrench is nickel plated, with good anti-corrosive
Specification for your reference:
| Model | Max pulling capacity | Max torque | Square drvie axis(inch) | Socket size range | ||
| (Bar) | Nm | Ft.Ibs | mm | inch | ||
| KT11LB190 | 700 | 1915 | 1500 | 3./4 | 15-50 | 5/8-1 7/8 |
| KT11LB440 | 4400 | 3250 | 1 | 20-100 | 7/8-3 7/8 | |
| KT11LB810 | 8150 | 6010 | 1 1/2 | 41-155 | 1 5/8-6 1/4 | |
| KT11LB1500 | 14910 | 11000 | 1 1/2 | 41-155 | 1 5/8-6 1/4 | |
| KT11LB3400 | 34080 | 25140 | 2 1/2 | 60-255 | 2 3/8-10 | |

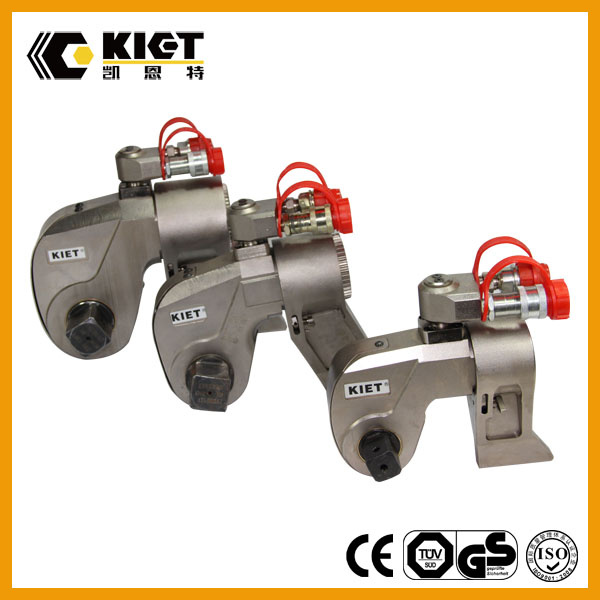

Photos for Square Drive Stainless Steel Hydraulic Torque Wrench:
KIET provide one year guarantee for all the hydraulic torque wrench. We promise if there is any dysfunction of the hydraulic torque wrench during the quality warranty not by outside force, we will replace a new one for free. Any quality defects reported by customers will be responded in 24 hours.
Brife information of KIET:
Jiangsu Canete Machinery Manufacturing Co.,Ltd . is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic pumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001:2008 consecutively.
Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
We are a manufacturer in tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.

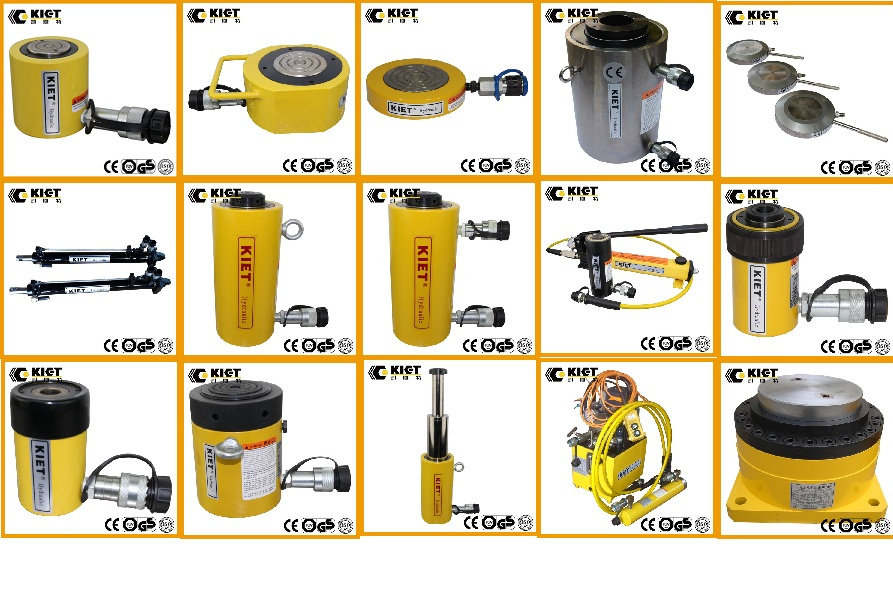

Our other Related Products for your reference:
More Information and questions please contact me as below:
Contact: Cherry Chen (sales Engineer)
Mob: +86 18918151556
Tel: +86-21-68565866
Web: http://www.chinakiet.com/EN/
Welcome to visit our factory !
| Prod Model: | KT11LB Series Square Drive Wrench |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: | Square Drive Stainless Steel Hydraulic Wrench |
| Max Torque Range: | 34080nm |
| Min. Torque(N.M): | 1915 Nm |
| Axle: | 1-1/2, 3/4 |
| OEM: | Yes |
| Color: | Can Customer |
| Certificate: | CE and ISO |
| Warranty: | One Year |
| Certification: | CE, ISO9001:2008 |
| Bolt Size: | 15-50m to 60-255m |
| Type: | Hydraulic Power Units |
| Flow Control Valve: | - |
