| Price: | US $ 1000-20000/Piece |
|---|---|
| Trade Terms: | FOB,EXW |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |

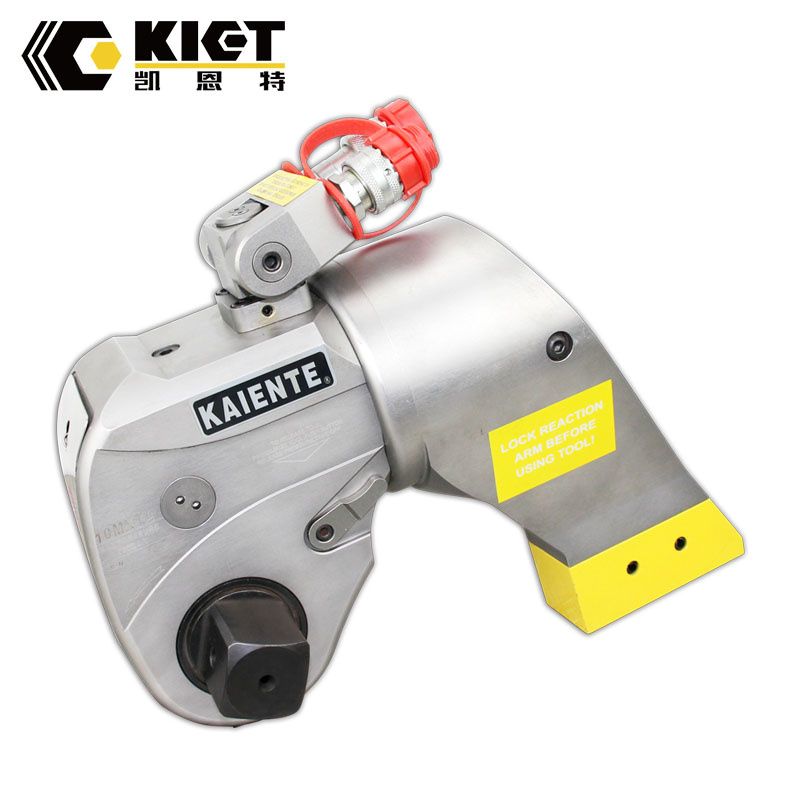

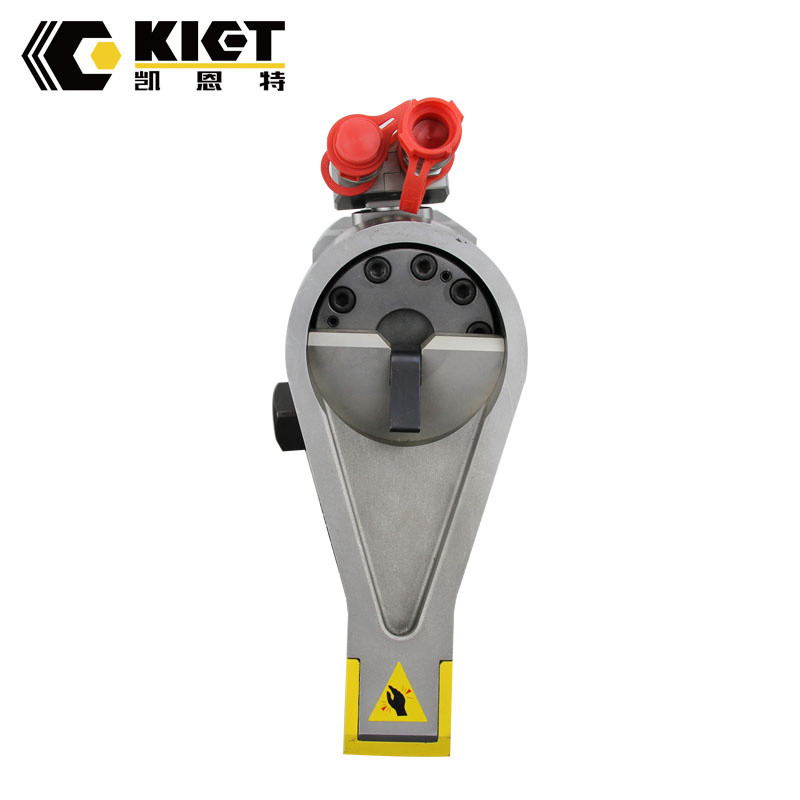

MXTA Series Labor Saving Hydraulic Socket Torque Wrench
Product Photos
Product Description:

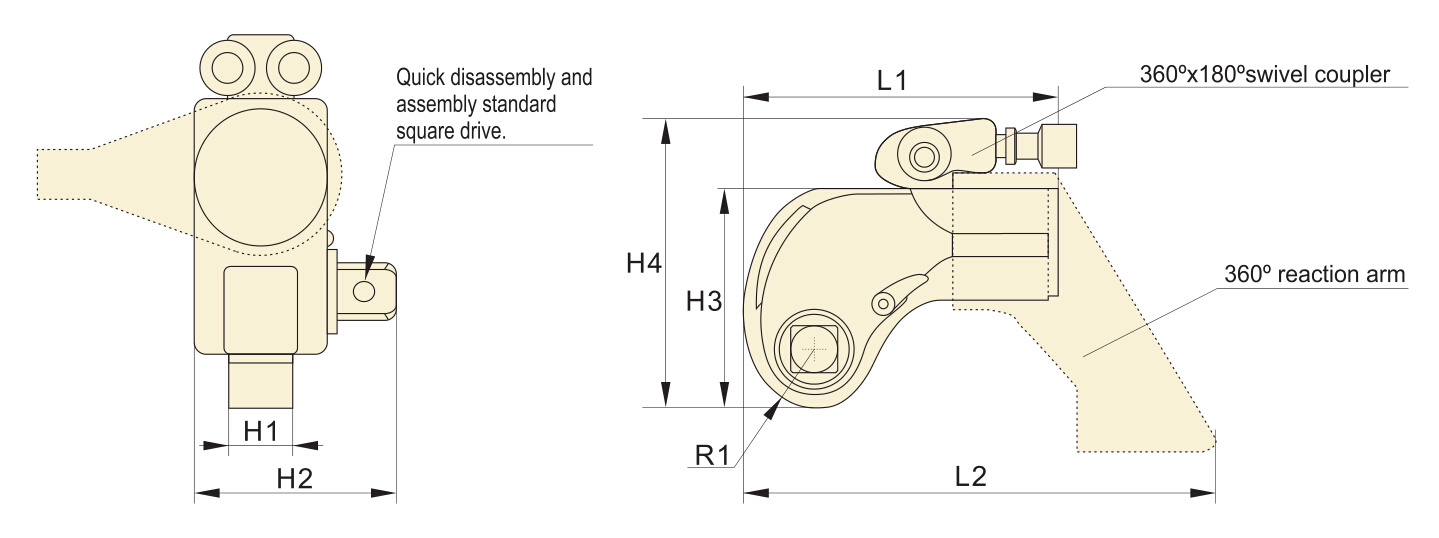

360° x 180° Swivel hose connection to reduce hose whip lashing & easy usage at restricted areas
Special high strenth, ultra-light Aluminium alloy material for strength & light weight
360° adjustable reaction arm with trigger style lock for easy adjustment
Compact unibody design with one way ratchet mechanism
Minimum moving parts for durability & low maintenance
External ratchet freeing mechanism
Working pressure of 700 bars
Accuracy ± 3%
Parameter:
| Model | Torque Value (Nm) | Screw Size (mm) | Bolt Size (mm) | Axle | Working Pressure (Mpa) | |
| KET-1MXTA | 183-1837 | 16-36 | 24-55 | 3/4" | 70 | |
| KET-3MXTA | 451-4512 | 22-48 | 34-75 | 1" | 70 | |
| KET-5MXTA | 752-7528 | 27-56 | 41-85 | 1-1/2" | 70 | |
| KET-8MXTA | 1078-10780 | 30-64 | 46-95 | 1-1/2" | 70 | |
| KET-10MXTA | 1551-15516 | 36-72 | 55-105 | 1-1/2" | 70 | |
| KET-20MXTA | 2666-26664 | 42-90 | 65-110 | 2-1/2" | 70 | |
| KET-25MXTA | 3472-34725 | 48-100 | 75-145 | 2-1/2" | 70 | |
| KET-35MXTA | 4866-48666 | 64-115 | 95-165 | 2-1/2" | 70 | |
Application
KIET provide one year guarantee for all the hydraulic press machine, We promise if there is any Problems of the hydraulic press Machine during the quality warranty not by outside force, we will replace a new one for free. Any quality defects reported by customers will be responded in 24 hours.
We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001:2008 consecutively.
Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
Certificates:
CE, ISO9001:2008
We are a manufacturer in Hydraulictools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)

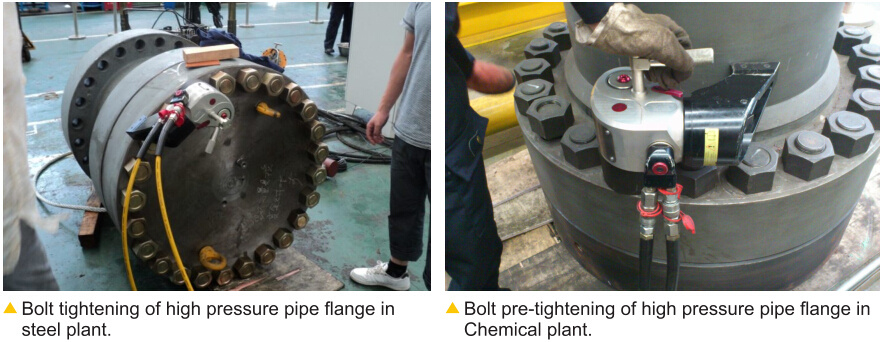

Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
Contact:
Aaron
Sales Director
Tel: +86-523-81569666
Mob: +86-18052610078
Web: http://www.chinakiet.com/EN/
| Prod Model: | VLP/XLP Series |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: | Mxta Series Hydraulic Socket Torque Wrench |
| Min. Torque Range: | 183-4866nm |
| Max. Torque Wrench: | 1837-48666nm |
| Accessories: | Socket\Hose\Hydraulic Pump |
| Standard Working Pressure: | 70MPa |
| OEM: | Available |
| Color: | Customerized Available |
| Function: | Fastening and Disassembly |
| Warranty: | 1 Year |
| Weight: | 2-43kg |
