| Price: | US $ 1.89-31.2/Piece |
|---|---|
| Min Order: | 2000/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |

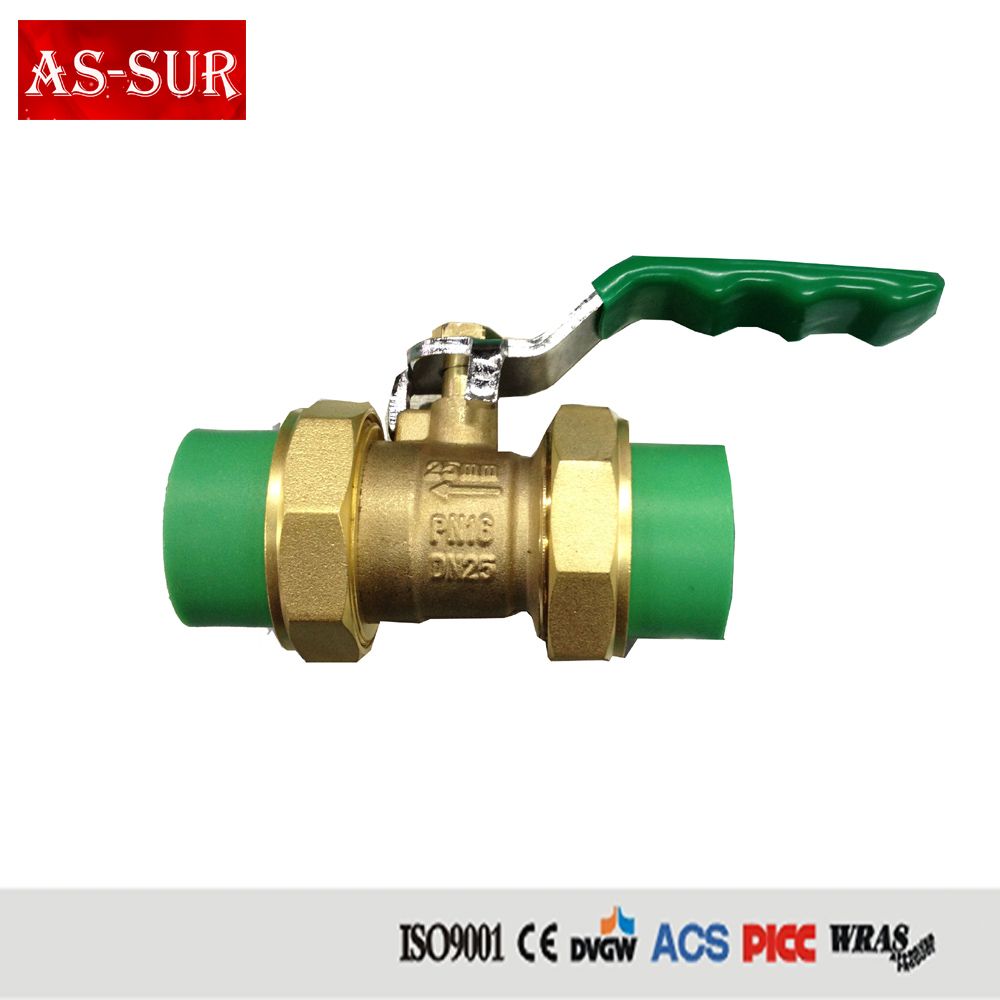

| Brass PPR Ball Valve | |||||
| Item Code | Item Des. | Size | Weight/G | Handle Weight Grams | Pcs/Ctn |
| AS-PPR001 | Brass Body,Brass ball, brass stem,PTEF seat, steel handle with plastic cover BSP thread,Nickle palted, Green Plastic Fittings | 1/2" | 163 | 35 | 100 |
| 3/4" | 219 | 35 | 100 | ||
| 1" | 333 | 50 | 80 | ||
| 1 1/4" | 520 | 70 | 48 | ||
| 1 1/2" | 1068 | 70 | 32 | ||
| 2" | 500 | 100 | 24 | ||

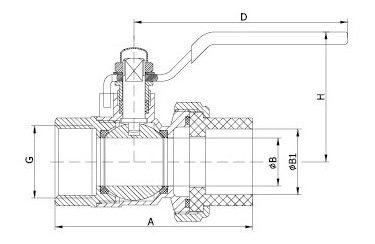

| DN | SIZE | A | B | B1 | H | D |
| 15 | 1/2"x20 | 64.5 | 15 | 19 | 45.4 | 89.3 |
| 20 | 3/4"x25 | 72 | 17.5 | 24 | 47.4 | 89.3 |
| 25 | 1"x32 | 83.2 | 23 | 31 | 61 | 107 |
| 32 | 1 1/4"x40 | 95.2 | 29 | 38.5 | 67 | 131 |
| 40 | 1 1/2"x50 | 101.5 | 32 | 48 | 68.5 | 131 |
| 50 | 2"x63 | 123.5 | 40 | 62 | 76.7 | 155 |
| Basic Dates | |||||
| 1.Material Used | |||||
| HPB57%-3 HPB59%-1 | CW614N CW617N | CuZn39Pb3 CuZn40Pb2 | Lead Free Copper | ||
| 2.Basic Tech. Dates | |||||
| Type Of Thread | Surface Treatment | Temperature | Pressure | Medium | 100% Leakage Testing |
| ISO228/BSP NPT/JIS | Orgianl Color Nickel Plated Polished Chrome | 0≤T≤ 120ºC | 1.6MPA | Water/oil/gas | |
| 3.Des. Of Parts | |||||
| Ball | Stem | Sealing | Handle | Nut | PPR |
| Brass Ball | Brass/Iron | PTFE(Teflon) | Iron Handle Aluminum Handle Butterfly Handle | Brass/Steel | OEM Color |
| Iron Ball | Plastic |
| Prod Model: | AS-PPR001 |
|---|---|
| Ball: | Brass Ball |
| Stem: | Brass Stem |
| Bore: | Full Bore |
| Thread Stardard: | ISO228 |
| Working Temp.: | -20c to + 120c |
| Certificate: | Ce |
| Sealing: | Teflon PTFE |
| O-Ring: | NBR |
| Handle: | Iron Handle with Plastic Cover |
| Finishing: | Nickle Plated |
| Material: | Brass |
| Connection Form: | Thread |
| Channel: | Straight Through Type |
| Structure: | Fixed Ball Valve |
| Type: | Fixed Ball Valve |
| Application: | Household Usage |
