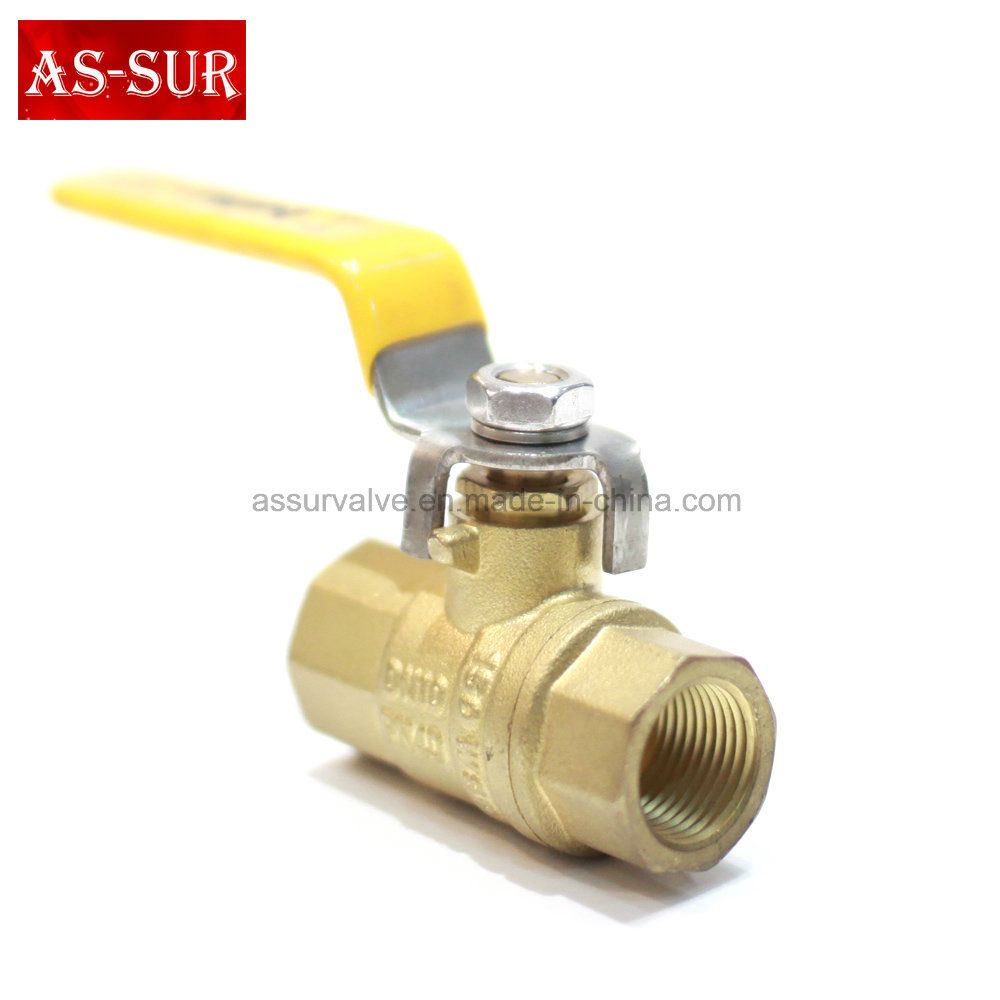

Wog600 Brass Gas Ball Valve with NPT Thread

Wog600 Brass Gas Ball Valve with NPT Thread
Price: US $ 1.8-2/Piece
Min Order: 2000/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
WOG600 Brass Gas Ball Valve with CE/DVGW Certificate

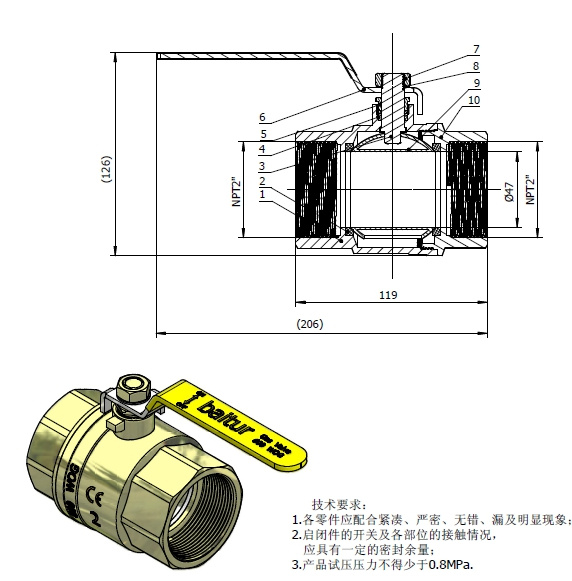

Basic Tech. Dates:


SIZE    1/4"3/8'1/2"3/4"1"1 1/4"1 1/2"2"
NAME
Body Length44.5MM52.5MM55MM69MM83MM94.5MM106MM119MM
Bore Length8MM10MM15MM20MM25MM30MM37MM47MM
Wall Thick2.01MM2.15MM2.25MM2.5MM2.75MM3MM3.25MM3.5MM
Item Total Weight140G160G252G395G636G850G1200G1850G
Nut Steel with WasherIron+Nickle plated
Body MaterialMS58
Ball MaterialCu57%-3
Bonnet MaterialMS58
Stem MaterialCu57%-3
Packing Gland MaterialCu57%-3
Seat Ring MaterialPTEF
Handle MaterialStainless Steel 304
Plastic CoverYellow Plastic with Black letters
Thread Standard NPT Thread
Pressure RequestedWOG 600
Surface FinishingSand Blast-acid-washing




Basic Dates
1.Brass Material Used
HPB57%-3
HPB59%-1
CW614N
CW617N
CuZn39Pb3
CuZn40Pb2
Lead Free CopperC3604

2.BasicTechnical Dates
Type Of Thread Surface Treatment Temperature PressureMedium100%
Leakage
 Testing
ISO228/BSP/NPT/JISOrgianl Color Nickel Plated
Polished Chrome
0≤T≤ 120ºC1.6MPAWater/oil/gas

3.Description Of Parts
BallStemSealing HandleNut
Brass Ball With
Chrome Plated
Brass/IronPTFE(Teflon) Iron Handle
Aluminum Handle
Butterfly Handle
Brass/Steel/Iron
Iron Ball With
Chrome Plated




Packing:  1/2"    1pc/PE bag; 12pcs/Inner box; 10inner boxes/Carton
                 3/4"    1pc/PE bag; 10pcs/Inner box; 8 inner boxes/Carton
                  1"      1pc/PE bag;  8pcs/Inner box; 6 inner boxes/Carton
Shipping:goods will be shipped by sea after 25-35 days after receiving deposit









Prod Model: AS-GS1001
Ball: Brass Ball
Stem: Brass Stem
Bore: Full Bore
Thread Stardard: NPT Thread
Working Temp.: -20c to + 120c
Certificate: Ce , Dvgw Approved
Sealing: Teflon PTFE
O-Ring: NBR
Handle: Stainless Steel 304 Handle
Finishing: Sand Blast-Acid-Washing
Material: Brass
Connection Form: Thread
Channel: Straight Through Type
Structure: Fixed Ball Valve
Type: Fixed Ball Valve
Application: Household Usage
As-Sur Industrial Trade Co., Ltd. is located in Taizhou, Zhejiang Province. Our factory covers an area of 10, 000sqm and annually produce 6, 000 tons of brass products. During the past 10 years, we have been engaged in designing, developing, producing and selling valves, fittings and sanitary ware. We have also adopted ISO9001: 2000 quality control system and ISO9001: 2000 environment protection system. Our products have certificates of CE, RoHS, ACS and DVGW.

With our continual innovation, we have exported products to Euro, America, Africa and Middle East. Our products are well received for good quality and service based on advanced equipment, abundant technical force and reliable reputation.

Our main products is: Brass valve, brass ball valve, brass angle valve, brass check valve, brass gas valve, brass gate valve, brass stop valve, brass pipe fitting, brass angle valve and brass fittings etc.

We sincerely hope to have cooperation with old and new clients for mutual development and a brilliant future.
