| Price: | US $ 95-100/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,Western Union,Money Gram |
| Design | API 6D, API 6DSS, API 6A, ASME B16.34, ISO 14313, ISO 10423, ISO 17292 |
| Design pressure | ASME B16.34, EN 1092-1, ISO 17292 |
| Body wall thickness | ASME B16.34, ASME VIII Div. I, ISO 17292 |
| Face to Face | API 6D, ASME B16.10 Long pattern |
| Temperature range | -50° to 200°C (-58° to 392°F) |
| Pressures range | PN20 (ANSI 150) to PN420 (ANSI 2500) |
| Size range | DN15 (1/2") to DN1400 (56") |
| End connections | ASME B16.5 ≤ DN600 (24") Flanged RF,FF,RTJ MSS-SP-44 = DN550 (22") Flanged RF,FF,RTJ ASME B16.47 A ≥ DN650 (26") Flanged RF,FF,RTJ ASME B16.25 Butt-Weld BW Clump (HUB) |

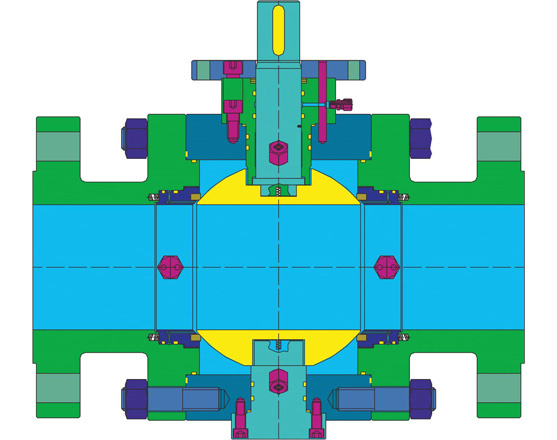

| Construction | Two or Three piece bolted body | |
| Port | Reduced bore, full bore or fully piggable | |
| Stem retention | Anti blow-out stem | |
| Leakage rate | ISO 5208 rate A soft seated, rate D metal seated | |
| Antistatic device | Included, the ball valve design includes an electric conductive connection between the internal parts of the ball valve and the body, providing the anti-static function. | |
| Pressure relief | Automatic cavity relief to prevent overpressure in body cavity (self-relieving seats) | |
| Sealing | Bi-directional, Double block & bleed (DBB) with sealing in both directions (DIB-1&2 upon request) Metal seated with Tungsten or Chrome Carbide coatings Primary metal secondary soft (PMSS) with differential hardness between the ball and seat to prevent galling of the substrate Soft seated with thermoplastic polymers (Nylon, PEEK, PCTFE), special polymers upon request Elastomers FKM, HNBR, EPDM O-Rings, special elastomers upon request | |
| Drain | Drilled and threaded connections for all sizes | |
| Vent | Drilled and threaded vent connections for sizes ≥ DN150 (6") < DN150 upon request | |
| Stem grease injectors | Included for all sizes | |
| Seat grease injectors | Included for sizes ≥ DN150 (6"), < DN150 upon request | |
| Lifting points | Included for sizes ≥ DN150 (6") or on valves of 250 kg min | |
| Support feet | Included for sizes ≥ DN150 (6") or on valves of 250 kg min | |
| Stem extension | Not foreseen for this model | |
| Valve operation | Lever, Gear box or Actuator with position indicator and locking device | |
| Material testing | Pressure containing & controlling parts to EN 10204 3.1 Materials in Sour Service according to NACE MR0175, MR0103, ISO 15156 Non-destructive testing (NDT) to API 6D, ASME B16.34 | |
| Valve testing | Hydrostatic & pneumatic testing to API 6D, ASME B16.34, ISO 5208 (other upon request) | |
| Safety Integrity Level | SIL 3 |
| Fire Safe | API 607, API 6FA, BS 6755, ISO 10497-5 |
| Pressure Equipment Directive | PED 97/23/EC |
| Fugitive Emission | ISO 15848/1 |
| Construction | API 6D, API 6DSS |

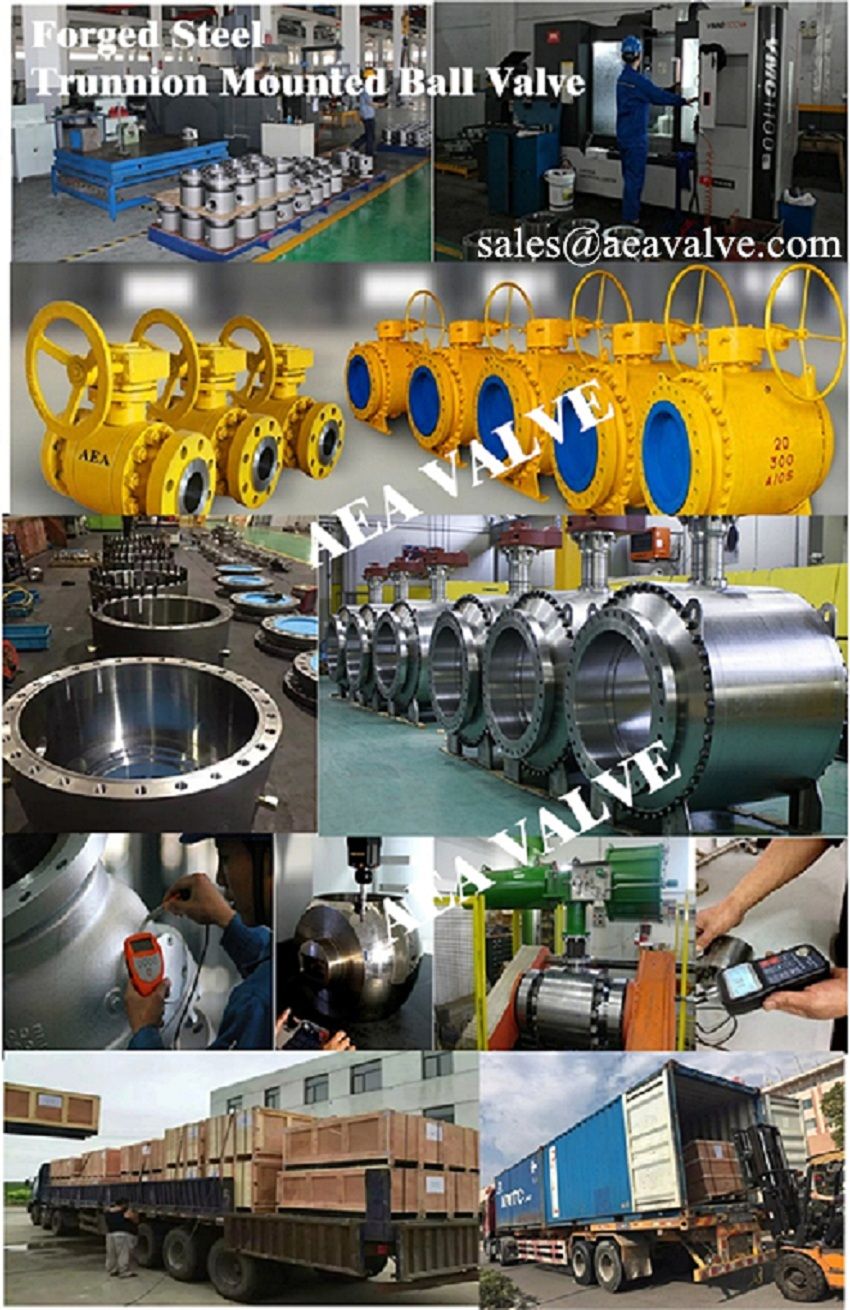

| Why Choose us? |
| 1. Factory: |
| AEA VALVE, a specialist manufacturer, established since 2008 and professional production of industrial valves over 10 years. |
| 2. Regional Sale: |
| We provide specialized sales service refers to different kind of region all over the world. Each sales team member is good at the local language and well experienced to the responsible market. For example: Russian, German, Spanish, Japanese, etc. |
| 3. Low MOQ: |
| Our factory owns the casting company by itself. We are always ready for providing the sample and producing some small orders, in order to meet the business well. |
| 4. OEM or Customize: |
| OEM Service or Customized size is Available. |
| 5. We can make the products with the client's demand standard or the custom requirement. |
| 6. Complete Solution: |
| We are always ready to hear from you, be responding to your enquiry immediately. Our trade manager is always online for you. |
| 7. High Quality: |
| We have strict quality control system and amounts of testing equipments for different kind of valve, such as size, pressure, working environment etc. We are winning the market reputation with the time goes by. |
| 8. Quick Delivery: |
| We have the large stock for some hot products. |
| 9. Competitive Price: |
| 10. We are the manufacturing company which not only has our own manufacturing workshop, but the casting company as well. We provide the straight factory price and service to our customer. |
| 11. Quality control: |
| All the products are calibrated with real working condition, and tested before shipping as qualified product. |
| 12. Problem solve: |
| If you can't solve the problem in your local, please delivery the product to us, we will repair it and then back to you. |
| 13. Integrity: All the warranty and guarantee from us will be put into come true |

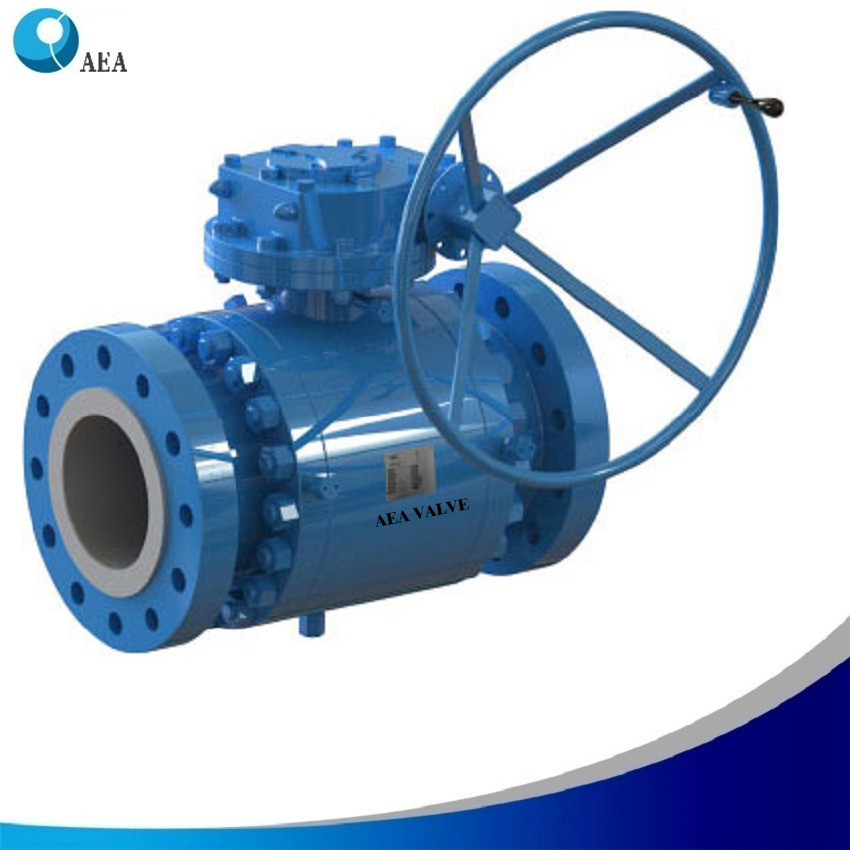

| Prod Model: | Q47-02 |
|---|---|
| Body: | Split Body or Integral Body |
| Ball: | Runnion Mounted Ball, Double Block & Bleed |
| Stem: | Blowout-Proof |
| Seat: | Self Relieving Seatss(Single Piston Effect Seat or |
| O Ring: | Aed O Ring |
| Fire Safe Design: | External Leakage Prevention, Internal Leakage Prev |
| All Seat Alignment: | Mechanical Stops Are Equipped on All Valves to Ens |
| Sealing: | Double Block and Bleed |
| Cryogenic Services: | Extended Bonnet for Cryogenic Services |
| Special: | Nace Mr-0175 |
| Material: | Stainless Steel |
| Connection Form: | Flange |
| Channel: | Straight Through Type |
| Structure: | Fixed Ball Valve |
| Type: | Flexible Ball Valve |
| Application: | Household Usage |
