Home Toolbuy Products High Temperature Corrosion Resistance NBR HNBR Fpk Pkm Ruber Seal O Ring for Hydraulic Machine
High Temperature Corrosion Resistance NBR HNBR Fpk Pkm Ruber Seal O Ring for Hydraulic Machine
| Price: |
US $ 0.95-1/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |

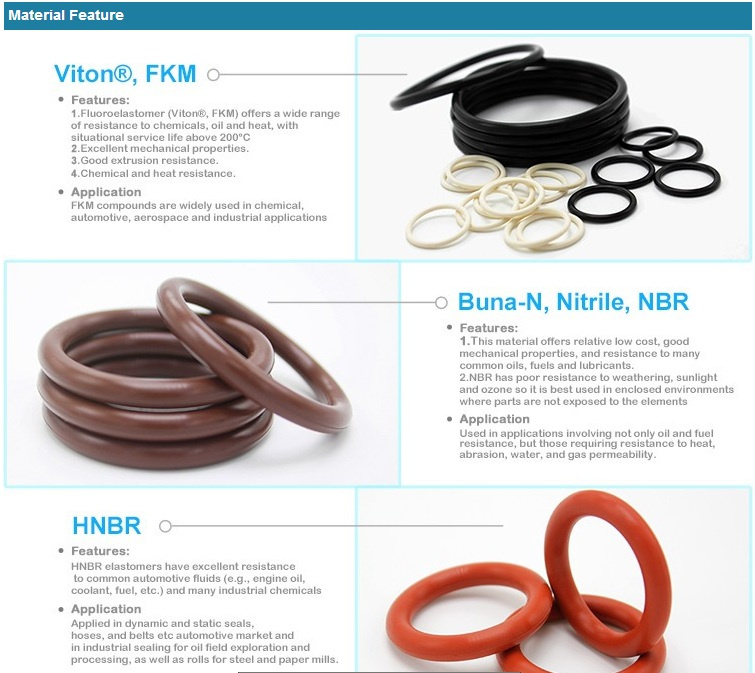

O RING IN EPDM/Silicone/NBR/VITON/HNBR/FKM/SBR/FPM/Cr/NR Rubber

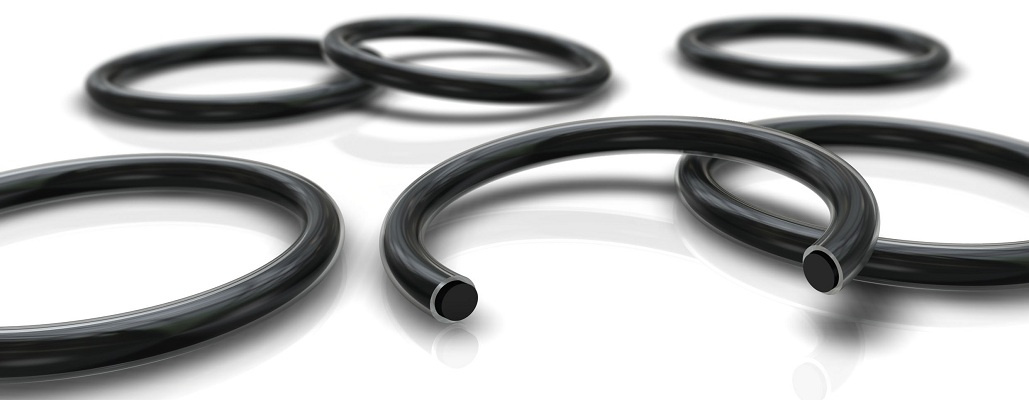

O Ring
O-rings are one of the most common seals used in machine design because they are inexpensive, easy to make, reliable, and have simple mounting requirements.
The O-ring may be used in static applications or in dynamic applications where there is relative motion between the parts and the O-ring. Dynamic examples include rotating pump shafts and hydraulic cylinder pistons.
NBR O RING
Temperature: Normal: -40 to 100C
Low temperature: -55 to 100C
High temperature: -30 to 100C (Air)
and -30 to 100C (oil)
Hardness: ShoreA 40-90
Color: black, other color can customize
Use: oil resistance situation
FKM/VITON O RING
Temperature: -20 to 220C
Hardness: ShoreA 50-90
Color: black, brown, green,
other color can customize
Use: oil resistance, wear resistance,
acid and alkali resistant, high temperature ersistance situation
SILICONE/VMQ O RING
Temperature: Normal: -60 to 225C
Hardness: ShoreA 25-90
Color: Transparent, white, other color can customize
Use: Food situation
EPDM O RING
Temperature: Normal: -50 to 150C
Hardness: ShoreA 40-90
Color: black, other color can customize
PU O RING
Temperature: AU: -40 to 100C (oil resistance)
EU: -80 to 90C (water resistance)
Hardness: ShoreA 60-98
Color: transparent, green, red, other color can customize
| Material: | NBR,HNBR,XNBR,EPDM,SIL,FKM(VITON),ACM,AEM, etc |
| Hardness: | 30~90 Shore A |
| Size Standard: | AS568A,BS1516,JIS B2401 Series |
| Color: | Black, Brown, White, Red, Yellow, Rusty, Blue, etc |

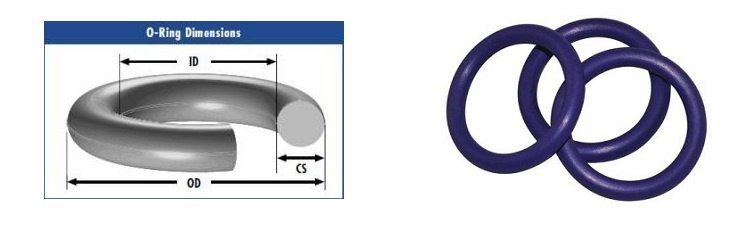

| Size: | 0.6mm-1200mm or as your needs |
| Tolerance: | ISO 3302-1 M2 |
| Certificate: | ISO/SGS(RoHS)/FDA/REACH etc |
| Temperature: | -60ºC~270ºC |
| Customized: | OEM (Drawing, Standard, Size, Your Sample) |
| MOQ: | 30-10000 pcs according to the exact size |
| Payment: | T/T, Paypal, Western Union or L/C |
| Trade Term: | FOB,CFR,CIF or EXW |
| Delivery: | 8-45 days according to the order |
| Delivery Way: | Vessel, Express(DHL,TNT,FEDEX),Airplane |
| Quality Control: | Internal QC control |
| Packing: | neutral packing or other packing according to your needs. |
| Sample: | Free Seal Ring samples |
After-Sales Service:
| 100% responsible for our products, supply active feedback within 24 hours and solutions in short time; supply re-work or refund if the mistake caused by us. |
| Prod Model: |
VPP |
| Base Material: |
NBR,HNBR,EPDM,Sil,FKM(Viton),Acm,AEM, etc |
| Standard Of O Ring: |
As568A,BS1516,JIS B2401 or Customize Size |
| Hardness: |
Shore a 30-90 |
| Size: |
0.6mm-1200mm |
| Tolerance: |
ISO3302-1 M2 |
| Temperature: |
-60ºC~270ºC |
| Color: |
Black, Brown, White, Red, Yellow, Rusty, Blue, etc |
| Customized: |
OEM (Drawing, Standard, Size, Your Sample) |
| Acild Resistant: |
Acceptable |
| Brand: |
Aea or O.E.M |
| Material: |
VITON |
| Shape: |
O-Ring |
| Standard: |
Nonstandard |
