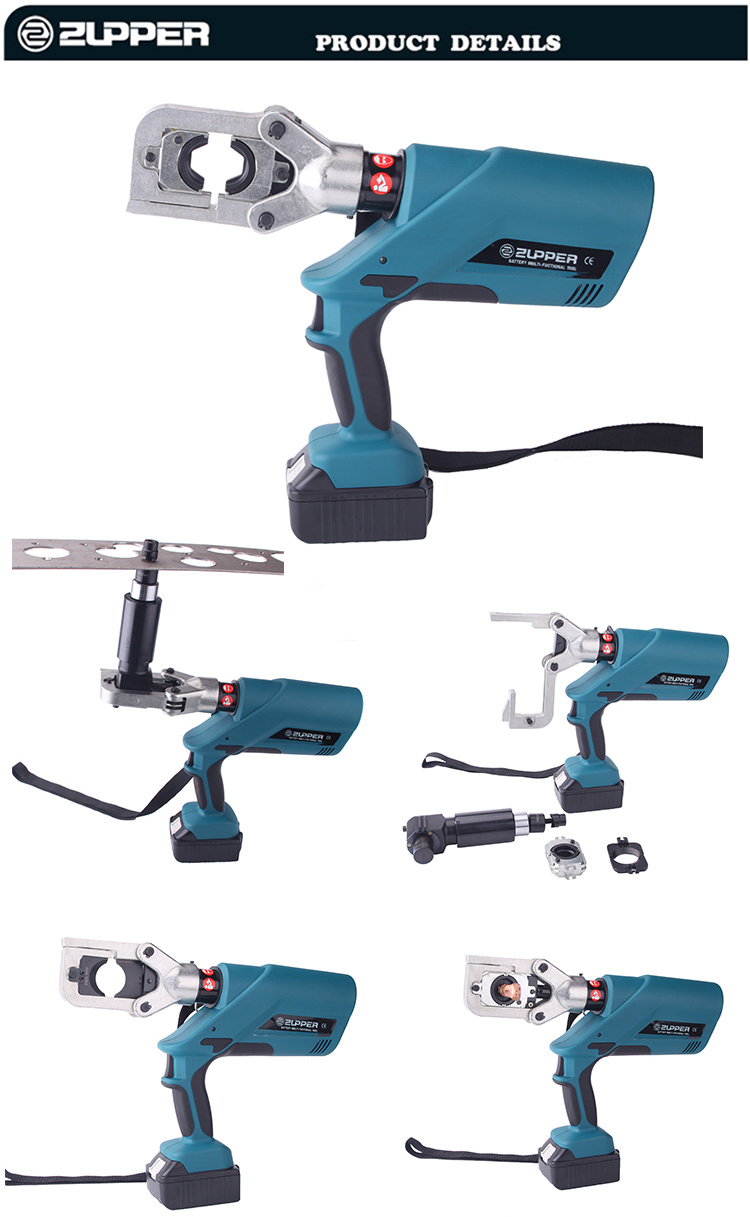

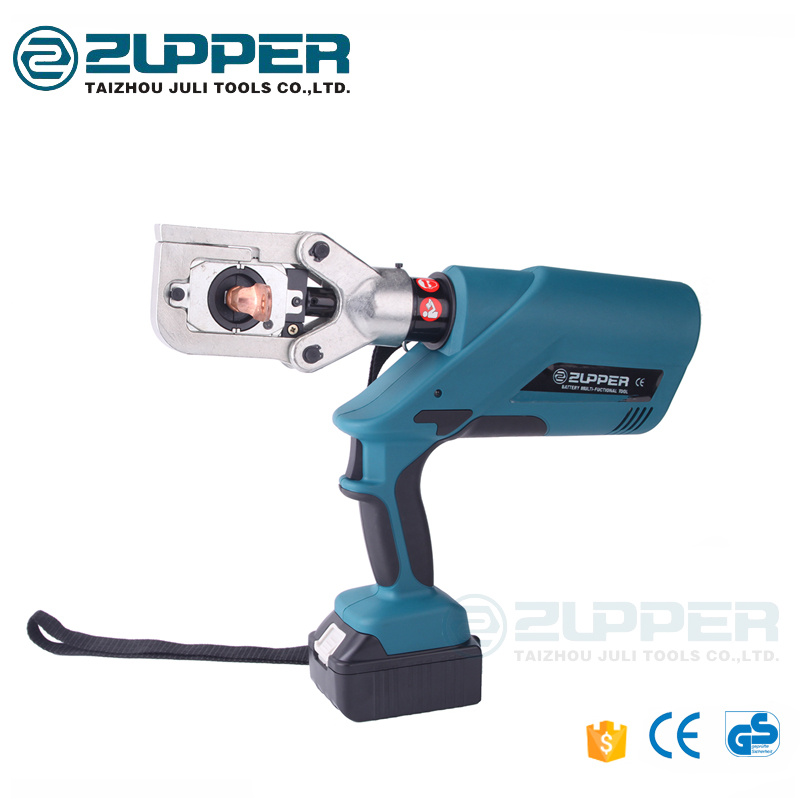

Battery Multi-Functional Tool (EZ-60UNV)
For crimping Aluminium& Copper terminal 16-300mm2
For cutting Cu/Al armoured cable Ø 40mm
For punches on Max 3.5mm metal sheet from 22.5-61.5mm
1. The unit is equipped with a double piston pump which is characterized by a rapid approach of the dies
Forwards the connector and a slow crimping motion.
2. The hydraulic unit incorporates an automatic retraction which returns the piston into its starting position
When the maximum operation pressure is reached.
3. A manual retraction allows the user to return the piston into the starting position in case of an incorrect
Crimp. The unit is equipped with a special brake when stops the forward motion of the piston& die when
The button is pressed.
4. The crimping head can be smoothly turned by 360 degree around the longitudinal axis in order to gain
Better access to tight corners and other difficult working areas.
5. Li-ion batteries do neither have a memory effect nor self-discharge. Even after long periods of
Non operation the tool is always ready to operate. In addition we see a lower power weight ratio with
50% more capacity and shorter charging cycles compare to NiMH batteries.
6. If a deviation from the set operation pressure or low battery charges is identified, an acoustic signal
Sounds and a red display flashes.
| Crimping force: | 60KN |
| Stroke: | 42mm |
| Cutting/Charge: | 70times |
| Cutting range: | Φ40mm(Cu/Al and armoured cable) |
| Crimping/Charge: | 160times |
| Crimping range: | 16-300mm 2 |
| Punching/Charge: | 100 times |
| Punching range | Φ22.5-Φ61.5mm |
| Round punch Max. | 61.5mm |
| Working cycle: | 3-15s |
| Voltage: | 18v |
| Capacity: | 3.0Ah |
| Charging time: | 2hours |
| Package: | plastic box |
| ACCESSORIES: |
| Crimping dies:16,25,35,50,70,95,120,150,185,240,300mm 2 |
| Punch&die(Type C):22.5,28.3,34.6,43.2,49.6,61.5mm |
| Blade: | 1set |
| Adapter for crimping: | 1pc |
| Adapter for punching: | 1pc |
| 3/4",16UN Draw stud: | 1pc |
| 7/16",20UN Draw stud: | 1pc |
| Spacer: | 1pc |
| Battery: | 2pcs |
| Charger: | 1pc |
| sealing ring of cylinder: | 1set |
| sealing ring of safety valve: | 1set |
