| Price: | US $ 650/Piece |
|---|---|
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T |

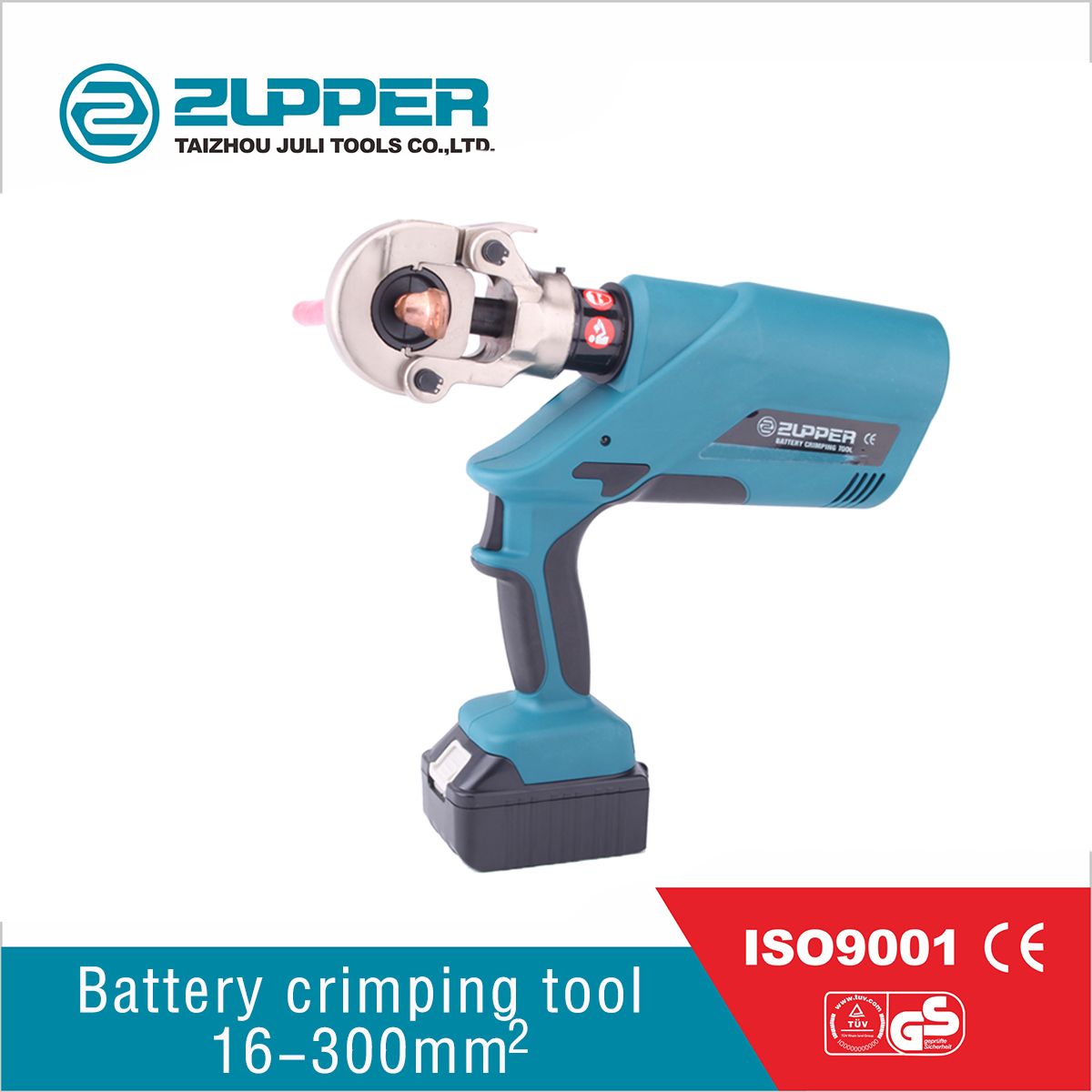

EZ-300 Mini electric power copper aluminum cable crimping tool

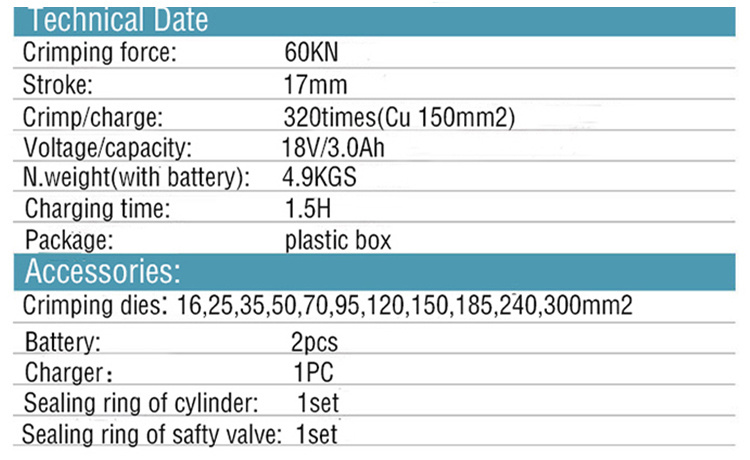

| TECHNICAL DATA | |
| Item No: | EZ-300 |
| Crimping force: | 60KN |
| Stroke: | 17mm |
| Crimp/charge: | 320times(Cu150mm2) |
| Time/crimp: | 3s-6s(depand on the size of cable) |
| Voltage of battery: | 18V |
| Capacity: | 3.0Ah |
| Charging time: | 2hours |
| Package: | Plastic box |

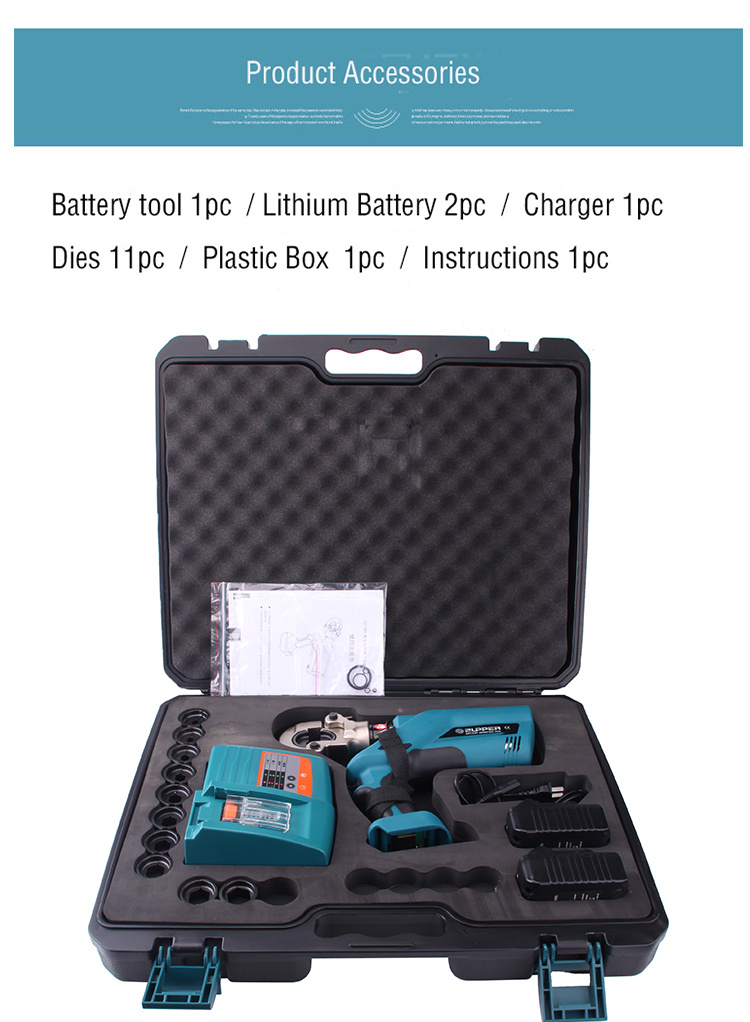

| ACCESSORIES | |
| CRIMPING DIES 16,25,35,50,70,95,120,150,185,240,300MM2 | |
Battery: | 2pcs |
| Charger: | 1pc |
| sealing ring of cylinder: | 1set |
| sealing ring of safety valve: | 1set |
FEATURES
EZ-300 Mini electric power copper aluminum cable crimping tool
1. All tools can be controlled by one key-press the trigger to start working, half loosing the trigger means
stop forcing pressure, loosing fully means piston return to the original position.
2. LCD Data Display-The Total Crimping Times, Electricity Power, Errors Info can be checked by the Display,
also we can special making for customer to show the pressure if necessary.
3. Air Cooling Heat dissipation system to extend using.

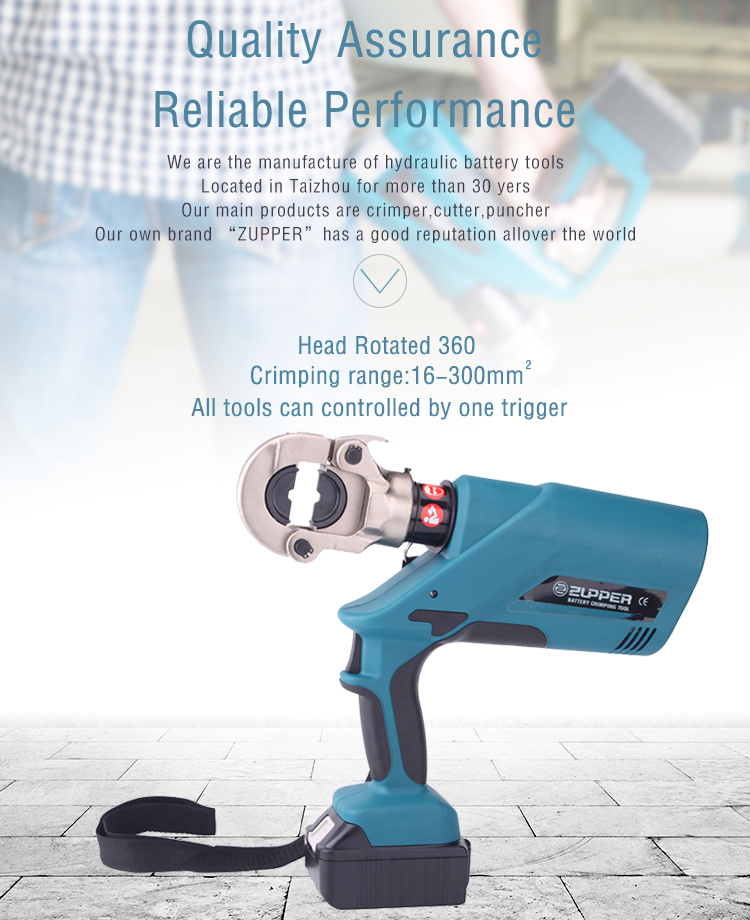

4. Heads Rotates 350 degree in order to gain better access to tight corners or other difficult working areas.
5. Li-ion batteries do neither have a memory effect nor self-discharge. Even after long periods of non
operation the tool is always ready to operate. In addition we see a lower power weight ratio with 50% more
capacity and shorter charging cycles copare to NiMH batteries.
6. The unit is equipped with a double piston pump which is characterised by a rapid approach of the dies forwards the connector and a slow crimping motion
7. USD connect to memory crimping time
| |
Q 1: Is the whole working procedure finished by your workshop?
Re: Yes, the whole working procedure finished by our workshop.
Q 2: How about your stock?
Re: We always are not in stock, we produce as customers' requirement.
Q 4: What is your delivery time ?
Re: It depends on your order. Normally3- 7days for samples, 30-45days for standard, 30-60 days for customized.
Q 5: How do you guarantee your quality ?
Re: Firstly, we do quality test during every process. We produce most components by ourselves, it is started from cutting raw material ,machining roughly in the first step. casting ,forging ,punching ,heat treatment ,finish machining ,painting ,assembling and finally packing ,we will spot check for each steps.
Secondly, we will collect all comments on our products from customers in time. And try our best to improving quality all the time.
Q 6: What's your warranty time?
Re: The warranty time is 12 month.
Sample trial order is welcomed.
You can visit our factory at any time.
| Prod Model: | EZ-300 |
|---|---|
| Crimping Force: | 60kn |
| Stroke: | 17mm |
| Crimp/Charge: | 320times |
| Crimp Cycle: | 3s-6s |
| Voltage: | 18V |
| Capacity: | 3.0ah |
| Package: | Plastic Box |
| Charging Time: | 2 Hours |
