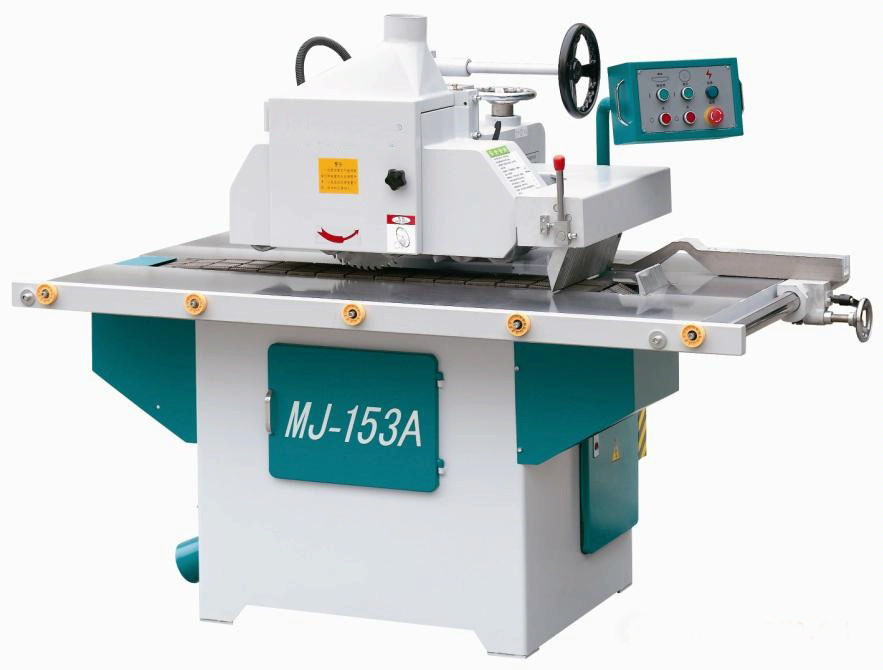

1, Using range of the product High speed Monolithic Vertical Saw
The product is mainly used for the longitudinal cutting of the solid wood plank .It is mainly used in the wood processing areas such as the furniture , solid wood floor , integrated timber ,doors and windows manufacturing and etc.
Features
1,High precision , fine uality and fast feeding speed .( up to 28m/min)
2,Thin saw blade , for material saving ,can be mounted according to the working thickness .
3,Multi anti-kickback fingers and side safety guard offers your comprehensive safety .
4,Micro-computer controlled oil pump lubricates all major lubrication points timely and regularly ,ensures the machine service life .
5,Link chain conveyor and guide way are made from special material and finely processed for excellent wear resistance performance .
6,Pressure mechanism safety locking mechanism to ensure the machine service life .
7,Specially designed feeding guide enables both sides to act as cutting guide alternatively , which avoids working precision degrading because of single side being functioned for a long time .
8,Bearings and electronic components are world-class brands for reliability and security
2,All the models
| MODEL | MJS153 |
| Pressing thickness | 10-75mm |
| Main spindle speed | 4000rpm |
| Saw size | 305x46x3.2x30mm |
| Feeding speed | 14:18:23:28m/min |
| Motor power | 7.5kw |
| Feeding motor power | 1.5kw |
| Compression roller | 0.18kw |
| Total power | 9.18kw |
| Machine shape dimension | 1780x1100x1400mm |
| Net weight | 960kg |
5,Our working shop for you:
6,Here we promise these :
1:One stop service for all kinds of woodworking machines for you
2, high cost performance with reasonable price and our best quality
3:15-20 days delivery time
4:Excellent after-sale services
5:24 hours technical support through email or calls.
6:Not only business, hope to make good friend with you
For further information about machine or price or other service , plz contact with us by email or QQ or wechat
contact with us
Mr TOM
Sales Manger
Mobile number: 008613061285077
QQ Numner: 396464351
Your enquiry are always warmly welcomed
7 contact with us
Qingdao Qingdao Xinlihui Machinery Co., Ltd is one of the large-scale woodworking machinery manufacturerteds in China. The compang is located in the famous Town of Machine-Wangtai town.
Our company is a comprehensive enterprise which is specialized in research and development, design, manufacturing, sale and service. With advanced production equipment and professional technical staff of research and development, and management. Which is formed a unique management model and the standardization of production process.
We are using the high-quality raw materials to sanding machine, produce precision Panel Saw Series, Edge bonding Series, Puzzle machine series, Exclusive products such as Bench gang drilling machine. With the scientific management, unique technology, and innovative products to meet customer demands. Our products get a very high reputation from our customers at home and abrooad. It creates a famous brand called "XINLIHUI" and our products sell well both at home and abroad. It is the most trusted brand to our custmomers.
Qingdao Qingdao Xinlihui Machinery Co., Ltd is willing to work a new win-win development with the insight colleagues and we welcome all the new and old friends to vist our company.
