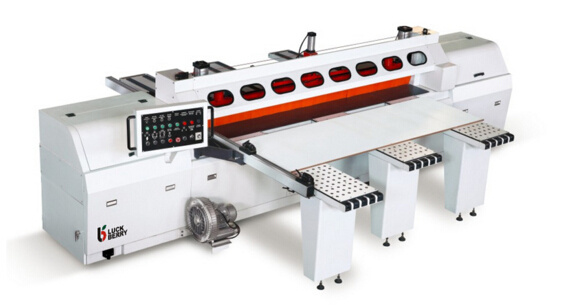

Reciprocating Panel Saw

Reciprocating Panel Saw
Price: US $ 8000-15000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
1,Woodworking machinery:
Panel saw is any type of sawing machine that cuts sheets into sized parts. Panel saws are used by cabinet shops to easily cut plywood andmelamine sheets into cabinet components. They are also used by sign shops to cut sheets of aluminum, plastic and wood for their sign blanks. Panel saws typically fall into one of two categories: Horizontal and Vertical. Some higher end panel saws feature computer controls that move the blade and fence systems to preset values. Other lower end machines offer simplicity and ease of use.

1,Saw Blade Automatic Reture System : Automatically accord the saw blade travel stroke to different length of the panel , the saw blades can be automatically reset to ready for the next round of cutting. Greatly improve the efficience.
2,Include one set of main saw blade and score saw blade, the front score saw blade can be adjusted up and down, suit for various
 cutting requirement of different panel material 3,Double Guild Rail: Adopt double guild rail to both side, improve the cutting precision and stability.
4,Stepless Feeding Device: Frequency control of feeding speed for cutting adapt to the panel of different material.
5,Steel Ball Floating Platform: Independent fan supply air for floating the steel ball, this feeding worktable can protect the panel surface and let feeding easily, suit for heavy type and big wood panel.
6,Three- stage Feeding Platform: Three senctions of the workbench can be  move parallelly and positioned by cylindrical guide rail.

2,Technical parameters

Model MJB1331A
Max.cutting length 3280mm
Max.cutting thickness 76mm
Diameter of main saw bladeΦ460mm
Diameter of scoring saw spindle Φ180mm
Main saw rotating speed4200rpm
Scoring saw rotating speed6500rpm
Saw carriage forward speed 0-37m/min
Saw carriage backward speed  67m/min
Main saw motor11kw
Automatic feeding speed 50m/min
Overall dimension(L*W*H) 5830*3950*1700mm
Total power12.5KW

3,All the models
Model MJB1327AMJB1327BMJB1327AMJB1327B
Max.cutting length 2680mm3300mm3300mm3280mm
Max.cutting thickness 76mm120mm120mm90mm
Diameter of main saw bladeΦ460mmΦ460mmΦ460mmΦ400mm
Diameter of scoring saw spindle Φ180mmΦ180mmΦ180mmΦ180mm
Main saw rotating speed4200rpm3910rpm3910rpm4200rpm
Scoring saw rotating speed6500rpm4150rpm4150rpm6500rpm
Saw carriage forward speed 5-37m/min5-80m/min5-80m/min9-50m/min
Saw carriage backward speed  67m/min100m/min100m/min100m/min
Main saw motor11kw18kw18kw15kw
Overall dimension(L*W*H) 5830*3950*1700mm5830*3950*1700mm5230*3950*1700mm5230*3950*1700mm
Total power12.5 KW12.5 KW12.5 KW12.5 KW

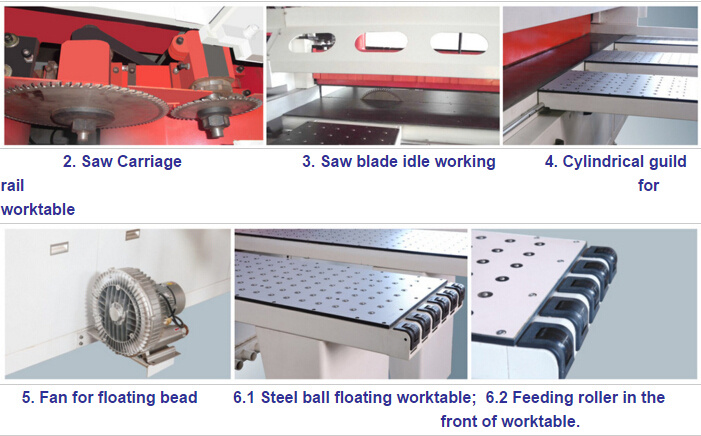

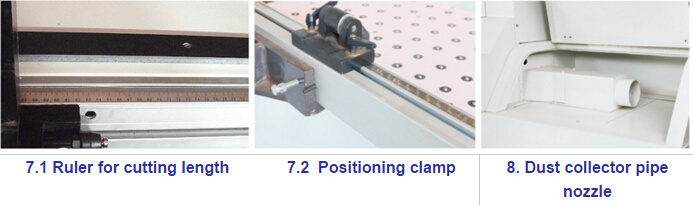

4,Some details of pictures for you:


5,Finished products for you:

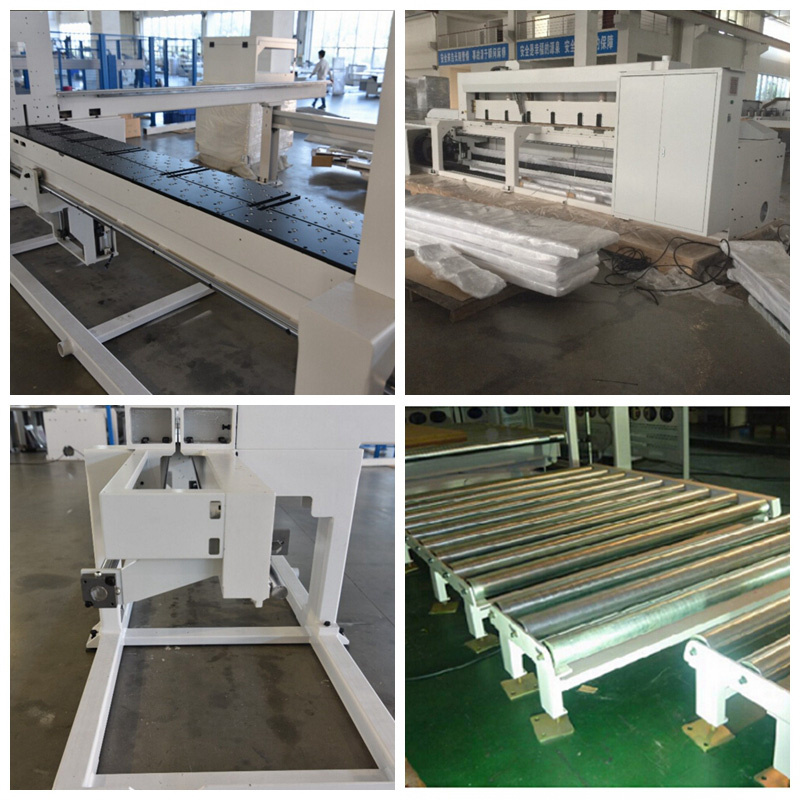

6,Our working shop for you:

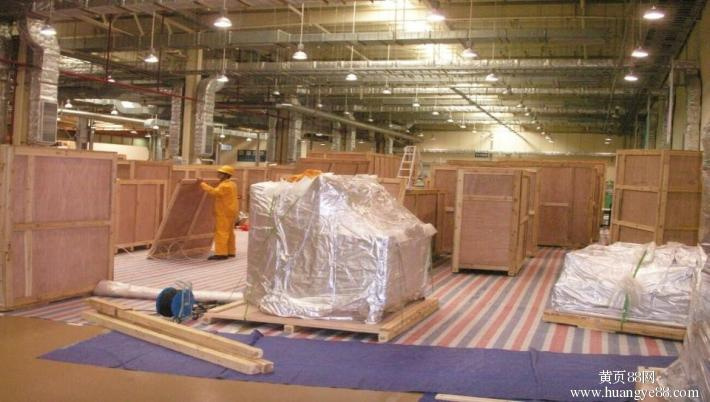

7,Wooden box packaging

8,Here we promise these :

1:One stop service for all kinds of woodworking machines for you
2, high cost performance with reasonable price and our best quality
3:15-20 days delivery time
4:Excellent after-sale services
5:24 hours technical support through email or calls.
6:Not only business, hope to make good friend with you

For further information about machine or price or other service , plz contact with us by email or QQ or wechat

Your enquiry are always warmly welcomed
Prod Model: MJB1331A
Machine Item: Wood Precision Reciprocating Panel Saw Machine
About Agent: Look Forward Agent
Price: Our Most Favorable Price for You
Quality: Our Best Quality for You
Voltage: 380V or as Customer Needs
Delivery Detail: 20 Days
Board Feeding Type: Rear Feeding
Power: 12.5kw
Max.Cutting Length: 3280mm
Warranty: 12 Months
Type: Circular Saw
Layout: Horizontal
Controlling Mode: CNC
Automatic Grade: Automatic
Precision: High Precision
Certification: FDA
Qingdao Qingdao Xinlihui Machinery Co., Ltd is one of the large-scale woodworking machinery manufacturerteds in China. The compang is located in the famous Town of Machine-Wangtai town.

Our company is a comprehensive enterprise which is specialized in research and development, design, manufacturing, sale and service. With advanced production equipment and professional technical staff of research and development, and management. Which is formed a unique management model and the standardization of production process.

We are using the high-quality raw materials to sanding machine, produce precision Panel Saw Series, Edge bonding Series, Puzzle machine series, Exclusive products such as Bench gang drilling machine. With the scientific management, unique technology, and innovative products to meet customer demands. Our products get a very high reputation from our customers at home and abrooad. It creates a famous brand called "XINLIHUI" and our products sell well both at home and abroad. It is the most trusted brand to our custmomers.

Qingdao Qingdao Xinlihui Machinery Co., Ltd is willing to work a new win-win development with the insight colleagues and we welcome all the new and old friends to vist our company.
