Diamond Cut Wheel Lathe Car Alloy Wheel Repair Machine Awr32h

Diamond Cut Wheel Lathe Car Alloy Wheel Repair Machine Awr32h
Price: US $ 2000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: AWR32H
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Place Of Origin: China
Type: Wheel Repair Machine
Precision Grade: High Precision
Processing Material: Alloy Wheel
Power Supply: Three Phase 380V/50Hz
Warranty: One Year

Product Description

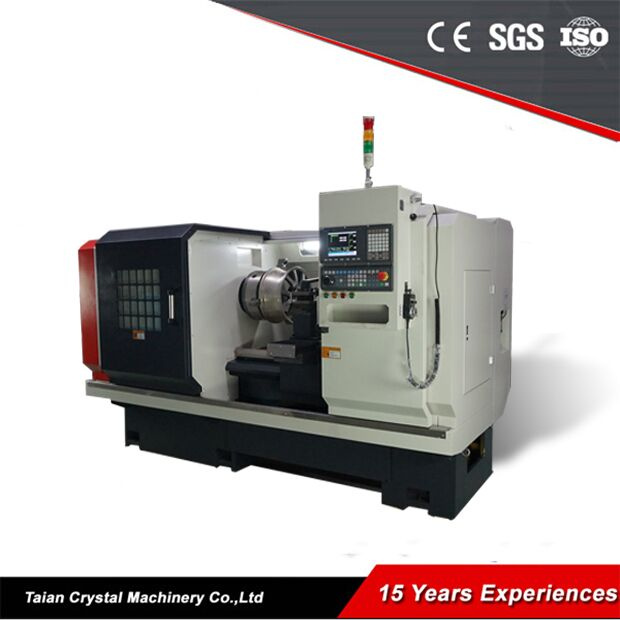

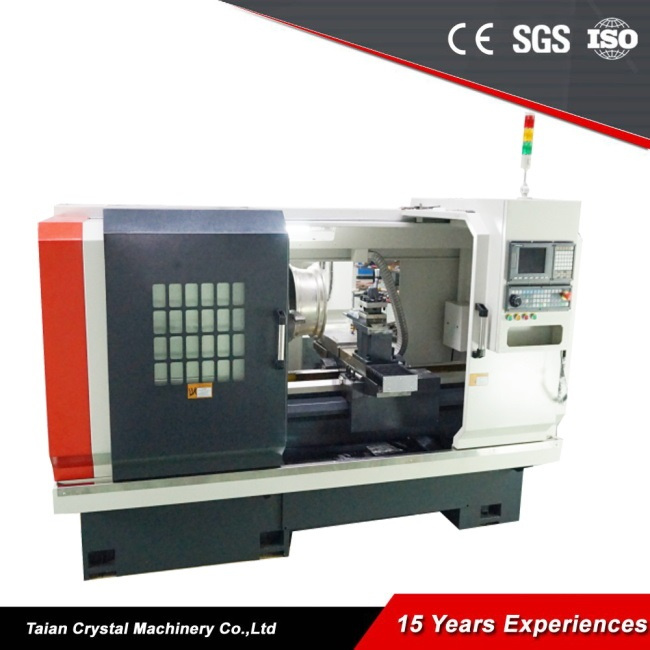

Diamond Cut Wheel Lathe Car Alloy Wheel Repair Machine AWR32H



Specification:


lSupply repairing Alloy wheel up to Max 32'
lAutomated self plotting Digitization by Probe System
lEasy Operate
lCE Certification
lFree Training video

Standard Configuration:

lSYNTEC CNC control system

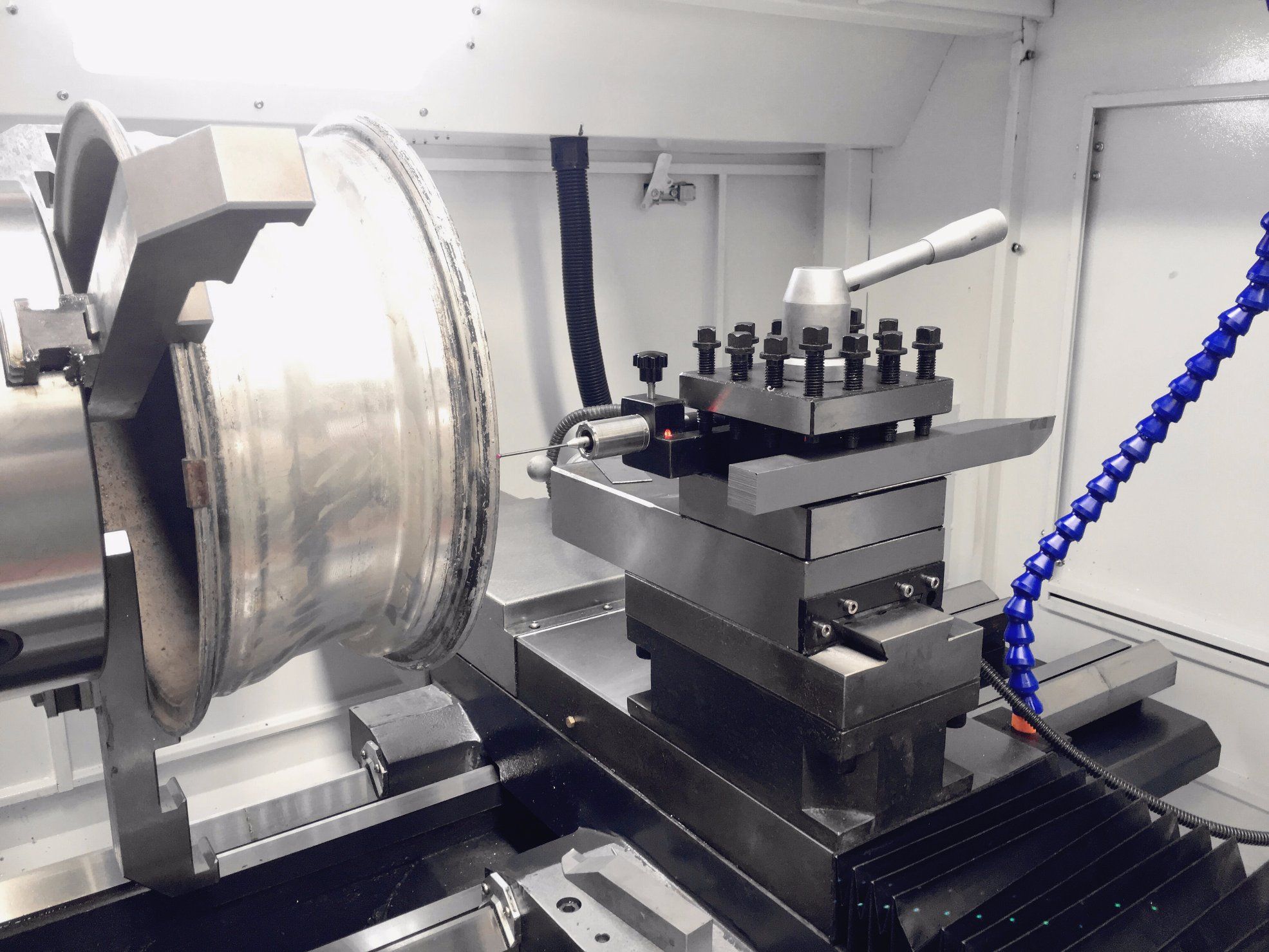

lPioneer Sensing Probe
l3-Jaws Chuck(With Special Soft Jaws)
lDiamond Cutter 1 set
lAutomatic electronic pump lubrication
lSpecific Digital Optimization Software
lManual Quick Change Toolpost,Four-station


ITEMS

Specifications

Max. swing over bed

Φ880(34')

Max. Size of alloy wheel

Φ820(32')

Adjustable stroke of carrier in X direction

100mm

Cross slide travel (mm)

450

Width of the machine

400

Length of the rail

1650

Size of three-jaw chuck

16'

Range of spindle speed

50~1800

Spindle speed control

Automatic

Spindle bore

Φ82

Taper of spindle bore

1:20(Φ90)

Stations of tool carrier

4 Station

Max. size of tool post

25×25mm

Min. setting unit of motor

(Z) long  0.001mm,
(X) cross  0.001mm

Moving speed of post

(Z) long   8 m/min,
(X) cross  6 m/min

Machine base (cast iron base)

Separate

Motor power

7.5KW

Machine size

2970×1660×2080

Packing size(length ×width ×height)

3120×1810×2350

Net weight

3200kgs

Mark

Order








Make you satisfied is our business!
The First Batch in china suppliers to join the alibaba Trade Assurance,you could get Zero-risk purchase service.
Over 300 clients from more than 40 countries could tell you we are your realiable parter.
We are professional cnc machine factory,our price could beat any competitors in china market .
We supply professional solution to you based on your own process one by one.
We accept custom configuration such as  auto feed system,the 3rd axis,hydraulic chuck and tailstock and so on.
We supply one years Warranty for whole machine and 3 years warranty for cnc system and servo motor.
7*24 hours Email or phone service.
Taian Crystal Machinery Co., Ltd., is a modern and high- tech company which is a professional manufacturer of CNC machining Center, CNC Lathe Machine, Wheel Lathe machine With 5, 000sqm workshops and offices, we have more than 15 years experiences in CNC machine research and production. Our machines have been exported more than 40 countries. We welcome all customers and friends to come to our company!

Our team have great experience on manufacturing and exporting. Our service department has experienced technicians that can offer you answers to your technical questions, and in many cases, solve your problem effectively over the phone.

We are dedicated to provide customers with the best, highly value added machines. We have earned a strong reputation in design and manufacturing of a wide variety of CNC machine tools. We continuously improve the performance level of our machines, strengthen our quality control system, and offer worldwide support services. Our dedication to the global marketplace will create a new era of CNC machine tools.

Furthermore, we are serious about quality, customer input, and reacting to market demands. Our fully equipped quality control department performs the final inspection of the machine and in process inspection of parts. Our quality control personnel are well trained to conduct rigorous inspections by using precision, sophisticated instruments. We deeply believe that quality is the life of our company and customer service is the power that drives our company forward. We are also looking for cooperation with professional dealers in the world. This would make us to create a new opportunity in certain area and offer top service quality as we have in China.
