Diamond Cutting Machine Wheel Restoration CNC Lathe

Diamond Cutting Machine Wheel Restoration CNC Lathe
Price: US $ 15000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: AWR28H
CNC System: Syntec
Repairing Alloy Wheel: Max 28"
Max. Swig Over Bed: 770mm
Max. Swig Over Cross Slide: 500mm
Max.Turning Length: 1000mm
Size Of The Three-Jaw Chuck: 10'
Range Of Spindle Speed: 20-1800rpm
Spindle Bore: 72mm
Stations Of Tool Carrier: 4 Position
Net Weight: 2200kgs
Type: Horizontal Lathe
Processing Accessory: Chuck CNC Lathe
Tool Holder: Single-tool Holder CNC Lathe
Power Source: Electric
Controlling Mode: CNC
Automatic Grade: Automatic
Setting Mode: Floor-type
Precision: High Precision

Product Description

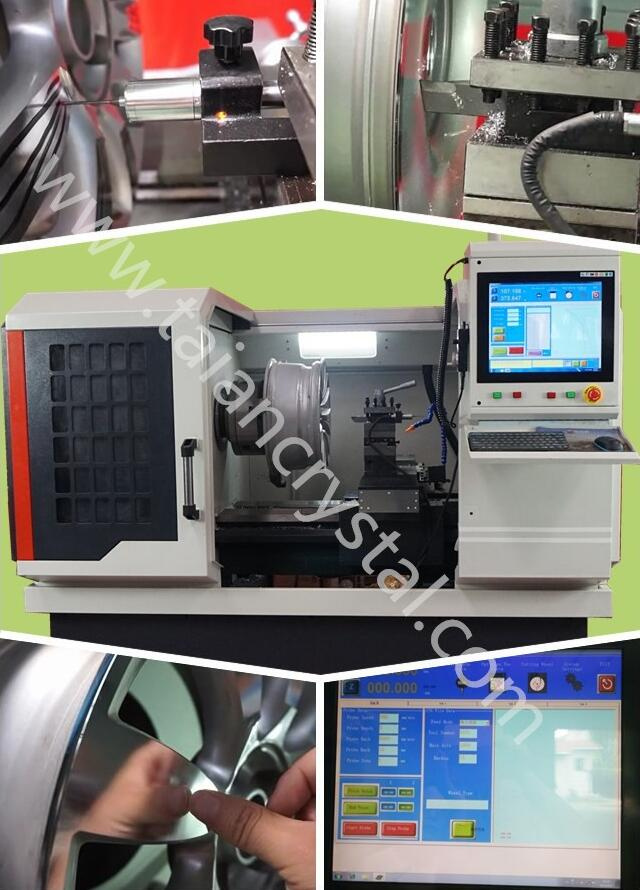

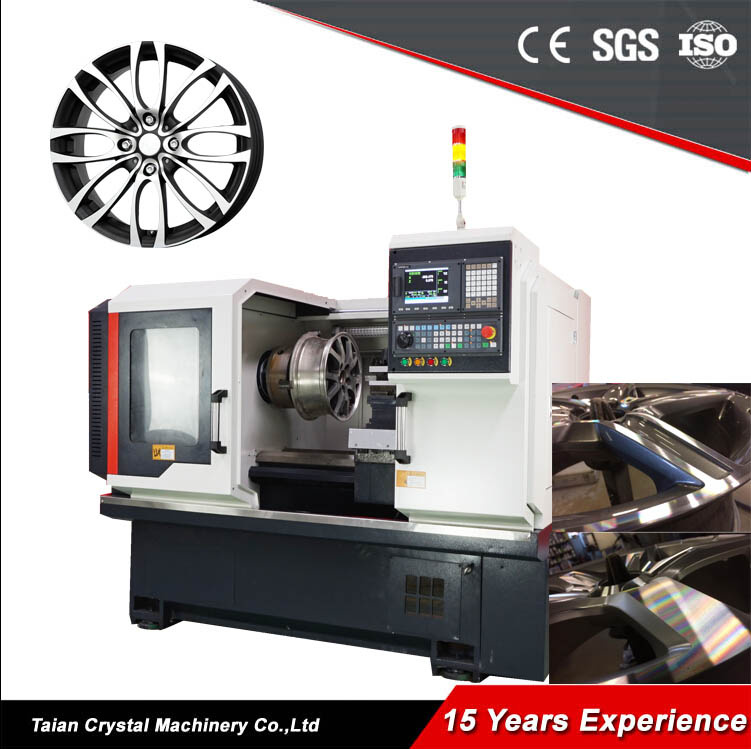

Diamond Cutting Machine Wheel Restoration CNC Lathe    (AWR28H)

Specification:

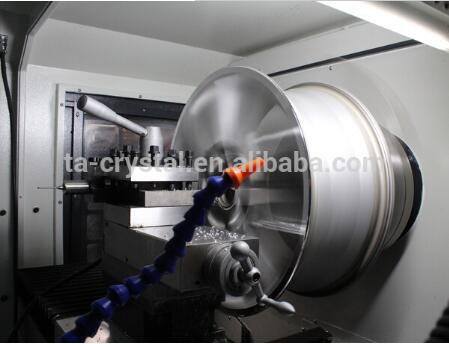

Supply repairing Alloy wheel up to Max 28"
Automated self plotting Digitization by Probe System
Easy Operate
CE Certification
Free Training video
7x24 hours email or telephone technology supply

Standard Configuration:

SYNTEC 6TA CNC control system

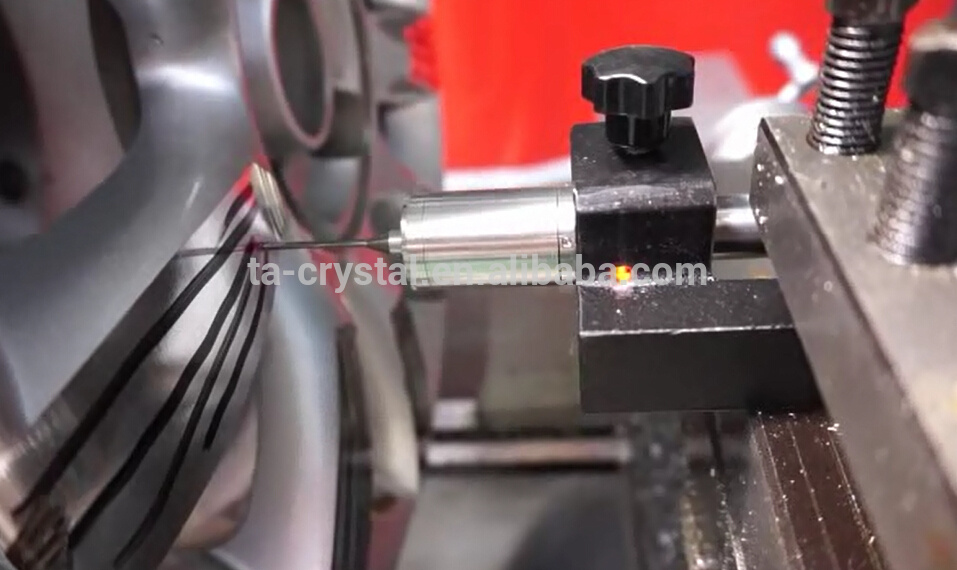

Touch Probe system
Automatic electronic pump lubrication

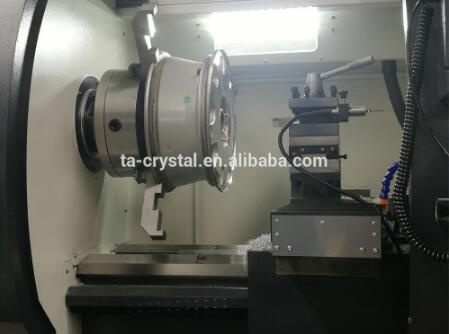

Manual 3-jaw soft chuck of 10'

Max. swig over bedΦ770mm
Max. swig over cross slideΦ500mm
Max.turning length1000mm
Distance between centers1000mm
Stroke of X axis370mm
Width of the rail360mm
Size of the three-jaw chuck10'
Range of spindle speed20-1800rpm
Spindle boreΦ72mm
Taper of spindle boreMT6
Max. size of tool post25×25mm
Stations of tool carrier4 position
Min. setting unit of motor(Z) long  0.001mm,(X) cross  0.001mm
Moving speed of post(Z) long   8m/min,(X) cross  4m/min
Motor power7.5KW
Packing size(length×width×height)2390 mm×1620mm×2150mm
Net weight2200kgs






Company profile:
Taian Crystal Machinery Co., Ltd., is a modern and high- tech company which is a professional
manufacturer of CNC LATHE, CNC MILLING, CNC MACHINE CENTER. With 5, 000sqm workshops
and offices, we have more than 15 years experiences in CNC machine research and production. Our
machines have been exported more than 40 countries. We welcome all customers and friends to come toour company!

  Why choose us?

1. Choose of accessories: All of accessories of our CNC machine are from famous factory. Important
parts are imported.
2. Advanced design: Professional R&D Team optimize and improve the design of our machine.
3. Multi CNC system brand: GSK, SIMENSE, FANUC,SYNTEC can be supplied as your request.
4. Global strategy: our machines have been exported more than 40 countries and win customer's high
praise.
Taian Crystal Machinery Co., Ltd., is a modern and high- tech company which is a professional manufacturer of CNC machining Center, CNC Lathe Machine, Wheel Lathe machine With 5, 000sqm workshops and offices, we have more than 15 years experiences in CNC machine research and production. Our machines have been exported more than 40 countries. We welcome all customers and friends to come to our company!

Our team have great experience on manufacturing and exporting. Our service department has experienced technicians that can offer you answers to your technical questions, and in many cases, solve your problem effectively over the phone.

We are dedicated to provide customers with the best, highly value added machines. We have earned a strong reputation in design and manufacturing of a wide variety of CNC machine tools. We continuously improve the performance level of our machines, strengthen our quality control system, and offer worldwide support services. Our dedication to the global marketplace will create a new era of CNC machine tools.

Furthermore, we are serious about quality, customer input, and reacting to market demands. Our fully equipped quality control department performs the final inspection of the machine and in process inspection of parts. Our quality control personnel are well trained to conduct rigorous inspections by using precision, sophisticated instruments. We deeply believe that quality is the life of our company and customer service is the power that drives our company forward. We are also looking for cooperation with professional dealers in the world. This would make us to create a new opportunity in certain area and offer top service quality as we have in China.
