Xsy Series Machine Tool Tapered Roller Bearing

Name: Xsy Series Machine Tool Tapered Roller Bearing
Brand: tool-buy.com
SKU: 715203392
Availability: InStock
Rating: 4.7 (28 reviews)

Price:	US $ 0.01/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Shandong XSY Bearing Co., Ltd.

Showroom Product Company Profile

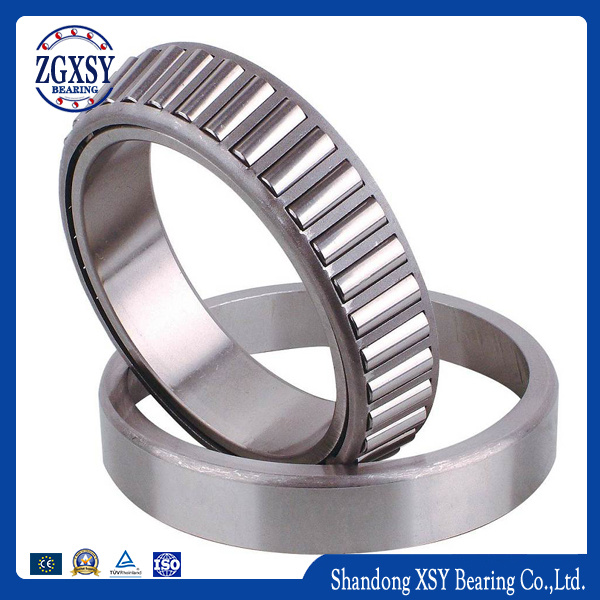

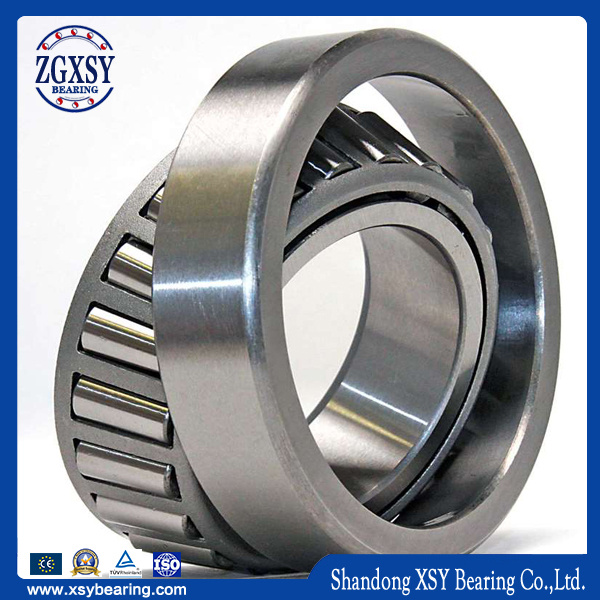

XSY Tapered Roller Bearing
Tapered roller bearings are bearings that can take large axial forces (i.e., they are good thrust bearings) as well as being able to sustain large radial forces.
Tapered roller bearings have tapered inner and outer ring raceways and tapered rollers. They are designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads. The projection lines of the raceways meet at a common point on the bearing axis to provide true rolling and low friction. The axial load carrying capacity of tapered roller bearings increases with increasing contact angle α. The size of the angle is related to the calculation factor e: the larger the value of e, the larger the contact angle. A single row tapered roller bearing is typically adjusted against a second tapered roller bearing.
Single row tapered roller bearings are separable, i.e. the inner ring with roller and cage assembly (cone) can be mounted separately from the outer ring (cup).

Advantages and Feathers:

XSY bearing Co., Ltd. has its own factory. We make sure to offer you the most competitive price.
XSY bearing Co., Ltd. has a professional R&D team and an after-sale team, so what you buy is top-end, and what you use is quality & service guaranteed.
XSY bearing Co., Ltd. is a bearing manufacturer since 1990. Rich experience makes us more professional.
The bearing is long durability, high speed and low noise.
OEM & ODM are available.
All kinds of bearing simples are available.

sizes of XSY Tapered Roller Bearings

Model	d	D	Width	Cr	Cor	Gresse	Oil	Weight
Model	(mm)	(mm)	(mm)	(kN)	(kN)	(r/min)	(r/min)	(kg)

33220	100	180	63	438	665	1900	2600	6.71
30320	100	215	47	344	400	1800	2400	7.76
31320	100	215	51	372	488	1600	2000	8.59
32320	100	215	73	491	637	1800	2400	12.2
32921	105	145	25	128	225	2200	3000	1.16
32021X2	105	160	33	162	270	2000	2800	2.5
32021	105	160	35	205	335	2000	2800	2.4
33021	105	160	43	258	438	2000	2800	2.97
33121	105	175	56	352	608	1900	2600	5.29
30221	105	190	36	285	398	1800	2400	4.38
32221	105	190	50	380	578	1800	2400	6.26
33221	105	190	68	498	770	1800	2400	8.12
30321	105	225	49	371	432	1700	2300	8.74
31321	105	225	53	398	525	1500	1900	9.58
32321	105	225	77	543	707	1800	2300	13.9
32922X2	110	150	24	85.5	148	2000	2800	1.1
32922	110	150	25	130	232	2000	2800	1.2
32022X2	110	170	36	182	302	1900	2600	3.1
32022	110	170	38	245	402	1900	2600	3.02
33022	110	170	47	288	502	1900	2600	3.74
33122	110	180	56	372	638	1800	2400	5.5
30222	110	200	38	315	445	1700	2200	5.21
32222	110	200	53	430	665	1700	2200	7.43
30322	110	240	50	407	475	1600	2100	10.4
31322	110	240	57	458	610	1400	1800	12.1
32322	110	240	80	607	797	1600	2200	16.6
32924	120	165	29	172	318	1800	2400	1.78
32024X2	120	180	36	198	338	1700	2200	3.1
32024	120	180	38	242	405	1700	2200	3.18
33024	120	180	48	298	535	1700	2200	4.07
33124	120	200	62	448	778	1600	2000	7.68
30224	120	215	40	338	482	1500	1900	6.2
32224	120	215	62	478	758	1500	1900	9.6
30324	120	260	55	505	611	1500	2000	13.7
31324	120	260	62	535	725	1300	1700	15.3
32324	120	260	86	825	1230	1300	1700	22.1
32926X2	130	180	30	142	260	1700	2200	2.31
32926	130	180	32	205	380	1700	2200	2.34
32026X2	130	200	42	242	418	1600	2000	4.46
32026	130	200	45	335	568	1600	2000	4.94
33026	130	200	55	400	728	1600	2000	6.14
30226	130	230	40	365	520	1400	1800	6.94
32226	130	230	64	552	888	1400	1800	11.4
30326	130	280	58	640	855	1100	1500	17.3
31326	130	280	66	592	805	1100	1500	18.4
32928X2	140	190	30	145	265	1600	2000	2.43
32928	140	190	32	208	392	1600	2000	2.47
32028X2	140	210	42	258	452	1400	1800	5.21
32028	140	210	45	330	568	1400	1800	5.15
33028	140	210	56	408	755	1400	1800	6.57
30228	140	250	42	408	585	1200	1600	8.73
32228	140	250	68	645	1050	1200	1600	14.4
30328	140	300	62	722	975	1000	1400	21.4
31328	140	300	70	678	928	1000	1400	22.8
32930X2	150	210	36	198	368	1400	1800	-
32930	150	210	38	260	510	1400	1800	3.87
32030X2	150	225	45	292	525	1300	1700	6.2
32030	150	225	48	368	635	1300	1700	6.25
33030	150	225	59	460	875	1300	1700	7.98
30230	150	270	45	450	645	1100	1500	10.8
32230	150	270	73	720	1180	1100	1500	18.2
30330	150	320	65	802	1090	950	1300	25.2
31330	150	320	75	772	1070	950	1300	27.4
32932X2	160	220	36	218	405	1300	1700	3.79
32932	160	220	38	262	525	1300	1700	4.07
32032X2	160	240	48	345	632	1200	1600	7.7
32032	160	240	51	420	735	1200	1600	7.66
30232	160	290	48	512	738	1000	1400	13.3
32232	160	290	84	858	1430	1000	1400	23.3
30332	160	340	68	878	1190	900	1200	29.5
32934X2	170	230	36	222	418	1200	1600	3.84
32934	170	230	38	280	560	1200	1600	4.33
32034X2	170	260	54	385	728	1100	1500	10.1
32034	170	260	57	520	920	1100	1500	10.4
30234	170	310	52	590	865	1000	1300	16.6
32234	170	310	86	968	1640	1000	1300	28.6
30334	170	360	72	995	1370	850	1100	35.6
32936	180	250	45	340	708	1100	1500	6.44
32036X2	180	280	60	502	890	1000	1400	14.7
32036	180	280	64	640	1150	1000	1400	14.1
30236	180	320	52	610	912	900	1200	17.3
32236	180	320	86	998	1720	900	1200	29.9
30936	180	380	75	1090	1500	900	1100	40.7
32938X2	190	260	42	292	580	1000	1400	6.52
32938	190	260	45	360	740	1000	1400	6.66
32038X2	190	290	60	502	932	950	1300	14.1
32038	190	290	64	652	1180	950	1300	14.6
30238	190	340	55	698	1030	850	1100	20.8
32238	190	340	92	1120	1900	850	1100	36.1
32940X2	200	280	48	345	710	950	1300	8.86
32940	200	280	51	460	950	950	1300	9.43
32040X2	200	310	66	575	1120	900	1200	17.4
32040	200	310	70	782	1420	900	1200	18.9
30240	200	360	58	685	972	940	1200	25.6
32240	200	360	98	1320	2180	800	1000	43.2
32944X2	220	300	48	372	795	900	1200	10.1
32944	220	300	51	470	978	900	1200	10
32044X2	220	340	72	702	1330	800	1000	22.3
32044	220	340	76.5	908	1670	800	1000	24.4
32948X2	240	320	48	390	860	800	1000	10.9
32948	240	320	51	520	1060	800	1000	10.7
32048X2	240	360	72	710	1420	700	900	25.5
32048	240	360	76	920	1730	700	900	25.9
32952X2	260	360	60	525	1150	700	900	19.2
32952	260	360	63.5	688	1470	700	900	18.6
32052X2	260	400	82	902	1810	670	850	37.8
32052	260	400	87	1120	2170	670	850	38
32956	280	380	63.5	745	1580	630	800	19.7
32056X2	280	420	82	622	1940	600	750	39.6
32056	280	420	87	1190	2290	600	750	40.2

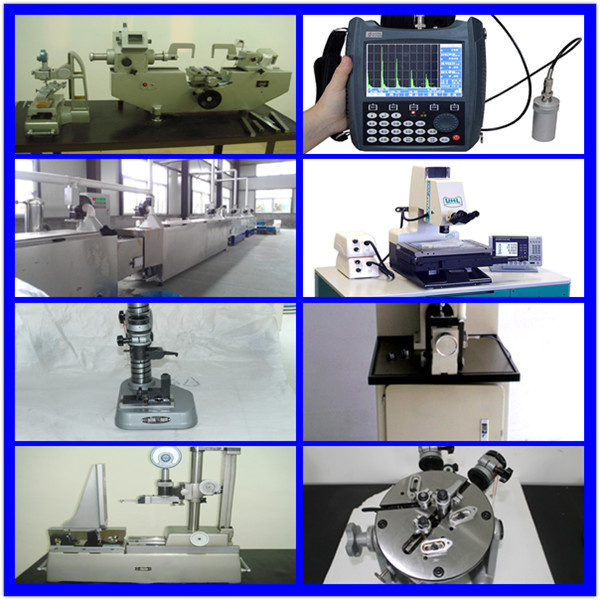

Testing:
All our products are tested sctrictly before delivery. The testing process is: Dimension Measurement-Waviness, roundness and form analysis-Noise and vibration testing-Noise and vibration testing-Non destructive testing-Grease testing machines

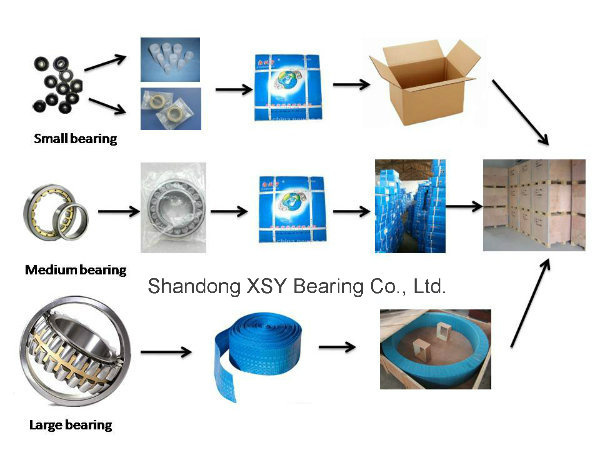

Packaging & Delivery
Packaging Details:
1.industrial packing+cartons+pallets
2.single box packing+cartons+pallets
3.tube packing+cartons+pallets
Delivery Details:
Less than 1000PCS, deliver within 5 days by Express or Airplane.
More than 1000PCS, deliver within 15 days by sea.

Application
Widely used in mechanical equipment, hydropower, construction, railway, automobile, steel, electric power, textile, packaging, medical treatment, metallurgy, mining, petroleum, electric power, papermaking, computers, electrical machinery, sports equipment, office equipment, instruments and meters, automobile motor, Dense instrument, etc.

FAQ:
1. Are you a factory or a trading company?
Shandong XSY Bearing Co., Ltd. is a professional manufacture of deep groove ball bearings and other bearings.
2. Is OEM available?
Yes, OEM is available. We have professional designer to help your brand promotion.
3. Is the sample available?
Yes, samples are available for you to test the quality.
4. Have the products been tested before shipping?
Yes, all of our bearings have been tested before delivery.
5. How long is your delivery time?
As mentioned above, there are different types of shipping for your order. We make sure to deliver goods once all products are produced and tested.
6. What is your terms of payment ?
You can pay by T/T, L/C, Westunion, Paypal,etc., and it can be negotiated according to different orders with different amount.
7. Can we visit your factory ?
Sure. Welcome to XSY Bearing Co., Ltd. and offer your kind guidance.

We always adhere to the business philosophy "research &develop attentively, offer service sincerely, make products meticulously, set brand strategy ", with integrity and fairness in cooperation with domestic and foreign customers. We believe XSY will be your best partner in bearing area.

Prod Model:	3200, 3100, 3000, 3300
Weight:	0-5698kg
Rolling Body:	Roller Bearings
The Number Of Rows:	Single
Outer Dimension:	Small and Medium-Sized (',60-115mm)
Material:	Bearing Steel
Separated:	Separated
Load Direction:	Radical and Thrust

Shandong XSY Bearing Co., Ltd. is a professional manufacturer of bearings, base on R & D, producing and sales of precision bearings with more than 25 years experiences. Our own bearing brand is "ZGXSY", including Taper Roller Bearing, Deep Groove Ball Bearing, Thrust Ball Bearing, Thrust Roller Bearing, Spherical Roller Bearing, Angular Contact Ball Bearing, Self-aligning Ball Bearing and Cylindrical Roller Bearing. The inside diameter is from 50mm to 1000mm with CE ISO TUV certificate, besides we also offer the Bearings Accessories, such as Bearing Housings, Adapter Sleeve, Withdrawal Sleeve, Lock nut, Cage, Roller and Ball.

Our "ZGXSY" Bearings are widely used in metallurgy, electrical, mining, petroleum, chemical, coal, cement, paper, wind power, heavy machinery, engineering machinery, port machinery and other industries supporting products, which have been exported to DuBai, Mexico, Iran, Southeast Asia, Russia, Africa etc, and enjoy a high reputation on the domestic and overseas market.

About the products, we have self-developed team to design and improve the bearings to meet different customers' need, so the OEM and ODM are available. We have completed quality inspection system and professional after-sale team to make sure each product that customer get is perfect. XSY will offer our best products and service with most reasonable price for you.

We always adhere to the business philosophy "research &develop attentively, offer service sincerely, make products meticulously, set brand strategy ", with integrity and fairness in cooperation with domestic and foreign customers. We believe XSY will be your best partner in bearing area.
