Xlct Series Low Profile Hydraulic Hexagon Wrench for Construction

Xlct Series Low Profile Hydraulic Hexagon Wrench for Construction
Price: US $ 180-3000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: FY-XLCT
Usage: Lifting, Supporting and Jacking
Structure: Piston Cylinder
Pressure Direction: Single-Acting Cylinder
Double-Acting Cylinder Type: Common Cylinder
Special Cylinder Type: Number of Cylinders
Combination Cylinder Type: Pressurized Cylinder
Type: Hex Wrench
Material: Aluminum Alloy
Standard: European Type
Feature: Ordinary
Brand: Feiyao
Working Mode: Hydraulic Automatic

Product Description

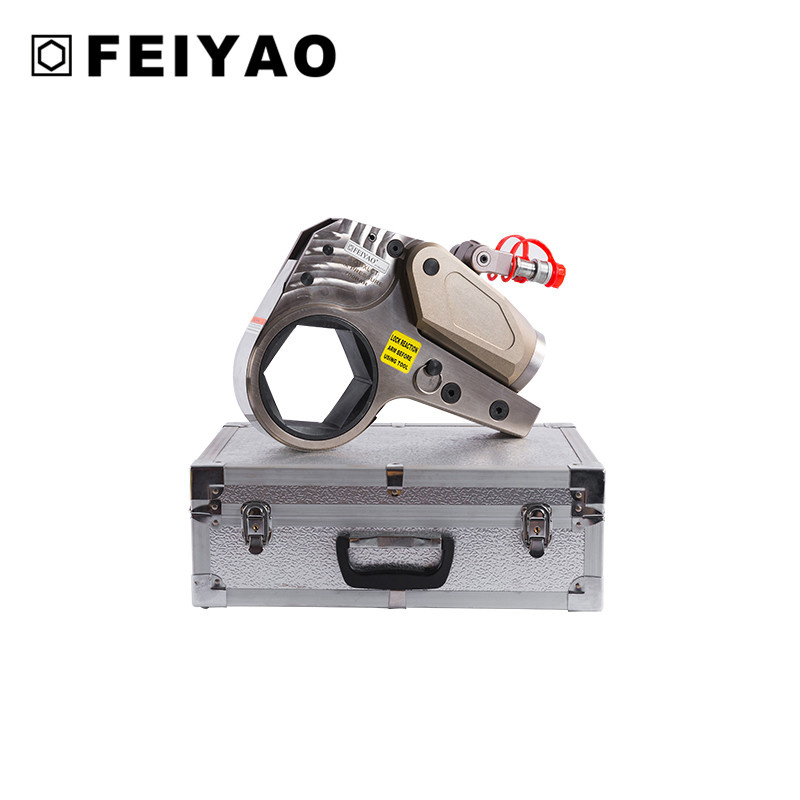

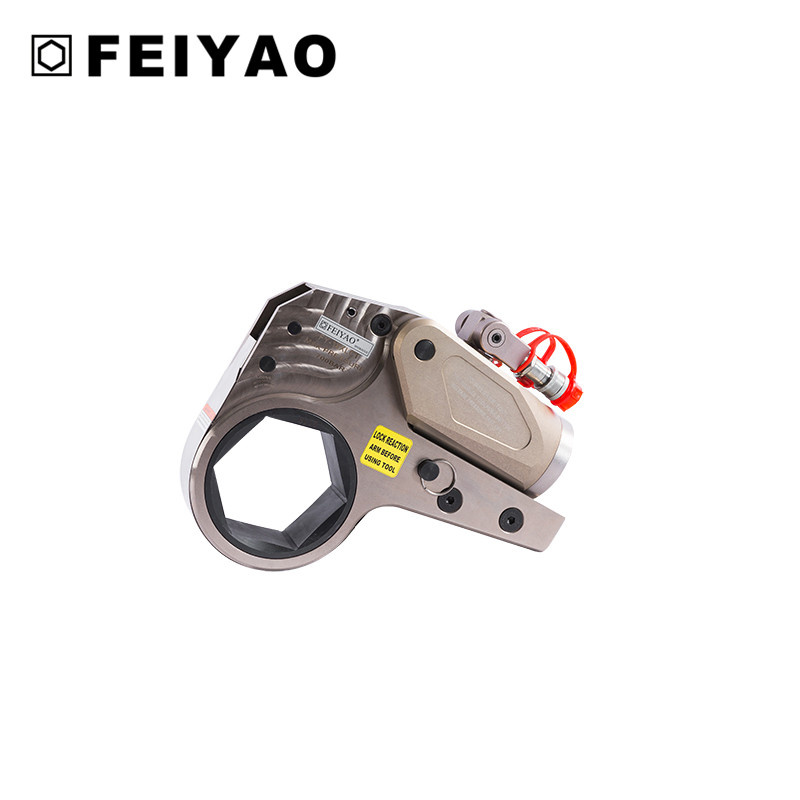

XLCT Series Low Profile Hydraulic Hexagon Wrench For Construction


Features:
1.Very high torque-to-weight ratio
2.High speed, double acting operation
3.High degree of rotation angle
4.Never-jam mechanism
5.High repeatability, with accuracy ±3%
6.Slim nose radius and 360 degree swivel hose connection allow easier positioning in confined areas
7.Few moving parts means durability and low maintenance
8.Push button drive release;no tools needed to reverse square or allen key drives for tighening or loosening

Feiyao offers a variety of controlled tightening tools to best meet the requirements of your application.
From mechanical torque multipliers to hydraulically driven square drive wrenches, and low profile torque wrenches. We offer the hydraulic torque tools you need for accurate and simultaneous tightening of multiple bolts.
Low profile hydraulic hexagon wrench used in all industries in confined areas.


Parameter Information
Model

FY-2XLCT

FY-4XLCT

FY-8XLCT

FY-14XLCT

FY-18XLCT

FY-30XLCT

Torque Nm

180~1866

440~5328

892~ 10168

1558~ 17640

2430~ 23708

3528~ 41880

Bolt DiameterM(mm)

18-33

18-42

33-60

42-80

48-95

52-110

Screw S(mm)

27~50

27~65

50~90

65~115

75~135

80~155

Rotary Head Model

2XLCT

4XLCT

8XLCT

14XLCT

18XLCT

30XLCT

Working Head Model

2XLCTA-50

4XLCTA-65

8XLCTA-90

14XLCTA-115

18XLCTA-135

30XLCTA-

Weight(Kg)

2.4

5.0

9.3

16.9

18.6

30.9

Company Introduction

Jiangsu Feiyao Machinery Manufacturing Co., Ltd. is a professional hydraulic tools manufacturer with 30-year experience in the design, production, sale and service of Hydraulic Products, Electrical Control Equipment and Mechanical Devices.

Jiangsu Feiyao has been in hydraulic tools industry since 1978. Mainly export:

Hydraulic cylinder jacks (5-1500ton), single double acting, hollow plunger; low height, lock nut;

Hydraulic torque wrenches(100-72000Nm);

PLC synchronous lifting system;

Hydraulic lifting pumps, manual and electric type;

Hydraulic pullers, manual and hydraulic type;

Hydraulic bolt tensioners;

Hydraulic flange spreader, manual and hydraulic type;

Hydraulic steel wire rope press machine

Hydraulic accessories(hoses, couplers, oil distributors, etc.)

Over the years we have grown into a diversified market based that now services customers all over the world. We enjoy listening to our customers needs and ideas while working hard to provide the best service and delivering the highest quality of parts.

We believe "service" is our number one customer. We hope our commitment to provide our customers quickly and efficiently with competitive prices will keep you coming back.

IF YOU ARE LOOKING FOR SOME HYDRAULI JACKS BUT DO NOT HAVE WHOLE SPECS, PLEASE AT LEAST TELL US THREE FACTORS: 1. TONNAGE; 2. STROKE; 3. CLOSED HEIGHT. WE WILL RECOMMEND THE MOST SUITABLE TYPE FOR YOU.

Factory Show

FAQ

Q1: How to contact sales?
A1: Please email or call: +86-1180-3679-7771 for pre-sales.

Q2: How to make payment?
A2: Once order confirmed, we will prepare proforma invoice with our banking details.

Q3: How long does it take to process orders?
A3: It usually takes 10-14 business days to process most orders for no stock, if stock available, only take 2-3 business days.

Q4: What is the packing method?
A4: For small piece, we use carton box; for big piece, we use exporting grade plywood case.

Q5: How to ship?
A5: Sea freight, Air freight or International express(DHL, FEDEX,UPS...) all are available.

Q6: What is the warranty?
A6: 12 months against B/L date.

Contact Us

Jiangsu Feiyao Machinery Manufacturing Co., Ltd

Contact Person: Miss. Bella

Tel: +86-180-3679-7771

Web: www.fyhydraulic.com

Concentrate on the design and manufacture of hydraulic products, Jiangsu Feiyao Machinery Manufacturing Co., Ltd is a professional hydraulic manufacturer who integratesR&D, marketing, customer service and import & export. With strict and efficient manufacturing&operation system and perfect quality control and guarantee system, FEIYAO provides a full range of engineering solutions for customers.

Relies on advanced research and application technology and with joint effort of domestic professionals, FEIYAO has developed high-end hydraulic products (already has a number of invention patents) and capacity of customizing a variety of scientific and reasonable solutions in rich product lines. Through continual innovations in designs and applications, FEIYAO provides high-quality hydraulicproducts for customers.

Based on the advanced computer control technology, in the past decades, FEIYAO has been devoted itself to providing customers with engineering solutions in the heavy load, high precision control, multi logical action and multi-point control fields, etc., and offering safe&efficient equipment and services in all kinds of applications like multi-point synchronous push, translation, lifting, stretching, walking, asymmetric component weighing, tension, space adjustment, intelligent walking, handling large equipment.

At present, the company's products have been widely used in many industries at home and abroad, such as the construction and maintenance of roads and bridges, installation and moving of offshore oil platform, historic buildings, sports gymnasiums, blast furnaces, power equipment and ocean shipping manufacturing.

The synchronous hydraulic lifting systems have made a great contribution to the bridgelifting and maintenance in China, which has won praise from numerous bridge construction enterprises!
