Drill Heavy Duty Anchor Holes at Side Slope of Wat
Hole Depth:
50-80m
Product Description

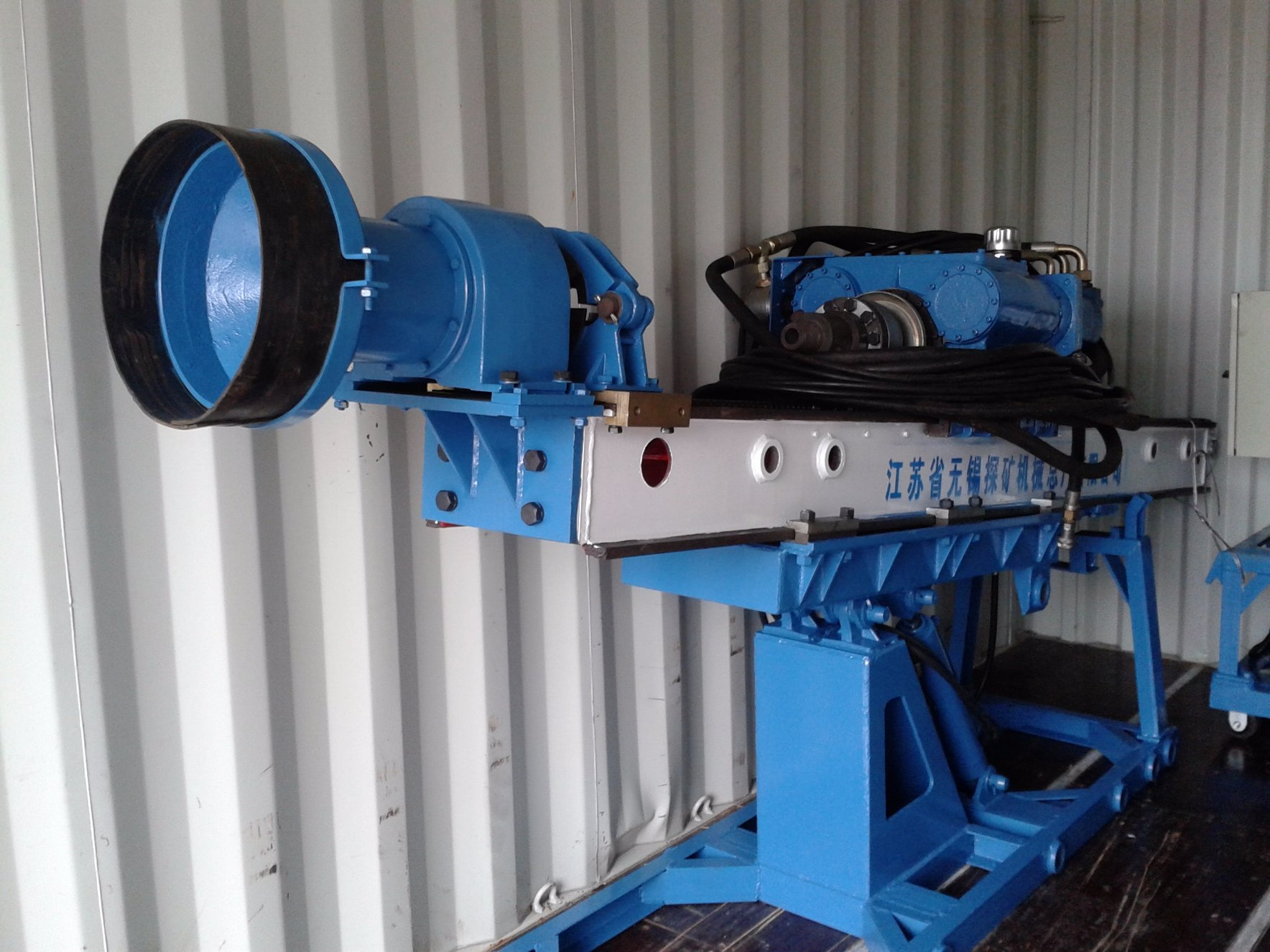

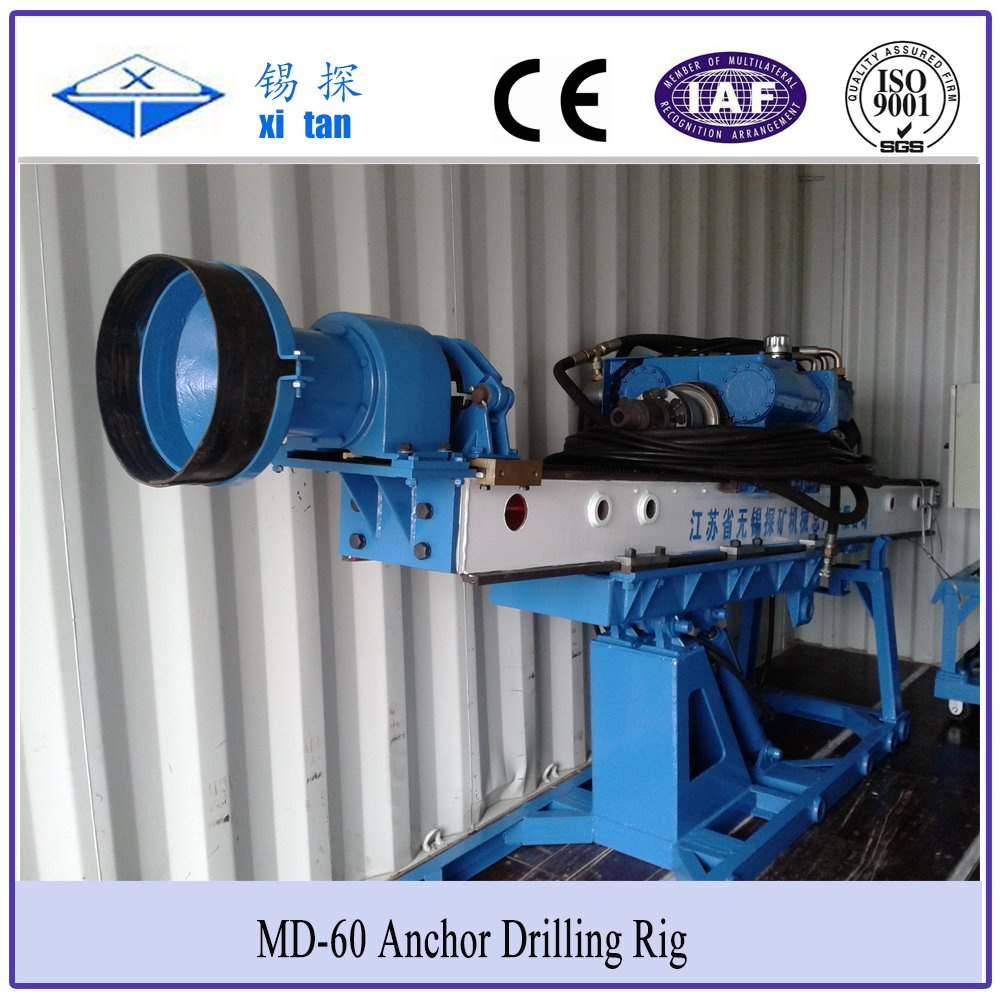

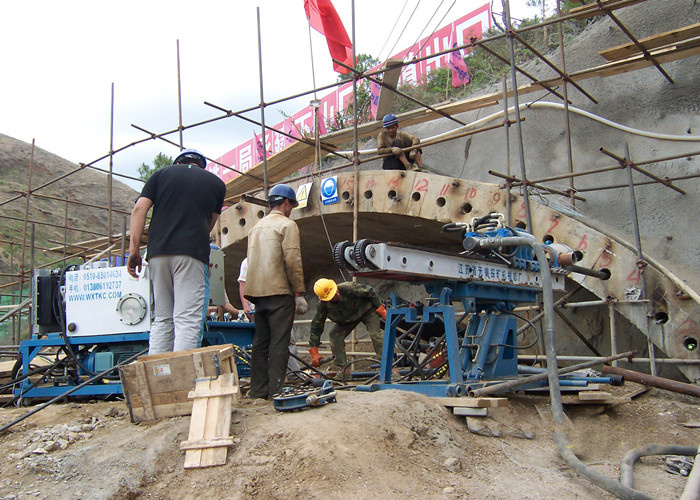

MD-60 SLOPE ANCHOR DRILLING RIG Discription: 1. MD-60 drilling rig is a kind of full hydraulic power head drilling rig and high torque.It is applied to drill heavy duty anchor holes at side slope of water power station, railway or highway projects, to drill drainage holes and It also used to prevent or solve geologic calamity, such as landslide and rock collapse etc. In addition, it is also used to drill high-pressure jet grouting holes. 2. It has great drilling capability, wide range of application, rapid drilling speed and high drilling efficiency, as well as powerful ability of eliminating accident. 3. Rig structure is separate group design, it assures good disassembling, rapid and convenient mount and transport, best working environment and lower labor strength. Application: 1. Anchor holes at side slope of water power station, railway or highway projects, to drill drainage holes and It also used to prevent or solve geologic calamity, such as landslide and rock collapse etc 2. It is also used to drill high-pressure jet grouting holes.
Specification:
Hole depth
50-80m
Rod dia
110-180mm
Hole angle(°)
-1-90°
Output rotary speed of power head
Forward: 12/25/45/60/100/125r/min
Stroke of power head
1800mm
Output torque of power head
2500N.m
Lifting force of power head
42.5KN
Lifting speed (m/min)
0~1,1,7.5,8.5
Feeding force of power head
25kN
Feeding seed (m/min)
0~2,14.5,16.5
Power
22KW+1.5+0.15
Weight
2300KG
Dimensions (L×W×H)
3400×650×1400mm

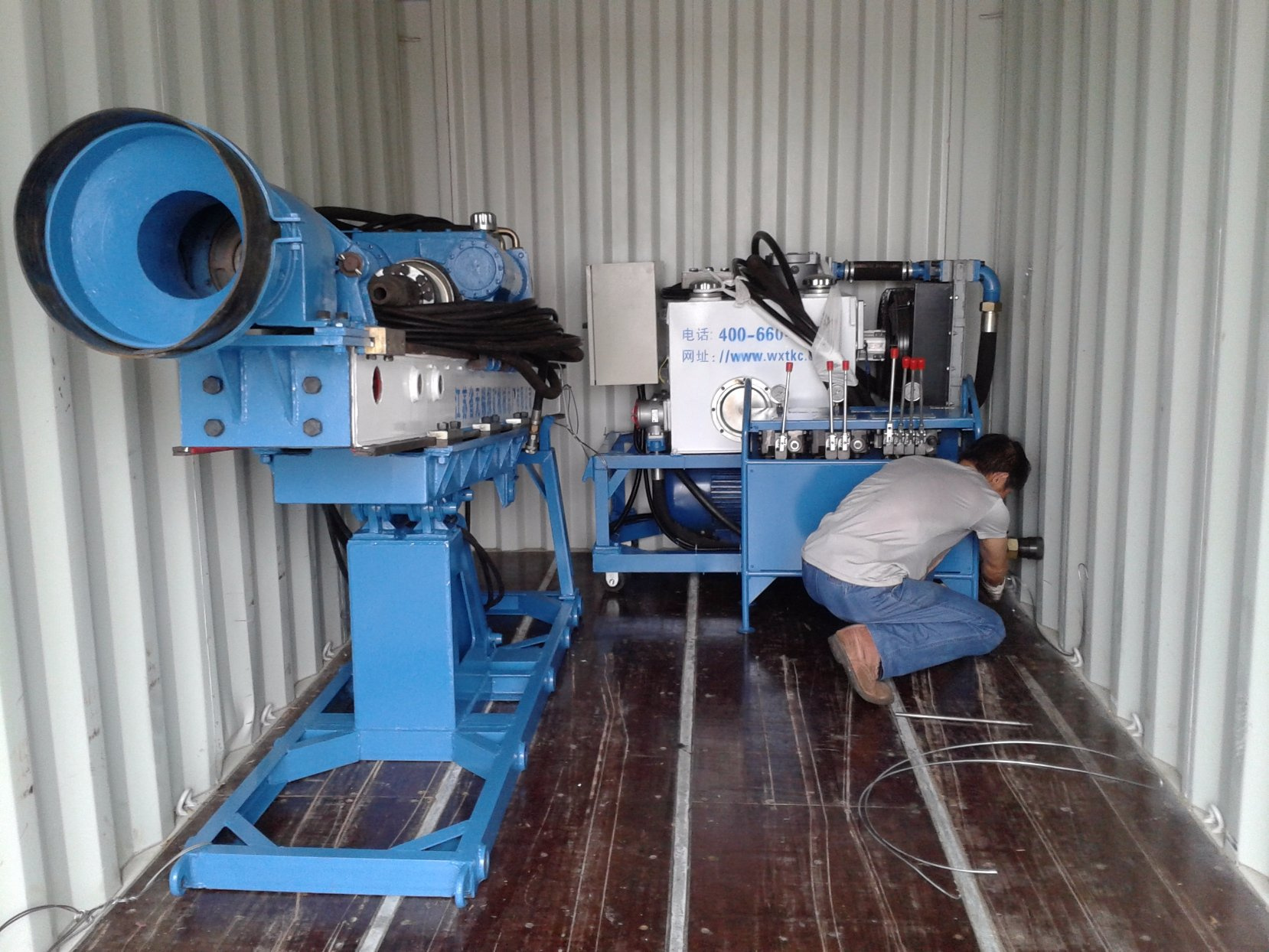

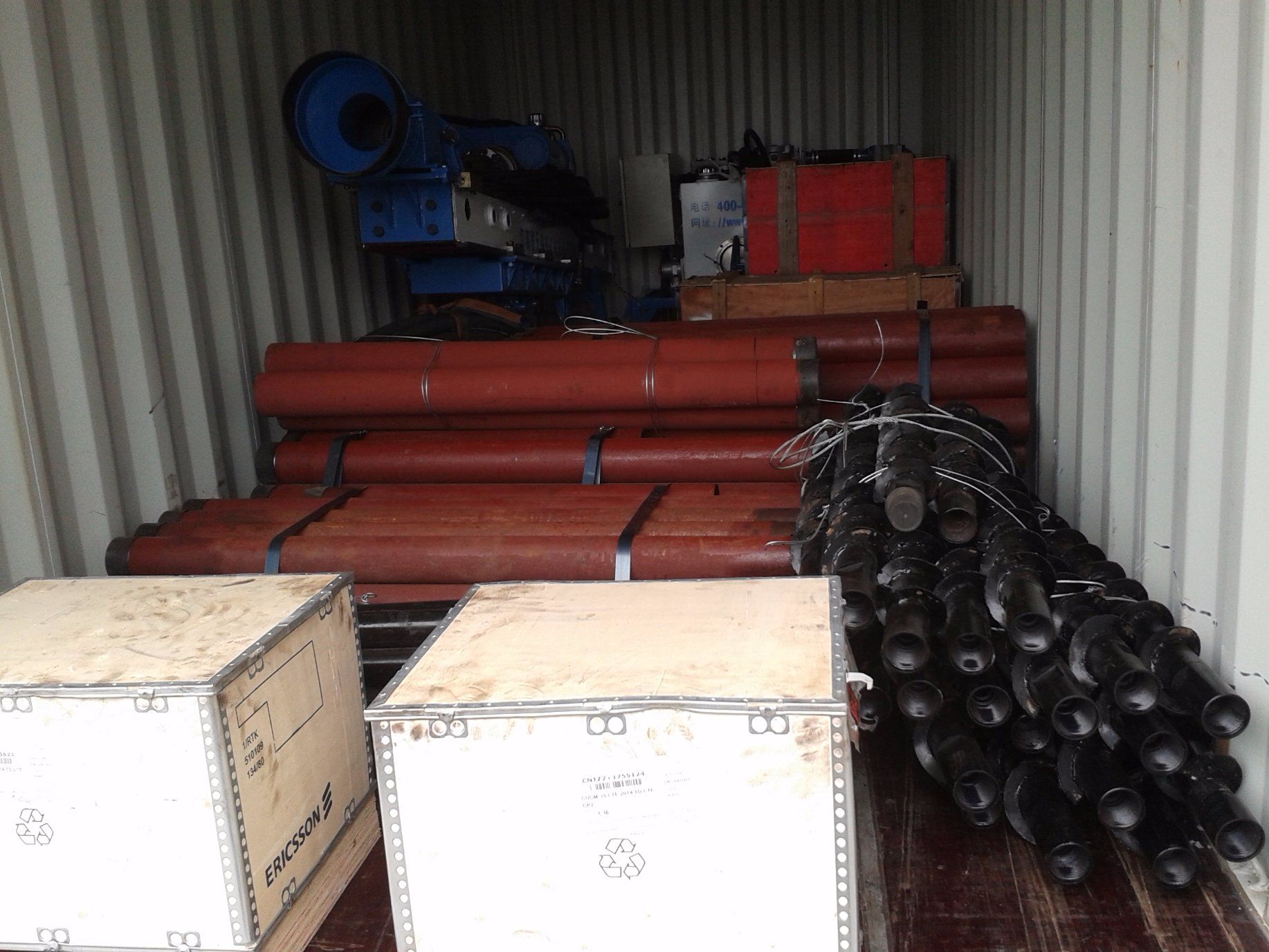

PACKAGE:
Jiangsu Wuxi Mineral Exploration Machinery General Factory Co., Ltd. (brief name: Jiangsu XiTan ) was was founded in 1956 with a registered capital of 20 million and is a large-scale key enterprise in the industry of geological exploration field.
Our factory covers more than 60, 000 square meters. Equipped with more than 60 years professional manufacturing experience and professional production team as well as more than 200 excellent skillful workers, more than 20 experienced engineers and more than four hundred sophisticated equipments, the high quality drilling equipments will be manufactured.
Our company has advanced and scientific production technology and capacity as well as rapid innovation ability, so that our products account for a large market share in the domestic market. At the same time, our drilling rigs have been exported to Vietnam, Brunei, Iran, Britain, Nigeria and other countries and regions.
We have received the ISO9001-2000 quality system certification. We also obtain the science and technology progress award and second prize issued by the China National Light Industry Association.
Our company is located in Wuxi City. It is 2 km away from the railway station, convenient in traffic and beautiful in environment.
Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
