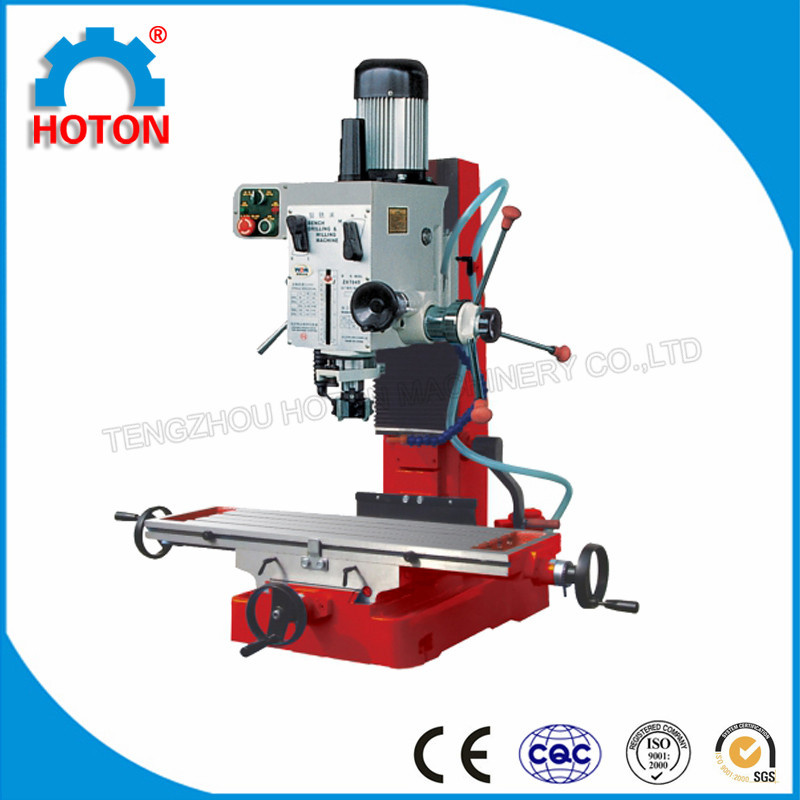

Worktable Power Feed Milling Drilling Machine (ZX7045)

Worktable Power Feed Milling Drilling Machine (ZX7045)
Price: US $ 700-2500/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: ZX7045
Drill Capacity: 45mm
Taper: MT3
Motor: 1.1kw
Spindle Travel: 130mm
Table Size: 800X240mm
Structure: Mill Drilling Machine
Layout: Vertical
Controlling Mode: Artificial
Automatic Grade: Manual
Precision: Normal Precision

Product Description

VERTCIAL DRILLING AND MILLING MACHINE FEATURE:
ZX7045 not the same as ZX45, except that ZX7045 is equipped with Worktable power feed(longitudinal), Lifting motor with Big Electrical box, 2step motor with 12 steps speed iron casting foot stand and oil pan which can improve the machining accuracy and producing efficiency.
Milling drilling, tapping, boring, reaming;
Head swivels 360° ;
Micro feed precision;
Super high column, Wide and big table, Gear drive, lower noise.;
Heavy-duty tapered roller bearing spindle, Positive spindle lock, Adjustable gibs on table
SPECFICATIONS:
MODELZX7045
Max.drilling capacity(iron/steel)31.5/45mm
Max.mill capacity(face/end)80/32mm
Spindle taperMT3/MT4/R8/ISO30
Worktable size800×240mm
Worktable travelX/Y570/230mm
Head tilt left right90°
Spindle travel130mm
Spindle nose to worktable470mm
Spindle center to column surface285mm
Spindle speeds range(2 steps)12steps:75-3200r/min
motor0.85/1.1kw
N.W/G.W300/350KG
Packing size(L×W×H)1140×960×2240mm
20'Container12 sets
