North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Delivery Time:
15 Days
Type:
Table Panel Saw
Layout:
Horizontal
Automatic Grade:
Automatic
Precision:
High Precision
Certification:
SGS
Controlling Mode:
PLC
Product Description

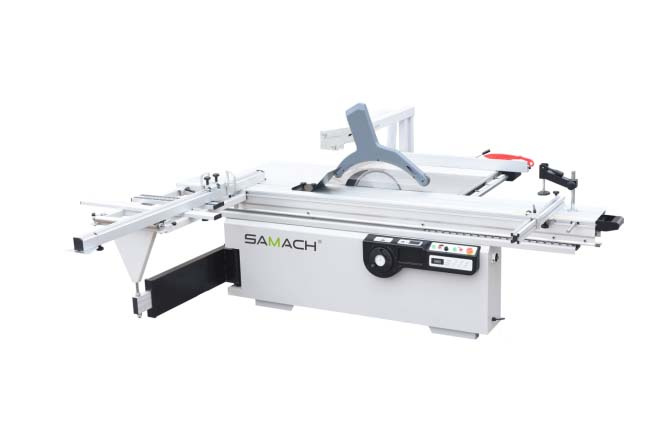

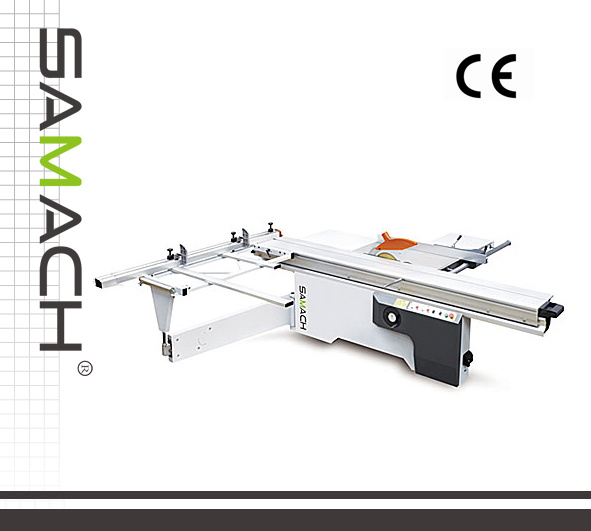

Woodworking Sliding Panel Saw with CE certificate(RTJ45A) The machine is suitable for processing all kinds of density board and particle board,ABS board,PVC board,organic glass plate and solid wood etc., that the hardness is similar board.
Specifications: Paremeters:
Model
RTJ45A
Main motor power
5.5(7.0)KW
Scoring saw motor power
0.75KW
Diameter & thickness of main blade
400mm*3.5mm (400-250mm)
Diameter & thickness of scoring saw blade
120mm*2.5-3.5mm
Diameter of main sawspindle
30mm
Diameter of scoring saw spindle
20mm
Speed of main sawspindle
3000,400,5000rpm
Speed of scroing sawspindle
7000rpm
Saw blade tilting angel
45°~90°
Max height of cutting
3200(3800)mm
Max thickness of cutting
(400)130mm/92mm
Worktable height
870mm
Worktable size
1100mm*635mm
Auxiliary worktable size
1100*715mm
Front auxiliary worktable size
635*800mm
Sliding table size
3200mm*375(415) mm
Dust inlet size
φ120
Net weight
780kg
Packing size of main engine
2244*1150*1020mm
Packing size of sliding table
3400*420*280mm
QingDao Samac International Trading Co., Ltd. Specializes in the export of woodworking, glass processing, metal processing and Stone Processing machinery. Our woodworking machinery series is mainly used to process real wood, wooden plates, plywood and related types of wood.
Since the foundation of our company, we have always introduced first-class Chinese machinery to the entire world. We cooperate with many local famous factories on R&D to keep in pace with this modern world. Our company aims to help our customers select the best quality and most suitable products for their needs. Simultaneously, we also undertake OEM/ODM projects which can satisfy customers' special requirements.
Quality: We are scrupulous about every detail, professional QC and strict checking porcedure ensure our work and guarantee eac machine which is in it's best presentation. All our goods pass through our rigid quality control before shipment.
With high-quality products, powerful strength, a professional team and excellent after-sales service, we have gained a good reputation among our customers. It is our sincere desire to develop more customers' business through trustworthy cooperation.
