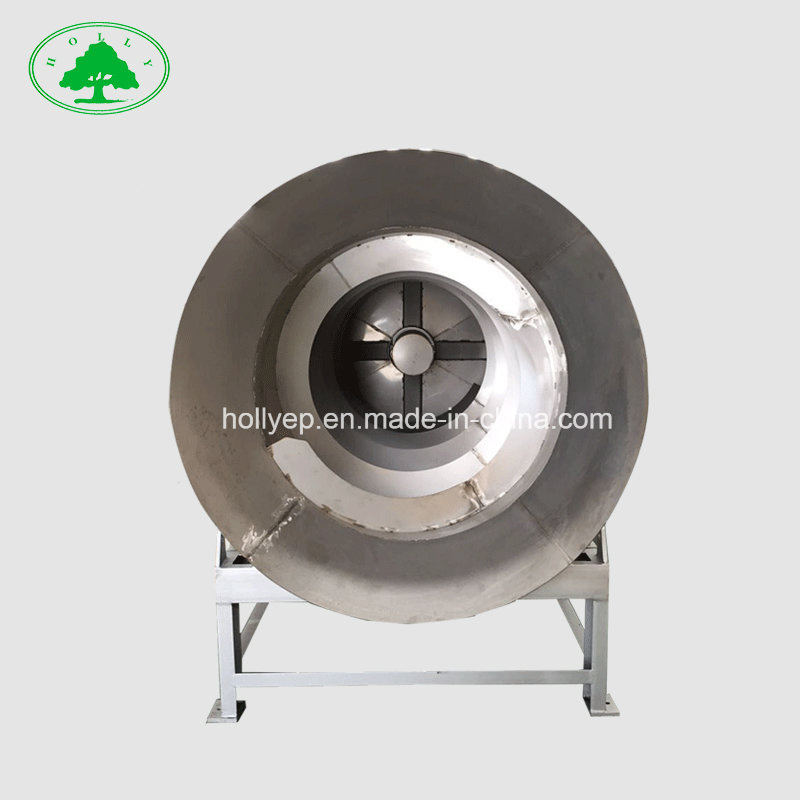

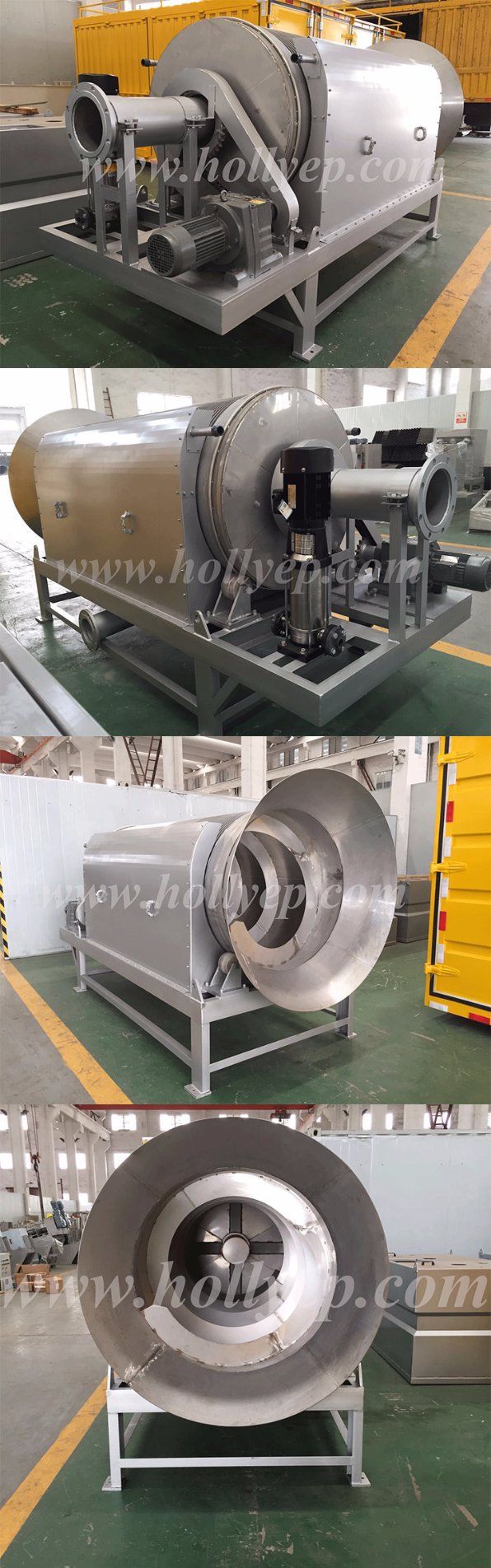

Drum filter screen,which is also called rotary drum screen,is suitable for the solid-liquid separation of industrial wastewater and domestic sewage. It can remove the waste solid whose size is more than 0.2mm.The effluent enters the inside of rotary drum through the feed inlet and then passing over the distribution weir on to the drum surface.The particles and water separate as the drum rotates with the solids staying on the screen and passing down the length of the drum helped by internal flights or a continuous scroll.
Technical Parameters
Model
Screen size
Dimensions
Power
Material
Removal rate
Solid size >0.75mm
Solid size >0.37mm
HLWLN-300
Φ300*800mm Space:0.15-5mm
1600*500*1200mm
0.55KW
SS304
95%
55%
HLWLN-400
Φ400*1000mm Space:0.15-5mm
2200*600*1300mm
0.55KW
SS304
HLWLN-500
Φ500*1000mm Space:0.15-5mm
2200*700*1300mm
0.75KW
SS304
HLWLN-600
Φ600*1200mm Space:0.15-5mm
2400*700*1400mm
0.75KW
SS304
HLWLN-700
Φ700*1500mm Space:0.15-5mm
2700*900*1500mm
0.75KW
SS304
HLWLN-800
Φ800*1600mm Space:0.15-5mm
2800*1000*1500mm
1.1KW
SS304
HLWLN-900
Φ900*1800mm Space:0.15-5mm
3000*1100*1600mm
1.5KW
SS304
HLWLN-1000
Φ1000*2000mm Space:0.15-5mm
3200*1200*1600mm
1.5KW
SS304
Features
1.The uniformity of water-distribution increases the treatment capacity. 2.The machine is driven by chain transmission, with high efficiency. 3.It is equiped with reverse flushing device to prevent the screen clogging. 4.Double overflow plate to prevent wastewater splash .
