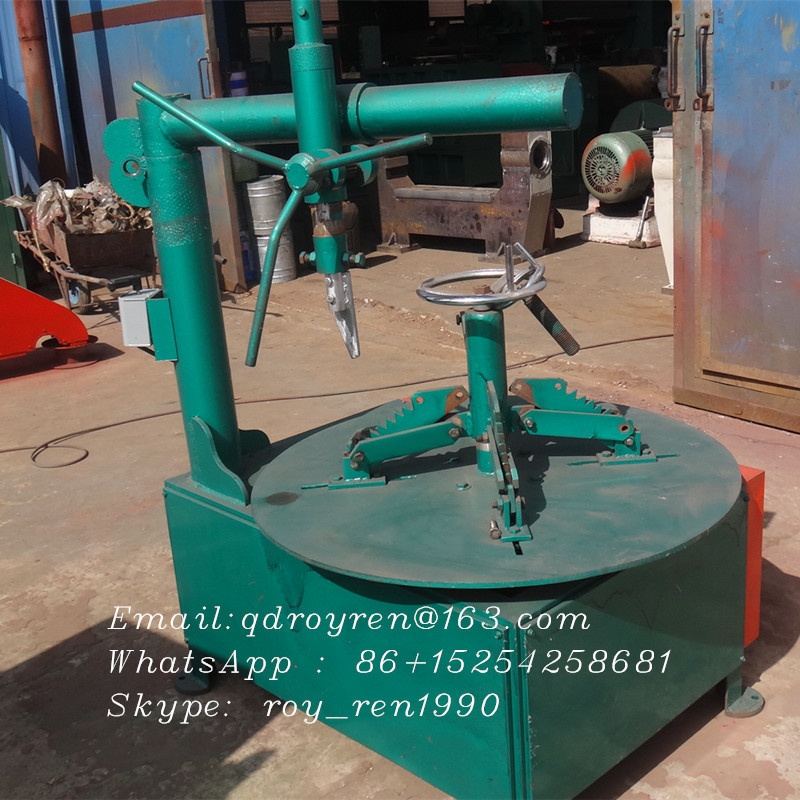

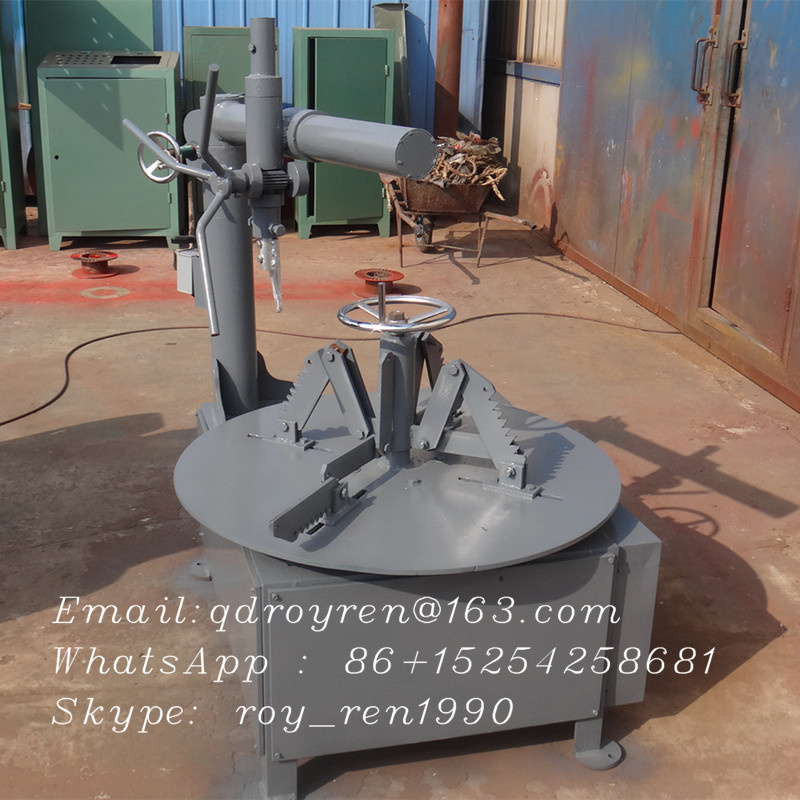

ring cutter is used for cutting the used tire into three parts,two sidewalls and one tread. spare blades can be sent together with machines free of charge.
model
motor (kw)
processing range(mm)
weight (kg)
dimension (mm)
production
QKF850
2.2
750-1200
300
1300*900*1480
2ton tire/h

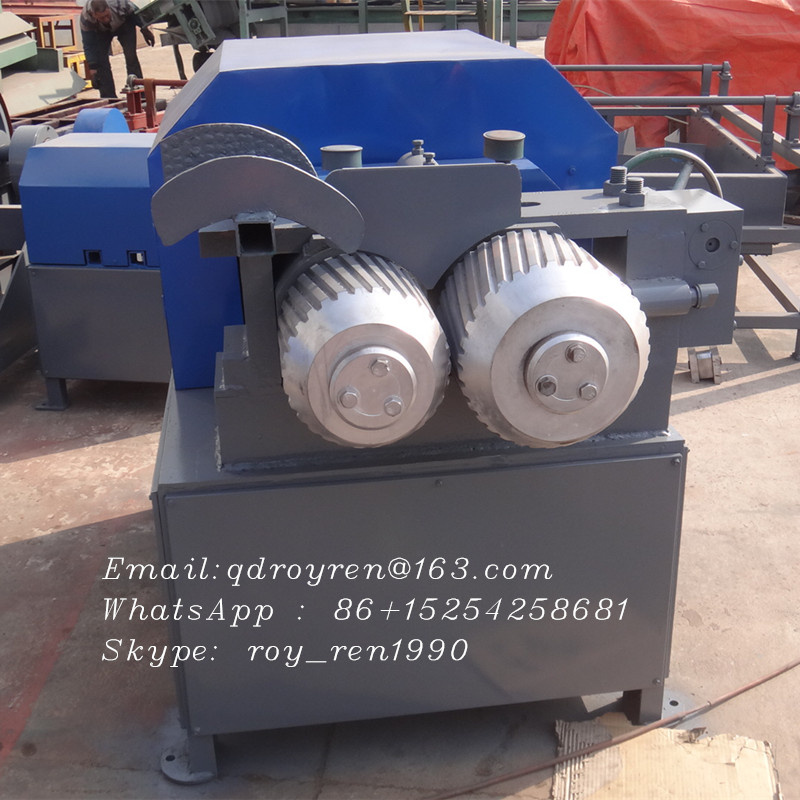

2.strips cutter
strips cutter is used for cutting the sidewalls and tread into rubber strips. circle blades can run for at least 1 year,grind and sharp are necessary for maintain.
model
motor (kw)
processing range (mm)
weight (kg)
dimension (mm)
production
QT380
4
750-1200
900
1300*750*1580
1ton/hour

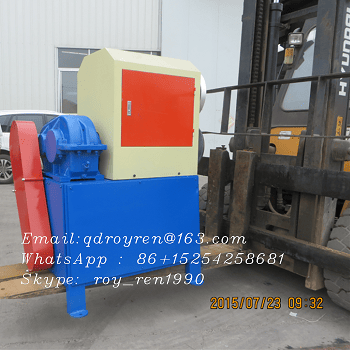

3.blocks cutter
blocks cutter is used for cutting rubber strips into rubber blocks. 3 pieces blades can run for at least half year,grind and sharp are necessary for maintain.
model
motor(kw)
processing range(mm)
weight(kg)
dimension(mm)
production
QK200
7.5
750-1200
450
800*810*1070
1ton/hour
4.bead wire separator
bead wire separator is to separate the whole steel circle from bead. cast steel rollers can run for at least 2 years,grind and welding are necessary for maintain.
model
motor(kw)
Processing range
Weight(kg)
Dimension(mm)
production
GF240
15
bead tire
1800
1520*1180*122
30pieces tire/hour
CJ-1200 tire cutter Use:more than 800 tyres need this kind of cutting machine, after cutting can break in the broken tire machine.
The cutter machine is made up of motor, hydraulic system, oil cylinder, one pair of blade, frame and rotating body etc.
The basic principle is: motor drive hydraulic system and the cylinder, place the tire betwork to lock arm, fasten two blades rotating between tire and shear cylinders work to move, two blades rotating blades forming shear, achieve the effect of shear.
Feature:
This equipment, good shear effect,shearing speed, low energy consumption, small volume, convenient, because use the hydraulic system, easy operation and safety. Mechanical description: the tires more than 800 need to cut,and cut into four pieces in general.the size of piece is 200-500mm
technical parameters:
Adapt tire
1200mm(less than 1200)
capacity
20-60 tires/h
Motor power
5.5KW
Dimension
2080*1000*2130
pull power
1.5T
Adopt to tire
1200-2000mm
weight
2T
Our packing way :Export standard (wooden package ) or according to your requirement .
Our Services : 1. We will design,manufacture,install and test the machines according to customers' requirement .Relevant personnel training for customers,ensure that customers fully grasp the use and maintenance of technology.
2 .Our service department listen to customers' feedback at any time and provide spare parts timely.Welcome to visit our factory and we can show you the machine in working condition:
If our products win your interest, please send us inquires and we will provide detailed information to you. We can also make machines according to your request.
