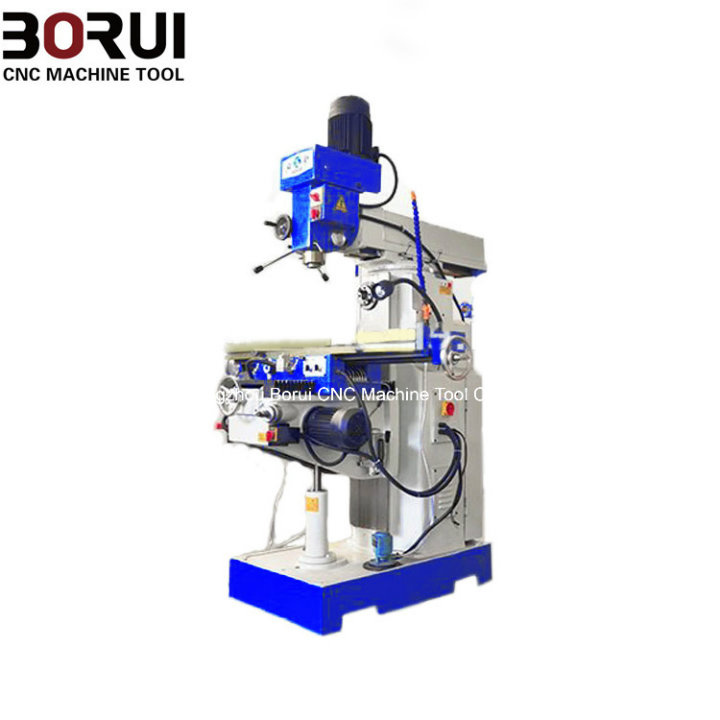

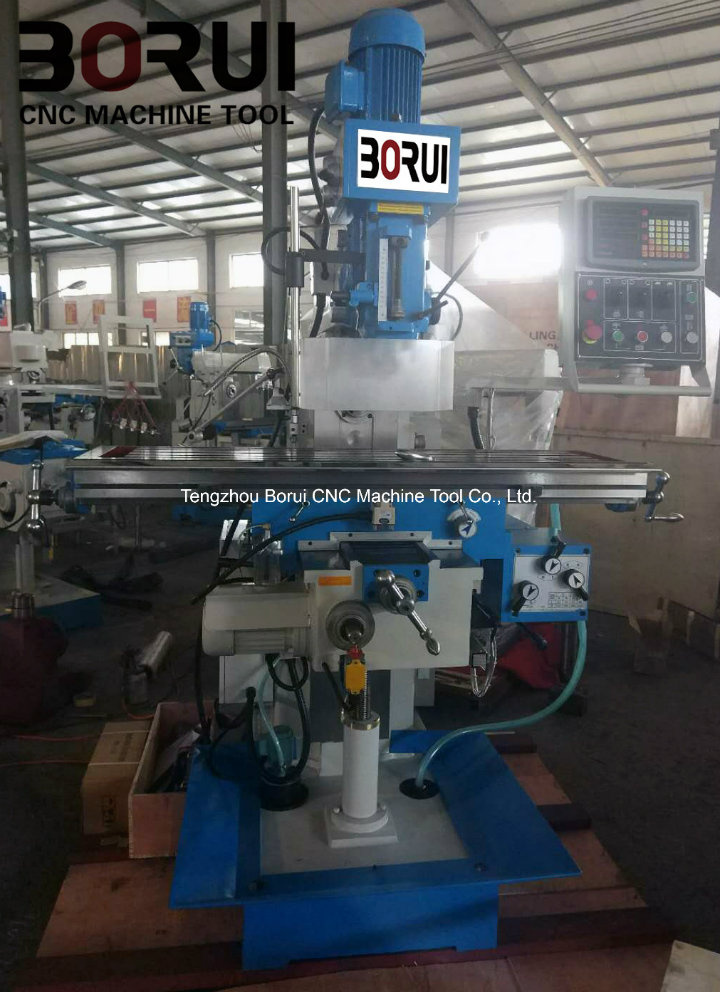

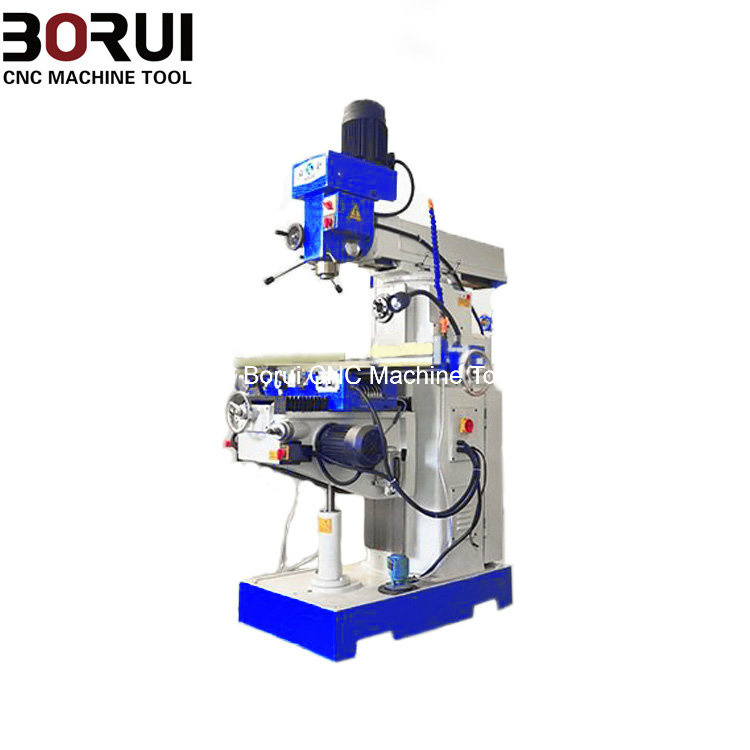

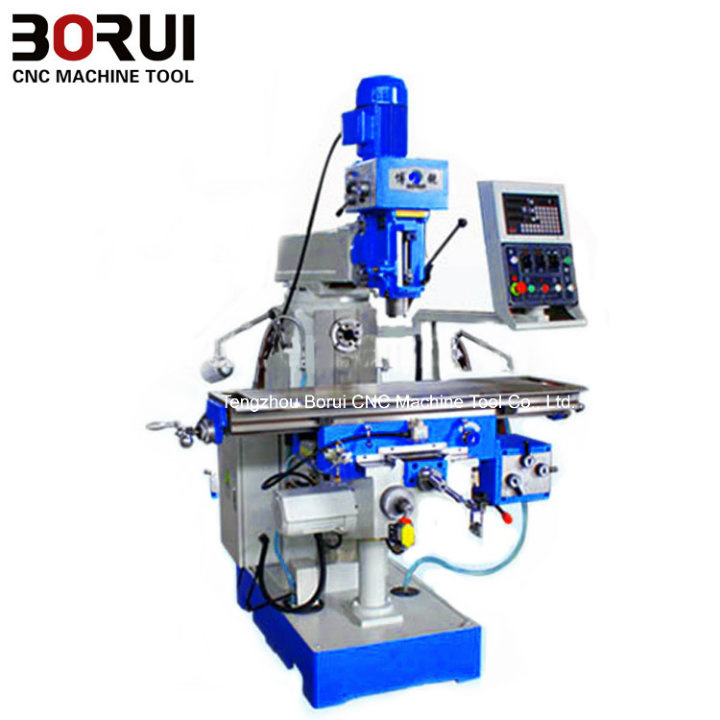

Vertical Drilling and Milling Machine (ZX6350C) with Power Feed

Vertical Drilling and Milling Machine (ZX6350C) with Power Feed
Price: US $ 4500-6500/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: ZX6350C
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Processing: Metal Vertical Milling Machine
Spindle Taper: Mt4
Distance Spindle To Column: 200-500mm
Automatic Feed Series Sleeve: 120(Vertical)mm
Table Size: 1120*280mm
Table Travel: 600/250/360
Distance Horizontal Spindle To Arm: 175mm
Color: Customer Requirement
Spindle Speed: 115-1750(8setp)
Motor Of Table Power Feed: 370kw
Type: Tool Milling Machine
Object: Tool
Structure: Desktop
Controlling Mode: Artificial
Automatic Grade: Semiautomatic
Precision: High Precision

Product Description

    Vertical Drilling and Milling Machine (ZX6350C) with Power Feed

Product Description
     Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.


The main specification :

Specifications

Units

ZX6350C

ZX6350D

ZX6350S

ZX6350ZA

Table  size

mm

1200x280

1200x280

1200x280

1200x280

 Table  stroke

mm

600x230

600x230

600x270

600x270

Distance from spindle nose to table surface

mm

110-470

110-470

100-400

100-400

Spindle travel

mm

120

120

120

120

Max. drilling dia.

mm

50

50

50

50

Max. tapping dia.

mm

M16

M16

M16

M16

Max. vertical milling dia.

mm

25

25

25

25

Max. end milling width



100

100

100

100

Spindle speed range

rpm

115-1750(V) 38-1310(H)

115-1750(V) 38-1310(H)

115-1750(V) 38-1310(H)

115-1750(V) 38-1310(H)

Spindle  motor power

KW

0.85/1.5(V) 2.2(H)

0.85/1.5(V) 2.2(H)

0.85/1.5(V)  2.2(H)

0.85/1.5(V)  2.2(H)

Overall dimensions

mm

1580x1330x2250

1580x1330x2250

1655x1450x2150

1655x1450x2150

Machine  weight

Kg

1350

1350

1500

1500

Standard Accessories:                           Optional Accessories:



1. Drill chuck                                                               1. DRO on X,Y,Z--AXIS

2. mill chuck                                                                2. Clamping kit

3. Inner hexagon spanner                                           3. Universal dividing head

4. Work light                                                                4. Rotary work table

5. Reduction sleeve

6. Draw bar

7. Spindle arbor

8. Wrench

9. Machine vice

10.Horizontal milling arbor



The main feature :


1.Milling head can be micro feed and achieve the drilling

2.Milling and tapping function

3.Worktable can be equipped with the gear transmission power feed,

4.Full-featured and flexible

5.Easy to operate

6.Can be add plug and swivel table

7.Work Table Surface and Guide ways Hardened by Supersonic Frequency Quenching (depth 2-4MM)

8.Work Table Made by HT200-250 High Strength Cast Iron

9.Dovetail Table Guide ways Withstand Larger Overturning Moment

10.Gear Drive Milling Head

11.Head stock Swivels ±45

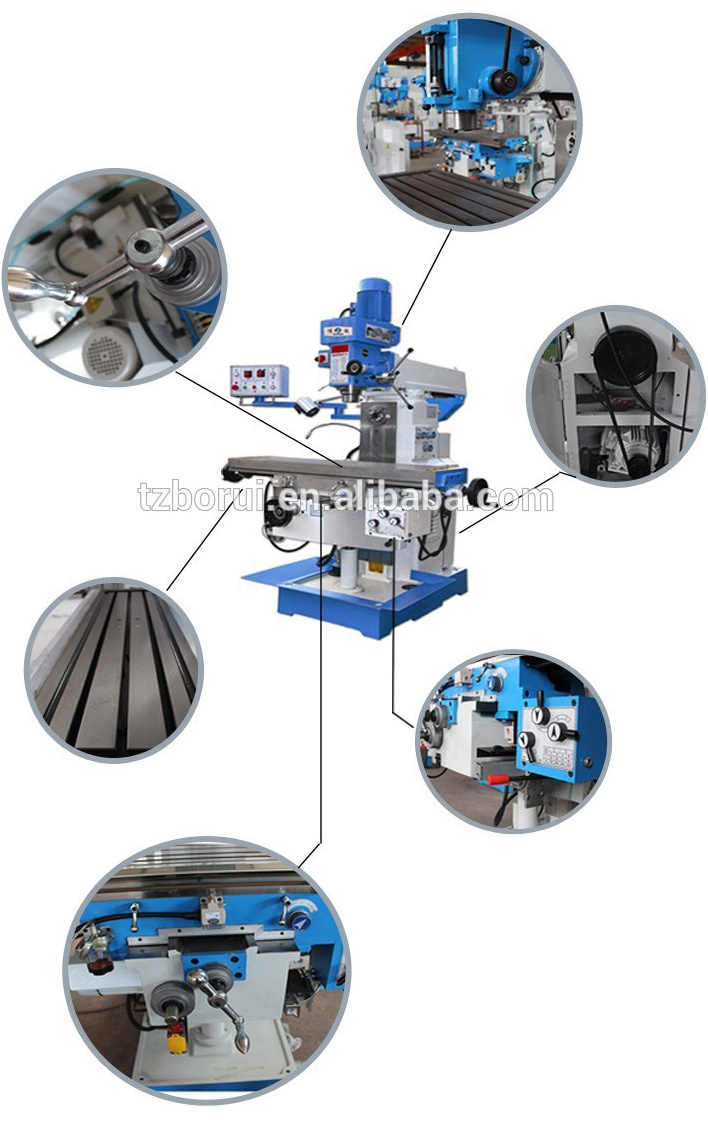

Product Dtails




Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can    help you to work it  out.
8. Always be honest, never lie to customer, and never declare anything     we don't have
Company Information



FAQ:
1)Q: Which trade term I can choose?
A: You can choose FOB,CIF, DDU or other terms. You can book ship or I can book ship for you.
2)Q: How can I get quotation from you?
A: You can make the inquiry online on Alibaba, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 2 hours on work days, and within 24 hours on holiday.
3)Q: How can I choose right machine and how to assure quality?
A: You can choose machine on our website accodring to your request. Or You can let our seller know what is your request specifcation or what is your parts, so let our seller recommend suitable machine to you. We have do trade machine years, and export machine to over 100 countries. We have CE, ISO, SGS and other quality certificate.
 4)Q: How can I make the payment?
A: We can make the deal on Alibaba online platform, you can pay by T/T or Credit card. You can also pay to my company business bank account. You can also choose L/C or other way.
5)Q: How long does it take to get machine?
A: If the machine you will order is standard machine, we can ready the machine within 15days. If special machine, please confirm with our seller. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.
 6)Q: How about warranty?
A: warranty is one year, but we will offer lifetime service for machine.
