Elbow Size:
1"-12"
Elbow Tensile Strength:
Min.65,000(MPa-448)
Elbow Yield Strength:
Min.45,000(MPa-310)
Elbow Surface:
Epoxy Powder/Galvanized/Paiting
Elbow Cerfiticate:
FM/UL/Ce/CCC
Elbow Capacity:
45000ton/Year
Elbow Pressure:
300psi
Elbow Surface Disposal:
Epoxy Powder, Galvanized or Dipping Paint
Shape:
Equal
Head Code:
Round
Angle:
90 Degree
Technics:
Casting
Certification:
FM/UL
Connection:
Grooved or Threaded
Material:
Ductile Iron
Color:
Red, Orange or Blue
Product Description

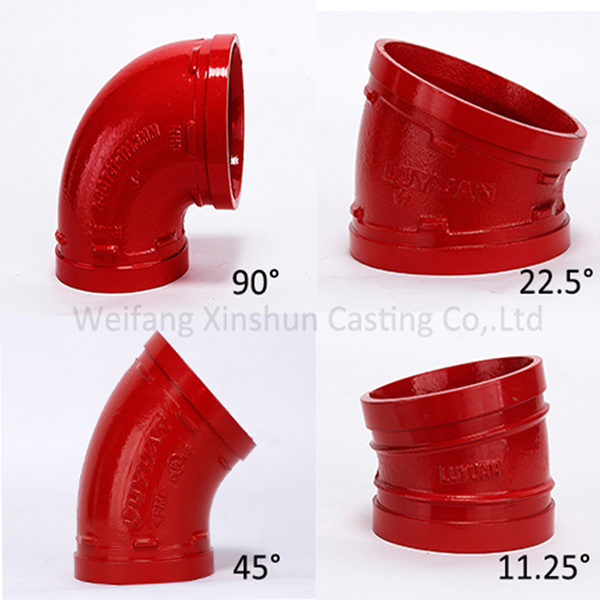

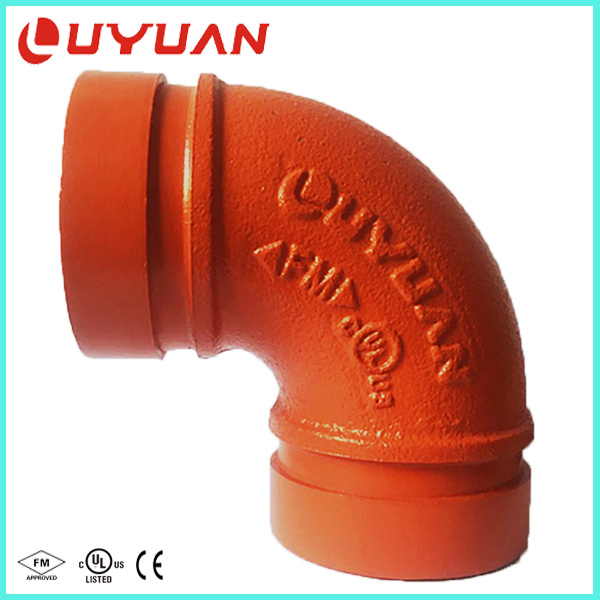

UL FM Approved Ductile Iron Elbow with 90 Degree /45 Degree/22.5 Degree For Fire Safety System Elbow Specifications:
Product Name
Ductile iron grooved pipe Elbow
Brand
Luyuan
Certification
FM/UL/CE/CCC/ISO
Size
1/2 inch-12 inch
Material
Ductile iron,ASTM A536/QT450-10
Technics
Casting
Working pressure
300Psi/2.07Mpa
Surface finish
Epoxy powder,Paint,Galvanized,Dacromet
Capacity
45000 Tons/Year
Application
1)Automatic sprinkler system for fire protection on commercial,civil and
munisipal constructions like water supplying,gas supplying,heat supplying,
2)Industrial pipeline system on shipping, mine, oil field, textile,powder plant,
3)Pipeline system on subway station,railway station,airport,seaport,bridge,etc.

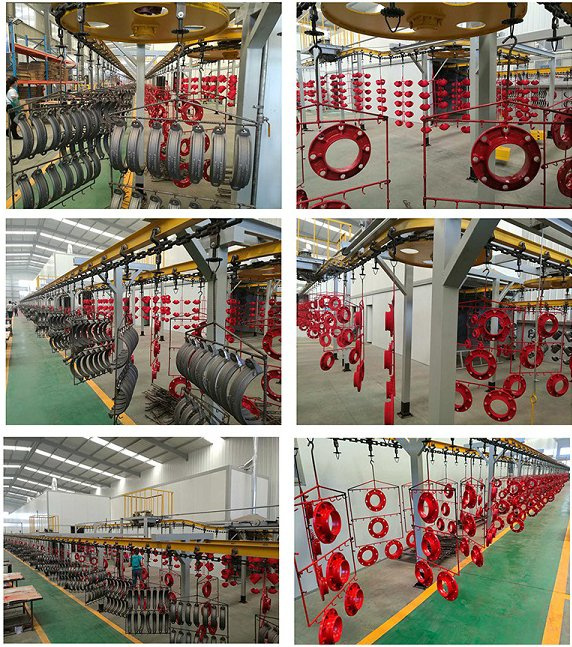

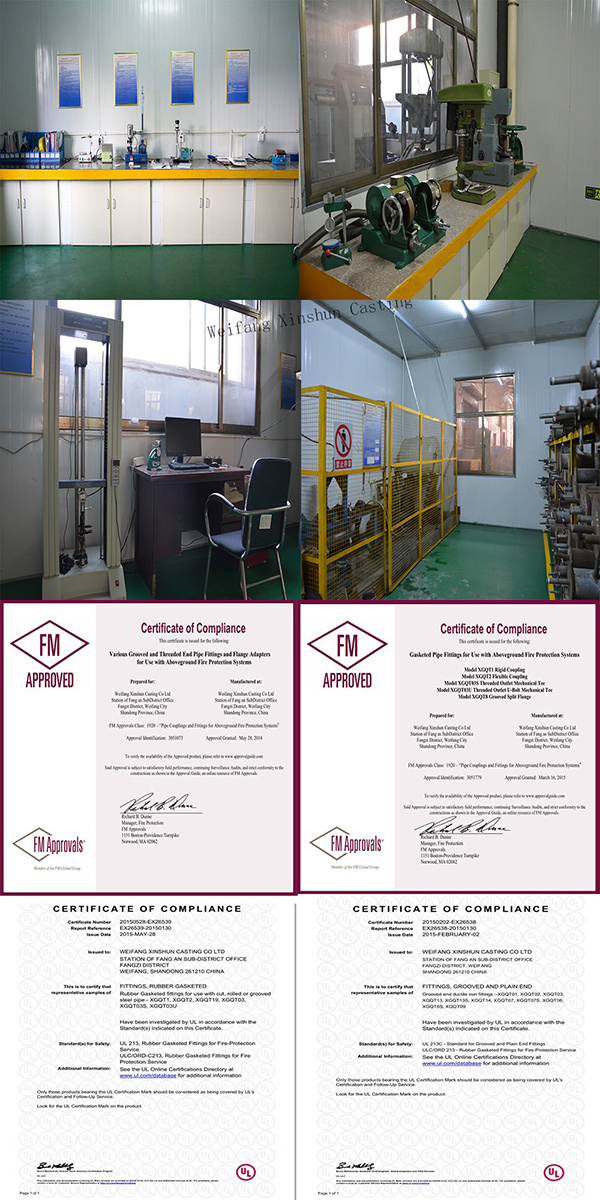

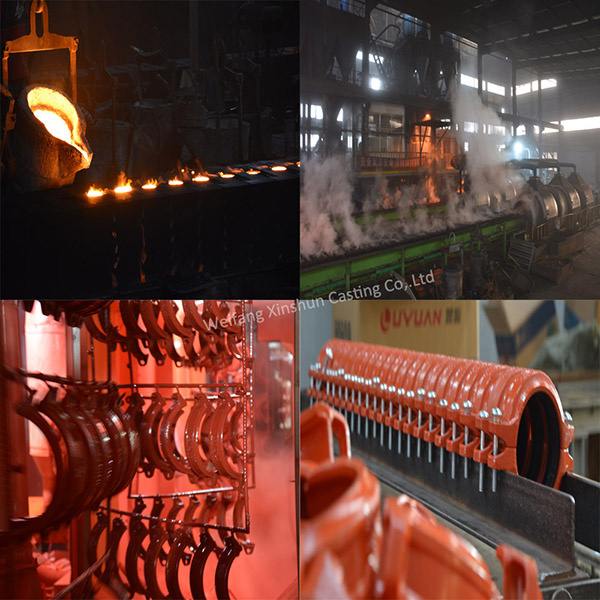

You can download the full series of product catalogues from our Website www.luyuanguanjian.cn Elbow Factory Process : Smelting---Shot Blasting---Grooved&Machining---Painting---Assemble---Packing Elbow Quality Test: Our Lab for testing the material (bolt,nut,seal ring,sands,coal,etc) and the finished products (quality and performance test as the UL/FM,GB5135.11-2006)
Material Composition
Applocable Temperature
Application Scops
EPDM
34ºC- +150 ºC
Cold and hot water
non-oil gas
diluted acid,alkaline salt
multichemicals(free ofhydrocarbon)
Oil-like mediums are forbidden
Silicon rubber
-40ºC-+177ºC
Drinking water,hot water,
high-temperature air ,some high-temperature chemicals
Oil-like mediums are forbidden.
Nitrile rubber
-29ºC-+82ºC
Oil,Oil-gas,mineral oil,
vegetable oil,hot water,
water with temperature of
not than 65ºC are forbidden
Notes: 1.Gasket rings of different materials will be used for different liquid mediums. 2.Products can be supplied as per Customers requirments.

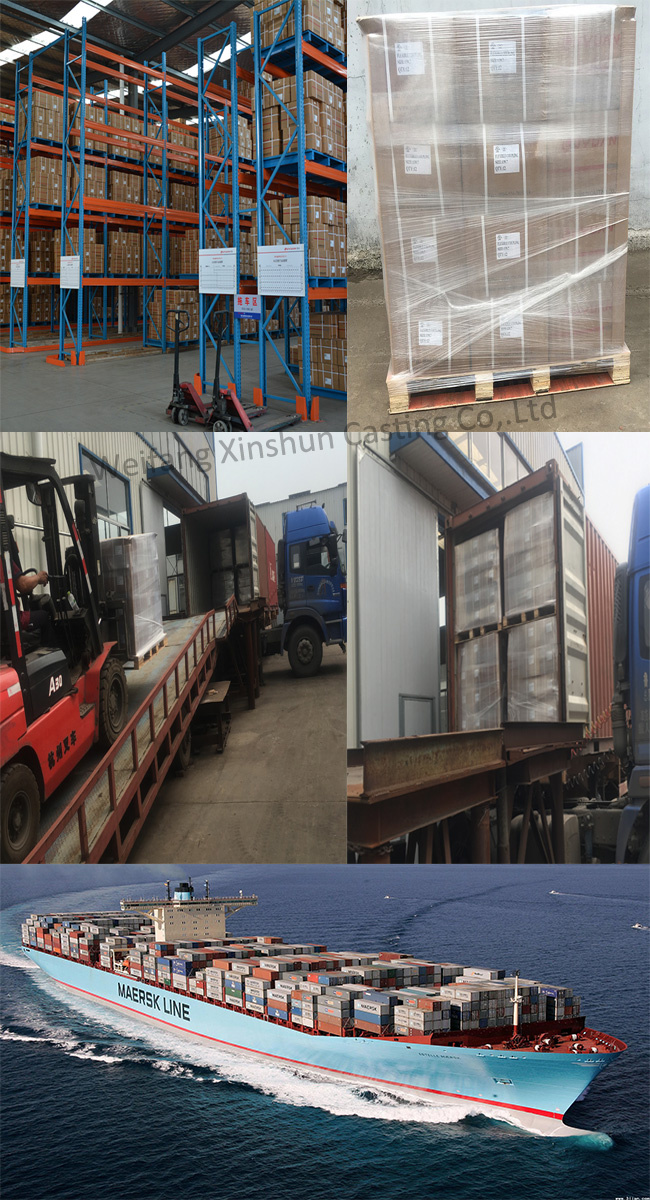

Elbow Pack & Deivery:
Pack
Carton box with pallet
Payment
T/T:30% deposit,the balanced 70% before delivery L/C at sight
Port
Qingdao
Factory Introduction Weifang Xinshun Casting Co,.Ltd,a factory specializing in production of Ductile Iron pipe fitting with over 12 years professional experiences.Our pipe fittings have been approved by UL and FM of USA in 2004,We factory has two automatic DISA casting line and CNC lathe,Modeling machine center ,Automatic coating and packaging line.Our Products have high reputation at home and abroad and we have been exporting to USA,Canada,Mexico,Chile,Columbia,Peru,Spain,Saudi Araba,Bangladesh, South Africa and so on. Exhibitions (NFPA USA,INTERSEC DUBAI) & Customers visiting our Factory If you have a chance in future,welcome to visit our factory
Weifang Xinshun Casting Co., Ltd established in 2005, located on Weifang City- The world kite capital, Shandong Province, China.
Our company is a large-scale manufacturer specialized in production of Ductile iron Grooved couplings and fittings for over 12 years, There are 450 employees in our factory, including 185 skilled workers, 10 senior engineers, 6 mold developments staffs and 12 quality inspectors. The annual capacity is over 50000 Tons. Our company has professional R&D team, Sales team and After-sales service team to meet all needs of customers.
Our company has been passed ISO9001: 2008 quality system and our grooved couplings and fittings have been approved by CCC of China, FM and UL of American, and European Union CE certificate, Products are on sale over 300 cities of China and exported to the United State, Canada, Mexico, Columbia, Chile, Peru, Brazil, Panama, Spain, Saudi Arabia, Turkey, Korea, South Africa etc. More than 20 countries and areas. Our "LUYUAN" brand has been becoming the well-known brand in China, enjoying high reputation among the customers for its excellent quality, competitive prices and professional service.
There are three automatic casting production lines in our factory, One new DISA molding line imported from Denmark is under construction, the production process use fully automatic intelligent control system. We have CNC lathe, Mold machining center, Automatic coating and packaging line and so on. We also have a very professional laboratory with full series of testing and inspection, such as hydrostatic strength testing, raw material receiving inspection, batch chemical composition inspection, microstructure testing, dimension inspection, first article inspection, in- process inspection and final visual inspection in order to ensure the product quality.
With mature and advance technology, quality product, prudent working style, we believe we will be your best supplier!
