Type Name:
S114
Size:
12X14mm
Material:
Tungsten Carbide
Chemical:
89%Wc, 11%Co
Hardness:
86.5
Density:
14.4
T.R.S:
2450
Usage:
Minig, Rock Drilling
OEM:
Ok
Product Description
Tungsten carbide button fitting could mine quarrying coal-cutting, road construction, snow plow etc. It is fitting for serving as drill heads of heavy rock-digging machines, plumbun heads are used in deep hole drilling terrace vehicles. We can provide all kinds of buttons according to the drawings and samples including non-standard styles.
Tungsten carbide, which is also sometimes referred to as "Heavy Metal", has a compressive strength much greater than any hard metal or alloy. Because it's highly resistant to abrasion, it is ideal for use in a variety of wear applications. Tungsten carbide button fitting is machine able and is usually sintered from powdered tungsten and powdered copper, it is a biologically safe, very heavy material. The scrap tungsten carbide button fitting is recyclable and it is typically produced when drilling or machining golf iron weights, gamma collimators, and aircraft elevator balance weights. It is stable nature even in high temperature that maintains the high hardness and high intensity. Especially, the WC-Co carbide performs very well in the machine.

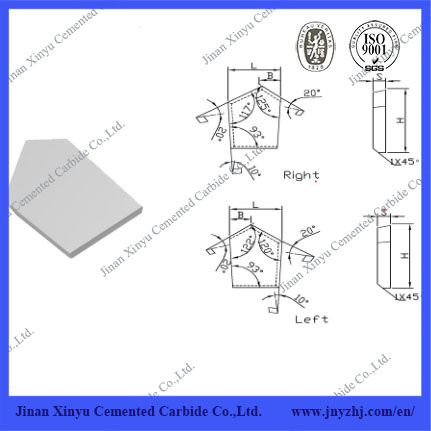

Drawing of Tungsten Carbide Cutting Pieces and Data
TYPE
Dimension (mm)
L
H
S
B
S114/S114Z
12
14
3
5
S114-2/S114Z-2
9
14
3
5
S118/S118Z
15
18
3
5
S119/S119Z
15
19
3
5
S122/S122Z
15
22
3
5
XS122-2/ XS122Z-2
10
15
3
4
Material Grade and Chemical Compositon
Grades
ISO Grade
Chemical Composition
Density (g/cm3)
HRA
T.R.S (N/mm2)
YG4C
96%WC, 4%Co
15.00
89.5
1800
YG6
K20
94%WC, 6%Co
14.80
89.5
1700
YG8
K20-K30
92%WC, 8%Co
14.70
88.5
2300
YG8C
K30
92%WC, coarse
14.70
88.0
2300
YG9C
YK20
94%WC, 6%Co
14.45
87.0
2400
YG11C
89%WC, 11%Co
14.40
86.5
2450
YG13C
87%WC, 13%Co
14.30
86.0
2500
YG15
K40
85%WC, 15%Co
14.00
86.5
2500
YG16
84%WC, 16%Co
14.10-14.30
87.5
2400
YG20
80%WC, 20%Co
13.40-13.70
85.0
2254

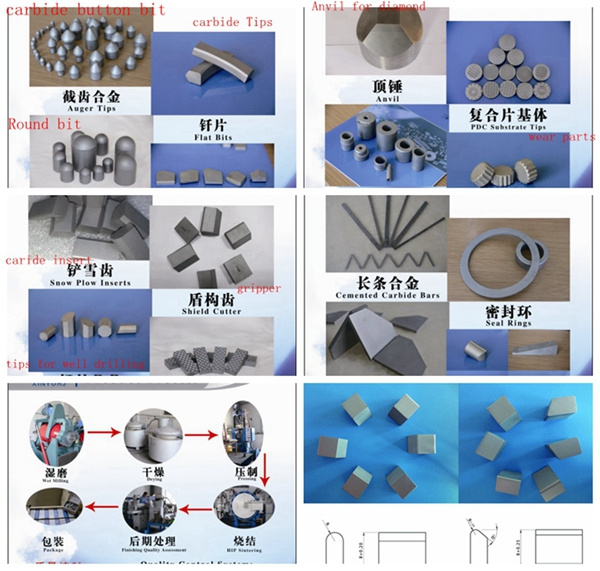

Other Products we made--All OEM, unique drawing welcomed Tungsten carbide tips/ button bit/ carbide tips/ nozzles; commonly use in mining, coal cutting, oil/gas/well drilling field; with good hardness, wear-resistance Our Advantage
1.Sample OK; free in-stocked sample, some cost for shipping and new samples; 2.Factory produce and sale Directly 3.Different grades are available 4.Custom-made, unique size, shape,material available 5.Precision processing and strict product inspection 6.Advanced Equipments and Professional t
echnicians 7.Gurantee the bulk quality are in accordance with the samples 8.ISO 9001-2008 Quality Control System 9.High speed cutting,wears well & long service life 10.High hardness, high strength, wear resistance 11.12 years professional experience Company Introduction
Founded in 2002, Jinan Xinyu Cemented Carbide Co., Ltd. is a large licenced import and export enterprise integrating R&D, manufacture and trade of cemented carbide in a whole and has strong R&D ability and advanced production facilities. Our products are exported to more than 50 countries and regions across the world including the United States, Canada, Italy, Japan, Korea,Taiwan,Asia, Europe, Africa,India, Chile etc.The cemented carbide and related products of our company is of excellent performance and quality and sold well both at home and abroad. Our company has passed the ISO9001 surveillance and assessment and been praised as the first class AAA credit company. Contact
Contact:
Amy Xie
Telephone:
+86-531-67897298
Mobile Phone:
+86-15063383579
Website:
www.jnyzhj.com
Jinan Xinyu Cemented Carbide Co.,ltd. Factory: Zhangqiu city, Shandong Provience, China Office: 1412Room of No.1 Building, Mingshihaoting, Jinan250014, China

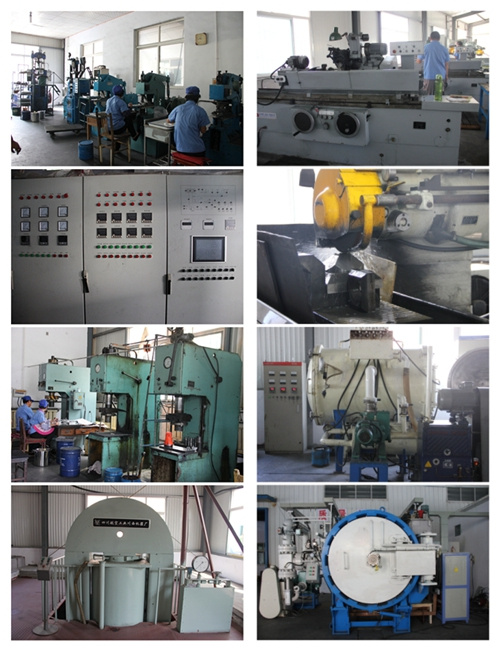

Founded in 2002 Jinan Xinyu Cemented Carbide Co., Ltd, is a large enterprise integrating R&D, manufacture and trade of cemented carbide in a whole. Our company mainly produces cemented carbide used in mine drilling, geological prospecting, coal mining, construction engineering, and cemented carbide anvil for diamond production. We also produce and finish all types of cemented carbide die, cobalt powder, tungsten carbide powder, diamond grinding wheel, cutting tools in flue gas turbines, long slices, chemical fiber cutting tools, nozzles specialized in oil fields, pipes and different types of wear-resisting, pressure-resisting and anti-corrosion parts. Besides, we can produce and process parts according to drawings and samples from customers'. Our company has advanced cemented carbide production technology in China, and series of advanced manufacturing equipment and detecting instruments such as low-pressure vacuum furnace, cold isostatic press, vertical vaccuum mixer, coercimeter, cobalt magnetic saturation instrument, high power metalloscope. Our annual output is above 500 tons and is on the rise every year. The quality of our products is stable and reliable.
Adhering to the operation concept of "Pursuing Survival with Quality, Promoting Development with Credit", our company guides our operation by advanced marketing concepts and strives to establish a marketing network system with reasonable layout, smooth channels and fast response. Our products are widely sold in domestic and abroad in Asia, Europe, Africa etc. Therefore, our company has become a leader in China's cemented carbide industry.
Our company always places people first, implements harmonious management and continuously improve employees living and working environment, which forms virtuous circle between development of company and improvement of employees' living, creates stable and harmonious internal environment for company's upgrade and development and achieved benefits both in economic and social.
While enforcing its core competitiveness, our company constantly seeks the expantion of industrial chains and wide international cooperation. Our international market share is unceasingly rising. An international cemented carbide famous-brand company is emerging.
Our factory is located in Jinan hi-tech industrial development zone with beautiful environment, fresh air and convenient transportation system. We warmly welcome all the clients to patronage.
