TR400D Rotary Drill Rig for Big Piles Construction

TR400D Rotary Drill Rig for Big Piles Construction
Price: US $ 1005000-1280000/Set
Min Order: 1/Set
Pay Type: L/C,T/T
Prod Model: TR400D
Base: Original CAT 374D
Diesel Engine: CAT C-15
Power: 355kw
Max Drilling Dpeth: 105m Depth
Max Drilling Diameter: 3000mm Diameter
Service: CAT Global Service
Power Type: Diesel
Type: Rotary Drilling Rig
Condition: New
Usage: Construction machinery

Product Description

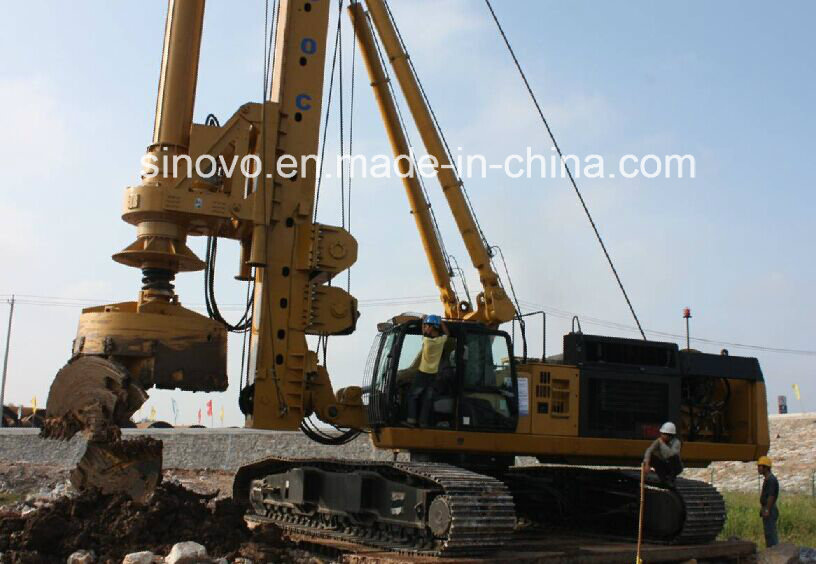

TR400D Rotary Drilling Rig



TR Series rotary drilling rigs


Basic Information
New design with advanced technology, composed of advantages based on ORIGINAL Caterpillar undercarriage.

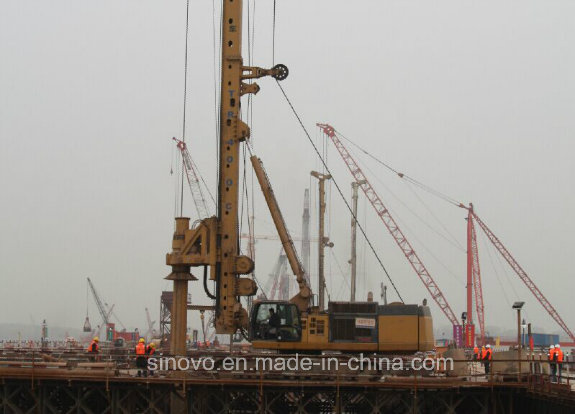

They are the most versatile and used for deep foundation, such as construction of railway, highway, bridge and skyscraper.
The rotary drilling rigs can be specially equipped with telescopic friction & interlocking Kelly bar, and casing oscillator for suiting the following applications:
Cased bore piles with casing driven adapter through rotary head or optionally by casing oscillator powered by the base carrier itself;
Deep bored piles stabilized by drilling fluid or dry hole;
Soil Displacement Piling System


Main Features
- High stability and quality original caterpillar base
- Compact powerful rotary head
- Emergency mode of operation for engine
- PCL controller for all electrically actuated functions, colorful LCD display
- Mast support unit
- Original Patented driving structure of double motors and double reduces
- Controlled free-fall main and auxiliary winch
- Innovative enhanced electro-hydraulic proportional system
- Ease of transport and quickly assembly




TR400D Rotary Drilling Rig

Technical Parameters
 Euro StandardsU.S. Standards
Max drilling depth  105m344ft
Max hole diameter  3000mm118in
Engine modelCAT C-15CAT C-15
Rated power 355KW482HP
Max torque 380kN.m85427lb-ft
Rotating speed  6~21rpm6~21rpm
Max crowd force of cylinder  440kN98916lbf
Max extraction force of cylinder  440kN98916lbf
Max stroke of crowd cylinder  16000mm629in
Max pulling force of main winch  350kN78680lbf
Max pulling speed of main winch  65m/min213ft/min
Wire line of main winch   Φ40mmΦ1.5in
Max pulling force of auxiliary winch  120kN26976lbf
UndercarriageCAT374DCAT374D
Track shoe width   1000mm39in
width of crawler 3900-5500mm154-217 in
Whole machine weight  130T130T


Configuration
                               --by first class key components:


Base: Original Caterpillar 374D base
Engine: C-15 engine with ACERT™ technology
Hydraulic systems adopt Rexroth motor and wave
Electric systems are from Pal-Fin auto-control
Main winch: Linder HMV210-02E1 Motor;
                       Bonfiglioli 718C3H-112 Reducer;
Auxiliary winch:Rexroth A2FE80/61W Motor;
                           Rexroth GFT36W3B-79 Reducer


Contact Information
Beijing Sinovo International Corp
Sinovo Heavy Industry Co.,Ltd
Contact Person: Ms. Sara Li
Office: (86)-10-5190 9163-8004
Fax: (86)-10-5190 9071

Any further information about the specification, after sale service, CAT global service, price,etc, please feel free to contact with us.
Welcome to Beijing SINOVO International & SINOVO Heavy Industry Co. Ltd, a professional drilling rig manufacturer in China. We manufacture and supply a wide range of products of construction industry, from drill rigs, desanders, diaphragm wall equipment, to piling rigs, etc. Some of our popular products include rotary drilling rigs, CFA equipment, hydraulic crawler drills, horizontal directional drills, water well drilling rigs, geological drilling rigs, and top head drive drilling systems. These products are designed and built for surface mining, water well, exploration, pile foundation construction, and tunnel construction applications around the world.

As the demand for high-speed railways, bridges, and high-rise buildings continues to grow, the need of drilling equipment is also increasing. At SINOVO, we strive to fulfill to this need by developing reliable and efficient rotary drilling rigs, CFA drilling equipment, and diaphragm wall grabs, etc. Through our years of unremitting efforts, now our products are CE certified and satisfying customers worldwide.

To stay competitive in the market, we continually apply advanced technology and equipment. For example:

1. We use locomotive control and drive technology to produce our drilling rigs.

2. Our vehicle-mounted electrical control systems adopt high-performance controllers, monitors, sensors and other electrical components.

3. Caterpillar expandable undercarriage is used in the production of our drilling equipment. The low centre of gravity and movable counterweight ensure great stability.

4. Key components of hydraulic system are international famous brands products. Thus, together with load-feedback technology, allows the flow and power output to be distributed according to the actual need of each device.

5. Structural elements are solid and reliable. For example, key connecting bolts are widely used in railway.

Masts are connected by pins for easy assembly.

6. Environmentally friendly Euro III diesel engines with less noise, vibration, lower harmful emissions.

As an ISO9001: 2000 & CE certified company, we are focused on providing high quality drilling equipment to all of our customers. Product design is where we start. We have our own design institute which composed of over 20 senior engineers. In addition, all production procedures, from raw material selection to product delivery, are strictly monitored by our inspectors. Furthermore, key components of our products are imported from world renowned companies. All of this combines to make our drilling rigs and piling rigs highly reliable.

At Beijing SINOVO International & SINOVO Heavy Industry Co. Ltd, we have also given much attention to customer service. We are dedicated to helping customers work safely and efficiently using our horizontal directional drills, water well drilling rigs and geological drilling rigs. All our products come with a one-year warranty. Within the warranty period, we offer free installation, debugging, parts replacement, operator training and maintenance service for customers.

As a result of our superior quality and service, our rotary drilling rigs, diaphragm wall grabs, and piling rigs are increasingly popular in worldwide market, including Southeast Asia, Middle East, African, Europe, etc. Welcome you from all over the world to come and visit our factory
