Prod Model: |
JU065XP0 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Company History: |
Since 1993 |
Brand: |
Kaydon Replaced |
External Diameter: |
184.15mm |
Internal Diameter: |
165.1mm |
Height: |
12.7mm |
Precision: |
Abec1 |
Operating Temperatures: |
-30 to +120 |
Testing: |
in House |
Product Description

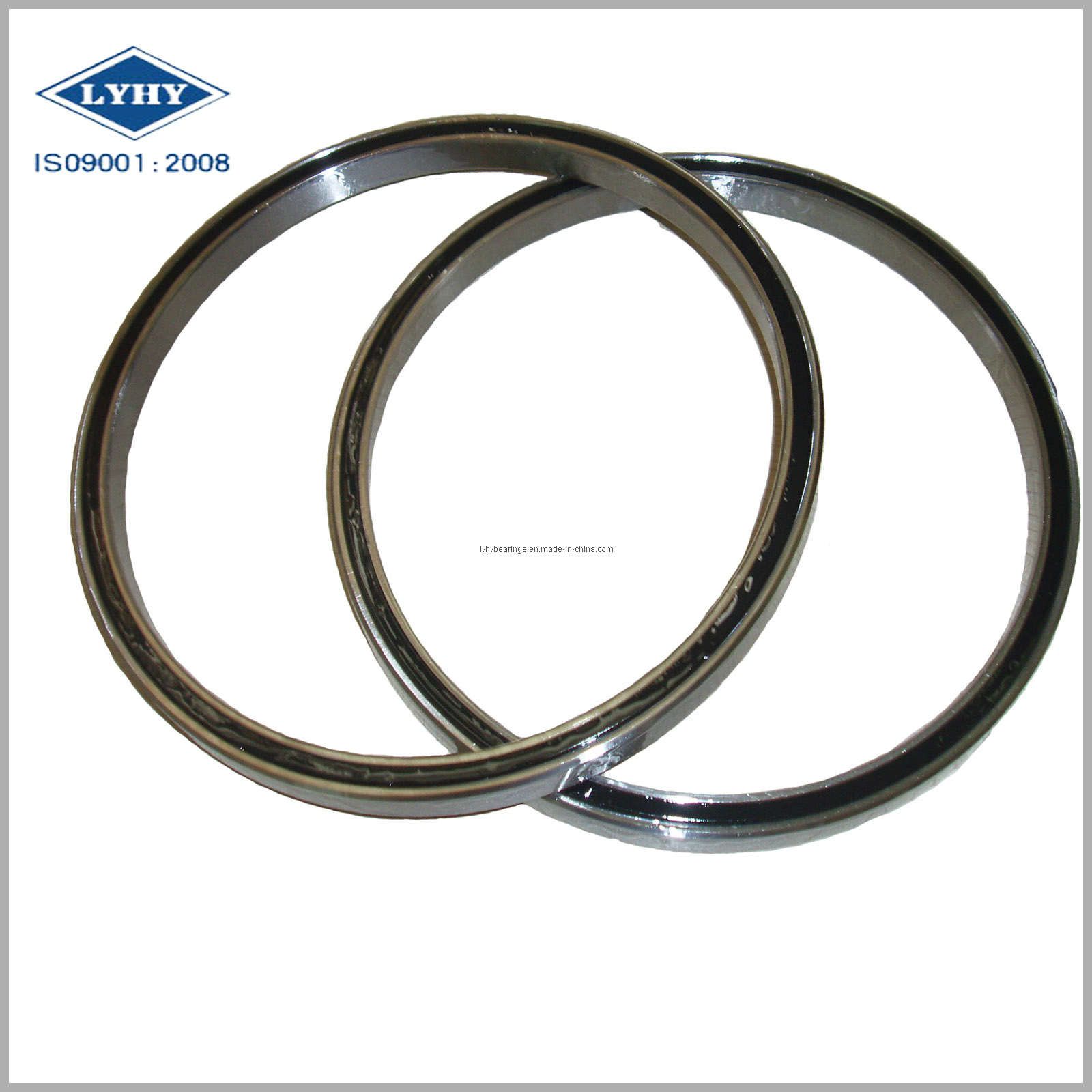

thin section bearing JU065XP01. Material: Gcr15
2. Type: Four point contact ball thin section bearings
3. Delivery time: 45-50days
4. Payment: 30% advance payment, the rest before shipment
5. Quality control: LYHY bearings' quality control system, strictly as per kaydon tolerance
6. Warranty period: 12months against BL date
7. Operating tempreture: -54 to +120
8. Application: Medical equipment, such as spiral computedtomographIntroduction of LYHY thin section bearingLYHY bearings is expert at thin section bearings which includes seven open series and five sealed series, Inner hole diameter ranges from 1 to 40 inches, cross-sectional dimension is from 0.1875X0.1875 to 1.000X1.000.We can design and make as per customers' requirements. With rich experience and a large collection of products, we have confidence we are able to meet customers' requirements.
Material
Bearing steel Gcr15 or stainless steel

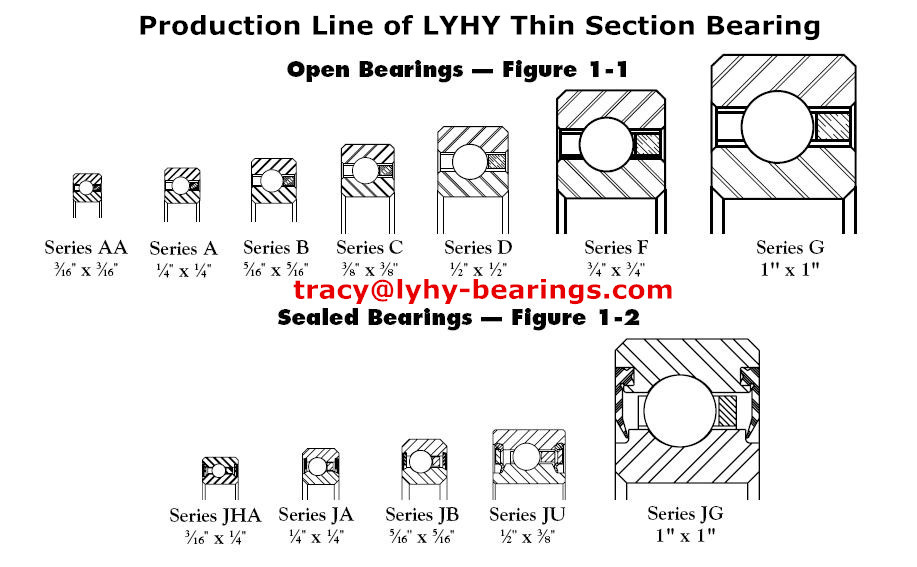

Structure
Open type deep groove ball bearing
Open type angular contact bearing
Open type four point contact bearing
Sealed type deep groove ball bearing
Sealed four point contact ball bearing
Featurecompact structure, light weight, low vibration and frictionhigh precision,space and cost savingbest quality, long lifeWhy choose LYHY thin section bearings1. Stable quality proved by many of our customers
2. Help you to save much cost
3.7*24 hours hotline helping you with your questions
4. Small order accepted, MOQ is 1PC
5. Fast delivery time in thin section bearing field

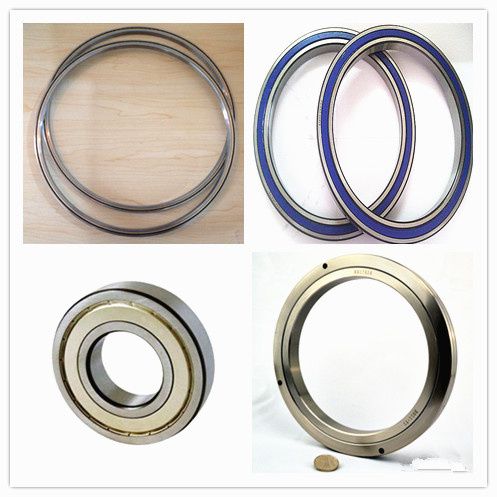

LYHY thin section bearings include the following kinds:Kaydon Thin Section Bearings (cross section thin bearings)
618/619 Thin Section Bearings (deep groove ball bearings)
62/63/64/67/67/69 Thin Section Bearings (deep groove ball bearings)
RB/RE/CRBC/CRBH/SX Thin Section Bearings (slewing ring bearings)
Application of thin section bearingsAviation, astronomical instruments, glass manufacturing machinery, medical instrument, optical and scanning instrument, satellite communication devices, textile machinery, large welding equipment, robot, semiconductor manufacturing equipment etc. Print machinery.

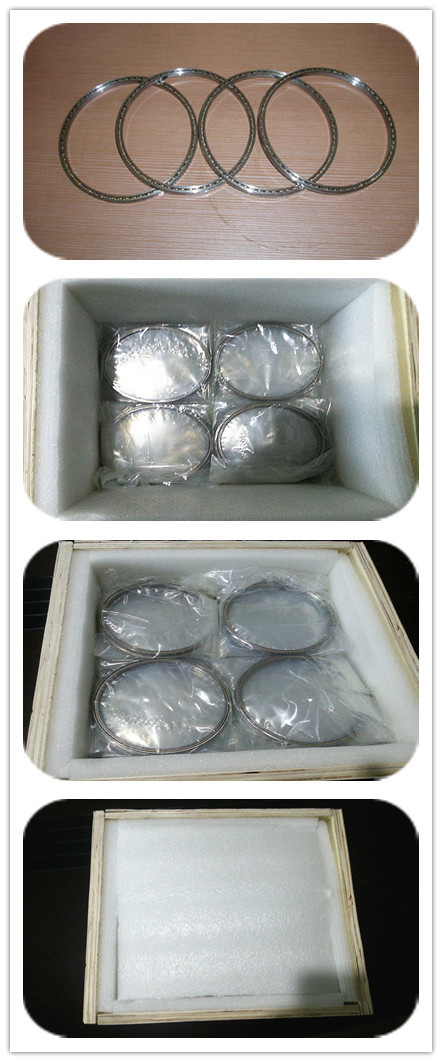

Packing

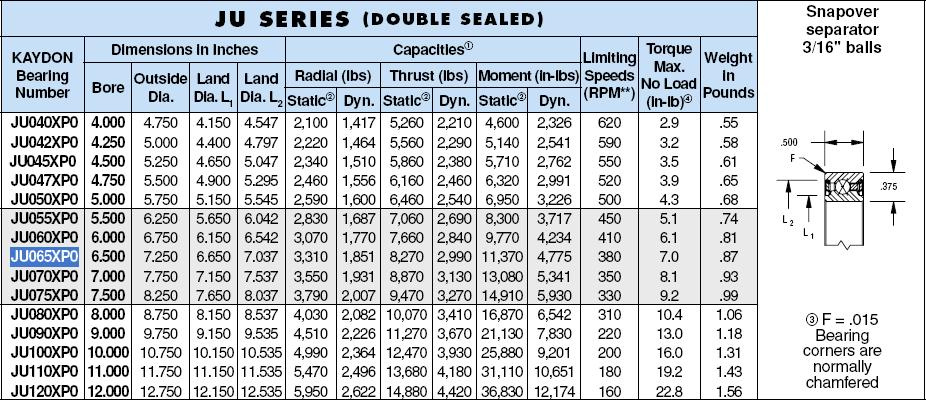

Type | Dimension | Basic Cap. | Weight |
d | D | Width | L1 | L2 | Radial | Axile |
Cor | Cr | Coa | Ca |
inch | Pounds |
JA020XP0 | 2.00 | 2.50 | 0.25 | 2.15 | 2.36 | 3020 | 1420 | 7600 | 3510 | 0.045 |
JA025XP0 | 2.50 | 3.00 | 0.25 | 2.65 | 2.86 | 3690 | 1600 | 9290 | 4050 | 0.054 |
JA030XP0 | 3.00 | 3.50 | 0.25 | 3.15 | 3.36 | 4400 | 1820 | 10980 | 4490 | 0.064 |
JA035XP0 | 3.50 | 4.00 | 0.25 | 3.65 | 3.86 | 5070 | 2000 | 12670 | 4930 | 0.077 |
JA040XP0 | 4.00 | 4.50 | 0.25 | 4.15 | 4.36 | 5730 | 2130 | 14310 | 5380 | 0.086 |
JA042XP0 | 4.25 | 4.75 | 0.25 | 4.40 | 4.61 | 6090 | 2220 | 15160 | 5600 | 0.091 |
JA045XP0 | 4.50 | 5.00 | 0.25 | 4.65 | 4.86 | 6400 | 2310 | 16000 | 5820 | 0.095 |
JA047XP0 | 4.75 | 5.25 | 0.25 | 4.90 | 5.11 | 6760 | 2400 | 16850 | 6000 | 0.100 |
JA050XP0 | 5.00 | 5.50 | 0.25 | 5.15 | 5.33 | 7070 | 2490 | 17690 | 6220 | 0.104 |
JA055XP0 | 5.50 | 6.00 | 0.25 | 5.65 | 5.86 | 7780 | 2620 | 19380 | 6580 | 0.113 |
JA060XP0 | 6.00 | 6.50 | 0.25 | 6.15 | 6.36 | 8450 | 2800 | 21070 | 6980 | 0.127 |
JA065XP0 | 6.50 | 7.00 | 0.25 | 6.65 | 6.86 | 9110 | 2930 | 22760 | 7330 | 0.136 |
JB020XP0 | 2.00 | 2.63 | 0.31 | 2.14 | 2.36 | 4130 | 2000 | 10400 | 5020 | 0.068 |
JB025XP0 | 2.50 | 3.13 | 0.31 | 2.64 | 2.86 | 5070 | 2310 | 12620 | 5730 | 0.086 |
JB030XP0 | 3.00 | 3.63 | 0.31 | 3.14 | 3.36 | 5960 | 2580 | 14890 | 6400 | 0.100 |
JB035XP0 | 3.50 | 4.13 | 0.31 | 3.64 | 3.86 | 6850 | 2800 | 17160 | 7070 | 0.122 |
JB040XP0 | 4.00 | 4.63 | 0.31 | 4.14 | 4.36 | 7780 | 3070 | 19430 | 7650 | 0.136 |
JB042XP0 | 4.25 | 4.88 | 0.31 | 4.39 | 4.66 | 8130 | 3160 | 20310 | 7910 | 0.141 |
JB045XP0 | 4.50 | 5.13 | 0.31 | 4.64 | 4.86 | 8670 | 3290 | 21690 | 8220 | 0.154 |
JB047XP0 | 4.75 | 5.38 | 0.31 | 4.89 | 5.16 | 9020 | 3380 | 22580 | 8450 | 0.159 |
JB050XP0 | 5.00 | 5.63 | 0.31 | 5.14 | 5.36 | 9560 | 3510 | 23910 | 8800 | 0.168 |
JB055XP0 | 5.50 | 6.13 | 0.31 | 5.64 | 5.86 | 10490 | 3730 | 26180 | 9340 | 0.181 |
JB060XP0 | 6.00 | 6.63 | 0.31 | 6.14 | 6.36 | 11380 | 3960 | 28450 | 9870 | 0.200 |
JB065XP0 | 6.50 | 7.13 | 0.31 | 6.64 | 6.86 | 12270 | 4130 | 30720 | 10400 | 0.213 |
JG120XP0 | 12.00 | 14.00 | 1.00 | 12.55 | 13.60 | 94860 | 37830 | 237140 | 94590 | 4.218 |
JG140XP0 | 14.00 | 16.00 | 1.00 | 14.55 | 15.60 | 109440 | 41610 | 273630 | 152950 | 4.899 |
JG160XP0 | 16.00 | 18.00 | 1.00 | 16.55 | 17.60 | 124060 | 45250 | 310130 | 113130 | 5.579 |
JG180XP0 | 18.00 | 20.00 | 1.00 | 18.55 | 19.60 | 138640 | 48720 | 346620 | 121840 | 6.214 |
JG200XP0 | 20.00 | 22.00 | 1.00 | 20.55 | 21.60 | 153220 | 52100 | 383070 | 130240 | 7.167 |
JU040XP0 | 4.00 | 4.75 | 0.50 | 4.15 | 4.55 | 9340 | 3910 | 23380 | 9820 | 0.249 |
JU042XP0 | 4.25 | 5.00 | 0.50 | 4.40 | 4.80 | 9870 | 4090 | 24710 | 10180 | 0.263 |
JU045XP0 | 4.50 | 5.25 | 0.50 | 4.65 | 5.05 | 10400 | 4220 | 26050 | 10580 | 0.277 |
JU047XP0 | 4.75 | 5.50 | 0.50 | 4.90 | 5.30 | 10940 | 4360 | 27380 | 10940 | 0.295 |
JU050XP0 | 5.00 | 5.75 | 0.50 | 5.15 | 5.55 | 11510 | 4490 | 28720 | 11290 | 0.308 |
JU055XP0 | 5.50 | 6.25 | 0.50 | 5.56 | 6.04 | 12580 | 4800 | 31380 | 11960 | 0.336 |
JU060XP0 | 6.00 | 6.75 | 0.50 | 6.15 | 6.54 | 13650 | 5070 | 34050 | 12620 | 0.367 |
JU065XP0 | 6.50 | 7.25 | 0.50 | 6.65 | 7.04 | 14710 | 5330 | 36760 | 13290 | 0.395 |
JU070XP0 | 7.00 | 7.75 | 0.50 | 7.15 | 7.54 | 15780 | 5560 | 39430 | 13910 | 0.422 |
JU075XP0 | 7.50 | 8.25 | 0.50 | 7.65 | 8.04 | 16850 | 5820 | 42090 | 14540 | 0.449 |
JU080XP0 | 8.00 | 8.75 | 0.50 | 8.15 | 8.54 | 17910 | 6050 | 44760 | 15160 | 0.481 |
JU090XP0 | 9.00 | 9.75 | 0.50 | 9.15 | 9.54 | 20050 | 6530 | 50100 | 16310 | 0.535 |
JU100XP0 | 10.00 | 10.75 | 0.50 | 10.15 | 10.54 | 22180 | 6980 | 55430 | 17470 | 0.594 |
JU110XP0 | 11.00 | 11.75 | 0.50 | 11.15 | 11.54 | 24310 | 7420 | 60810 | 18580 | 0.649 |
JU120XP0 | 12.00 | 12.75 | 0.50 | 12.15 | 12.54 | 26450 | 7870 | 66140 | 19650 | 0.708 |
