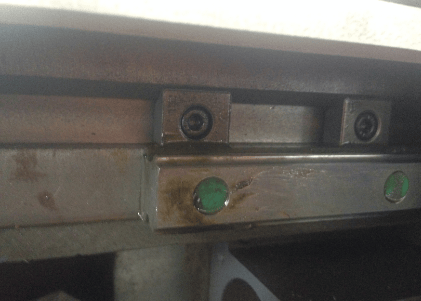

Characteristics and applications (1), airframe base, pillar casting beams are an organic whole, through the year-long outdoor natural aging, and the two tempering treatment, good rigidity, good stability. (2), linear guide, adopt unique wedge orientation and compaction of installation, ensure the accuracy of machine tool. (3), with imported servo system and high precision transmission components, high processing precision, stable running. (4) one-piece, industrial control system design, convenient operation, powerful functions. (5), the three axes linkage, carved for three axis CNC engraving machine, suitable for copper, aluminum, steel and other metal, ABS plastic, PVC, polymer composite materials such as product or mould, fixture processing

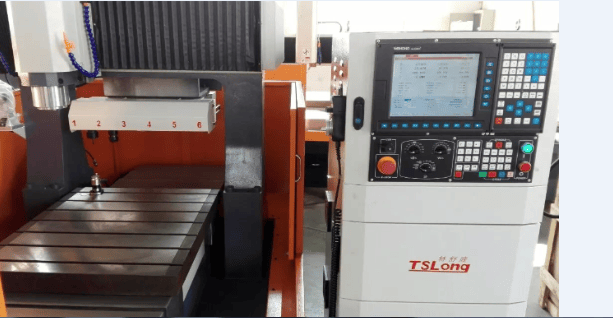

TSL4250QS machining center
1.Main parameter:
Performance index
Standard values
Movement positioning accuracy
±0.012/300mm
Repeated positioning accuracy
0.005mm/300mm
Work stroke of X/Y/Z
420mm×500mm×180mm
Worktable size
440mm×540mm
Space height of Z axis
230mm
Power of spindle motor/Max tools
φ110/380v/3.2kw/BT30 (Constant punch hole)
Cooling mode of spindle motor and the speed of spindle
TAIWAN SHENGJIE:BT30 Disc type tool changer,capacity of 8
Electrical accessories
Electronic hand wheel / Imported automatic tool setting / automatic lubrication system / three color lamp / lighting lamp, etc.
Others
Cooling system of tools
Cutting blow, tool cooling return mechanism and electric pump complete set
Spindle oil cooler
LINGJI:high speed spindle special oil cooler
Lubricating system
Electric pump intermittent automatic lubrication: 9 lubrication point
Protect
Full cover(CAP)
Accessories
Tool handle
Standard with TAIWAN ANWEI:NBT30 tool handle 1pcs,ER20 nut 1pcs,ER20-φ6clamping cylinder 1pcs, With the handle / nut / clamping chuck according to the purchase price plus
This machine is suitable for multi-process processing of products or mold and tool with materials such as metals including copper, aluminum, steel and ABS plastic, PVC, polymer composite materials.
Bangladesh customers to our company site acceptance machine tools
Description:
The company headquarters and production base located in "China smart" city - changzhou city, jiangsu province economic development zone, is a high-tech private joint-stock enterprise, as the national science and technology innovation fund projects to undertake unit.
Our company focus on all kinds of high precision multi-function carved machine, engraving and milling machine and the development and application of metal drilling and tapping machine. The company has a professionala research and development team, mature manufacturing process control, and has a strict quality control system and perfect pre-sales, after-sales service system, has passed ISO9001 and 3 c certification, a number of products obtained national patent for invention or utility model patents.
My company's products sell well in domestic jade crafts, seal, hardware parts, automobile and motorcycle accessories, electronic instrumentation, measuring tool, denture, metal mold, fixture and other industries and fields, depth cooperation with the domestic many large enterprises, listed companies, colleges and vocational colleges, exported to southeast Asia, the Middle East, Africa and other regions and countries.
Main products:
1, TSL100120, 80100, 8080, 6060, such as heavy-weigh knife library series engraving and milling machine;
2, TSL6080, 6060, 5080, 5060, 4242, 4040, 3030, such as light-weigh libraries/four axis series of carved machine;
3, measuring tool (Vernier caliper) or hardware industry small screw drilling and tapping machine series;
4, TSL3020 vertical/horizontal series denture processing machine (tooth die engraving machine);
5, formulated in accordance with user requirements process solution, custom all kinds of CNC engraving machine or product processing required for automatic tooling fixture, etc.;
6, D scanner and 3D printer sales and application.
Product main features:

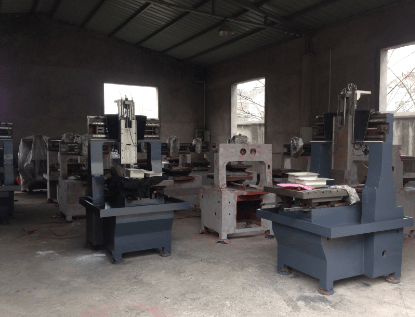

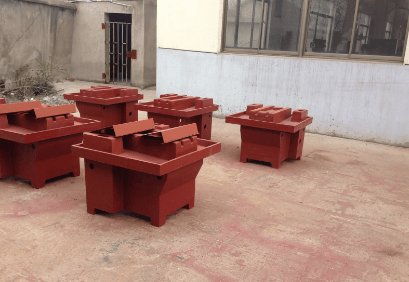

Structure of HT250/300 casting, two sections of the design, lathe bed and frame for the box structure, longmen for U the whole structure, the secondary tempering and outdoor natural aging for a long time, machine tool rigidity is strong, not deformation; Carrying Taiwan HIWIN high precision linear guide and ball screw, the configuration of international or domestic famous AC servo drive system and control system, the machine of high precision, good stability.
