Stamping Tooling/Warm Air Machine Back Cover Stamping Die

Stamping Tooling/Warm Air Machine Back Cover Stamping Die
Price: US $ 3200/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
Prod Model: HRD-111607
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certified: ISO9001: 2008
Stamping Die Material: Cr12MOV,SKD61,SKD11,Skh-9, 45#,DC53
Place Of Origin: Qingdao ,China
Metal Parts Material: SPCC, SUS304, Secc, Al, Cu
Mould Life: 50, 000~500, 000 Shots
Data Needed To Offer: 2D/ 3D Drawing or Samples
Material: High-Speed Steel
Processing Method: Punching and Shearing Mould
Technics: Forming Die
Process Combination: Progressive Die
Manufacturing Technology: Computer Technology
Driving Motor Type: Permanent Magnet
Mold Cavity Technology: EDM Milling
Milling Speed: High Speed
Parts Detection Method: Geometric Detection

Product Description

Key words: Warm air machine back cover stamping die/Stamping die/Household appliances stamping die
Stamping die material: CR12MOV, SKD61, SKD11, SKH-9, 45#, DC53 etc.
Standard: Punch, Misumi, Danly, Kaller, Fibro etc.
Drawing format: Igs, . Stp, . X_t, . Pdf, . Dwg, . Dxf,
Metal parts material: SPCC, SUS304, SECC, AL, CU, brass, iron etc.
Mould life: 50, 000~500, 000 shots
First trial time: 20~35 days after mould structure drawing confirmed
ISO9001: 2008 certified by SGS.

The first trial success rate is above 95%
{Quotation time}: We will quote in 24 hours after receiving the customer's drawings.
{Data needed to offer}: 2D/ 3D drawing or samples
{Quotation}: Including the accurate price/stage/life and process time.
{The profile}: 2D/3D drawing or samples
{Project Manager}: Concentrate on project tracking and after service
{Engineer}: 30-50 excellent engineers, have many years experience and English communicate well.
{Warehousing and logistics}: The purchase department use EPR system to make sure buying materials in time.
{Fitter technician}: 100-130 experienced workers can meet the customer request of batch production.
{Quality department}: 15 members quality control workers, measuring the mould and parts by CMM and projector.
{Domestic delivery}: Logistics transportation
{Delivery to overseas}: FOB/CIF/DDU by sea shipping or air shipping
Mold factory, fitter & quality inspection work to be done:
FitterQuality testing
First die by the fitter for a thorough inspection of the mold as follows:Die size (I* W * H)
Die accessories are completeIf the mold specification matching and customer equipment(height, the size of a mould, mould position)
Ensure the mold factory 100% acceptance (including:assembly, test mode etc.)There is no die shank (reasonable)
According to the customer request is equipped with the factory.Die code is complete (item, process name)
Die appearance: template logo are complete; the surfacerust are clean, then coated with anti rust oil, wooden packing.Whether to need to mold brand
With mold factory dataOn the,In the lower limit of a column is complete, paint color and reasonable
 Mold inserts, punch is complete
 Screw dismounting have wear / screw holes are offset
 The die structure is reasonable / mould factory data is complete







Higrade Group is established in 2003, which is covered an area of 60 acres. We are mainly managing injection mould, stamping die, plastic parts and stamping parts. Our manufacture equipment include Hexagon(Swiss) CMM, Mazak CNC, Sodic EDM, Sodic W-cutting, Depth drill, Carving and so on, and we build many production line for plastic and metal parts. Higrade always pursue high quality with lower cost.

The injection moulds are involved in home appliances, automotive, electronic, medical and other fields. Our mainly customers include Haier, Hisense, Midea, Siemens, SANYO, Electrolux, FOTON, GM, WULING etc. We could make different sizes mould and gain great reputation.

We are specialized in plastic parts from 2011 with home appliance, automotive, electric and etc. Due to our good quality and service, we earn more and more customers, and get long-term cooperation with Siemens, HYUNDAI, KIA, and DAMSUNG etc. Our injection machine is 86-160T, 180T, 250T, 380T, 520T, 750T, 1300T and one vertical injection machine; We can test and produce with all sizes of injection mould. To meet the customer`s request and achieve production quickly, we assemble the robot in injection machines.

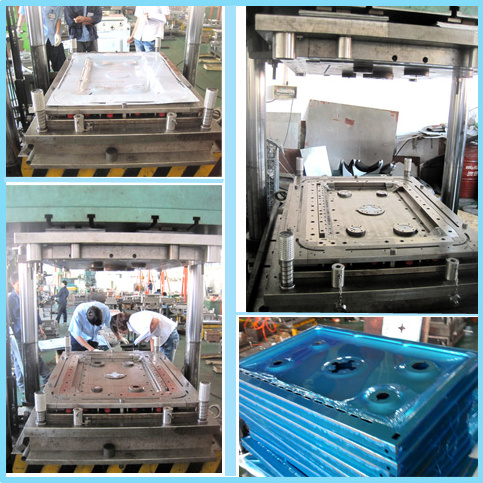

For the metal dies, we are mainly specialized in progressive die, drawing die and compound die. We export to more than 30 countries as Europe, North America, Japan, Thailand, Russia, and South Africa and so on; So we have much export experience. In addition, now we owned the 315T hydraulic press and many presses as 200T/400T/160T/110T/80T/40T, they can meet the request of test and batch production.

We obtain the ISO9001: 2008 quality system certificate by SGS from 2007. We build complete organization including top management, marketing department, project management, purchase department, engineer department, production department, and logistic department.
