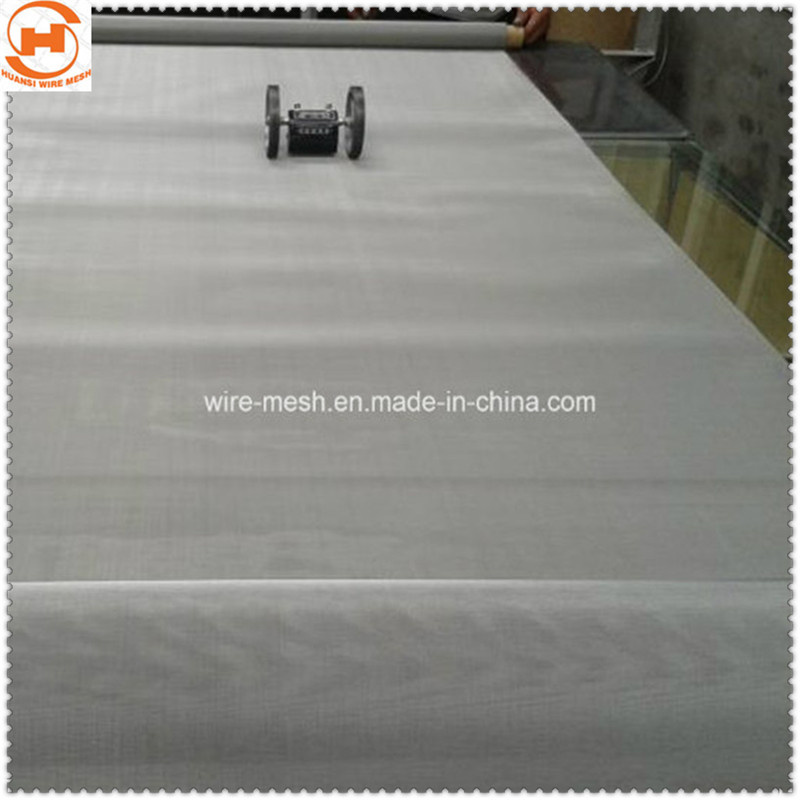

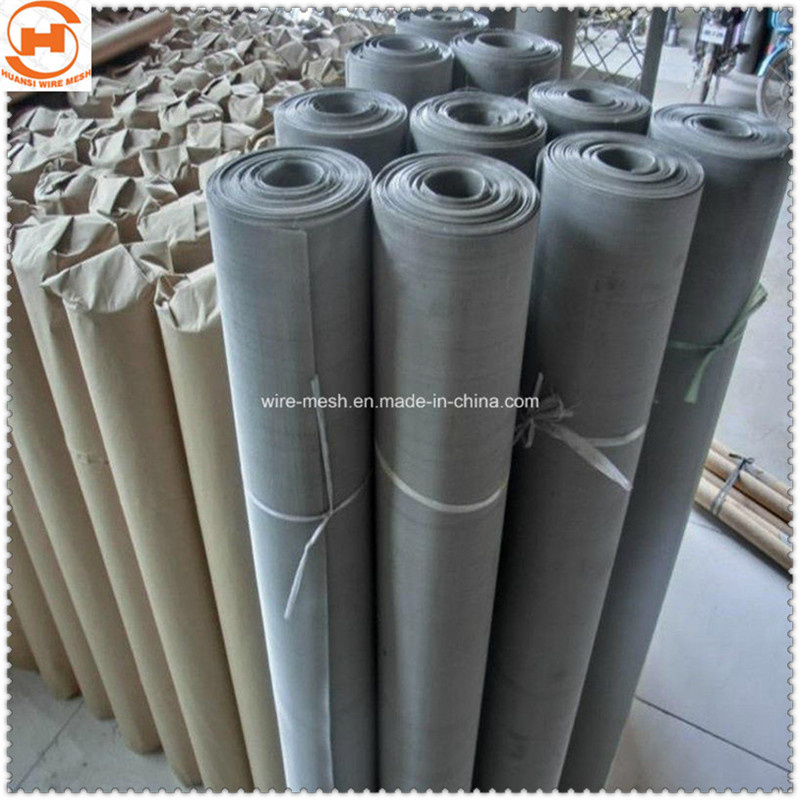

Stainless Steel Wire Mesh for Window Screen (SUS304)
| Price: |
US $ 20-30/Square Meter |
| Min Order: |
150/Square Meter |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
18 X16 |
| Mesh: |
10 X 10 , 12 X 12 , 14 X 14 , 18 X 18 |
| Material: |
SUS304 |
| Hole Shape: |
Square |
| Application: |
Fence Mesh |
| Type: |
Five Heddle Stainless Steel Wire Mesh |
| Material Type: |
Stainless Steel Wire |
| Weave Technique: |
Plain Weave |
| Wire Mesh Width: |
0.5m |
| Technique: |
Woven |
| Nickels: |
8% |
| Certification: |
ISO9001 |
Product Description
Anping Huansi wiremesh Products Co.,Ltd is Specialized manufacturer of all kinds of wire mesh
and Security fence In Hebei, AnPing, Our company have a wealth of experience in the production and
sales of wire mesh products.
Our company has the most advanced weaving equipment, strong technical force, scientific process,
quality inspection system, the use of high-quality raw materials, strict quality control, product specifications
complete, quality excellent, the company's main products are: Stainless steel wire mesh,Galvanized wire mesh,
PVC mesh, Conveyor belt, Aluminum Alloy screening,Welded wire mesh, Concertina razor barbed wire ,
Chain link fence , Security fencce and so on. Product specifications complete, excellent quality, trusted
by the user, and in the wire mesh market has achieved good reputation

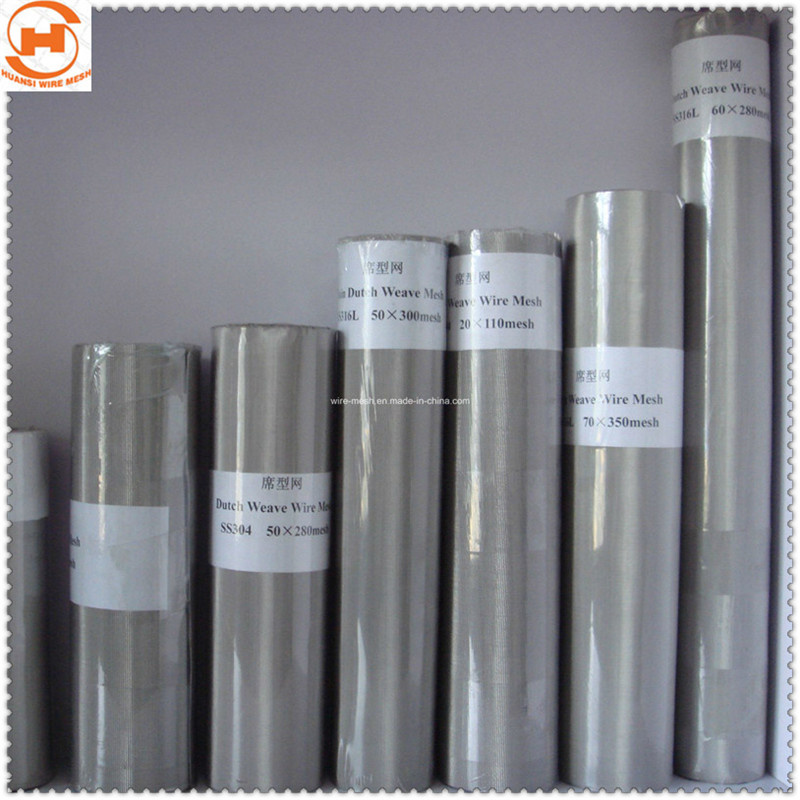

Stainless Steel Wire Mesh
Material: stainless steel wire 302,201,304,304L, 316,316L, 310,310S and so on
Weaving: plain weave, twill weave
Mesh: 1 mesh --2800 mesh
Usage:
1. For acid, alkali conditions for screening and filtering, the petroleum industry as mud mesh, chemical
fiber industry, as the sieve plating.
2. For mining, petroleum, chemical, food, medicine, machinery manufacturing, and other industries.
3 for acid, alkali conditions sieving and filtering, the mud for the oil industry, chemical fiber industry
as screen, electroplating industry for pickling net, the factory can according to user needs to design
the production of various types of products.| Specification list of Stainless Steel Wire Mesh |
| Meshes Per Linear Inch | Diameter of Wire | Width of Opening | Open
Area, % |
| Inches | mm | Inches | mm |
| 10 x 10 | 0.047 | 1.2 | 0.053 | 1.34 | 28.1 |
| 10 x 10 | 0.035 | 0.9 | 0.065 | 1.65 | 42.3 |
| 10 x 10 | 0.032 | 0.8 | 0.068 | 1.27 | 46.2 |
| 10 x 10 | 0.025 | 0.63 | 0.075 | 1.90 | 56.3 |
| 12 x 12 | 0.041 | 1.0 | 0.042 | 1.06 | 25.4 |
| 12 x 12 | 0.035 | 0.9 | 0.048 | 1.22 | 33.2 |
| 12 x 12 | 0.032 | 0.8 | 0.051 | 1.29 | 37.5 |
| 12 x 12 | 0.028 | 0.7 | 0.055 | 1.39 | 43.6 |
| 12 x 12 | 0.023 | 0.58 | 0.060 | 1.52 | 51.8 |
| 14 x 14 | 0.032 | 0.8 | 0.039 | 1.52 | 29.8 |
| 14 x 14 | 0.025 | 0.63 | 0.046 | 0.99 | 41.5 |
| 14 x 14 | 0.023 | 0.58 | 0.048 | 1.22 | 45.2 |
| 14 x 14 | 0.020 | 0.5 | 0.051 | 1.30 | 51.0 |
| 16 x 16 | 0.028 | 0.7 | 0.035 | 0.89 | 30.5 |
| 16 x 16 | 0.023 | 0.58 | 0.040 | 1.01 | 39.9 |
| 16 x 16 | 0.018 | 0.45 | 0.045 | 1.14 | 50.7 |
| 18 x 18 | 0.020 | 0.5 | 0.036 | 0.91 | 41.1 |
| 18 x 18 | 0.018 | 0.45 | 0.038 | 0.96 | 48.3 |
| 20 x 20 | 0.023 | 0.58 | 0.027 | 0.68 | 29.2 |
| 20 x 20 | 0.020 | 0.5 | 0.030 | 0.76 | 36.0 |
| 20 x 20 | 0.018 | 0.45 | 0.032 | 0.81 | 41.0 |
| 20 x 20 | 0.016 | 0.40 | 0.034 | 0.86 | 46.2 |
| 24 x 24 | 0.014 | 0.35 | 0.028 | 0.71 | 44.2 |
| 28 x 28 | 0.010 | 0.25 | 0.026 | 0.66 | 51.8 |
| 30 x 30 | 0.013 | 0.33 | 0.020 | 0.50 | 37.1 |
| 30 x 30 | 0.012 | 0.30 | 0.021 | 0.53 | 40.8 |
| 35 x 35 | 0.012 | 0.30 | 0.017' | 0.43 | 33.8 |
| 35 x 35 | 0.010 | 0.25 | 0.019 | 0.48 | 42.4 |
| 40 x 40 | 0.014 | 0.35 | 0.011 | 0.28 | 19.3 |
| 40 x 40 | 0.012 | 0.30 | 0.013 | 0.33 | 27.4 |
| 40 x 40 | 0.010 | 0.25 | 0.015 | 0.38 | 36.0 |
| 40 x 40 | 0.0095 | 0.24 | 0.016 | 0.40 | 38.4 |
| 50 x 50 | 0.009 | 0.23 | 0.011 | 0.28 | 30.3 |
| 60 x 60 | 0.0075 | 0.19 | 0.009 | 0.22 | 30.5 |
| 70 x 70 | 0.0065 | 0.17 | 0.008 | 0.20 | 29.8 |
| 80 x 80 | 0.0070 | 0.18 | 0.006 | 0.15 | 19.4 |
| 80 x 80 | 0.0055 | 0.14 | 0.007 | 0.17 | 31.4 |
| 90 x 90 | 0.0055 | 0.14 | 0.006 | 0.15 | 25.4 |
| 100 x 100 | 0.0045 | 0.11 | 0.006 | 0.15 | 30.3 |
| 120 x 120 | 0.0040 | 0.10 | 0.0043 | 0.11 | 26.6 |
| 120 x 120 | 0.0037 | 0.09 | 0.005 | 0.12 | 30.7 |
| 150 x 150 | 0.0026 | 0.066 | 0.0041 | 0.10 | 37.4 |
| 165 x 165 | 0.0019 | 0.048 | 0.0041 | 0.10 | 44.0 |
| 180 x 180 | 0.0023 | 0.058 | 0.0032 | 0.08 | 33.5 |
| 180 x 180 | 0.0020 | 0.050 | 0.0035 | 0.09 | 41.1 |
| 200 x 200 | 0.0020 | 0.050 | 0.003 | 0.076 | 36.0 |
| 200 x 200 | 0.0016 | 0.040 | 0.0035 | 0.089 | 46.0 |
| 220 x 220 | 0.0019 | 0.048 | 0.0026 | 0.066 | 33.0 |
| 230 x 230 | 0.0014 | 0.035 | 0.0028 | 0.071 | 46.0 |
| 250 x 250 | 0.0016 | 0.040 | 0.0024 | 0.061 | 36.0 |
| 270 x 270 | 0.0014 | 0.040 | 0.0022 | 0.055 | 38.0 |
| 300 x 300 | 0.0012 | 0.030 | 0.0021 | 0.053 | 40.1 |
| 325 x 325 | 0.0014 | 0.040 | 0.0017 | 0.043 | 30.0 |
| 325 x 325 | 0.0011 | 0.028 | 0.0020 | 0.050 | 42.0 |
| 400 x 400 | 0.0010 | 0.025 | 0.0015 | 0.038 | 36.0 |
| 500 x 500 | 0.0010 | 0.025 | 0.0011 | 0.028 | 25.0 |
| 635 x 635 | 0.0009 | 0.022 | 0.0006 | 0.015 | 14.5 |
Anping Huansi Wiremesh Products Co., Ltd(Global Source China Co., Ltd) is located in the famous " wire mesh village" - Hebei Province Anping County, Is a provider of a wire mesh research and development and production and sales as one of the professional.
Our company has the most advanced weaving equipment, strong technical force, scientific process, quality inspection system, the use of high-quality raw materials, strict quality control, product specifications complete, quality excellent, the company's main products are: Stainless steel wire mesh, Galvanized wire mesh, PVC mesh, Conveyor belt, Aluminum Alloy screening, Welded wire mesh, Concertina razor barbed wire, Chain link fence, Security fencce and so on. Product specifications complete, excellent quality, trusted by the user, and in the wire mesh market has achieved good reputation.
Our company sincerely welcome friends from all over the world to our company to negotiate business, is willing to work with each and every customer hand in hand, create a better future.
