Advantage:
Quick Installation Without Any Tools
Color:
Silver
Brand:
Decor
Turnbuckle:
Swageless Terminal
Design:
OEM Serices Provided
Certification:
SGS&TUV
Function:
Assemble with Wire Rope
For Wire Rope:
3, 4, 5, 6, 7, 8, 10, 12mm
Manufacture:
latest CNC Machine
Process:
Machining
Material:
Stainless Steel
Type:
Swageless Terminal Turnbuckle
Usage:
Marine, Outdoor, Household, Connection
Installation:

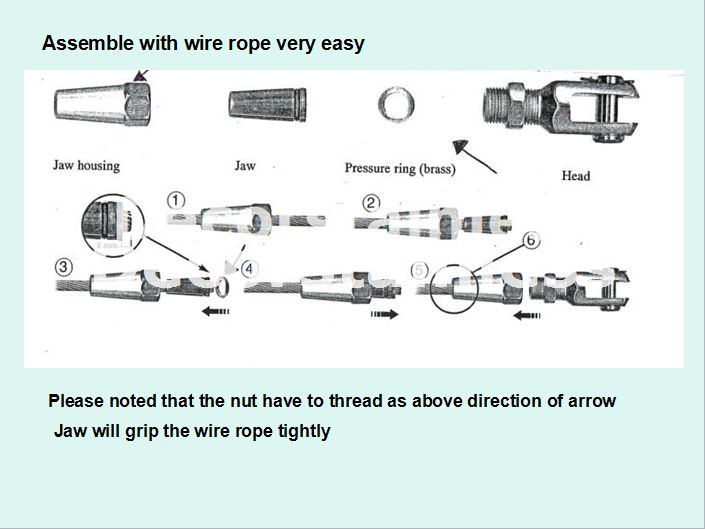

Assemble Without Any Tools
Product Description

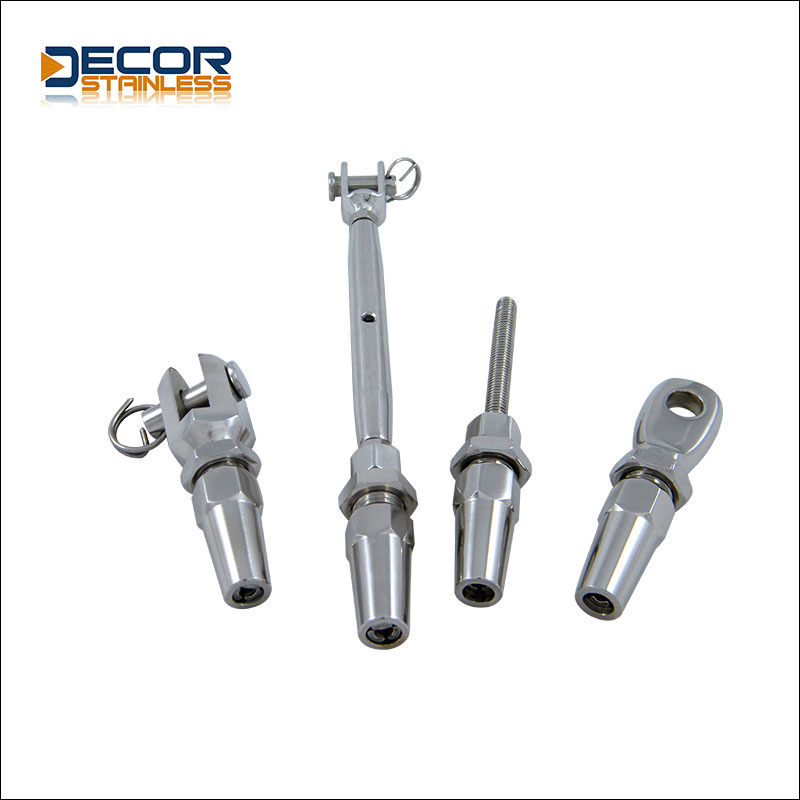

Stainless Steel Swageless Terminal Turnbuckle
Product Name
Stainless steel swageless terminal turnbuckle
Material
stainless steel 316 or 304
Surface finish
Highly Polished
Color
Nickel White
Standard
Metric and UNF
Advantage
Type 316 stainless steel has the best corrosion resistance among standard stainless steels. It resists pitting and corrosion by most chemicals, and is particular resistant to saltwater corrosion.
Thread
coarse, fine
Used
These can be used for a variety of applications.Sail boats and yachts, cable railing, and for shade sails. Each turnbuckle body can be mixed and matched with jaw, eye and stud ends.
Dimension
Size A
L1
L2
D1
N1
(mm)
(mm)
(mm)
(mm)
(mm)
(mm)
5*3
5
79
42
3
10
6*3
6
85
47
3
10
6*4
6
92
47
4
12
8*5
8
111
57
5
13
10*5
10
117
63
5
13
12*6
12
145
80
6
16
14*7
14
162
89
7
18
14*8
14
171
89
8
19
16*8
16
182
100
8
19
Welcome to Decorstainless!
Decorstainless offer a wide range of corrosion resistant stainless steel products, and our main purpose is to present the excellent customer service and we strive to offer high quality dependable and innovative products through the latest technology and most advanced manufacturing methods and facilities in China.
Our product range includes:
Cable Railing System
Mainly assemble with wire rope, such as turnbuckles, tensioners, swageless terminals, ferrules and so on.
Handrail System
Accessories of handrail/balustrades, such as glass clamps, elbows, end caps, flush joiners, brackets and so on. Used for tube 33.7mm, 42.4mm, 48.3mm, and 50.8mm.
Rigging Hardware
Shackles, thimbles, spring hook, quick link, eye bolt and eye nut, U bolt, blocks and so on.
Marine hardware
Used for kinds of yachts, sailing boats and fishing boats, such as anchors, chocks, cleats, bollards, top cap and top slide, deck hinges, railing fittings, deck fillers, through hull, rod holders and so on.
Wire rope&Chain
Kinds of construction of wire rope 1X19, 1X7, 7X7, 7X19, coated wire rope are delivered upon required specification. Different standard chains such as DIN, Australian, Japanese, Korean, ASTM and NACM.
Hand tool
Crimp connection pliers, hydraulic crimping tool, bolt cutters and wire rope cutters.
Besides, our experienced engineers can develop the products and manufacture in accordance with samples, drawings or only ideas.
