North America,South America,Eastern Europe,Africa,Mid East
Reinforcement:
Spring/Spacer and Crimps
Type Of Beads:
Sintered Diamond Beads
Beads Diameter:
10.5mm 11mm or 11.5mm
Beads Per Meter:
26bpm
Steel Cable Brand:
Diepa Germany
Features:
Dry Cutting Available
Cutting Speed:
8-20m2/Hour
Cutting Life Time:
30-100m2/Lm
Saw Machine:
Quarry Wire Saw
Saw Power:
37kws-75kws
Product Description

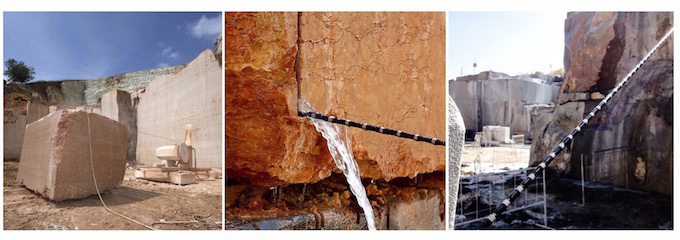

Description Diamond Wire for Marble/Limestone and Travertine Quarrying:
Diamond wire used for marble quarry which can vastly improve the exploiting efficiency and reduce the waste of quarry resource. It is safety when operation & benefit in environmental protection.
To be able to used for great area marble quarries cutting;
To greatly increase the recovery rate of marble quarry;
High manufacture efficiency;
Safety, low-noise, no-dust and friendly surroundings;
Low cutting cost.
Technical Data PARAMETERS OF KEENTOOL DIAMOND WIRE SAW FOR WET CUTTING OF MARBLE IN QUARRY:
Application
Art No.
Specification (mm)
Beads/M
Reinforcement
To be widely used for WET cutting of marble/travertine and limestone in quarries
ROC-MQ115S
¢11.5×6.5/6.0
26/28
Spring
ROC-MQ115R
¢11.5×6.5/6.0
37
Rubber
ROC-MQ110S
¢11.0×6.5/6.0
26/28
Spring
ROC-MQ110R
¢11.0×6.5/6.0
37
Rubber
ROC-MQ105S
¢10.5×6.5/6.0
26/28
Spring
ROC-MQ105R
¢10.5×6.5/6.0
37
Rubber
Cutting Material
Linear Speed (M/S)
Cutting Speed (M2/H)
Cutting Life (M2/M)
Soft
35-45
15-20
80-100
Medium
35-40
8-16
60-80
Hard
30-35
6-10
50-70
Beads Spec
Out Diameter
Length of work layer (mm)
Bead Length
Manufacture Tech
¢11.5
6.5/6.0
11
Sintered
¢11.0
6.5/6.0
11
Sintered
¢10.5
6.5/6.0
11
Sintered

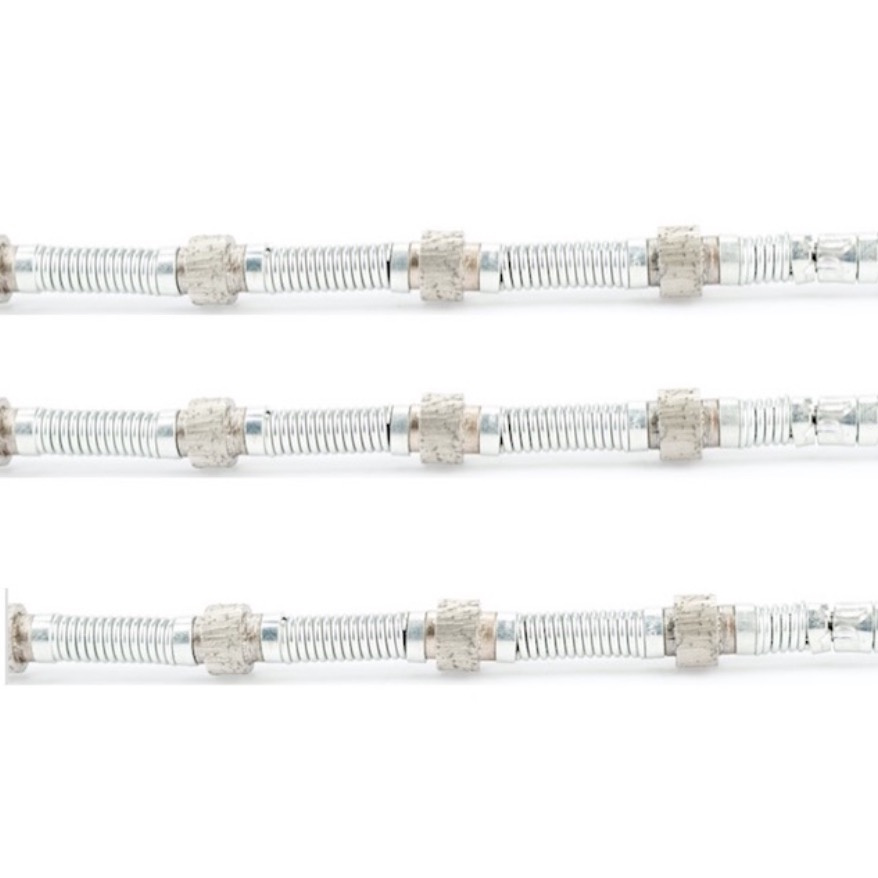

PARAMETERS OF KEENTOOL SPRING DIAMODN WIRE SAW FOR DRY CUTTING OF MARBLE IN QUARRY:
Application
Art No
Specification (mm)
Beads/M
Reinforcement
To be widely used for DRY cutting of marble/travertine and limestone in quarries
ROC-MQ115D
¢11.5×6.0
26/28
Spring
ROC-MQ110D
¢11.0×6.0
26/28
Spring
ROC-MQ105D
¢10.5×6.0
26/28
Spring
Cutting Material
Linear Speed (M/S)
Cutting Speed (M2/H)
Cutting Life (M2/M)
Soft
35-45
9-14
70-90
Medium
35-40
7-12
50-70
Hard
30-35
5-9
40-60
Beads Spec
Out Diameter
Length of work layer (mm)
Bead Length
Manufacture Tech
¢11.5
6.0
11
Sintered
¢11.0
6.0
11
Sintered
¢10.5
6.0
11
Sintered
Features of KEENTOOL WIRE:
Keentool studies the marble material to be extracted to design the best bond, number of beads per meter;
Keentool wire use the top quality steel cable from Germany
Keentool use the durability spare parts to make sure the life time of wire
Keentool specially developed the bond with super quality diamond of beads for dry cutting of marble/limestone and travertine with no water.

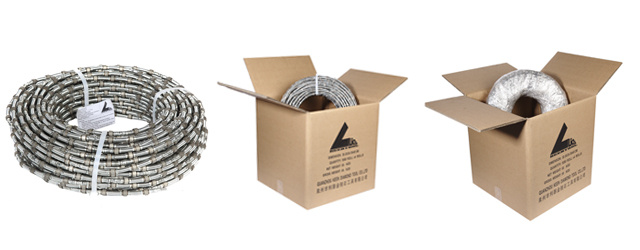

Packaging & Shipping: Packaging: Carton with water proof plastic. Meters/Roll: 50/60Meters/Roll NW: 17KG-18.5KG Sample lead time: In 3 working days. Delivery time: In 14 days for quantity of 1000 Meters diamond cutting wire. Our Services: 1. Diamond Wire Cutting Operation Training and Guidance 2. Full Consulting Service and Turnkey Solutions for the Stone Quarry
