Resolution:
720p 1.0 Mega Pixels Camera
Pixels:
PAL:1280X720 NTSC:1280X720
Chipset:
Hi3518e+Ov9712
Lens:
3.6mm
Min Illumination:
Color 0.1lux; Black/White 0.01lux.
IR-Cut:
Included
Nightvision:
36PCS IR LEDs , IR Distance: 30m
Video Process:
H.264
Frame Rate:
25fps
Material:
Metal
Technology:
Wireless
Style:
Bullet Camera
Type:
IP Camera
Sensor:
CMOS
HDMI Format:
720P
Certification:
SGS
Feature:
Vandal-proof
Effective Distance:
≧30m
Sensor Size:
1/4 inch
Remote Control:
Without Remote Control
Horizontal Resolution:
720p
Product Description

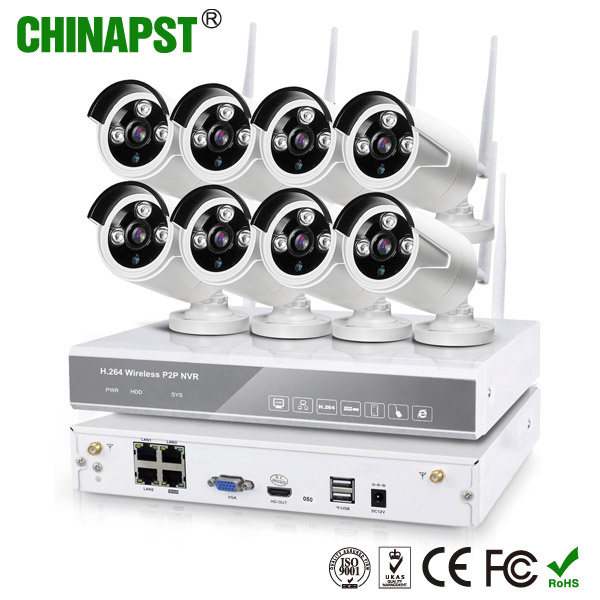

Smart Home Security 8CH P2p WiFi IP Camera NVR (PST-WIPK08AH)
APP name: Eseenet+
720P 1.0MP Wireless IP Camera 1.0MP 1/4 CMOS, Hi3518E+OV9712 Main Stream:1280×720, 25fps IR LEDs:Ф5*36PCS; 30m Standard lens:3.6mm lens 3pcs Array LEDs extra 5USD IP66, Metal, External antenna 8CH NVR with 4pcs RJ45 Port Support Iphone & Android App; Support 1*4T HDD(Extra);
1.0MP 8CH Wireless HD WIFI IP Cameras+WIFI NVR Kit
Model: PST-WIPK08AH
PST-WIPK08AH Kit Standard Package List
8CH WiFi NVR
x1
Mouse for NVR
x1
HDD Screw for NVR
x4
2A adapter for NVR
x1
CD for NVR
x1
1.0mp WIFI IP Camera
x8
1A adapter for IP Camera
x8
User Manual
x1
PST-WIPK08AH Camera Specifications
Camera
Resolution
720P 1.0 Mega Pixels camera
Pixels
PAL:1280x720 NTSC:1280x720
Chipset
Hi3518E+OV9712
Lens
3.6mm
Min illumination
Color 0.1Lux; Black/White 0.01Lux.
Night vision
IR-Cut
Included
IR Control
CDS Auto Control
Nightvision
36pcs IR LEDs , IR distance: 30m
Video process
H.264
Frame rate
25fps
Pixels
720P
Network
Network interface
RJ45 ethernet interface/WiFi
WiFi Distance
Open distance 100m
Protocol
Private network protocol
Parameter
Color
White
Material
Metal
WiFi ANT
External antenna
Power supply
DC12V 1000mA
Operating temperature
-25~60°C
Operating humidity
less than 95%RH
PST-WIPK08AH NVR Specifications
Name
HD 8CH Wireless NVR
Video
Input
8CH WiFi 720P IP Camera
Output
1*VGA,1*HDMI
Compression
H.264
Playback
Search Mode
Time, Event list,calendar search,channel search
Channel
4CH 720P
Resolution
25fps
Backup
Backup mode
Network backup/USB mobile HDD/USB Burner
USB Disk
2 USB ports;
Storage
Video save
HDD/Network
HDD
1 SATA HDD,up to 4TB; About 120G/day
Network
Ethernet
1 WAN RJ-45 port 10 / 100 Mbps Ethernet; 3 LAN RJ-45 ports support 3pcs wired IP camera connect
Protocol
TCP/IP, DHCP, DDNS, NTP, SMTP
Mobile phone
Support iPhone and Android operation system Mobile phone
APP name
Eseenet+
Cloud
Support P2P Cloud
Parameter
Material
Metal
Power supply
12V 2A (Only can use 2TB HDD, if you use 3TB or 4TB HDD, you need change to 12V 5A adapter)
Operating temperature
-10~55°C
Operating humidity
10%~90%RH
Dimension (Kit)
Weight (Kit)
6.5Kg
