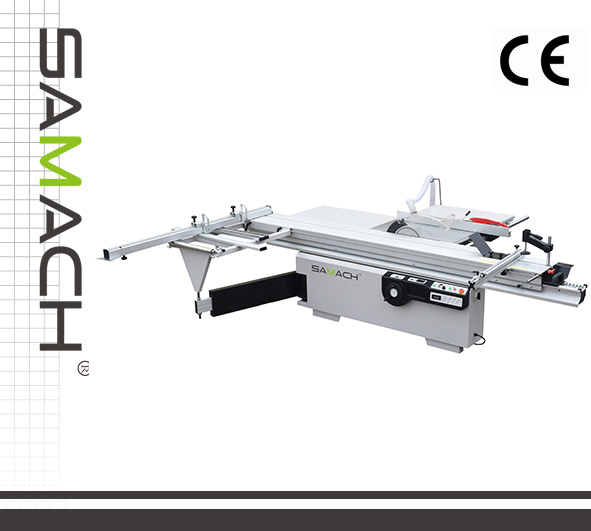

Panel Saw (RTJ45B) 3200mm Length Saw Blade 350mm 5.5kw Motor Sliding Panel Saw The machine is suitable for processing all kinds of density board and particle board,ABS board,PVC board, organic glass plate and solid wood etc., that the hardness is similar board. Specification:
1.Material dam-board: with high-precision, flexible movement and easy operation.
2. Movable workbench: it is linear steel pole guide way with high-precision, flexible and wear resistance.
3. Main saw blade and groove saw blade: angle of inclination is shown by the precision goniometer.
4. Machine core components: using pole guide way, makes the machine with high-precision and longer lifespan.
5. Control Panel: angle of inclination is shown by the precision goniometer.
6.Suction hood: Suction hood makes the machine with a reasonable structure and strong power for suction.
7.Standard parts: material dam-board, eccentric swage, material guide-board.
8.Accessory rack: is made of precision aluminum alloy material, dimensions appear intuitive, 90°quick location lock.
Parameters:
Model
RTJ45B
Main motor power
5.5KW
Scoring saw motor power
0.75KW
Diameter & thickness of main blade
305mm*2.5mm (350-250mm)
Diameter & thickness of scoring saw blade
120mm*2.5-3.5mm
Diameter of main sawspindle
30mm
Diameter of scoring saw spindle
20mm
Speed of main sawspindle
4500,6000rpm
Speed of scroing sawspindle
7000rpm
Saw blade tilting angel
45°~90°
Max height of cutting
3200mm
Max thickness of cutting
(350)107mm/75mm
Worktable height
870mm
Worktable size
900mm*570mm
Auxiliary worktable size
900*710mm
Front auxiliary worktable size
570*1000mm
Sliding table size
3200mm*375mm
Dust inlet size
φ100
Net weight
605 kg(650 with big cover)
Packing size of main engine
2080*1100*1010mm
Packing size of sliding table
3400*420*280mm
