Home Toolbuy Products Single/Multi Rip Saw Ripsaw Machine/Woodworking Machine (VH-MJ153)

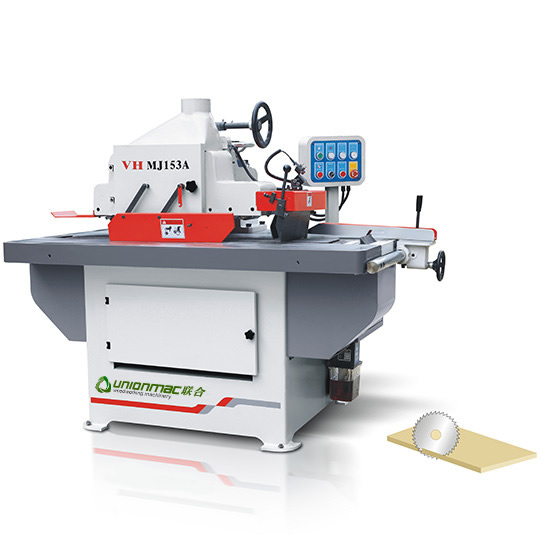

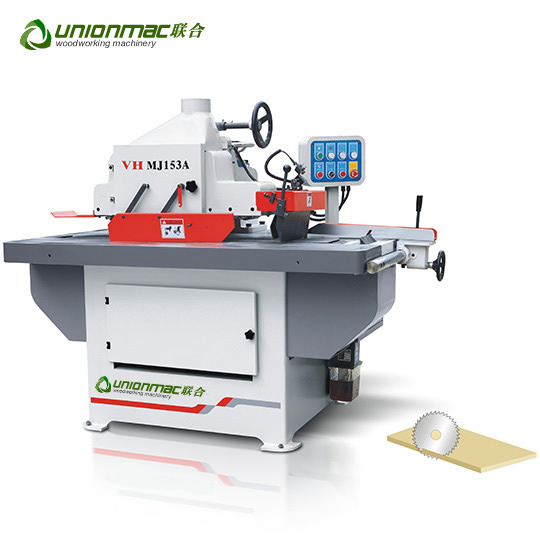

Single/Multi Rip Saw Ripsaw Machine/Woodworking Machine (VH-MJ153)

Single/Multi Rip Saw Ripsaw Machine/Woodworking Machine (VH-MJ153)
Price: US $ 3300-3900/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: VH-MJ153
Type: Rip Saw
Layout: Vertical
Controlling Mode: Artificial
Automatic Grade: Automatic
Precision: Precision
Certification: ISO

Product Description

SPECIFICATION AND MODELMJ153A
Max. Saw blade diameter (mm)Φ 305
Max. working thickness (mm)85
Cutting width (mm)360
Main spindle revolution (r/min)3300
Spindle diameter (mm)Φ 50.8
Feeding speed (m/min)12-22
Feeding motor power (kw)0.75
Main motor power (kg)7.5
Lubricate pump motor power (w)20
Total power (kw)8.6
Working tabie sizer (mm)1550x715
Dimension (mm)1750x945x1400
Net weight (kg)920

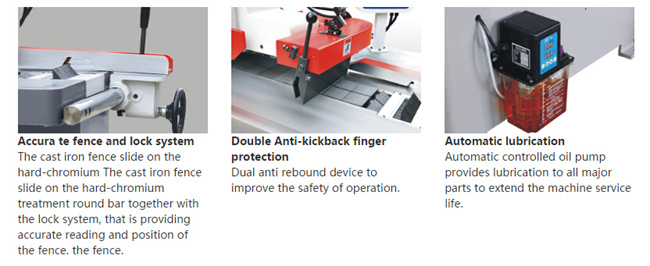

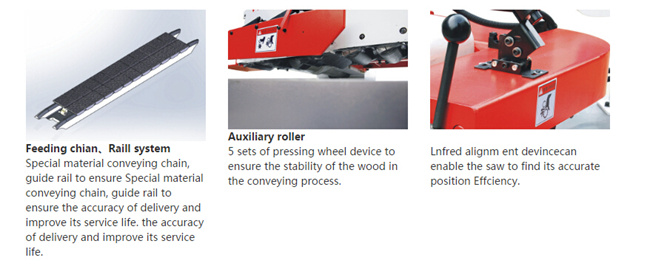

Chain plates, guideways using special materials and special refining process. Rail high hardness, good wear resistance.Microcomputer control, automatic lubrication pump for chain plates, key parts of the fixed rail, the point when the quantitative supply, ensure the life of the machine.Multiple anti-kickback device and a transparent side guards to prevent the edge of the skin, flakes flew rebound wounding.Specially designed bilaterally by foot, to facilitate users to exchange used to prevent track link long-term impact of the use of unilateral precision machining.

1.Company proflie
Unionmac woodworking machinery co., Ltd. ,Situated in lunjiao town,Shunde district of Foshan city, the biggest woodworking machinery production base as well as "the chinese leading woodworking machinery town". We are professional in providing Chinese leading woodworking machinery products, whole-factory solutions and excellent services. Now, we are engaged in offering woodworking machinery,

Our company has own professional technical team to make sure the perfect import and export service system run well. With years of experience, we have established long and strong business relationships with more than10 professional distributors all over the world. We are the sole buying agent of customers from Russia, the Middle East, South Africa and Brazil. We always welcome partners to join us and develop the business together. Under the guideline of "High Class Service", we would like to continue providing the best service for customers who need machinery. In accordance with the principle of mutual benefit, we are going to have a pleasant corporation.

2.Our service

Pre-sale services

1> Provide the free consultation of the equipment

2> Provide the standard device and the flow chart

3> According to the clients' special requirement, we offer the reasonable plan

      and free design helping to selecthe equipment.

4> Welcome to visit our factory

Services during the sales

1> Inspect the machine before leaving the factory.

2> Oversea instal and debug the equipment.

3> Train the first-line operator.

After sale services

1> 24 hours online service

2> Provide the VIDEO with Install and debug the equipment

3> Provide technical exchanging

3.FAQ

 List some questions below we think you may want to know, if you have more doubts, we are right here to help you.

1, Can we visit your planer thicknesser factory?
We do welcome our new and regular friends come here to have a visit. Besides, we would send you our relative information to promote a face-to-face meeting if you'd like to.

2, What's your warranty of your products?
Our machines have best quality and its warranty is 1 year.

3, How about your after-sale service?
Our engineers are available to service overseas to provide professional technical support.

4, What's your payment term?
30% advance payment and the balance payment should be paid before delivery but after inspection.

5, What's your warranty?

---In 12 months.

6, What's youe lead time?

---In 15 to 30 working days.

7, What's your delivery term?

---FOB Guangzhou  China usually, also can be CIF/DDU/DDP to your side if you need.




Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
